Training Loss Curve — Seaborn

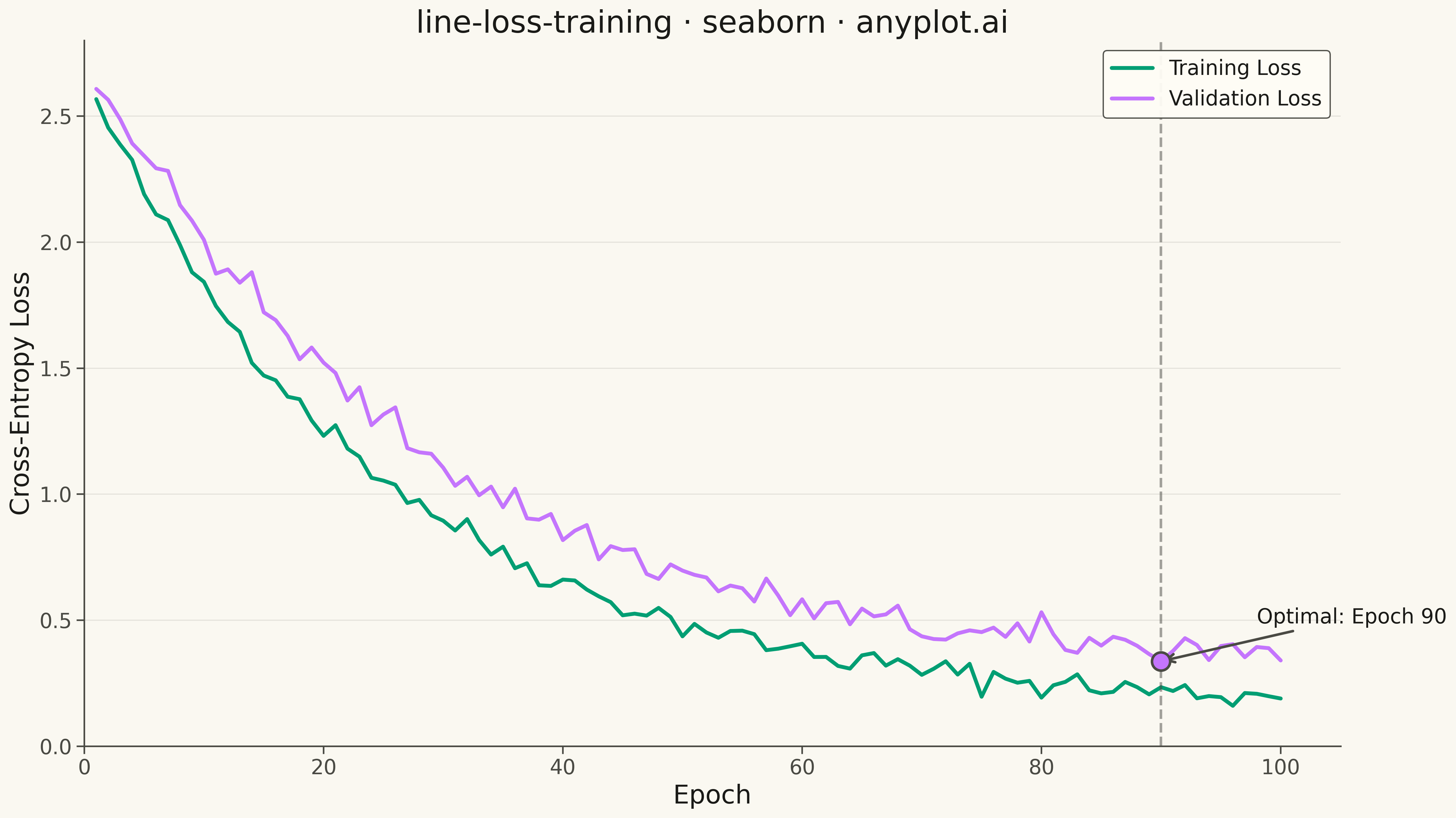

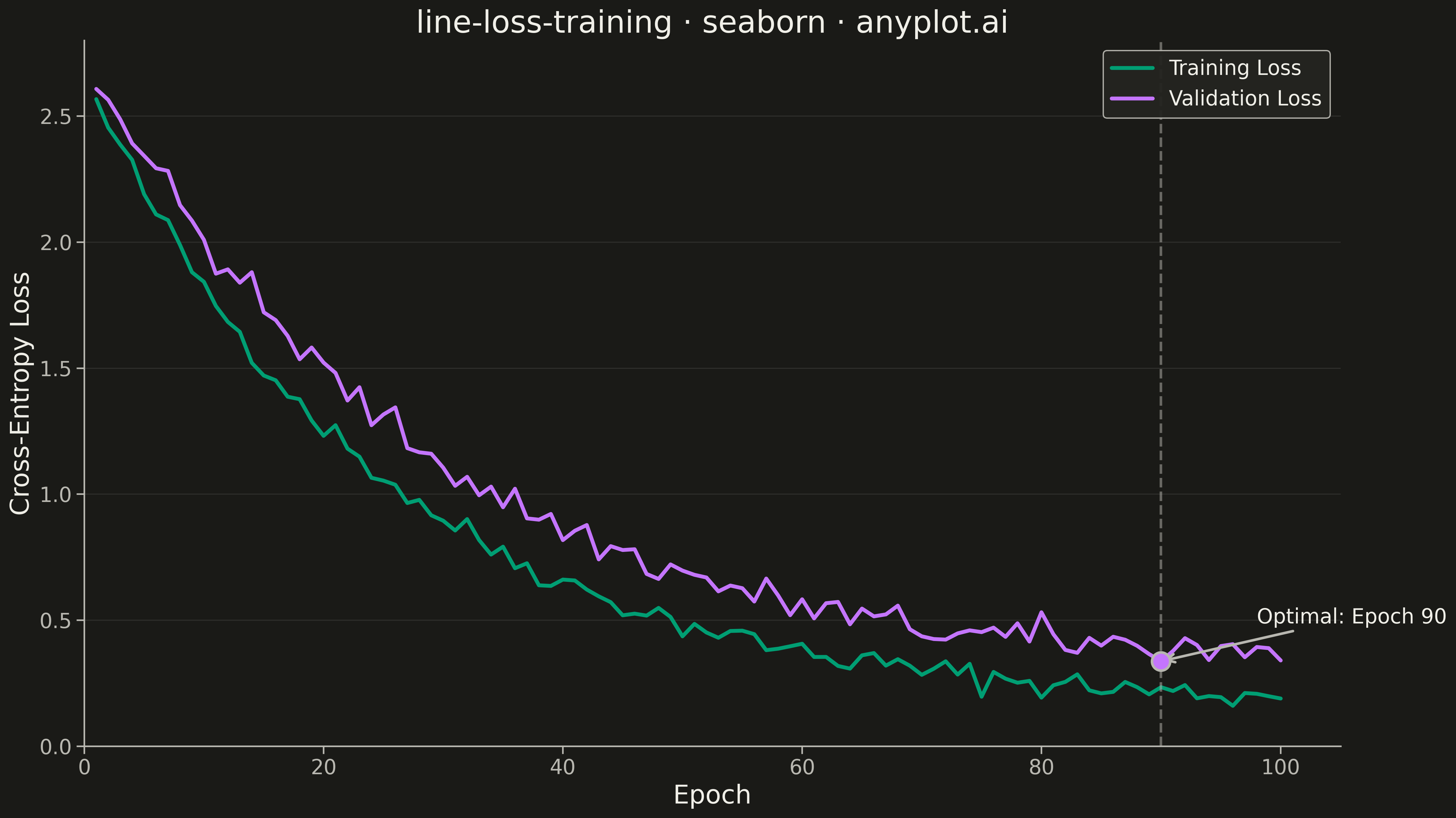

A line plot showing training and validation loss curves over epochs during neural network training. This visualization is essential for monitoring model training, detecting overfitting (when validation loss diverges from training loss), and determining optimal early stopping points. The dual-curve display reveals the gap between training and generalization performance.

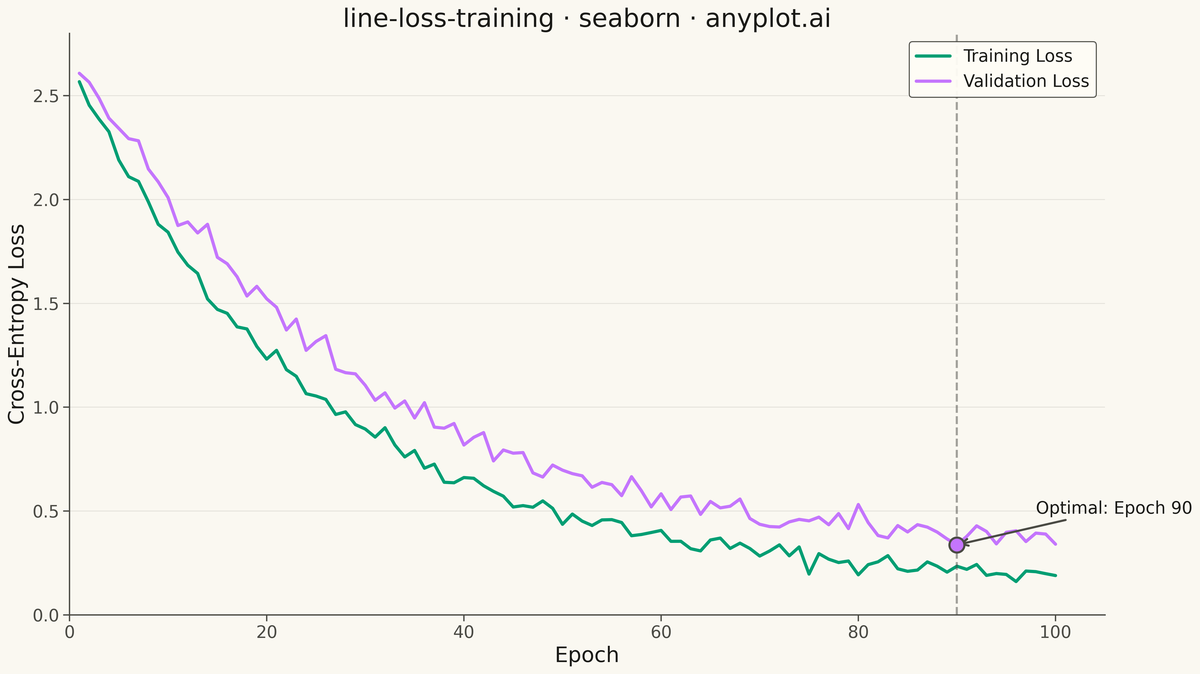

Training Loss Curve rendered with Seaborn

Python source (Seaborn)

""" anyplot.ai
line-loss-training: Training Loss Curve
Library: seaborn 0.13.2 | Python 3.13.13
Quality: 91/100 | Updated: 2026-05-14
"""

import os

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette
BRAND = "#009E73"  # Training loss - first series
ACCENT = "#C475FD"  # Validation loss - second series

# Data - simulate realistic neural network training loss curves
np.random.seed(42)
epochs = np.arange(1, 101)

# Training loss: exponential decay with some noise
train_loss = 2.5 * np.exp(-0.04 * epochs) + 0.15 + np.random.normal(0, 0.03, len(epochs))
train_loss = np.clip(train_loss, 0.1, 3.0)

# Validation loss: similar decay but plateaus earlier and shows slight overfitting
val_loss = 2.5 * np.exp(-0.035 * epochs) + 0.25 + np.random.normal(0, 0.04, len(epochs))
# Add slight overfitting after epoch 70
val_loss[69:] = val_loss[69:] + 0.002 * (epochs[69:] - 70)
val_loss = np.clip(val_loss, 0.15, 3.0)

# Find optimal epoch (minimum validation loss)
optimal_epoch = epochs[np.argmin(val_loss)]
optimal_val_loss = val_loss.min()

# Create DataFrame for seaborn
df = pd.DataFrame(
    {
        "Epoch": np.tile(epochs, 2),
        "Loss": np.concatenate([train_loss, val_loss]),
        "Type": ["Training Loss"] * len(epochs) + ["Validation Loss"] * len(epochs),
    }
)

# Set theme and style
sns.set_theme(
    style="ticks",
    rc={
        "figure.facecolor": PAGE_BG,
        "axes.facecolor": PAGE_BG,
        "axes.edgecolor": INK_SOFT,
        "axes.labelcolor": INK,
        "text.color": INK,
        "xtick.color": INK_SOFT,
        "ytick.color": INK_SOFT,
        "grid.color": INK,
        "grid.alpha": 0.10,
        "legend.facecolor": ELEVATED_BG,
        "legend.edgecolor": INK_SOFT,
    },
)

# Plot
fig, ax = plt.subplots(figsize=(16, 9))

# Use seaborn lineplot with hue for dual curves
sns.lineplot(data=df, x="Epoch", y="Loss", hue="Type", palette=[BRAND, ACCENT], linewidth=3, ax=ax)

# Mark optimal stopping point
ax.axvline(x=optimal_epoch, color=INK_SOFT, linestyle="--", linewidth=2, alpha=0.5)
ax.scatter([optimal_epoch], [optimal_val_loss], s=200, color=ACCENT, zorder=5, edgecolor=INK_SOFT, linewidth=2)
ax.annotate(
    f"Optimal: Epoch {optimal_epoch}",
    xy=(optimal_epoch, optimal_val_loss),
    xytext=(optimal_epoch + 8, optimal_val_loss + 0.15),
    fontsize=16,
    color=INK,
    arrowprops={"arrowstyle": "->", "color": INK_SOFT, "lw": 2},
)

# Style
ax.set_xlabel("Epoch", fontsize=20, color=INK)
ax.set_ylabel("Cross-Entropy Loss", fontsize=20, color=INK)
ax.set_title("line-loss-training · seaborn · anyplot.ai", fontsize=24, color=INK)
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT)

# Remove top and right spines
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
for spine in ("left", "bottom"):
    ax.spines[spine].set_color(INK_SOFT)

# Grid - y-axis only
ax.yaxis.grid(True, alpha=0.10, linewidth=0.8)
ax.xaxis.grid(False)

# Customize legend
ax.legend(fontsize=16, loc="upper right", framealpha=0.95)

# Set axis limits
ax.set_xlim(0, 105)
ax.set_ylim(0, 2.8)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)

Part of Training Loss Curve on anyplot.ai.
