Precision-Recall Curve — Seaborn

A Precision-Recall curve plots precision (positive predictive value) against recall (sensitivity) at various classification thresholds. This visualization is essential for evaluating binary classifiers on imbalanced datasets where accuracy alone is misleading. The area under the curve (Average Precision) summarizes classifier performance, with higher values indicating better performance.

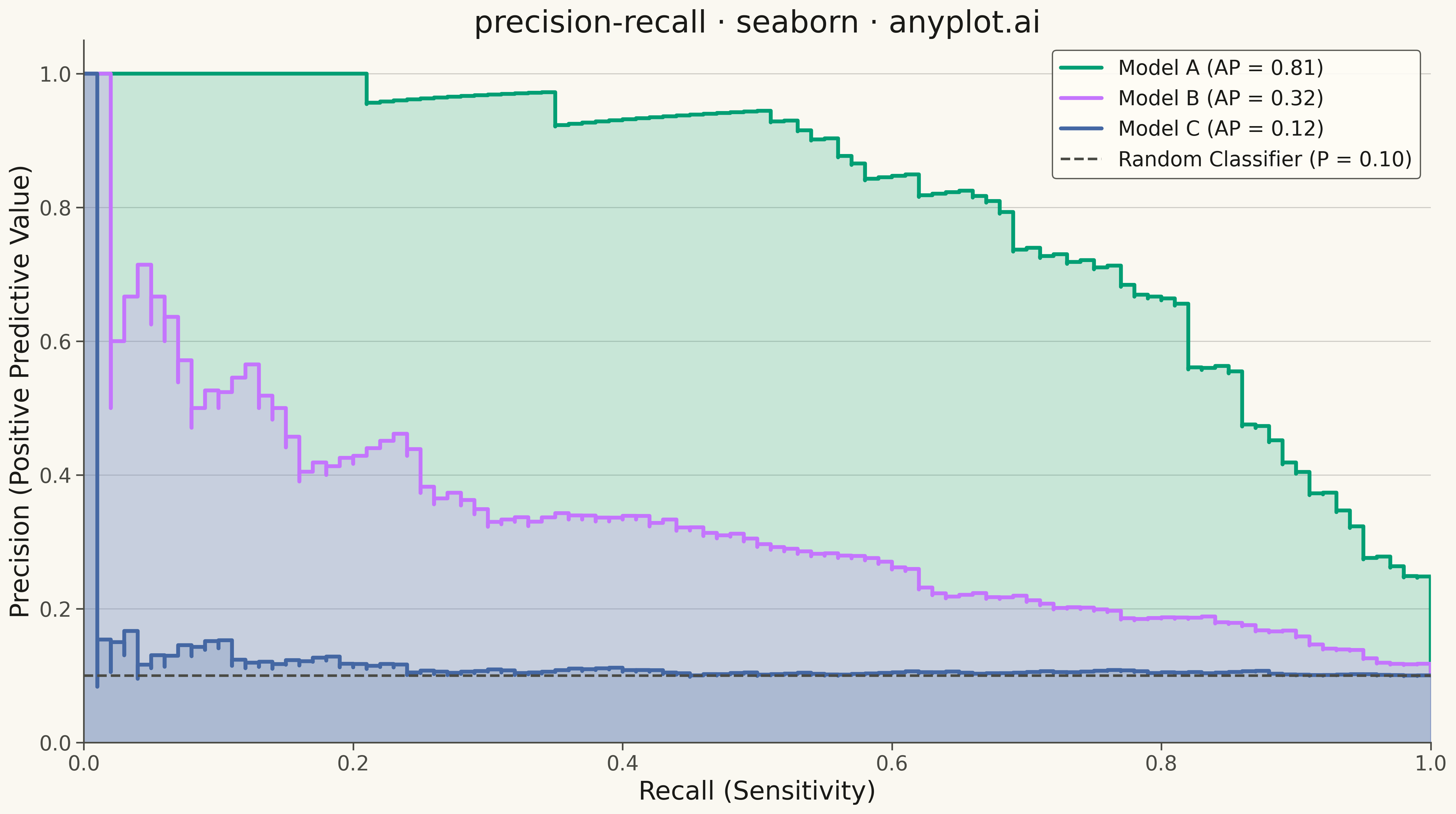

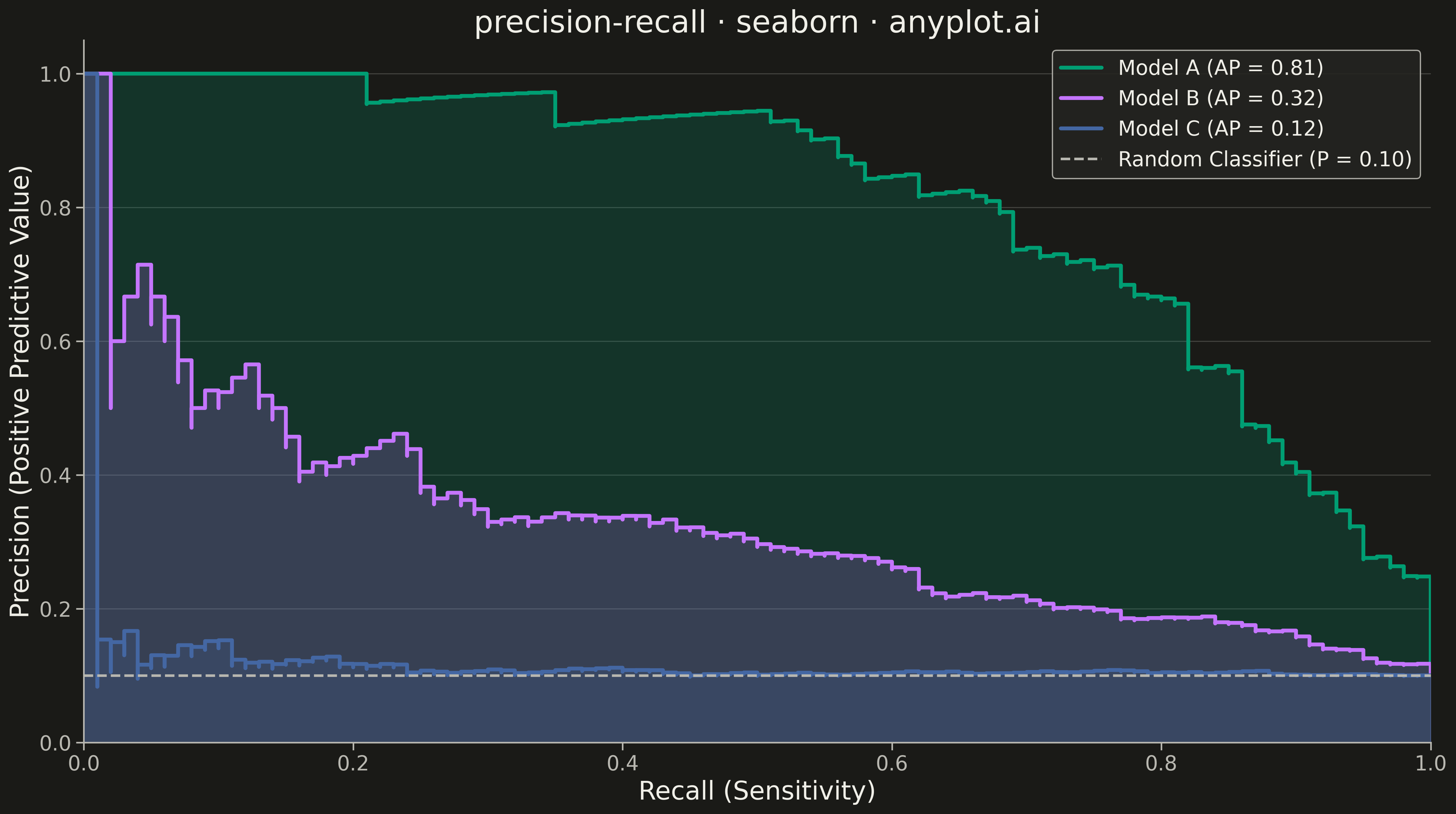

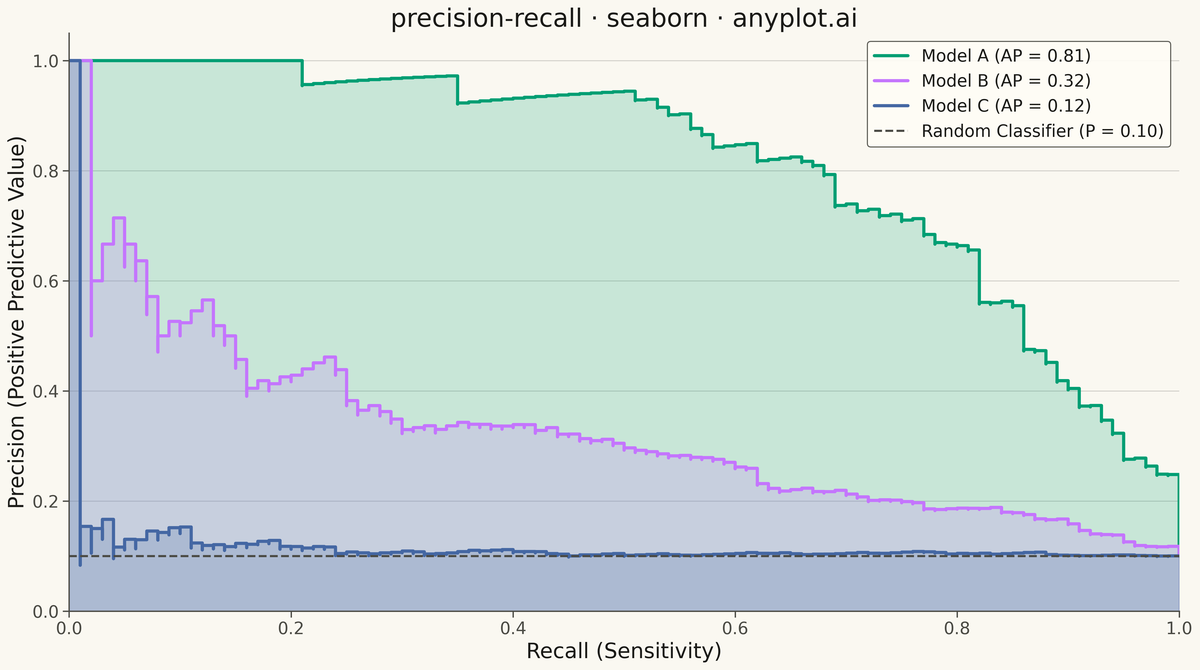

Precision-Recall Curve rendered with Seaborn

Python source (Seaborn)

""" anyplot.ai
precision-recall: Precision-Recall Curve
Library: seaborn 0.13.2 | Python 3.13.13
Quality: 92/100 | Updated: 2026-05-10
"""

import os
import sys

import matplotlib.pyplot as plt
import numpy as np


# Remove local directory from path to avoid shadowing library imports
sys.path = [p for p in sys.path if not p.endswith("/python")]

import seaborn as sns
from sklearn.metrics import average_precision_score, precision_recall_curve


THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD"]

sns.set_theme(
    style="ticks",
    rc={
        "figure.facecolor": PAGE_BG,
        "axes.facecolor": PAGE_BG,
        "axes.edgecolor": INK_SOFT,
        "axes.labelcolor": INK,
        "text.color": INK,
        "xtick.color": INK_SOFT,
        "ytick.color": INK_SOFT,
        "grid.color": INK,
        "grid.alpha": 0.10,
        "legend.facecolor": ELEVATED_BG,
        "legend.edgecolor": INK_SOFT,
    },
)

# Data - Simulate binary classification with imbalanced classes (fraud detection scenario)
np.random.seed(42)
n_samples = 1000
n_positive = 100  # 10% positive class (imbalanced)

# Ground truth labels
y_true = np.zeros(n_samples)
y_true[:n_positive] = 1
np.random.shuffle(y_true)

# Simulate classifier scores - better separation for positives
y_scores_good = np.where(
    y_true == 1,
    np.random.beta(5, 2, n_samples),  # Positives: higher scores
    np.random.beta(2, 5, n_samples),  # Negatives: lower scores
)

y_scores_moderate = np.where(
    y_true == 1,
    np.random.beta(3, 2, n_samples),  # Positives: moderately higher
    np.random.beta(2, 3, n_samples),  # Negatives: moderately lower
)

y_scores_poor = np.where(
    y_true == 1,
    np.random.beta(2, 2, n_samples),  # Positives: similar to negatives
    np.random.beta(2, 2, n_samples),  # Negatives: similar to positives
)

# Calculate precision-recall curves
precision_good, recall_good, _ = precision_recall_curve(y_true, y_scores_good)
precision_moderate, recall_moderate, _ = precision_recall_curve(y_true, y_scores_moderate)
precision_poor, recall_poor, _ = precision_recall_curve(y_true, y_scores_poor)

# Average precision scores
ap_good = average_precision_score(y_true, y_scores_good)
ap_moderate = average_precision_score(y_true, y_scores_moderate)
ap_poor = average_precision_score(y_true, y_scores_poor)

# Baseline (random classifier)
baseline = n_positive / n_samples

# Create plot
fig, ax = plt.subplots(figsize=(16, 9))

# Plot PR curves using seaborn's lineplot style with step interpolation
# Good classifier
ax.step(
    recall_good, precision_good, where="post", linewidth=3, color=IMPRINT[0], label=f"Model A (AP = {ap_good:.2f})"
)
ax.fill_between(recall_good, precision_good, step="post", alpha=0.2, color=IMPRINT[0])

# Moderate classifier
ax.step(
    recall_moderate,
    precision_moderate,
    where="post",
    linewidth=3,
    color=IMPRINT[1],
    label=f"Model B (AP = {ap_moderate:.2f})",
)
ax.fill_between(recall_moderate, precision_moderate, step="post", alpha=0.2, color=IMPRINT[1])

# Poor classifier
ax.step(
    recall_poor, precision_poor, where="post", linewidth=3, color=IMPRINT[2], label=f"Model C (AP = {ap_poor:.2f})"
)
ax.fill_between(recall_poor, precision_poor, step="post", alpha=0.2, color=IMPRINT[2])

# Baseline reference line
ax.axhline(y=baseline, linestyle="--", linewidth=2, color=INK_SOFT, label=f"Random Classifier (P = {baseline:.2f})")

# Styling with seaborn aesthetics
ax.set_xlabel("Recall (Sensitivity)", fontsize=20)
ax.set_ylabel("Precision (Positive Predictive Value)", fontsize=20)
ax.set_title("precision-recall · seaborn · anyplot.ai", fontsize=24)
ax.tick_params(axis="both", labelsize=16)

# Set axis limits
ax.set_xlim([0.0, 1.0])
ax.set_ylim([0.0, 1.05])

# Legend
ax.legend(loc="upper right", fontsize=16, frameon=True, fancybox=True, framealpha=0.9)

# Grid styling
ax.yaxis.grid(True, alpha=0.2, linewidth=0.8)
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)

Part of Precision-Recall Curve on anyplot.ai.
