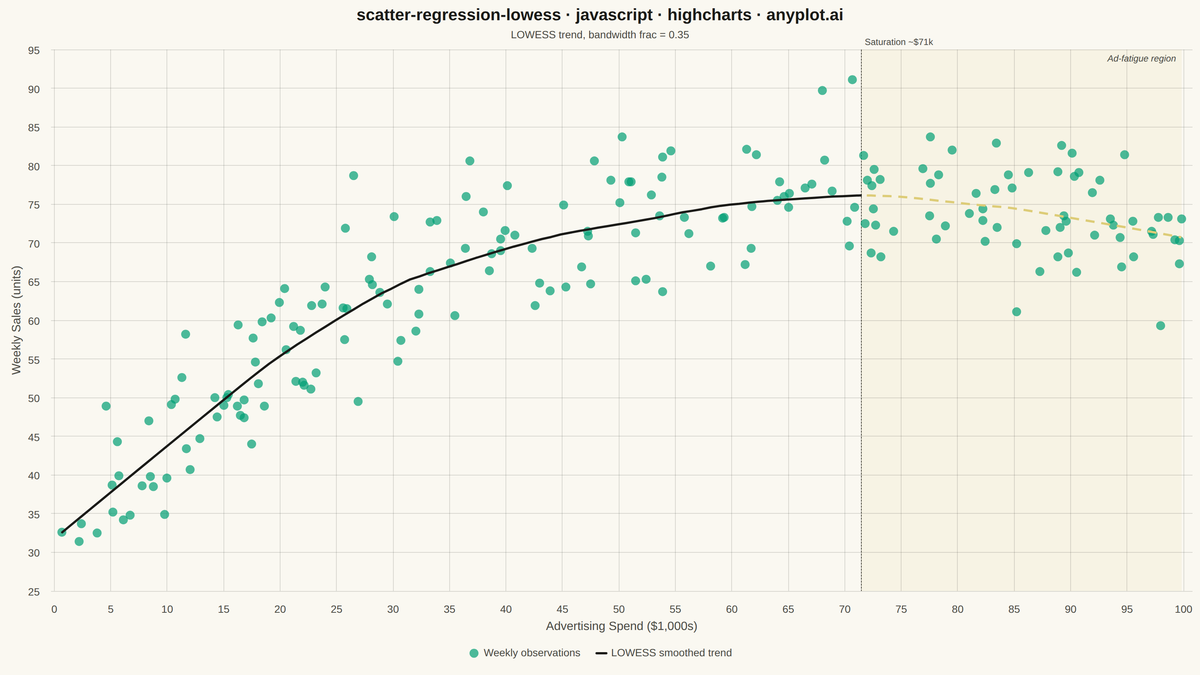

A scatter plot with a LOWESS (Locally Weighted Scatterplot Smoothing) regression curve overlaid. LOWESS is a non-parametric method that fits smooth curves by performing local weighted regressions at each point, adapting to local data patterns without assuming a specific functional form. This makes it ideal for exploring complex relationships where the underlying pattern is unknown or varies across the data range.
// anyplot.ai
// scatter-regression-lowess: Scatter Plot with LOWESS Regression
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 92/100 | Created: 2026-09-09
const t = window.ANYPLOT_TOKENS;
// --- Reproducible PRNG (LCG + Box-Muller for gaussian noise) ---------------
let lcgState = 20260909;
function uniform() {
lcgState = (1664525 * lcgState + 1013904223) >>> 0;
return lcgState / 4294967296;
}
function gaussian(mean, std) {
const u1 = Math.max(uniform(), 1e-9);
const u2 = uniform();
const z = Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
return mean + std * z;
}
// --- Data: ad-spend saturation curve with fatigue dip -----------------------
// Weekly sales response to advertising spend: steep early gains, diminishing
// returns as spend saturates the audience, then a mild ad-fatigue decline —
// a non-monotonic relationship no single parametric curve captures cleanly.
const POINT_COUNT = 200;
const adSpend = [];
const weeklySales = [];
for (let i = 0; i < POINT_COUNT; i++) {
const spend = uniform() * 100;
const saturation = 22 + 58 * (1 - Math.exp(-spend / 22));
const fatigue = spend > 65 ? 0.22 * (spend - 65) : 0;
const sales = saturation - fatigue + gaussian(0, 5.5);
adSpend.push(Math.round(spend * 10) / 10);
weeklySales.push(Math.round(Math.max(sales, 0) * 10) / 10);
}
// --- LOWESS smoothing (local weighted linear regression) -------------------
// Tricube-weighted local linear fit evaluated on a dense grid across the
// x-range; frac controls the neighborhood fraction used at each grid point.
function tricube(u) {
return u < 1 ? Math.pow(1 - Math.pow(u, 3), 3) : 0;
}
function lowess(xs, ys, frac, gridSize) {
const n = xs.length;
const neighbors = Math.max(2, Math.round(frac * n));
const xMin = Math.min(...xs);
const xMax = Math.max(...xs);
const fitted = [];
for (let g = 0; g < gridSize; g++) {
const xg = xMin + ((xMax - xMin) * g) / (gridSize - 1);
const distances = xs.map((xi) => Math.abs(xi - xg)).sort((a, b) => a - b);
const bandwidth = Math.max(distances[neighbors - 1], 1e-6);
let s0 = 0;
let s1 = 0;
let s2 = 0;
let sy = 0;
let sxy = 0;
for (let i = 0; i < n; i++) {
const w = tricube(Math.abs(xs[i] - xg) / bandwidth);
if (w === 0) continue;
s0 += w;
s1 += w * xs[i];
s2 += w * xs[i] * xs[i];
sy += w * ys[i];
sxy += w * xs[i] * ys[i];
}
const denom = s0 * s2 - s1 * s1;
const slope = denom !== 0 ? (s0 * sxy - s1 * sy) / denom : 0;
const intercept = (sy - slope * s1) / s0;
fitted.push([xg, intercept + slope * xg]);
}
return fitted;
}
const lowessCurve = lowess(adSpend, weeklySales, 0.35, 120);
// --- Story markers: find where the LOWESS curve peaks (saturation point) ---
// then declines (ad fatigue) — drive the zone/band thresholds from the fitted
// curve itself rather than a hard-coded spend value.
const xMax = Math.max(...adSpend);
let peakIndex = 0;
for (let i = 1; i < lowessCurve.length; i++) {
if (lowessCurve[i][1] > lowessCurve[peakIndex][1]) peakIndex = i;
}
const peakX = lowessCurve[peakIndex][0];
// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
chart: {
type: "scatter",
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
colors: t.palette,
title: {
text: "scatter-regression-lowess · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
subtitle: {
text: "LOWESS trend, bandwidth frac = 0.35",
style: { color: t.inkSoft, fontSize: "14px" },
},
xAxis: {
title: {
text: "Advertising Spend ($1,000s)",
style: { color: t.inkSoft, fontSize: "16px" },
},
lineWidth: 0,
tickWidth: 0,
gridLineColor: t.grid,
gridLineWidth: 1,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
plotBands: [
{
from: peakX,
to: xMax,
color: Highcharts.color(t.amber).setOpacity(0.1).get("rgba"),
label: {
text: "Ad-fatigue region",
align: "right",
x: -8,
y: 16,
style: { color: t.inkSoft, fontSize: "12px", fontStyle: "italic" },
},
},
],
plotLines: [
{
value: peakX,
color: t.inkSoft,
width: 1,
dashStyle: "ShortDash",
label: {
text: `Saturation ~$${Math.round(peakX)}k`,
rotation: 0,
y: -6,
style: { color: t.inkSoft, fontSize: "12px" },
},
},
],
},
yAxis: {
title: {
text: "Weekly Sales (units)",
style: { color: t.inkSoft, fontSize: "16px" },
},
lineWidth: 0,
tickWidth: 0,
gridLineColor: t.grid,
gridLineWidth: 1,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
},
legend: {
enabled: true,
itemStyle: { color: t.inkSoft, fontSize: "14px" },
itemHoverStyle: { color: t.ink },
},
plotOptions: {
series: { animation: false },
scatter: {
marker: {
radius: 6,
fillColor: Highcharts.color(t.palette[0]).setOpacity(0.7).get("rgba"),
lineWidth: 0,
},
states: { hover: { halo: { size: 0 } } },
},
},
tooltip: {
pointFormat: "Spend: <b>${point.x}k</b><br/>Sales: <b>{point.y}</b> units",
},
series: [
{
type: "scatter",
name: "Weekly observations",
data: adSpend.map((x, i) => [x, weeklySales[i]]),
color: t.palette[0],
},
{
type: "line",
name: "LOWESS smoothed trend",
data: lowessCurve,
color: t.ink,
lineWidth: 3,
marker: { enabled: false },
enableMouseTracking: false,
zoneAxis: "x",
zones: [
{ value: peakX, color: t.ink },
{ color: t.amber, dashStyle: "Dash" },
],
},
],
});
