Scatter Plot with LOWESS Regression — Bokeh

A scatter plot with a LOWESS (Locally Weighted Scatterplot Smoothing) regression curve overlaid. LOWESS is a non-parametric method that fits smooth curves by performing local weighted regressions at each point, adapting to local data patterns without assuming a specific functional form. This makes it ideal for exploring complex relationships where the underlying pattern is unknown or varies across the data range.

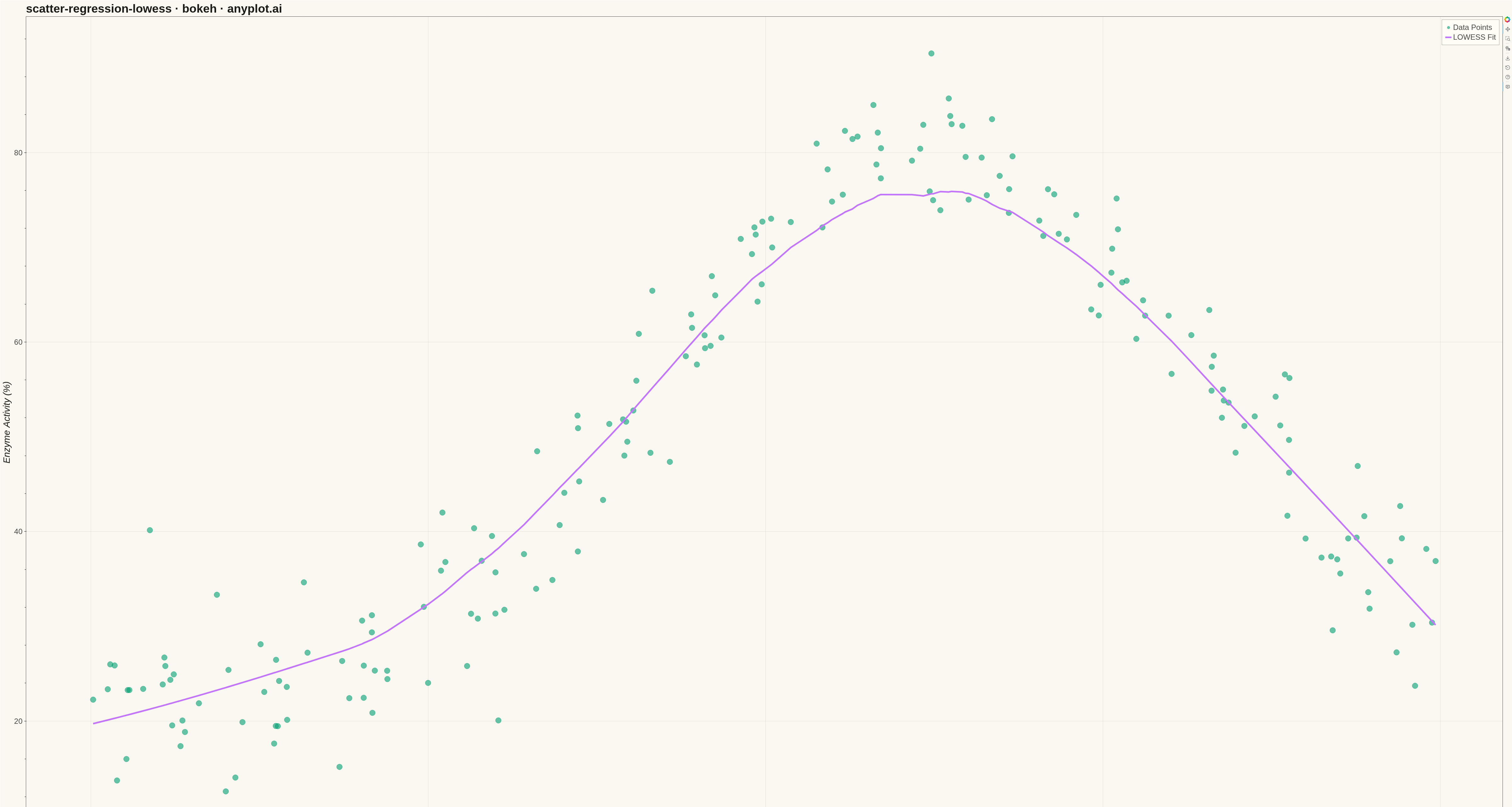

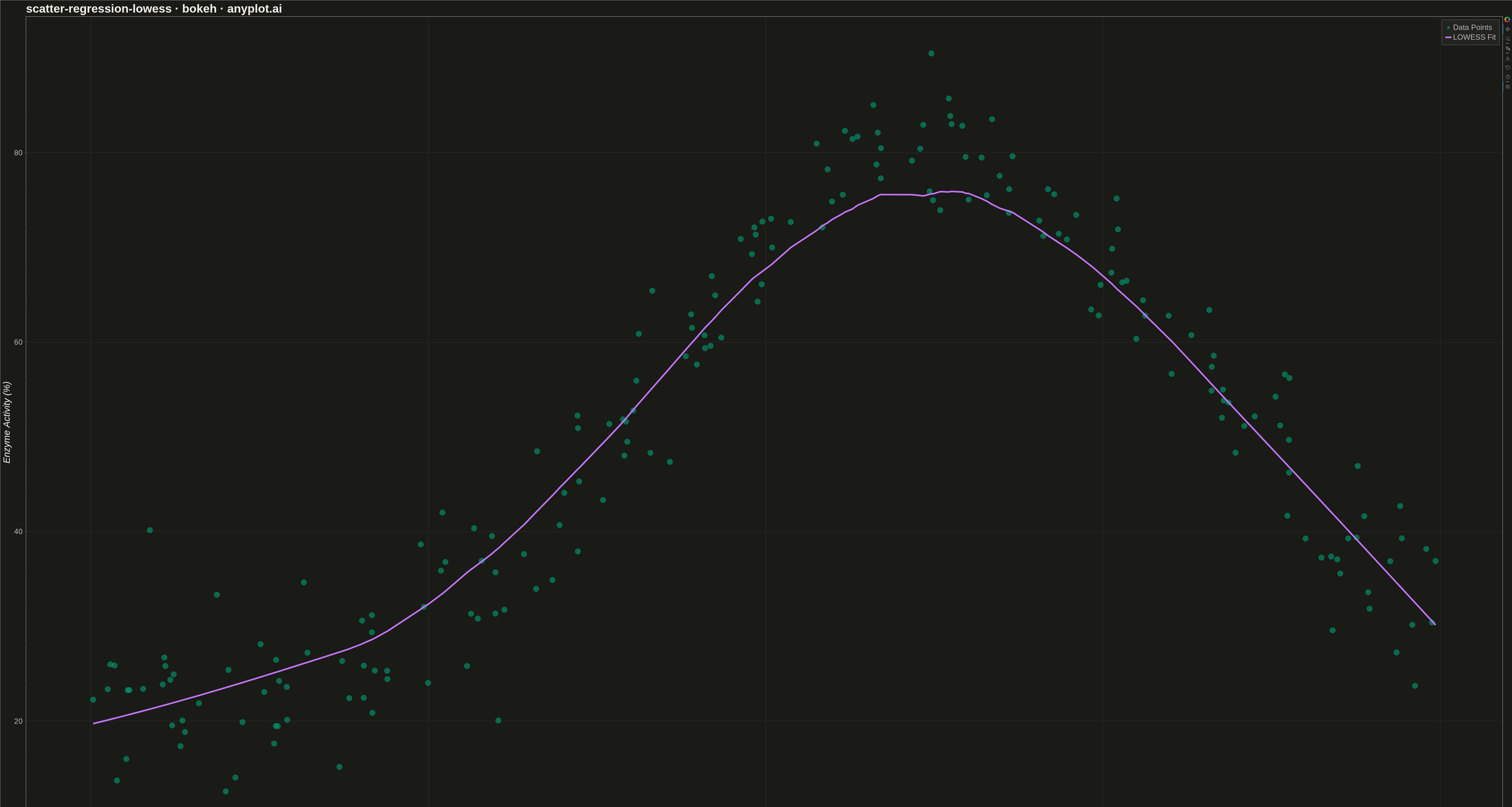

Scatter Plot with LOWESS Regression rendered with Bokeh

Python source (Bokeh)

""" anyplot.ai
scatter-regression-lowess: Scatter Plot with LOWESS Regression
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-14
"""

import os
import time
from pathlib import Path

import numpy as np
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, HoverTool
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
from statsmodels.nonparametric.smoothers_lowess import lowess


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

BRAND = "#009E73"  # Okabe-Ito position 1
ACCENT = "#C475FD"  # Okabe-Ito position 2 for LOWESS curve

# Data: Simulate a complex non-linear relationship (e.g., temperature vs enzyme activity)
np.random.seed(42)
n = 200

# Create x values (temperature in Celsius)
x = np.linspace(10, 50, n) + np.random.normal(0, 1, n)
x = np.sort(x)

# Create y with complex non-linear relationship (enzyme activity %)
# Activity increases, peaks around 35°C, then decreases (typical enzyme behavior)
y_true = 20 + 60 * np.exp(-0.5 * ((x - 35) / 8) ** 2)
y = y_true + np.random.normal(0, 5, n)

# Calculate LOWESS regression
lowess_result = lowess(y, x, frac=0.4)
x_lowess = lowess_result[:, 0]
y_lowess = lowess_result[:, 1]

# Create figure
p = figure(
    width=4800,
    height=2700,
    title="scatter-regression-lowess · bokeh · anyplot.ai",
    x_axis_label="Temperature (°C)",
    y_axis_label="Enzyme Activity (%)",
)

# Scatter points with HoverTool
source_scatter = ColumnDataSource(data={"x": x, "y": y})
scatter = p.scatter(x="x", y="y", source=source_scatter, size=18, color=BRAND, alpha=0.6, legend_label="Data Points")

# Add hover tool for interactivity
hover = HoverTool(tooltips=[("Temperature", "@x{0.0}°C"), ("Activity", "@y{0.0}%")], renderers=[scatter])
p.add_tools(hover)

# LOWESS curve
source_lowess = ColumnDataSource(data={"x": x_lowess, "y": y_lowess})
p.line(x="x", y="y", source=source_lowess, line_width=5, color=ACCENT, legend_label="LOWESS Fit")

# Styling - larger text for 4800x2700 canvas
p.title.text_font_size = "28pt"
p.title.text_color = INK
p.xaxis.axis_label_text_font_size = "22pt"
p.yaxis.axis_label_text_font_size = "22pt"
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_color = INK
p.xaxis.major_label_text_font_size = "18pt"
p.yaxis.major_label_text_font_size = "18pt"
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_color = INK_SOFT

# Grid styling - solid, subtle
p.xgrid.grid_line_color = INK
p.ygrid.grid_line_color = INK
p.xgrid.grid_line_alpha = 0.10
p.ygrid.grid_line_alpha = 0.10

# Background and border colors
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = INK_SOFT

# Axis styling
p.xaxis.axis_line_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
p.xaxis.major_tick_line_color = INK_SOFT
p.yaxis.major_tick_line_color = INK_SOFT

# Legend styling - increased size for canvas scale
p.legend.label_text_font_size = "18pt"
p.legend.label_text_color = INK_SOFT
p.legend.background_fill_color = ELEVATED_BG
p.legend.border_line_color = INK_SOFT
p.legend.location = "top_right"

# Save HTML output
output_file(f"plot-{THEME}.html")
save(p)

# Screenshot with headless Chrome using Selenium
W, H = 4800, 2700
opts = Options()
for arg in (
    "--headless=new",
    "--no-sandbox",
    "--disable-dev-shm-usage",
    "--disable-gpu",
    f"--window-size={W},{H}",
    "--hide-scrollbars",
):
    opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()

Part of Scatter Plot with LOWESS Regression on anyplot.ai.
