Scatter Plot with LOWESS Regression — lets-plot

A scatter plot with a LOWESS (Locally Weighted Scatterplot Smoothing) regression curve overlaid. LOWESS is a non-parametric method that fits smooth curves by performing local weighted regressions at each point, adapting to local data patterns without assuming a specific functional form. This makes it ideal for exploring complex relationships where the underlying pattern is unknown or varies across the data range.

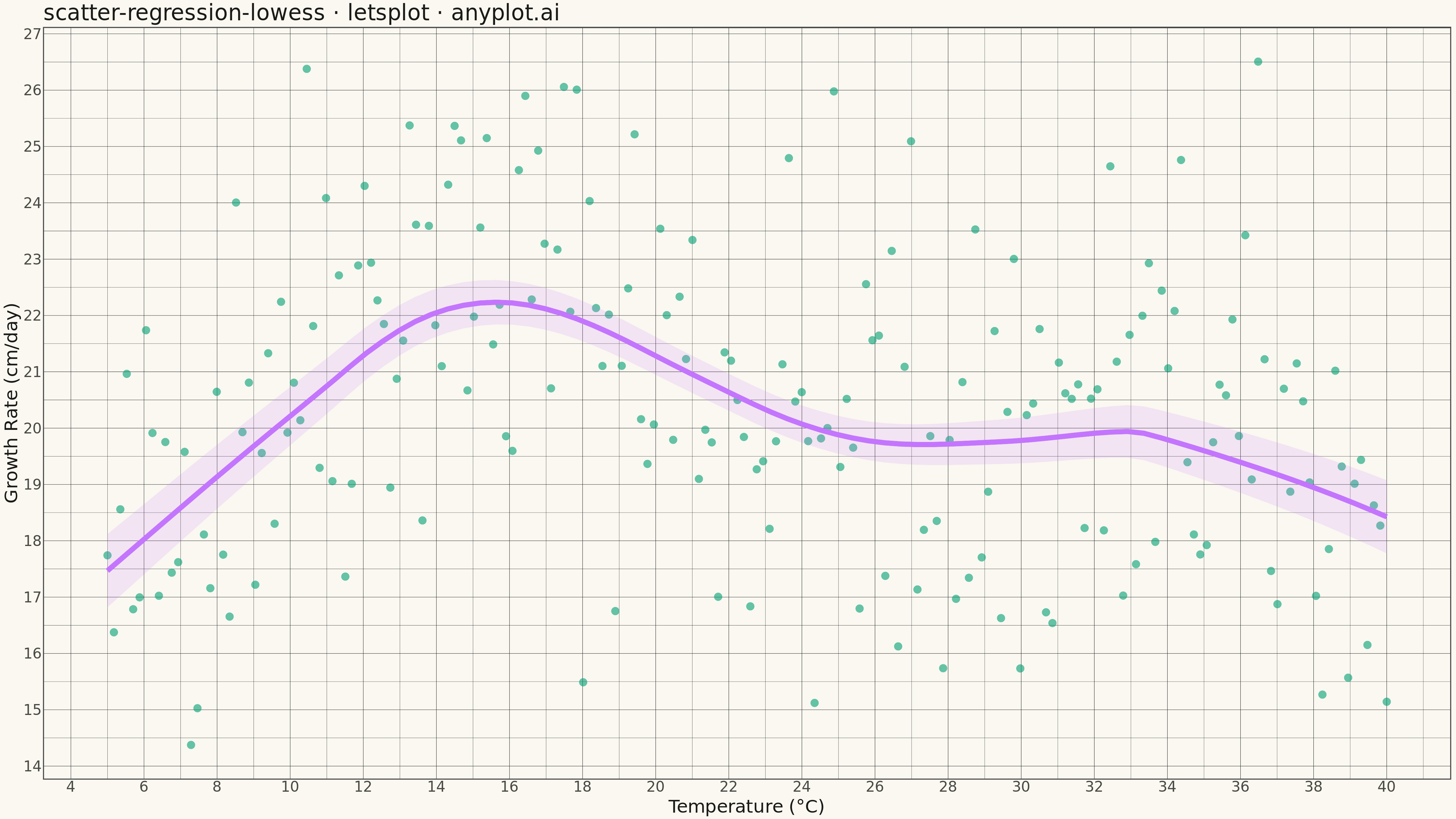

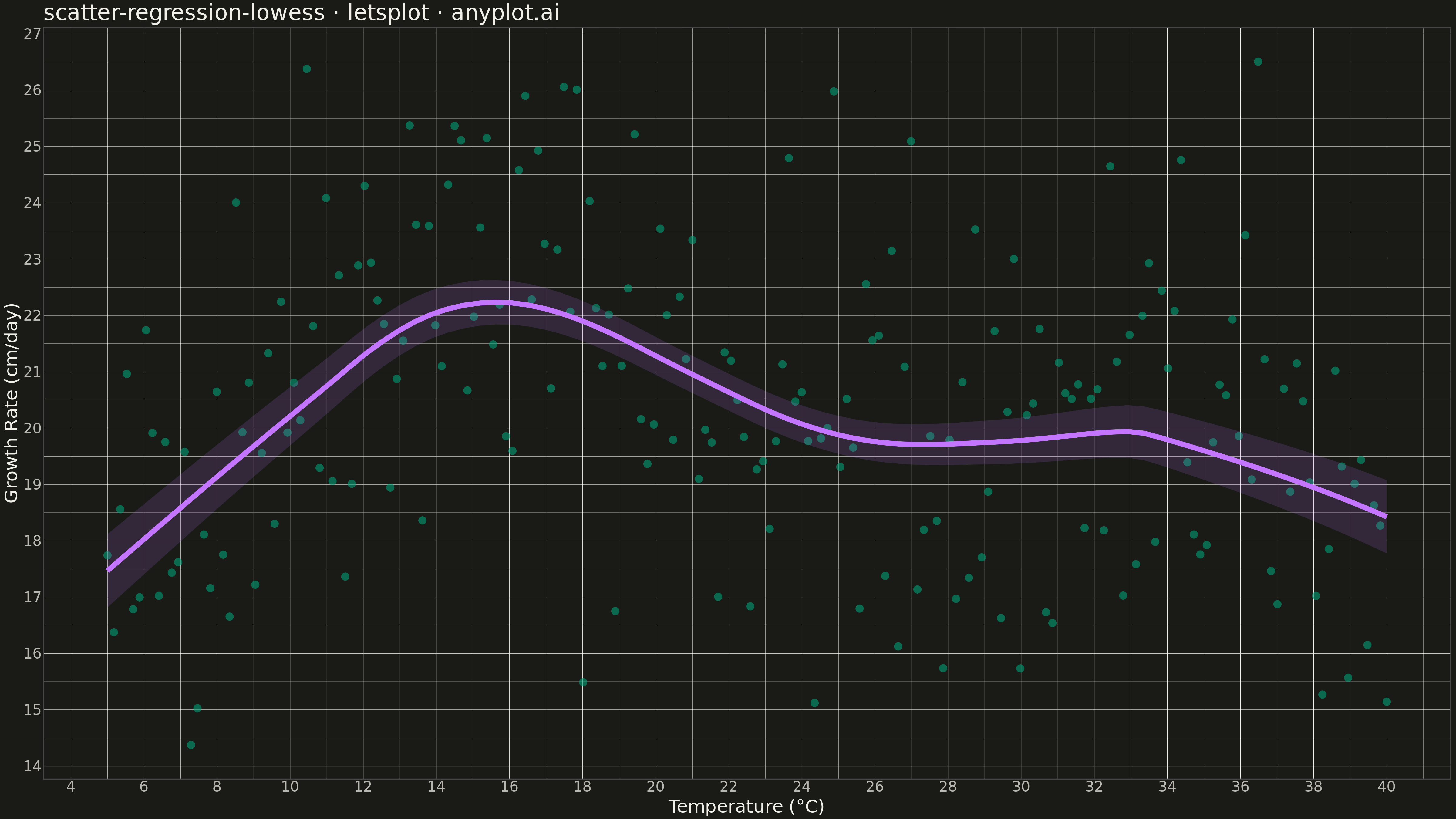

Scatter Plot with LOWESS Regression rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
scatter-regression-lowess: Scatter Plot with LOWESS Regression
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 91/100 | Updated: 2026-05-14
"""

import os

import numpy as np
import pandas as pd
from lets_plot import (
    LetsPlot,
    aes,
    element_line,
    element_rect,
    element_text,
    geom_point,
    geom_smooth,
    ggplot,
    ggsave,
    ggsize,
    labs,
    theme,
    theme_minimal,
)


LetsPlot.setup_html()

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette
BRAND = "#009E73"  # Position 1 - for scatter points
ACCENT = "#C475FD"  # Position 2 - for LOWESS curve

# Data - Complex non-linear relationship (plant growth vs temperature)
np.random.seed(42)
n = 200
x = np.linspace(5, 40, n)
y = 15 + 8 * np.sin((x - 5) * np.pi / 35) + 3 * np.cos((x - 10) * np.pi / 15) + np.random.randn(n) * 2.5
df = pd.DataFrame({"temperature": x, "growth_rate": y})

# Theme-adaptive styling
anyplot_theme = theme(
    plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_background=element_rect(fill=PAGE_BG),
    panel_grid_major=element_line(color=INK, size=0.3),
    panel_grid_minor=element_line(color=INK, size=0.2),
    axis_title=element_text(color=INK, size=20),
    axis_text=element_text(color=INK_SOFT, size=16),
    axis_line=element_line(color=INK_SOFT, size=0.5),
    plot_title=element_text(color=INK, size=24),
    legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
    legend_text=element_text(color=INK_SOFT, size=16),
    legend_title=element_text(color=INK),
)

# Plot
plot = (
    ggplot(df, aes(x="temperature", y="growth_rate"))
    + geom_point(color=BRAND, size=4, alpha=0.6)
    + geom_smooth(method="loess", span=0.4, color=ACCENT, size=2.5, se=True, fill=ACCENT, alpha=0.15)
    + labs(x="Temperature (°C)", y="Growth Rate (cm/day)", title="scatter-regression-lowess · letsplot · anyplot.ai")
    + theme_minimal()
    + anyplot_theme
    + ggsize(1600, 900)
)

# Save
ggsave(plot, f"plot-{THEME}.png", path=".", scale=3)
ggsave(plot, f"plot-{THEME}.html", path=".")

Part of Scatter Plot with LOWESS Regression on anyplot.ai.
