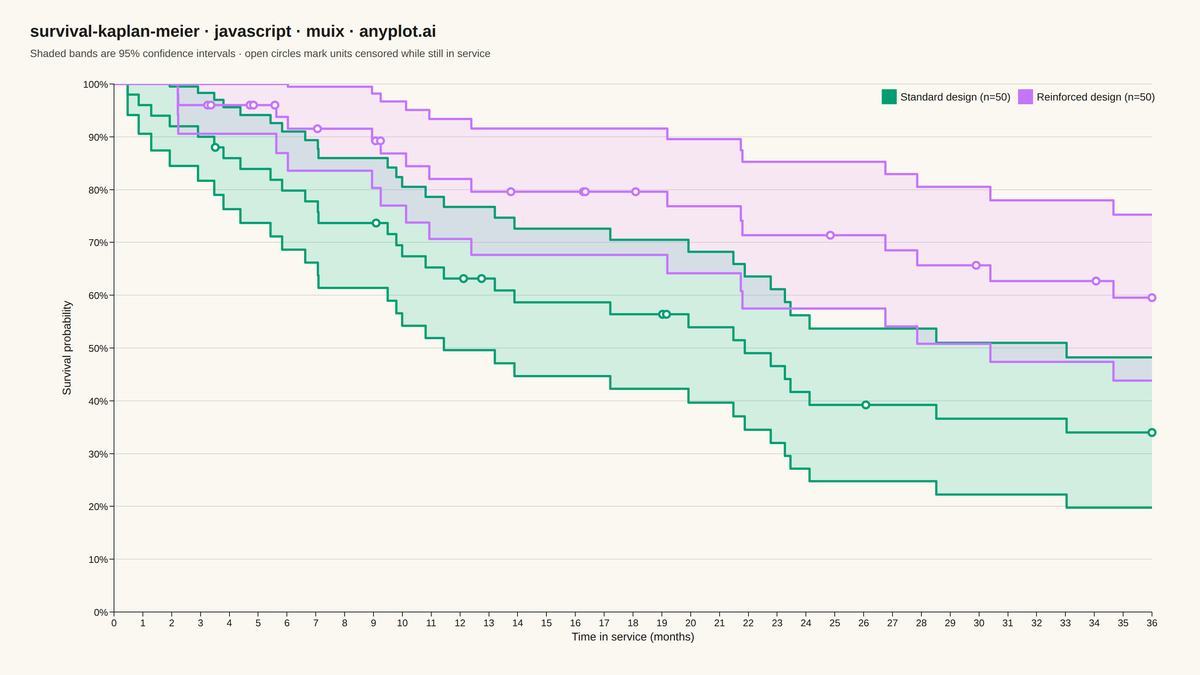

A Kaplan-Meier survival plot visualizes the probability of survival (or event-free time) over a time period using a step function. It is the standard method for estimating survival functions from time-to-event data, handling censored observations where the event has not yet occurred. The plot shows how survival probability decreases over time, with optional confidence intervals and comparison between groups.
// anyplot.ai
// survival-kaplan-meier: Kaplan-Meier Survival Plot
// Library: muix 7.29.1 | JavaScript 22.23.2
// Quality: 94/100 | Created: 2026-09-09
import { LineChart } from "@mui/x-charts/LineChart";
import Box from "@mui/material/Box";
import Typography from "@mui/material/Typography";
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Reliability engineering: time-to-failure of a machine bearing, comparing a
// standard design against a reinforced design under the same test protocol.
const GROUP_SIZE = 50;
const OBSERVATION_WINDOW = 36; // months — study ends here (administrative censoring)
// Small fixed-seed LCG — the browser has no seeded RNG.
function createRng(seed: number) {
let state = seed >>> 0;
return () => {
state = (state * 1664525 + 1013904223) >>> 0;
return state / 4294967296;
};
}
const rng = createRng(424242);
function sampleExponential(rate: number) {
return -Math.log(1 - rng()) / rate;
}
// Simulates a cohort under two competing risks: mechanical failure (the event
// of interest) and early dropout (e.g. unit pulled from service for an
// unrelated reason). Anyone still running at OBSERVATION_WINDOW is censored.
function generateGroup(failureRatePerMonth: number, dropoutRatePerMonth: number) {
const observations = [];
for (let i = 0; i < GROUP_SIZE; i += 1) {
const failureTime = sampleExponential(failureRatePerMonth);
const dropoutTime = sampleExponential(dropoutRatePerMonth);
const time = Math.min(failureTime, dropoutTime, OBSERVATION_WINDOW);
const event = failureTime <= dropoutTime && failureTime <= OBSERVATION_WINDOW ? 1 : 0;
observations.push({ time, event });
}
return observations;
}
const standardObservations = generateGroup(0.045, 0.01);
const reinforcedObservations = generateGroup(0.022, 0.01);
// Kaplan-Meier estimator with Greenwood's formula for the 95% CI. Returns the
// step points: survival holds at each value from its own time onward.
function kaplanMeier(observations: { time: number; event: number }[]) {
const sorted = [...observations].sort((a, b) => a.time - b.time);
const eventTimes = Array.from(new Set(sorted.map((o) => o.time))).sort((a, b) => a - b);
let atRisk = sorted.length;
let survival = 1;
let varianceSum = 0;
const points = [{ time: 0, survival: 1, lower: 1, upper: 1, censored: false }];
eventTimes.forEach((time) => {
const atThisTime = sorted.filter((o) => o.time === time);
const deaths = atThisTime.filter((o) => o.event === 1).length;
if (deaths > 0) {
survival *= 1 - deaths / atRisk;
const denom = atRisk * (atRisk - deaths);
if (denom > 0) varianceSum += deaths / denom;
}
const standardError = survival * Math.sqrt(varianceSum);
points.push({
time,
survival,
lower: Math.max(0, survival - 1.96 * standardError),
upper: Math.min(1, survival + 1.96 * standardError),
censored: deaths === 0,
});
atRisk -= atThisTime.length;
});
return points;
}
const standardCurve = kaplanMeier(standardObservations);
const reinforcedCurve = kaplanMeier(reinforcedObservations);
// Both curves are re-sampled onto one shared, sorted time grid (forward-fill,
// matching step-function semantics) so they can share a single x-axis.
const timeGrid = Array.from(
new Set([...standardCurve, ...reinforcedCurve].map((p) => p.time)),
).sort((a, b) => a - b);
function alignToGrid(points: typeof standardCurve, grid: number[]) {
let cursor = 0;
return grid.map((time) => {
while (cursor + 1 < points.length && points[cursor + 1].time <= time) cursor += 1;
const current = points[cursor];
return {
time,
survival: current.survival,
lower: current.lower,
upper: current.upper,
censored: current.censored && current.time === time,
};
});
}
const standardAligned = alignToGrid(standardCurve, timeGrid);
const reinforcedAligned = alignToGrid(reinforcedCurve, timeGrid);
// Each group contributes 3 series: an invisible base (stacked to the CI lower
// bound) + a filled delta on top of it (renders as the CI band from lower to
// upper), then the visible KM step line. Only the step line gets a `label`,
// so the band helpers are automatically excluded from the legend. The base's
// fill is knocked out via the `& .MuiAreaElement-series-{id}` sx rules below
// (MUI X always applies its own opaque "brighter" tint to an area fill, so a
// transparent/rgba `color` on the series itself is not enough to hide it).
function buildGroupSeries(key: string, label: string, color: string, aligned: typeof standardAligned) {
return [
{
id: `${key}-ci-base`,
data: aligned.map((p) => p.lower),
stack: `ci-${key}`,
area: true,
curve: "stepAfter" as const,
color,
showMark: false,
disableHighlight: true,
},
{
id: `${key}-ci-band`,
data: aligned.map((p) => Math.max(0, p.upper - p.lower)),
stack: `ci-${key}`,
area: true,
curve: "stepAfter" as const,
color,
showMark: false,
disableHighlight: true,
},
{
id: `${key}-survival`,
data: aligned.map((p) => p.survival),
curve: "stepAfter" as const,
color,
label,
showMark: ({ index }: { index: number }) => aligned[index].censored,
},
];
}
const series = [
...buildGroupSeries("standard", `Standard design (n=${GROUP_SIZE})`, t.palette[0], standardAligned),
...buildGroupSeries("reinforced", `Reinforced design (n=${GROUP_SIZE})`, t.palette[1], reinforcedAligned),
];
const TITLE = "survival-kaplan-meier · javascript · muix · anyplot.ai";
// --- Chart (default-exported component — the harness mounts it) -------------
export default function Chart() {
const size = window.ANYPLOT_SIZE;
const paddingX = 40;
const paddingY = 28;
const headerHeight = 76;
return (
<Box
sx={{
width: size.width,
height: size.height,
boxSizing: "border-box",
padding: `${paddingY}px ${paddingX}px`,
display: "flex",
flexDirection: "column",
}}
>
<Box sx={{ height: headerHeight, flexShrink: 0 }}>
<Typography sx={{ fontSize: 22, fontWeight: 600, color: "text.primary", lineHeight: 1.3 }}>
{TITLE}
</Typography>
<Typography sx={{ fontSize: 14, color: "text.secondary", mt: "4px" }}>
Shaded bands are 95% confidence intervals · open circles mark units censored while still in service
</Typography>
</Box>
<LineChart
width={size.width - paddingX * 2}
height={size.height - paddingY * 2 - headerHeight}
series={series}
xAxis={[
{
data: timeGrid,
scaleType: "linear",
min: 0,
max: OBSERVATION_WINDOW,
label: "Time in service (months)",
labelStyle: { fontSize: 15 },
tickLabelStyle: { fontSize: 13 },
},
]}
yAxis={[
{
min: 0,
max: 1,
label: "Survival probability",
labelStyle: { fontSize: 15 },
tickLabelStyle: { fontSize: 13 },
// The axis-title offset is driven by `tickFontSize` (not
// `tickLabelStyle.fontSize`) in MUI X's layout formula, so bump
// this well past the rendered "100%" tick-label width to clear
// the rotated title from the tick text without enlarging the
// ticks themselves.
tickFontSize: 42,
valueFormatter: (v: number) => `${Math.round(v * 100)}%`,
},
]}
grid={{ horizontal: true }}
margin={{ top: 8, right: 24, bottom: 56, left: 112 }}
skipAnimation
slotProps={{
legend: {
position: { vertical: "top", horizontal: "right" },
labelStyle: { fontSize: 14 },
},
}}
sx={{
"& .MuiLineElement-root": { strokeWidth: 3 },
"& .MuiMarkElement-root": { strokeWidth: 3 },
"& .MuiAreaElement-series-standard-ci-base": { fill: "none" },
"& .MuiAreaElement-series-reinforced-ci-base": { fill: "none" },
"& .MuiAreaElement-series-standard-ci-band": { fillOpacity: 0.16 },
"& .MuiAreaElement-series-reinforced-ci-band": { fillOpacity: 0.16 },
}}
/>
</Box>
);
}
