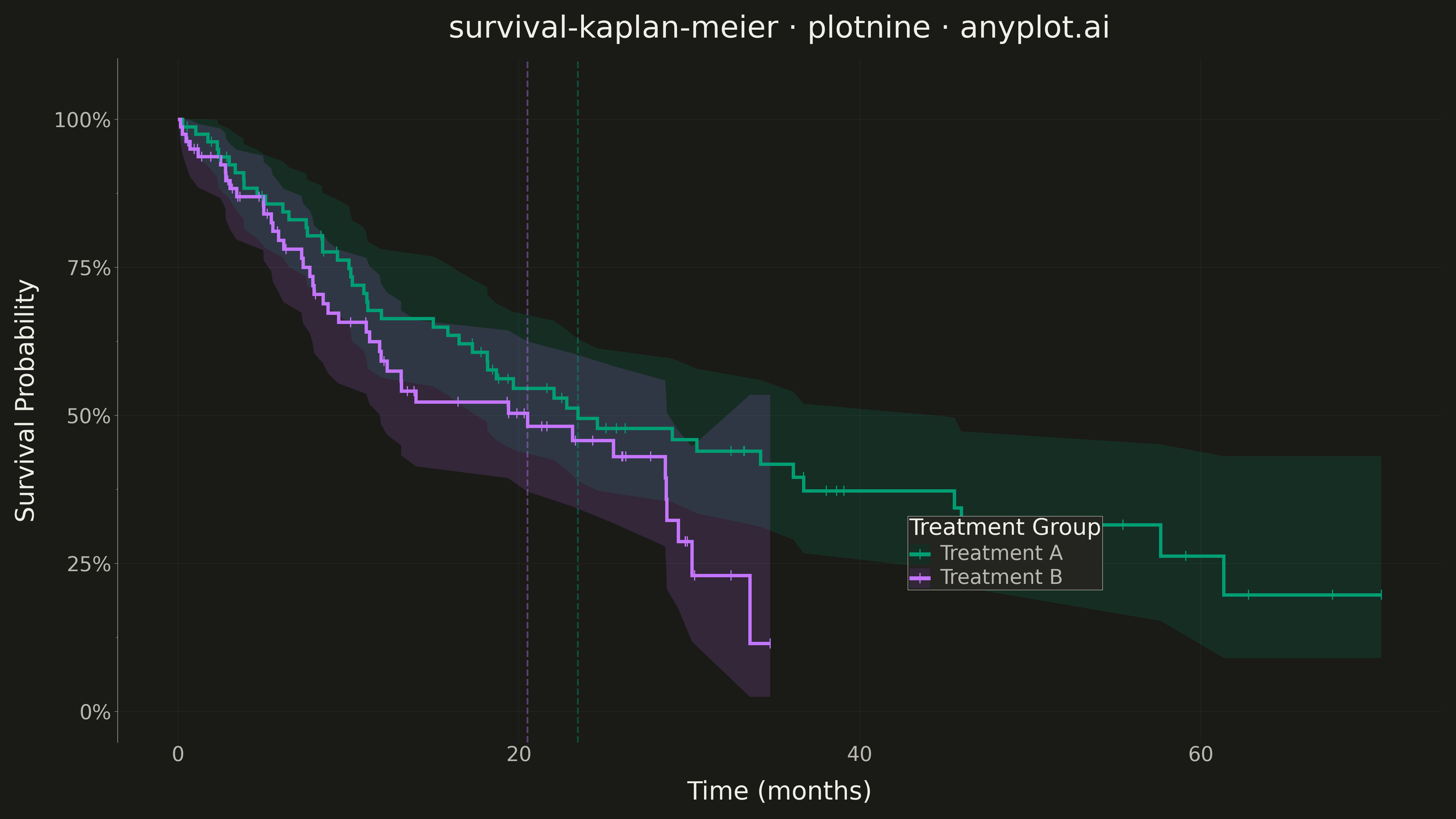

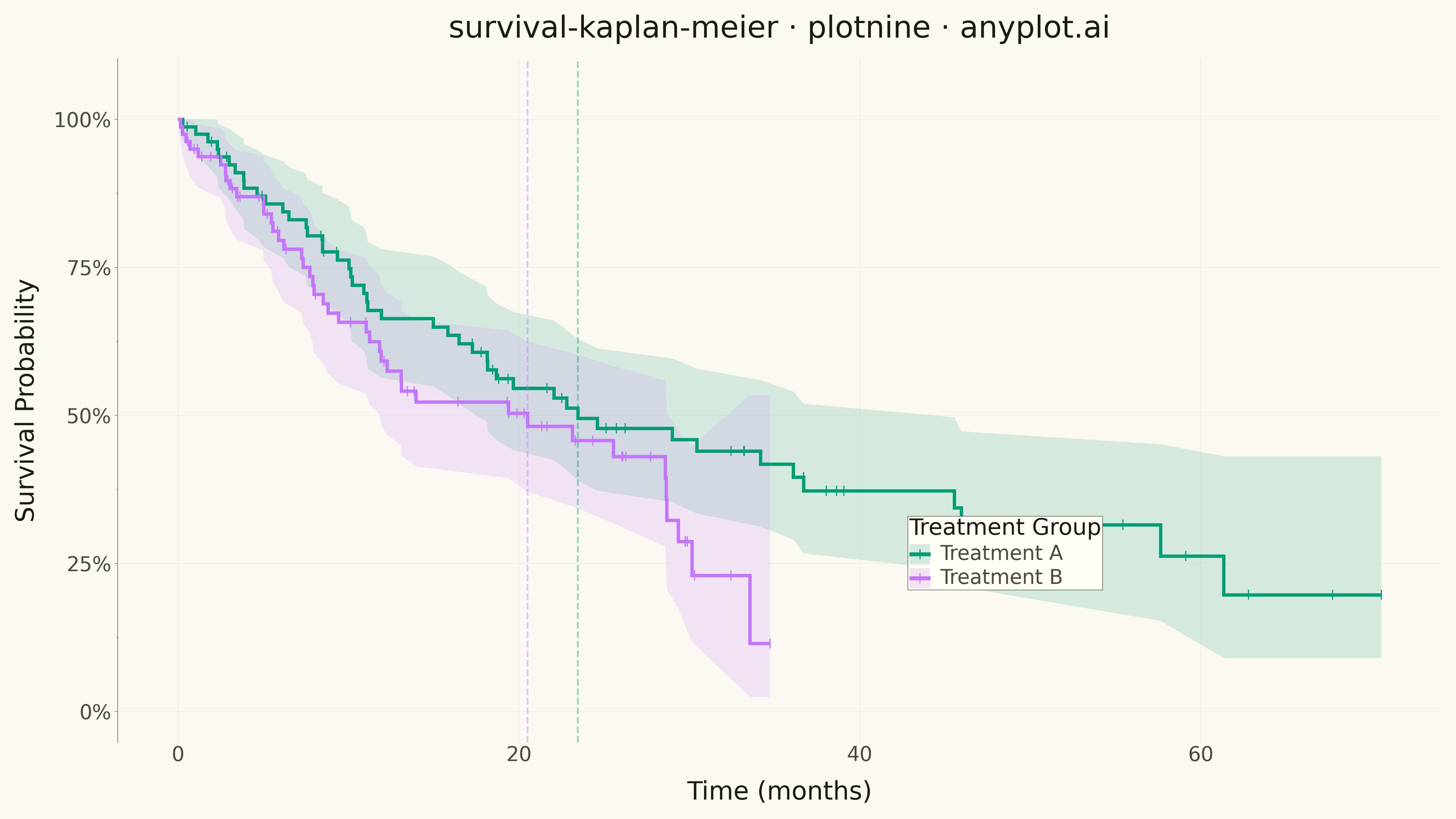

A Kaplan-Meier survival plot visualizes the probability of survival (or event-free time) over a time period using a step function. It is the standard method for estimating survival functions from time-to-event data, handling censored observations where the event has not yet occurred. The plot shows how survival probability decreases over time, with optional confidence intervals and comparison between groups.
""" anyplot.ai
survival-kaplan-meier: Kaplan-Meier Survival Plot
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 91/100 | Updated: 2026-05-11
"""
import os
import numpy as np
import pandas as pd
from plotnine import (
aes,
element_blank,
element_line,
element_rect,
element_text,
geom_point,
geom_ribbon,
geom_step,
geom_vline,
ggplot,
labs,
scale_color_manual,
scale_fill_manual,
scale_x_continuous,
scale_y_continuous,
theme,
theme_minimal,
)
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Okabe-Ito palette
IMPRINT = ["#009E73", "#C475FD"]
# Data generation
np.random.seed(42)
# Generate survival data for two treatment groups
def generate_times_and_events(n, hazard_rate):
times = np.random.exponential(1 / hazard_rate, n)
censor_times = np.random.uniform(0, np.percentile(times, 80), n)
censored = times > censor_times
observed_times = np.where(censored, censor_times, times)
events = (~censored).astype(int)
return observed_times, events
times_a, events_a = generate_times_and_events(80, 0.02)
times_b, events_b = generate_times_and_events(80, 0.035)
data = pd.concat(
[
pd.DataFrame({"time": times_a, "event": events_a, "group": "Treatment A"}),
pd.DataFrame({"time": times_b, "event": events_b, "group": "Treatment B"}),
],
ignore_index=True,
)
# Kaplan-Meier estimation
def compute_km(df):
df = df.sort_values("time").reset_index(drop=True)
n = len(df)
times = [0]
survival = [1.0]
ci_lower = [1.0]
ci_upper = [1.0]
var_sum = 0
at_risk = n
current_survival = 1.0
unique_times = df[df["event"] == 1]["time"].unique()
unique_times.sort()
for t in unique_times:
at_risk = (df["time"] >= t).sum()
events = ((df["time"] == t) & (df["event"] == 1)).sum()
if at_risk > 0:
current_survival *= (at_risk - events) / at_risk
if at_risk > events:
var_sum += events / (at_risk * (at_risk - events))
times.append(t)
survival.append(current_survival)
if current_survival > 0 and var_sum > 0:
se = current_survival * np.sqrt(var_sum)
z = 1.96
log_surv = np.log(current_survival)
log_se = se / current_survival
ci_lower.append(np.exp(log_surv - z * log_se))
ci_upper.append(np.exp(log_surv + z * log_se))
else:
ci_lower.append(current_survival)
ci_upper.append(current_survival)
max_time = df["time"].max()
times.append(max_time)
survival.append(survival[-1])
ci_lower.append(ci_lower[-1])
ci_upper.append(ci_upper[-1])
return pd.DataFrame(
{"time": times, "survival": survival, "ci_lower": np.clip(ci_lower, 0, 1), "ci_upper": np.clip(ci_upper, 0, 1)}
)
km_a = compute_km(data[data["group"] == "Treatment A"])
km_a["group"] = "Treatment A"
km_b = compute_km(data[data["group"] == "Treatment B"])
km_b["group"] = "Treatment B"
km_data = pd.concat([km_a, km_b], ignore_index=True)
# Get censored observations for tick marks
censored = data[data["event"] == 0].copy()
censored_marks = []
for _, row in censored.iterrows():
group = row["group"]
t = row["time"]
km_group = km_a if group == "Treatment A" else km_b
surv = km_group[km_group["time"] <= t]["survival"].iloc[-1]
censored_marks.append({"time": t, "survival": surv, "group": group})
censored_df = pd.DataFrame(censored_marks)
# Compute median survival times for annotations
def get_median_survival(km_group):
surv_below_half = km_group[km_group["survival"] <= 0.5]
if len(surv_below_half) > 0:
return surv_below_half.iloc[0]["time"]
return None
median_a = get_median_survival(km_a)
median_b = get_median_survival(km_b)
# Plot
anyplot_theme = theme(
plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
panel_grid_major=element_line(color=INK, size=0.3, alpha=0.08),
panel_grid_minor=element_blank(),
axis_ticks_y=element_line(color=INK_SOFT, size=0.3),
axis_ticks_x=element_blank(),
panel_border=element_blank(),
axis_line_y=element_line(color=INK_SOFT, size=0.4),
axis_line_x=element_blank(),
axis_title=element_text(color=INK, size=20),
axis_text=element_text(color=INK_SOFT, size=16),
plot_title=element_text(color=INK, size=24, face="medium"),
legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT, size=0.4),
legend_text=element_text(color=INK_SOFT, size=16),
legend_title=element_text(color=INK, size=18),
legend_position=(0.70, 0.25),
legend_box_just="left",
figure_size=(16, 9),
)
plot = (
ggplot()
+ geom_ribbon(km_data, aes(x="time", ymin="ci_lower", ymax="ci_upper", fill="group"), alpha=0.15)
+ geom_step(km_data, aes(x="time", y="survival", color="group"), size=1.5)
+ geom_point(censored_df, aes(x="time", y="survival", color="group"), shape="|", size=4)
)
if median_a is not None:
plot = plot + geom_vline(xintercept=median_a, linetype="dashed", color=IMPRINT[0], alpha=0.4, size=0.8)
if median_b is not None:
plot = plot + geom_vline(xintercept=median_b, linetype="dashed", color=IMPRINT[1], alpha=0.4, size=0.8)
plot = (
plot
+ scale_color_manual(values=IMPRINT)
+ scale_fill_manual(values=IMPRINT)
+ scale_y_continuous(limits=(0, 1.05), breaks=[0, 0.25, 0.5, 0.75, 1.0], labels=["0%", "25%", "50%", "75%", "100%"])
+ scale_x_continuous(limits=(0, None))
+ labs(
title="survival-kaplan-meier · plotnine · anyplot.ai",
x="Time (months)",
y="Survival Probability",
color="Treatment Group",
fill="Treatment Group",
)
+ theme_minimal()
+ anyplot_theme
)
# Save
plot.save(f"plot-{THEME}.png", dpi=300, verbose=False)
Part of Kaplan-Meier Survival Plot on anyplot.ai.
