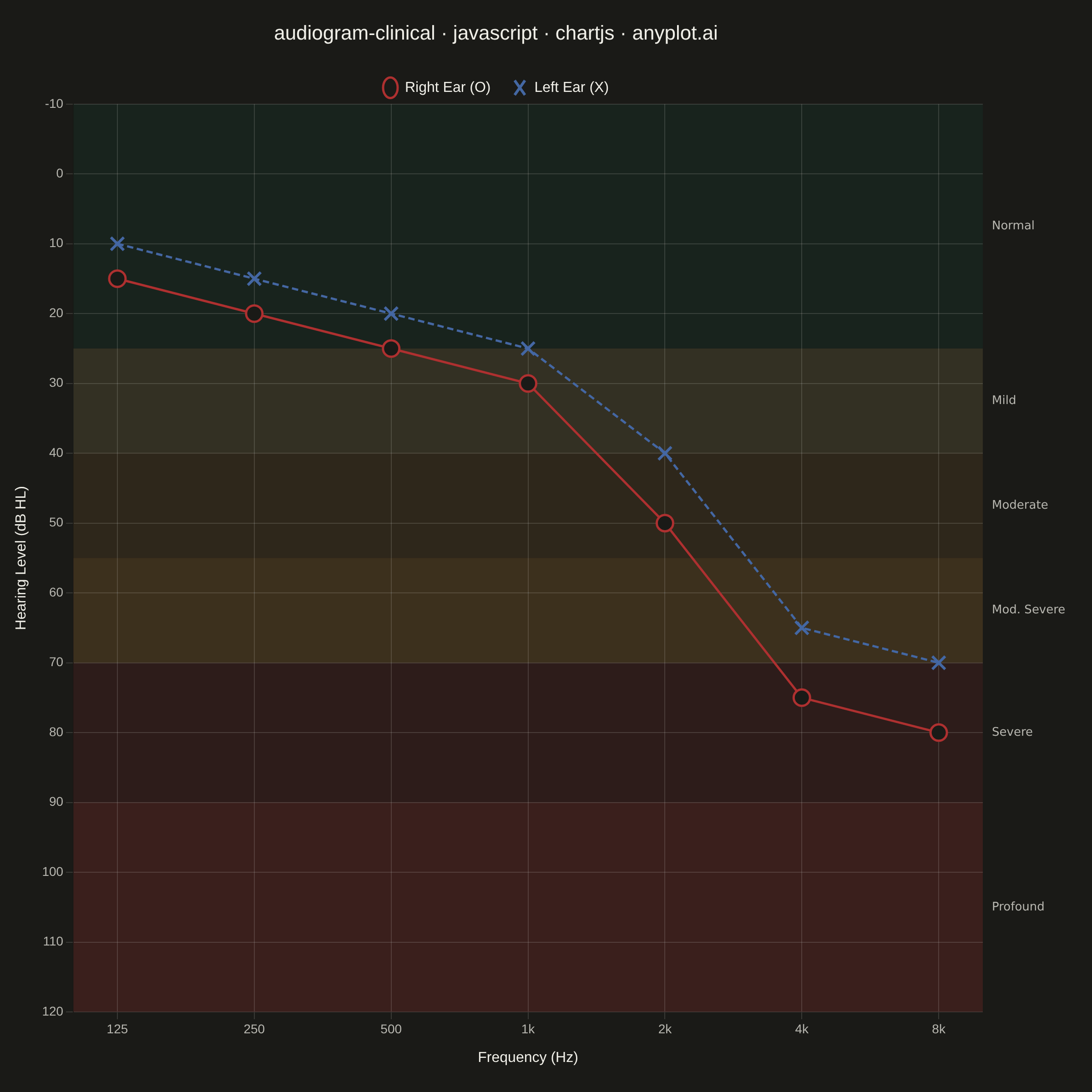

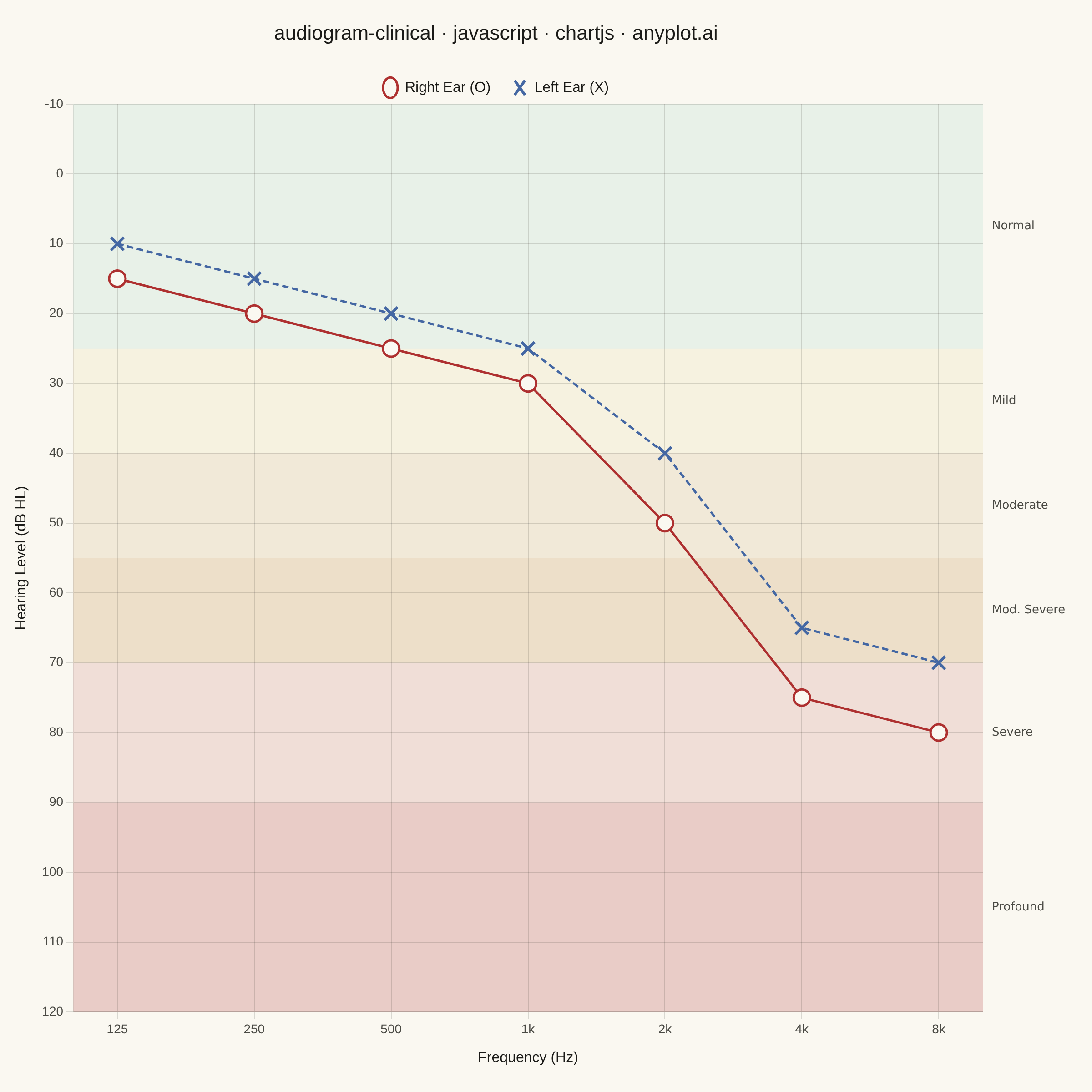

A standardized clinical audiogram that displays hearing test results, plotting hearing threshold (dB HL) against test frequency for each ear. The y-axis is inverted so that 0 dB HL (best hearing) sits at the top and increasing hearing loss extends downward, while the x-axis is logarithmic spanning the standard audiometric frequencies (125 Hz to 8 kHz). Thresholds are marked with the conventional symbols — a circle (O) for the right ear in red and a cross (X) for the left ear in blue — and connected per ear, with shaded horizontal bands indicating severity of hearing loss (normal, mild, moderate, severe, profound).
// anyplot.ai
// audiogram-clinical: Clinical Audiogram
// Library: chartjs 4.4.7 | JavaScript 22.22.3
// Quality: 90/100 | Created: 2026-06-15
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
// --- Data -------------------------------------------------------------------
// Pure-tone audiometry: high-frequency sensorineural notch (occupational noise)
const frequencies = [125, 250, 500, 1000, 2000, 4000, 8000];
const rightEarThresholds = [15, 20, 25, 30, 50, 75, 80];
const leftEarThresholds = [10, 15, 20, 25, 40, 65, 70];
// Semantic color exception: red/blue are universal audiogram conventions
const RIGHT_COLOR = "#AE3030"; // matte red — right-ear clinical convention
const LEFT_COLOR = "#4467A3"; // Imprint blue — left-ear clinical convention
// Severity bands per WHO audiometric classification
const severityBands = [
{ min: -10, max: 25, fill: "rgba(0,158,115,0.07)", label: "Normal" },
{ min: 25, max: 40, fill: "rgba(221,204,119,0.13)", label: "Mild" },
{ min: 40, max: 55, fill: "rgba(189,130,51,0.13)", label: "Moderate" },
{ min: 55, max: 70, fill: "rgba(189,130,51,0.21)", label: "Mod. Severe" },
{ min: 70, max: 90, fill: "rgba(174,48,48,0.13)", label: "Severe" },
{ min: 90, max: 120, fill: "rgba(174,48,48,0.22)", label: "Profound" },
];
// --- Plugin: severity band fills (behind grid) and labels (in right margin) -
const severityPlugin = {
id: "severityPlugin",
beforeDraw(chart) {
const { ctx, chartArea, scales } = chart;
if (!chartArea || !scales.y) return;
const yScale = scales.y;
ctx.save();
ctx.beginPath();
ctx.rect(chartArea.left, chartArea.top, chartArea.width, chartArea.height);
ctx.clip();
severityBands.forEach(({ min, max, fill }) => {
const y1 = yScale.getPixelForValue(min);
const y2 = yScale.getPixelForValue(max);
const top = Math.min(y1, y2);
const height = Math.abs(y2 - y1);
ctx.fillStyle = fill;
ctx.fillRect(chartArea.left, top, chartArea.width, height);
});
ctx.restore();
},
afterDatasetsDraw(chart) {
const { ctx, chartArea, scales } = chart;
if (!chartArea || !scales.y) return;
const yScale = scales.y;
ctx.save();
ctx.font = "13px system-ui, sans-serif";
ctx.textAlign = "left";
ctx.textBaseline = "middle";
ctx.fillStyle = t.inkSoft;
severityBands.forEach(({ min, max, label }) => {
const y1 = yScale.getPixelForValue(min);
const y2 = yScale.getPixelForValue(max);
const midY = (y1 + y2) / 2;
ctx.fillText(label, chartArea.right + 10, midY);
});
ctx.restore();
},
};
// --- Mount ------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Chart ------------------------------------------------------------------
new Chart(canvas, {
type: "line",
plugins: [severityPlugin],
data: {
datasets: [
{
label: "Right Ear (O)",
data: rightEarThresholds.map((y, i) => ({ x: frequencies[i], y })),
borderColor: RIGHT_COLOR,
backgroundColor: RIGHT_COLOR,
pointStyle: "circle",
pointRadius: 9,
pointHoverRadius: 11,
pointBorderColor: RIGHT_COLOR,
pointBorderWidth: 2.5,
pointBackgroundColor: t.pageBg,
borderWidth: 2.5,
tension: 0,
},
{
label: "Left Ear (X)",
data: leftEarThresholds.map((y, i) => ({ x: frequencies[i], y })),
borderColor: LEFT_COLOR,
backgroundColor: LEFT_COLOR,
pointStyle: "crossRot",
pointRadius: 10,
pointHoverRadius: 12,
pointBorderColor: LEFT_COLOR,
pointBorderWidth: 3,
pointBackgroundColor: LEFT_COLOR,
borderWidth: 2.5,
borderDash: [7, 4],
tension: 0,
},
],
},
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
layout: {
padding: { top: 16, right: 120, bottom: 24, left: 10 },
},
plugins: {
title: {
display: true,
text: "audiogram-clinical · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 22, weight: "500" },
padding: { top: 8, bottom: 14 },
},
legend: {
display: true,
position: "top",
labels: {
color: t.ink,
font: { size: 16 },
usePointStyle: true,
pointStyleWidth: 16,
padding: 24,
},
},
},
scales: {
x: {
type: "logarithmic",
min: 100,
max: 10000,
title: {
display: true,
text: "Frequency (Hz)",
color: t.ink,
font: { size: 16, weight: "500" },
padding: { top: 10 },
},
ticks: {
color: t.inkSoft,
font: { size: 14 },
callback(value) {
const map = { 125: "125", 250: "250", 500: "500", 1000: "1k", 2000: "2k", 4000: "4k", 8000: "8k" };
return map[value] !== undefined ? map[value] : null;
},
},
afterBuildTicks(scale) {
scale.ticks = [125, 250, 500, 1000, 2000, 4000, 8000].map(v => ({ value: v }));
},
grid: {
color: t.grid,
},
},
y: {
reverse: true,
min: -10,
max: 120,
title: {
display: true,
text: "Hearing Level (dB HL)",
color: t.ink,
font: { size: 16, weight: "500" },
padding: { bottom: 10 },
},
ticks: {
color: t.inkSoft,
font: { size: 14 },
stepSize: 10,
},
grid: {
color: t.grid,
},
},
},
},
});
Part of Clinical Audiogram on anyplot.ai.
