Grouped Bar Chart — Chart.js

A grouped bar chart that displays multiple bars side-by-side for each category, enabling direct comparison of values across different groups within the same categorical dimension. This visualization excels at showing how different groups perform relative to each other across multiple categories, making patterns and differences immediately apparent. Grouped bar charts are essential for comparative analysis where you need to track multiple series against the same set of categories.

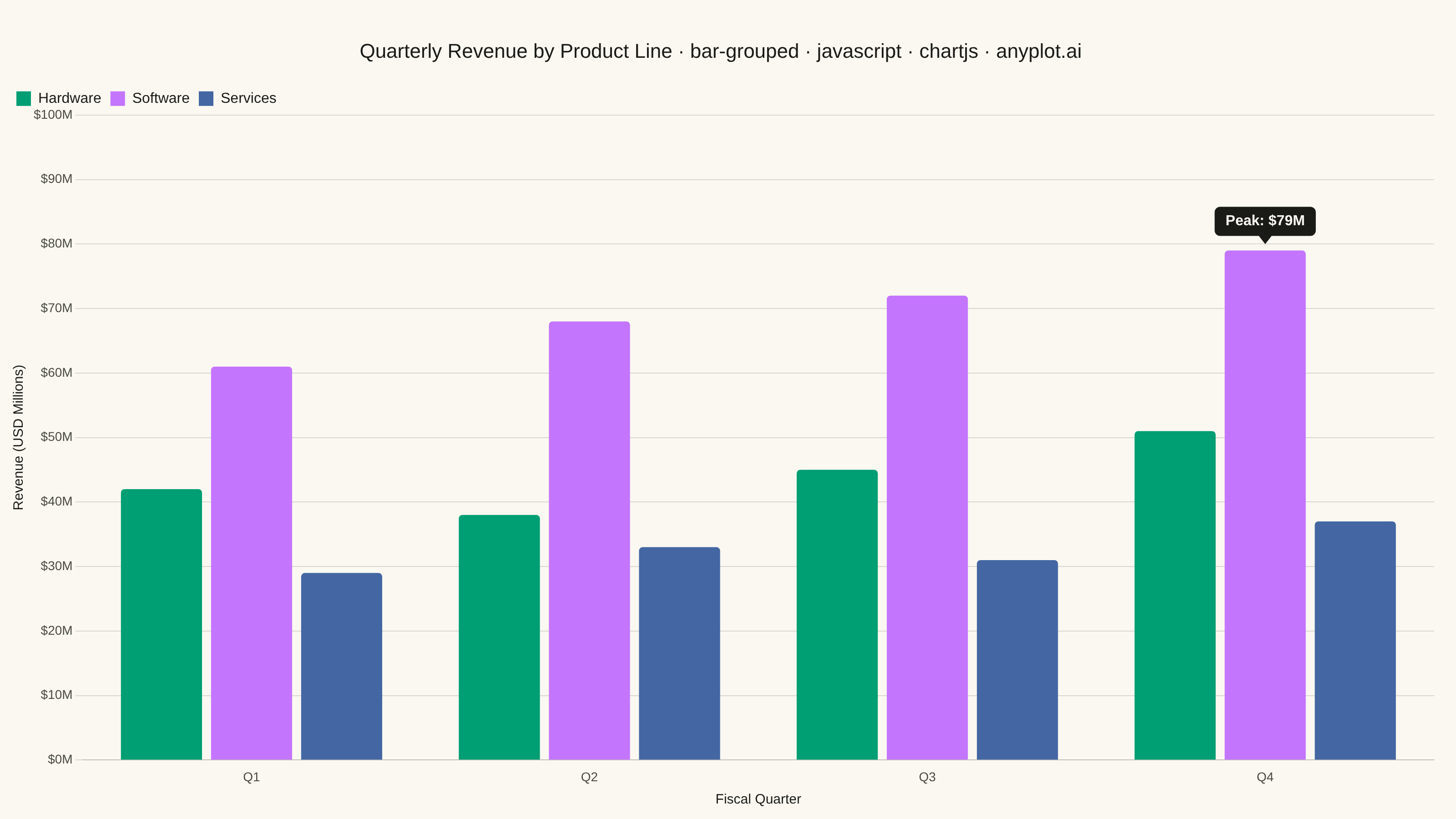

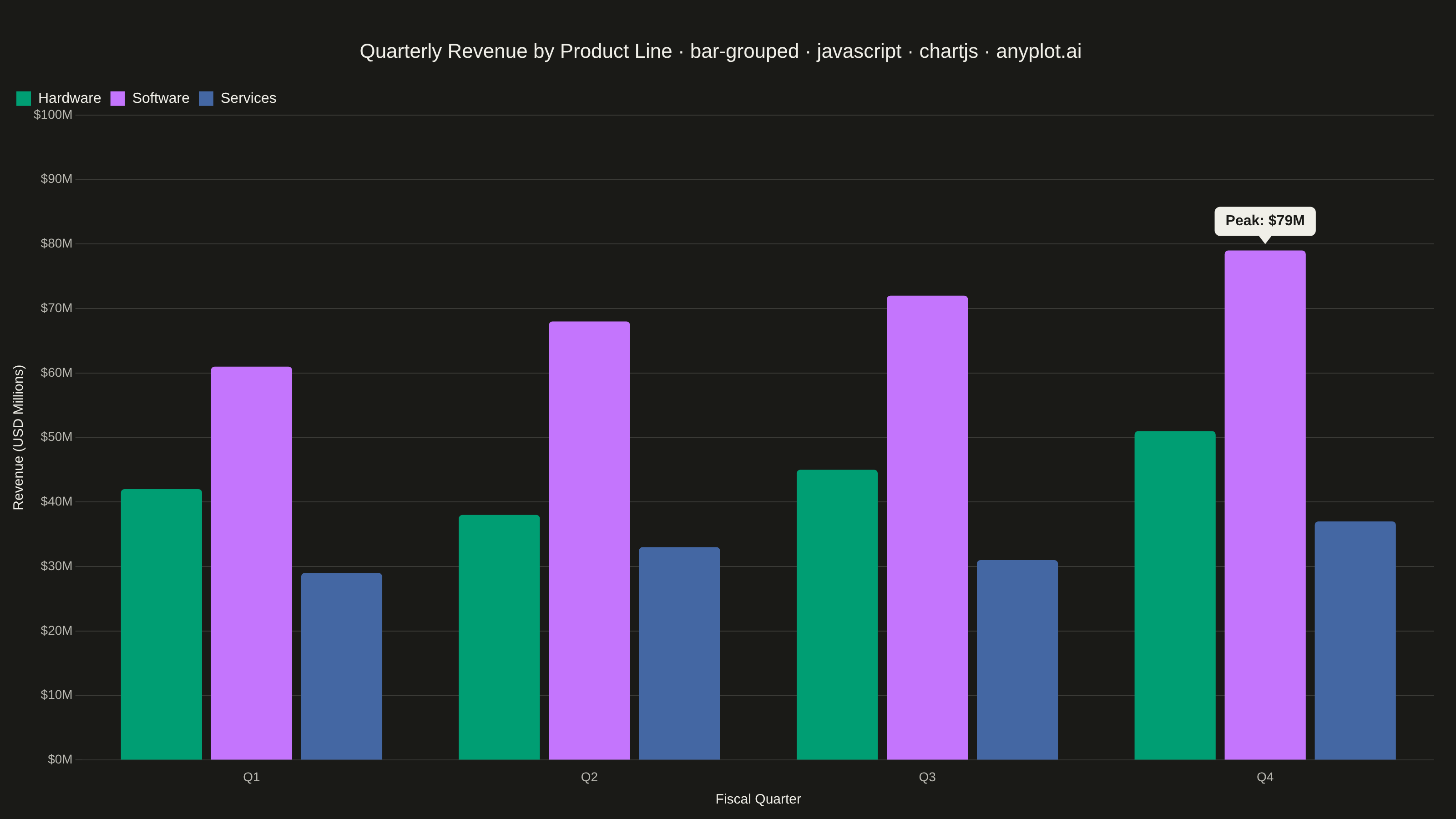

Grouped Bar Chart rendered with Chart.js

JavaScript source (Chart.js)

// anyplot.ai
// bar-grouped: Grouped Bar Chart
// Library: chartjs 4.4.7 | JavaScript 22.23.1
// Quality: 92/100 | Created: 2026-08-05

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
const quarters = ["Q1", "Q2", "Q3", "Q4"];
const products = ["Hardware", "Software", "Services"];
const revenueByProduct = {
  Hardware: [42, 38, 45, 51],
  Software: [61, 68, 72, 79],
  Services: [29, 33, 31, 37],
};

// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);

// --- Peak callout (custom Chart.js plugin, no external deps) -----------------
// Highlights the standout data point (Software, Q4) with a speech-bubble
// callout drawn directly on the canvas via the plugin lifecycle hooks.
const peakProduct = "Software";
const peakQuarterIndex = 3;
const peakValue = revenueByProduct[peakProduct][peakQuarterIndex];

const peakCalloutPlugin = {
  id: "peakCallout",
  afterDatasetsDraw(chart) {
    const datasetIndex = products.indexOf(peakProduct);
    const meta = chart.getDatasetMeta(datasetIndex);
    const bar = meta.data[peakQuarterIndex];
    if (!bar) return;

    const { ctx } = chart;
    const { x, y } = bar.getProps(["x", "y"], true);
    const label = `Peak: $${peakValue}M`;

    ctx.save();
    ctx.font = "600 16px sans-serif";
    const textWidth = ctx.measureText(label).width;
    const boxWidth = textWidth + 24;
    const boxHeight = 32;
    const boxX = x - boxWidth / 2;
    const boxY = y - boxHeight - 16;

    ctx.fillStyle = t.ink;
    ctx.beginPath();
    ctx.roundRect(boxX, boxY, boxWidth, boxHeight, 6);
    ctx.moveTo(x - 7, boxY + boxHeight);
    ctx.lineTo(x + 7, boxY + boxHeight);
    ctx.lineTo(x, boxY + boxHeight + 9);
    ctx.closePath();
    ctx.fill();

    ctx.fillStyle = t.pageBg;
    ctx.textAlign = "center";
    ctx.textBaseline = "middle";
    ctx.fillText(label, x, boxY + boxHeight / 2);
    ctx.restore();
  },
};

// --- Chart ---------------------------------------------------------------
new Chart(canvas, {
  type: "bar",
  data: {
    labels: quarters,
    datasets: products.map((product, i) => ({
      label: product,
      data: revenueByProduct[product],
      backgroundColor: t.palette[i % t.palette.length],
      hoverBackgroundColor: t.palette[i % t.palette.length],
      borderWidth: 0,
      borderRadius: 4,
    })),
  },
  plugins: [peakCalloutPlugin],
  options: {
    responsive: true,
    maintainAspectRatio: false,
    animation: false,
    layout: { padding: { top: 44, right: 24, bottom: 8, left: 8 } },
    plugins: {
      title: {
        display: true,
        text: "Quarterly Revenue by Product Line · bar-grouped · javascript · chartjs · anyplot.ai",
        color: t.ink,
        font: { size: 22, weight: "500" },
        padding: { bottom: 20 },
      },
      legend: {
        position: "top",
        align: "start",
        labels: { color: t.ink, font: { size: 16 }, boxWidth: 18, boxHeight: 18, usePointStyle: true, pointStyle: "rect" },
      },
      tooltip: {
        callbacks: {
          label: (item) => `${item.dataset.label}: $${item.formattedValue}M`,
        },
      },
    },
    scales: {
      x: {
        ticks: { color: t.inkSoft, font: { size: 14 } },
        grid: { display: false },
        title: { display: true, text: "Fiscal Quarter", color: t.ink, font: { size: 15 } },
      },
      y: {
        ticks: { color: t.inkSoft, font: { size: 14 }, callback: (v) => `$${v}M` },
        grid: { color: t.grid },
        border: { display: false },
        title: { display: true, text: "Revenue (USD Millions)", color: t.ink, font: { size: 15 } },
        beginAtZero: true,
        suggestedMax: 92,
      },
    },
  },
});

Part of Grouped Bar Chart on anyplot.ai.
