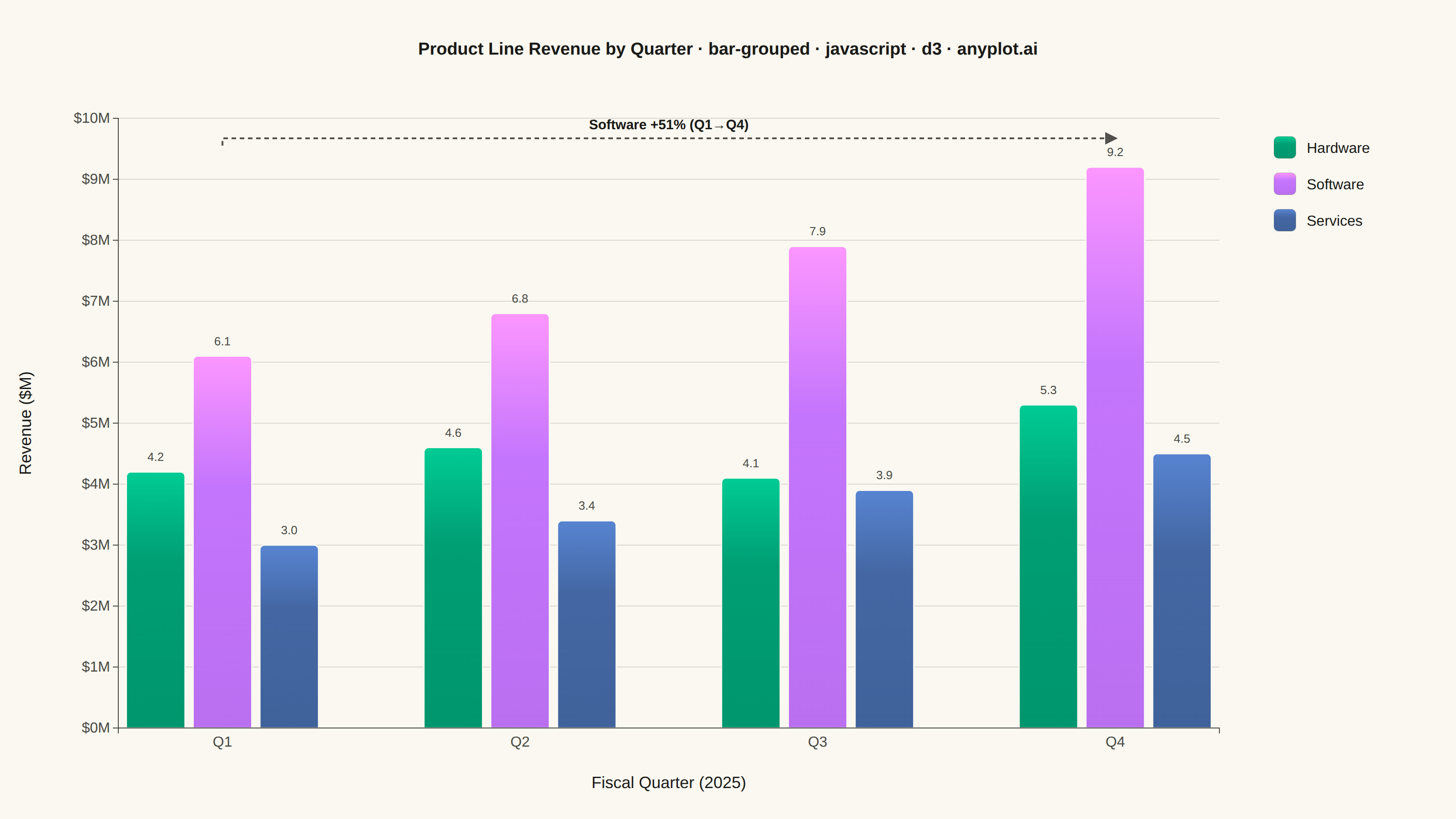

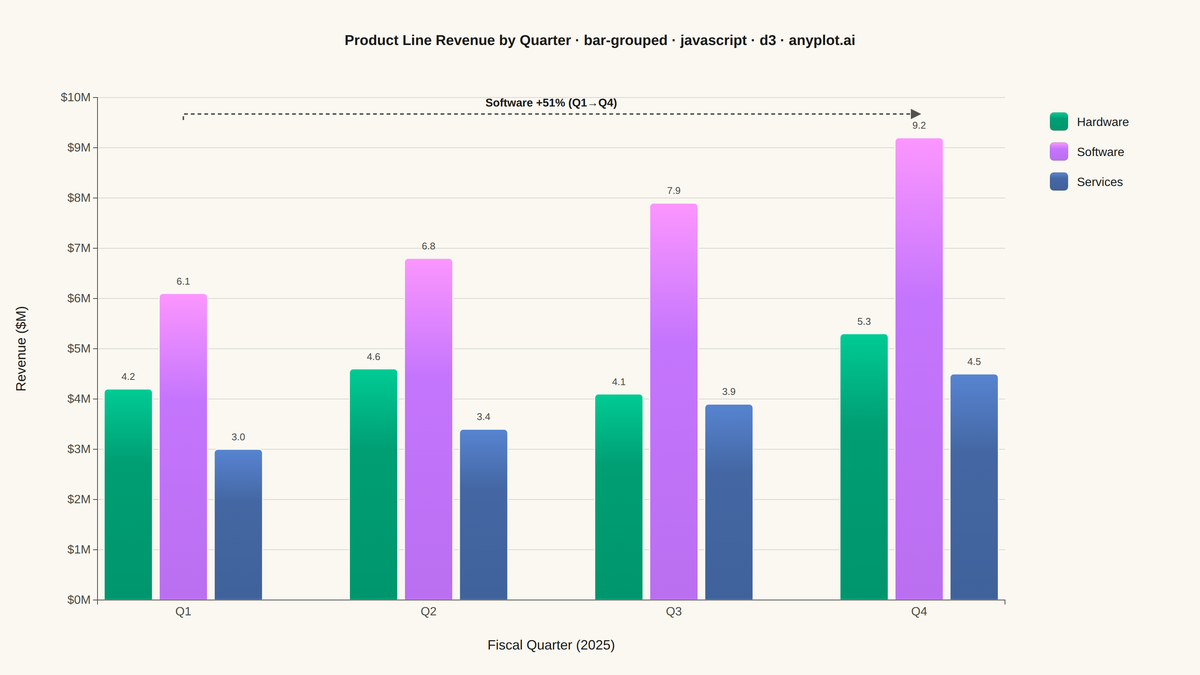

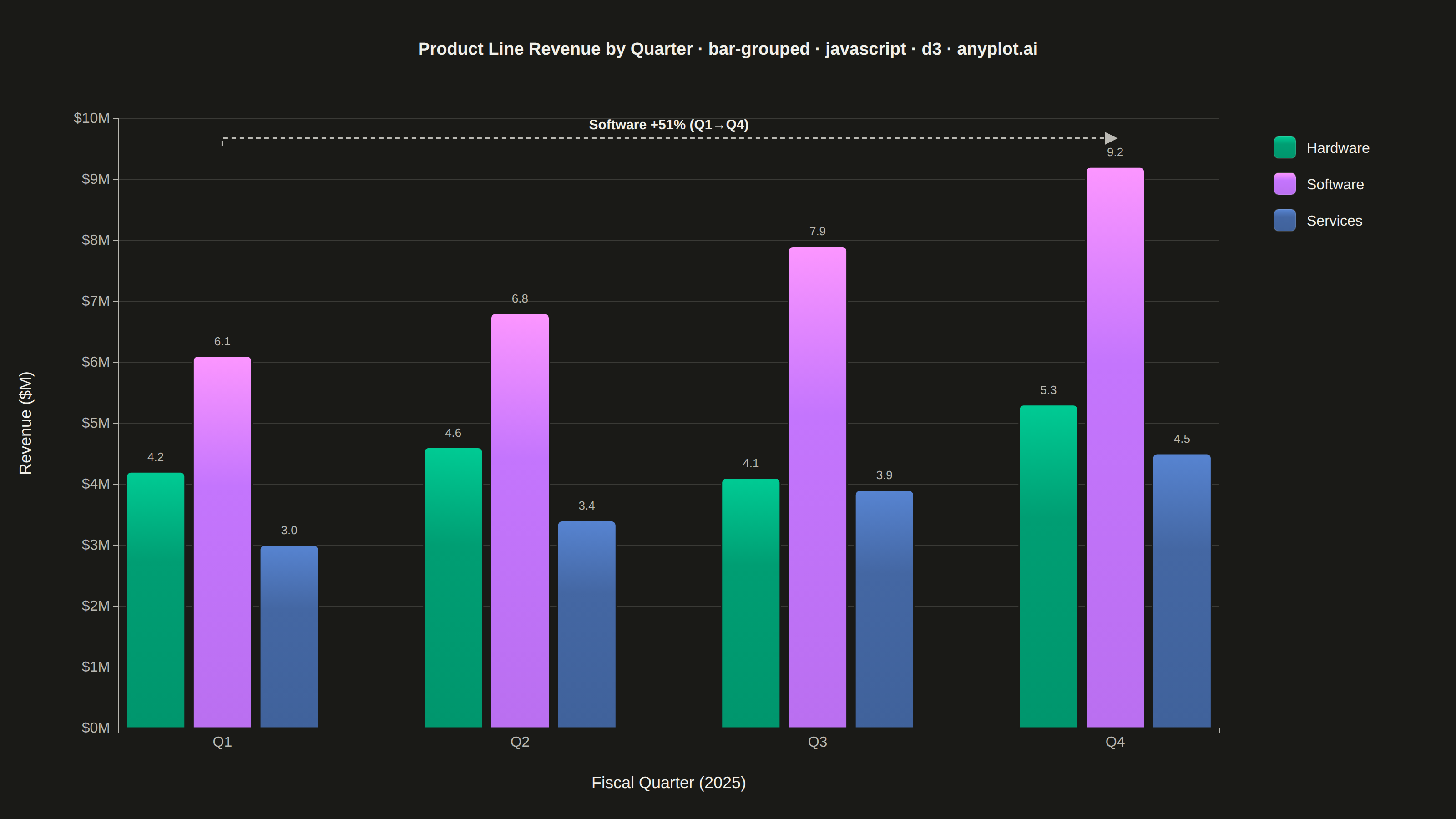

A grouped bar chart that displays multiple bars side-by-side for each category, enabling direct comparison of values across different groups within the same categorical dimension. This visualization excels at showing how different groups perform relative to each other across multiple categories, making patterns and differences immediately apparent. Grouped bar charts are essential for comparative analysis where you need to track multiple series against the same set of categories.
// anyplot.ai
// bar-grouped: Grouped Bar Chart
// Library: d3 7.9.0 | JavaScript 22.23.1
// Quality: 91/100 | Created: 2026-08-05
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 130, right: 260, bottom: 100, left: 130 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
// --- Data (in-memory, deterministic) ----------------------------------------
// Quarterly revenue (in $M) for three product lines across four fiscal quarters.
const categories = ["Q1", "Q2", "Q3", "Q4"];
const groups = ["Hardware", "Software", "Services"];
const data = [
{ category: "Q1", group: "Hardware", value: 4.2 },
{ category: "Q1", group: "Software", value: 6.1 },
{ category: "Q1", group: "Services", value: 3.0 },
{ category: "Q2", group: "Hardware", value: 4.6 },
{ category: "Q2", group: "Software", value: 6.8 },
{ category: "Q2", group: "Services", value: 3.4 },
{ category: "Q3", group: "Hardware", value: 4.1 },
{ category: "Q3", group: "Software", value: 7.9 },
{ category: "Q3", group: "Services", value: 3.9 },
{ category: "Q4", group: "Hardware", value: 5.3 },
{ category: "Q4", group: "Software", value: 9.2 },
{ category: "Q4", group: "Services", value: 4.5 },
];
// --- SVG mount ----------------------------------------------------------------
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
const g = svg.append("g").attr("transform", `translate(${margin.left},${margin.top})`);
// --- Scales ---------------------------------------------------------------
const x0 = d3.scaleBand().domain(categories).range([0, iw]).paddingInner(0.3);
const x1 = d3.scaleBand().domain(groups).range([0, x0.bandwidth()]).padding(0.12);
const y = d3
.scaleLinear()
.domain([0, d3.max(data, (d) => d.value)])
.nice()
.range([ih, 0]);
const color = d3.scaleOrdinal().domain(groups).range(t.palette);
// --- Defs: per-series sheen gradients + growth-arrow marker ------------------
// A hand-built path generator + gradient/marker defs is a low-level SVG
// capability that a high-level charting library would not expose directly.
const defs = svg.append("defs");
groups.forEach((group, i) => {
const base = d3.color(color(group));
const grad = defs
.append("linearGradient")
.attr("id", `bar-sheen-${i}`)
.attr("x1", "0%")
.attr("y1", "0%")
.attr("x2", "0%")
.attr("y2", "100%");
grad.append("stop").attr("offset", "0%").attr("stop-color", base.brighter(0.7));
grad.append("stop").attr("offset", "35%").attr("stop-color", base);
grad.append("stop").attr("offset", "100%").attr("stop-color", base.darker(0.15));
});
defs
.append("marker")
.attr("id", "growth-arrow")
.attr("viewBox", "0 0 10 10")
.attr("refX", 8)
.attr("refY", 5)
.attr("markerWidth", 7)
.attr("markerHeight", 7)
.attr("orient", "auto-start-reverse")
.append("path")
.attr("d", "M0,0 L10,5 L0,10 Z")
.attr("fill", t.ink);
// --- Rounded-top bar path generator ------------------------------------------
function topRoundedRectPath(x, y, w, h, radius) {
const r = Math.min(radius, w / 2, h);
return `M${x},${y + r}
A${r},${r} 0 0 1 ${x + r},${y}
H${x + w - r}
A${r},${r} 0 0 1 ${x + w},${y + r}
V${y + h}
H${x}
Z`;
}
// --- Gridlines (y-axis only) ------------------------------------------------
g.append("g")
.attr("class", "grid")
.call(d3.axisLeft(y).tickSize(-iw).tickFormat(""))
.selectAll("line")
.attr("stroke", t.grid);
g.select(".grid .domain").remove();
// --- Bars -------------------------------------------------------------------
const categoryGroups = g
.selectAll(".category-group")
.data(categories)
.join("g")
.attr("class", "category-group")
.attr("transform", (d) => `translate(${x0(d)},0)`);
categoryGroups
.selectAll("path")
.data((cat) => data.filter((d) => d.category === cat))
.join("path")
.attr("d", (d) =>
topRoundedRectPath(x1(d.group), y(d.value), x1.bandwidth(), ih - y(d.value), 5)
)
.attr("fill", (d) => `url(#bar-sheen-${groups.indexOf(d.group)})`)
.attr("stroke", t.pageBg)
.attr("stroke-width", 1.5);
// --- Value labels -------------------------------------------------------------
categoryGroups
.selectAll("text")
.data((cat) => data.filter((d) => d.category === cat))
.join("text")
.attr("x", (d) => x1(d.group) + x1.bandwidth() / 2)
.attr("y", (d) => y(d.value) - 12)
.attr("text-anchor", "middle")
.style("font-size", "13px")
.attr("fill", t.inkSoft)
.text((d) => d.value.toFixed(1));
// --- Axes -----------------------------------------------------------------
const xAxis = g.append("g").attr("transform", `translate(0,${ih})`).call(d3.axisBottom(x0));
const yAxis = g
.append("g")
.call(d3.axisLeft(y).tickFormat((d) => `$${d}M`));
for (const ax of [xAxis, yAxis]) {
ax.selectAll("text").attr("fill", t.inkSoft).style("font-size", "16px");
ax.selectAll("line").attr("stroke", t.inkSoft);
ax.select(".domain").attr("stroke", t.inkSoft);
}
xAxis.selectAll("line").remove();
// --- Axis labels ------------------------------------------------------------
g.append("text")
.attr("x", iw / 2)
.attr("y", ih + 66)
.attr("text-anchor", "middle")
.style("font-size", "18px")
.attr("fill", t.ink)
.text("Fiscal Quarter (2025)");
g.append("text")
.attr("transform", "rotate(-90)")
.attr("x", -ih / 2)
.attr("y", -96)
.attr("text-anchor", "middle")
.style("font-size", "18px")
.attr("fill", t.ink)
.text("Revenue ($M)");
// --- Growth annotation (Software Q1 -> Q4) ------------------------------------
// Data storytelling: Software is the standout trend (6.1 -> 9.2). A bracket
// spanning the empty headroom above the tallest bars calls it out without
// touching any bar, value label, or gridline.
const softwareQ1 = data.find((d) => d.category === "Q1" && d.group === "Software");
const softwareQ4 = data.find((d) => d.category === "Q4" && d.group === "Software");
const growthPct = Math.round(((softwareQ4.value - softwareQ1.value) / softwareQ1.value) * 100);
const bracketY = 22;
const qx1 = x0("Q1") + x1("Software") + x1.bandwidth() / 2;
const qx4 = x0("Q4") + x1("Software") + x1.bandwidth() / 2;
const annotation = g.append("g").attr("class", "growth-annotation");
annotation
.append("path")
.attr(
"d",
`M${qx1},${bracketY + 8} V${bracketY} H${qx4}`
)
.attr("fill", "none")
.attr("stroke", t.ink)
.attr("stroke-width", 2)
.attr("stroke-dasharray", "5,4")
.attr("opacity", 0.75)
.attr("marker-end", "url(#growth-arrow)");
annotation
.append("text")
.attr("x", (qx1 + qx4) / 2)
.attr("y", bracketY - 10)
.attr("text-anchor", "middle")
.style("font-size", "15px")
.style("font-weight", "700")
.attr("fill", t.ink)
.text(`Software +${growthPct}% (Q1→Q4)`);
// --- Legend -------------------------------------------------------------------
const legend = svg
.append("g")
.attr("transform", `translate(${width - margin.right + 60},${margin.top + 20})`);
groups.forEach((group, i) => {
const row = legend.append("g").attr("transform", `translate(0,${i * 40})`);
row
.append("rect")
.attr("width", 24)
.attr("height", 24)
.attr("rx", 5)
.attr("ry", 5)
.attr("fill", `url(#bar-sheen-${i})`)
.attr("stroke", t.grid)
.attr("stroke-width", 1);
row
.append("text")
.attr("x", 36)
.attr("y", 18)
.style("font-size", "16px")
.attr("fill", t.ink)
.text(group);
});
// --- Title --------------------------------------------------------------------
svg
.append("text")
.attr("x", width / 2)
.attr("y", 60)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "19px")
.style("font-weight", "600")
.text("Product Line Revenue by Quarter · bar-grouped · javascript · d3 · anyplot.ai");
Part of Grouped Bar Chart on anyplot.ai.
