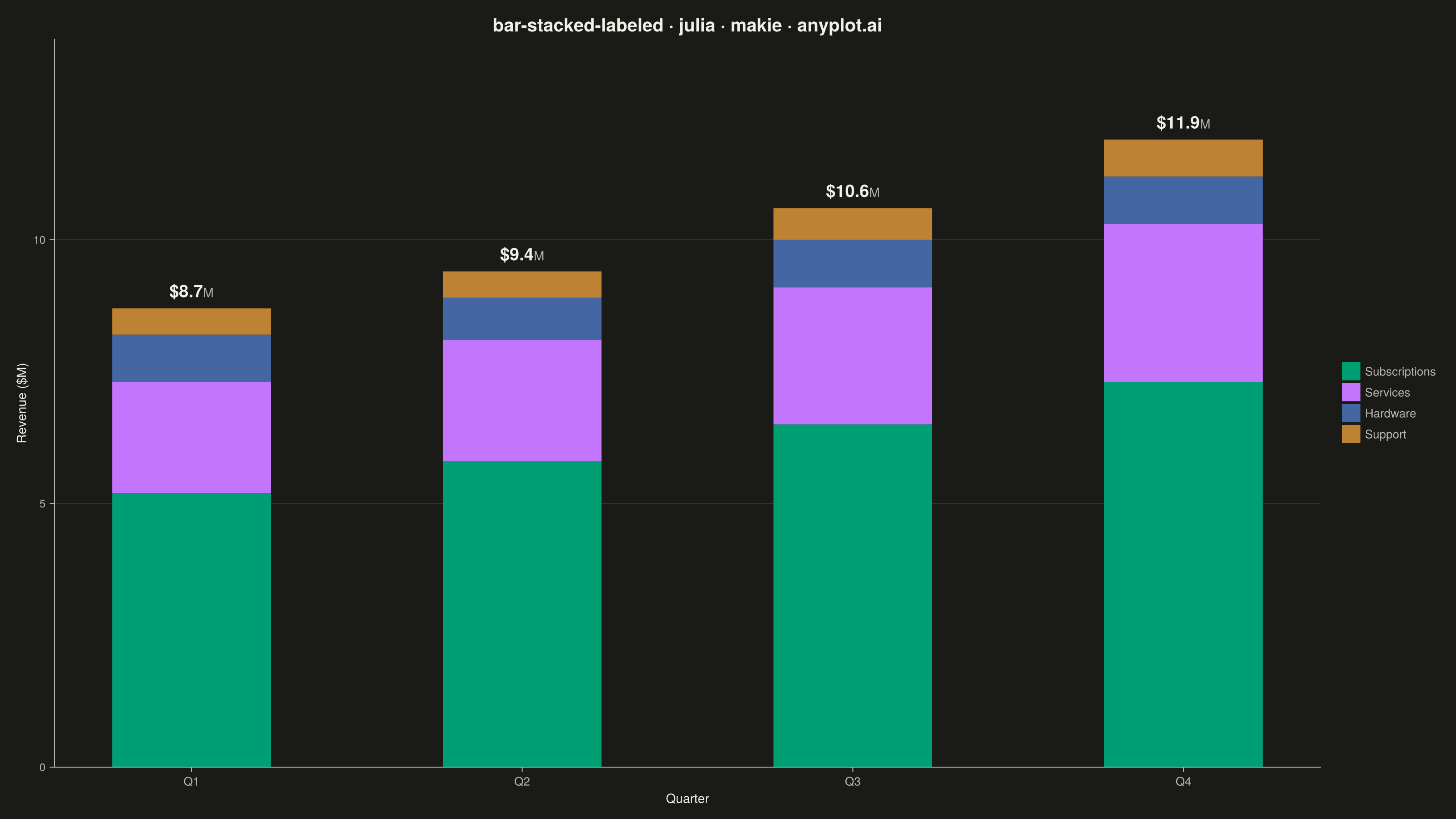

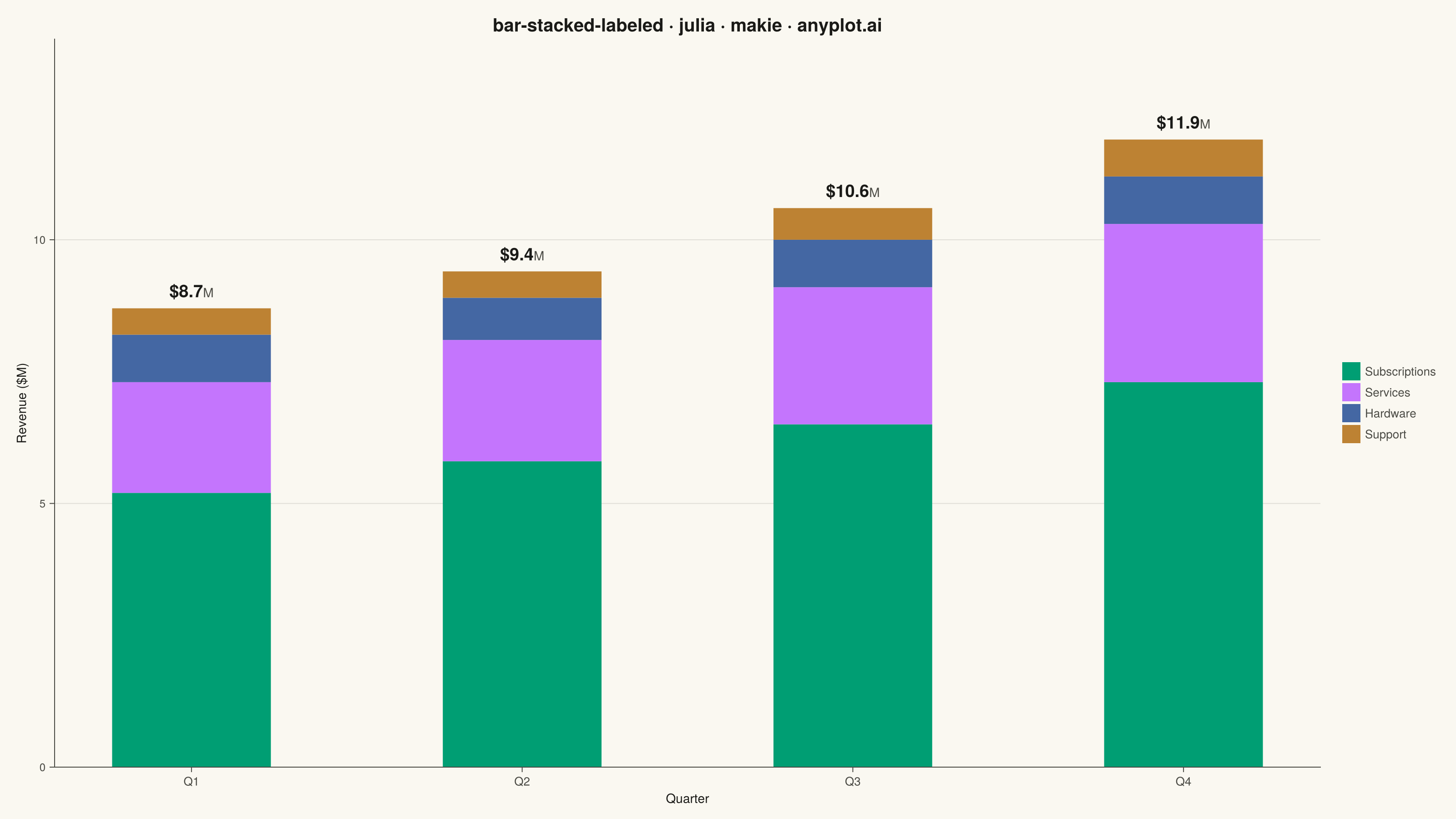

A stacked bar chart that displays multiple data series stacked on top of each other with total value labels prominently shown above each bar stack. This variant combines part-to-whole visualization with explicit numerical annotations, making it easy to read both individual segment contributions and cumulative totals at a glance. The total labels eliminate the need for mental arithmetic when comparing overall values across categories.
# anyplot.ai
# bar-stacked-labeled: Stacked Bar Chart with Total Labels
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 90/100 | Created: 2026-08-26
using CairoMakie
using Colors
# --- Theme tokens -----------------------------------------------------------
const THEME = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const INK = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
const IMPRINT_PALETTE = [
colorant"#009E73", colorant"#C475FD", colorant"#4467A3", colorant"#BD8233",
colorant"#AE3030", colorant"#2ABCCD", colorant"#954477", colorant"#99B314",
]
# --- Data -------------------------------------------------------------------
# Quarterly SaaS revenue split by product line ($M, illustrative).
quarters = ["Q1", "Q2", "Q3", "Q4"]
product_lines = ["Subscriptions", "Services", "Hardware", "Support"]
revenue = [
5.2 2.1 0.9 0.5
5.8 2.3 0.8 0.5
6.5 2.6 0.9 0.6
7.3 3.0 0.9 0.7
]
n_quarter = length(quarters)
n_product = length(product_lines)
x = repeat(1:n_quarter, inner = n_product)
stack = repeat(1:n_product, outer = n_quarter)
height = vec(permutedims(revenue))
totals = vec(sum(revenue, dims = 2))
# --- Plot ---------------------------------------------------------------
fig = Figure(
size = (1600, 900),
fontsize = 14,
backgroundcolor = PAGE_BG,
)
ax = Axis(
fig[1, 1];
title = "bar-stacked-labeled · julia · makie · anyplot.ai",
titlesize = 20,
titlecolor = INK,
xlabel = "Quarter",
ylabel = "Revenue (\$M)",
xlabelsize = 14,
ylabelsize = 14,
xlabelcolor = INK,
ylabelcolor = INK,
xticklabelsize = 13,
yticklabelsize = 12,
xticklabelcolor = INK_SOFT,
yticklabelcolor = INK_SOFT,
xtickcolor = INK_SOFT,
ytickcolor = INK_SOFT,
backgroundcolor = PAGE_BG,
topspinevisible = false,
rightspinevisible = false,
leftspinecolor = INK_SOFT,
bottomspinecolor = INK_SOFT,
xgridvisible = false,
ygridvisible = true,
ygridcolor = RGBAf(INK.r, INK.g, INK.b, 0.12),
yminorgridvisible = false,
)
barplot!(
ax, x, height;
stack = stack,
color = stack,
colormap = IMPRINT_PALETTE[1:n_product],
width = 0.6,
strokewidth = 0,
)
ax.xticks = (1:n_quarter, quarters)
# --- Total labels: genuinely bold and larger than any other text, directly
# above the tallest segment of each stack. `rich()` mixes weight/size within
# one label -- the dollar figure is bold and oversized, the trailing "M"
# unit is smaller and softer, echoing typographic hierarchy from financial
# dashboards.
for (i, total) in enumerate(totals)
text!(
ax, Point2f(i, total);
text = rich(
rich("\$$(round(total, digits = 1))"; font = :bold, fontsize = 19, color = INK),
rich("M"; fontsize = 14, color = INK_SOFT),
),
offset = (0, 8),
align = (:center, :bottom),
)
end
Legend(
fig[1, 2], [PolyElement(color = c) for c in IMPRINT_PALETTE[1:n_product]], product_lines;
labelcolor = INK_SOFT,
labelsize = 13,
framevisible = false,
backgroundcolor = PAGE_BG,
)
# Fix the y-range last so the label headroom above the tallest bar survives
# any autolimits reset triggered by the legend/text calls above.
ylims!(ax, 0, maximum(totals) * 1.16)
# --- Save ---------------------------------------------------------------
save("plot-$(THEME).png", fig; px_per_unit = 2)
Part of Stacked Bar Chart with Total Labels on anyplot.ai.
