Stacked Bar Chart with Total Labels — Matplotlib

A stacked bar chart that displays multiple data series stacked on top of each other with total value labels prominently shown above each bar stack. This variant combines part-to-whole visualization with explicit numerical annotations, making it easy to read both individual segment contributions and cumulative totals at a glance. The total labels eliminate the need for mental arithmetic when comparing overall values across categories.

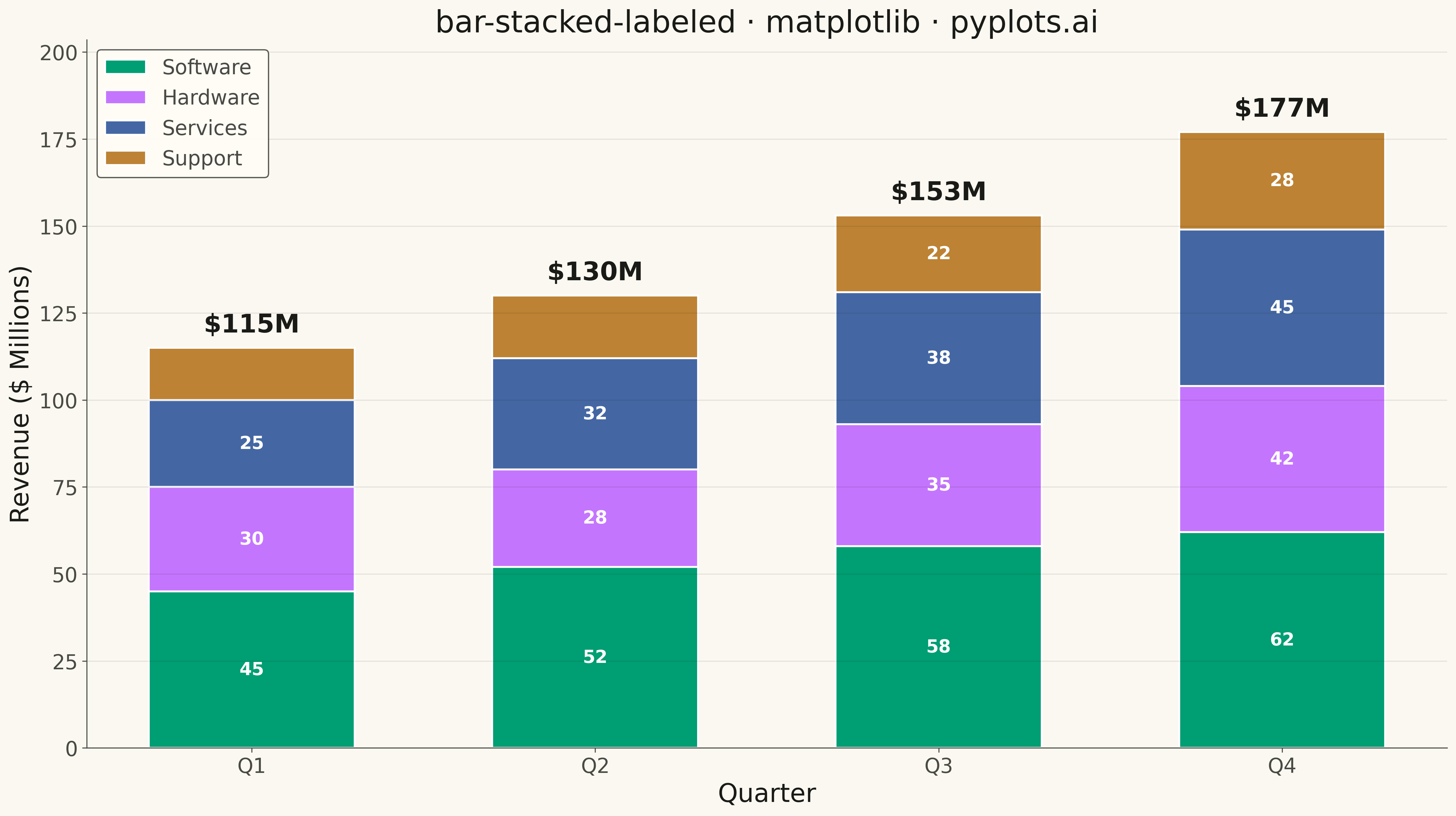

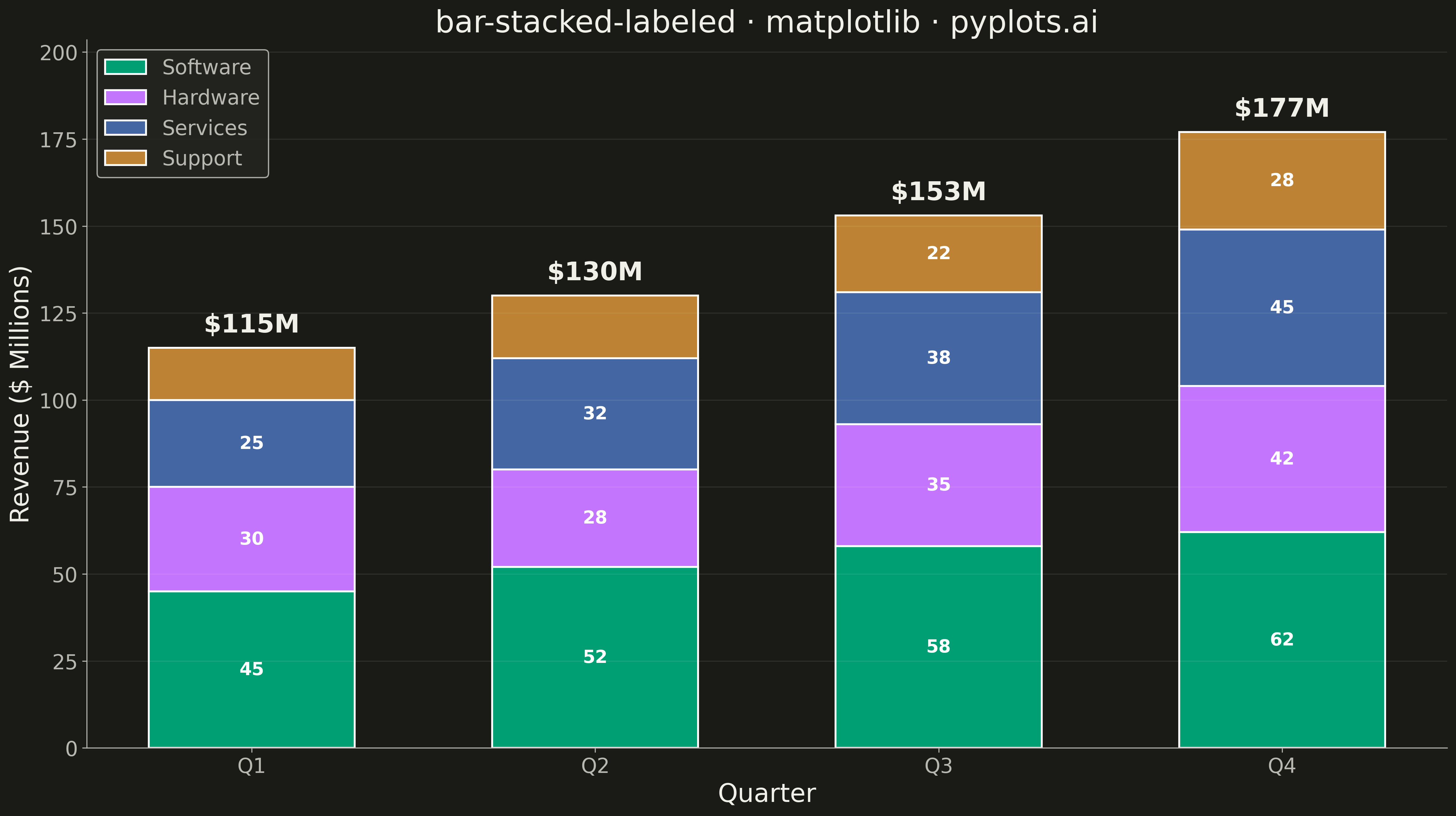

Stacked Bar Chart with Total Labels rendered with Matplotlib

Renders

Python source (Matplotlib)

""" anyplot.ai
bar-stacked-labeled: Stacked Bar Chart with Total Labels
Library: matplotlib 3.10.9 | Python 3.13.13
Quality: 88/100 | Updated: 2026-05-18
"""

import sys


# Remove the script's directory from sys.path to avoid shadowing installed packages
if sys.path and sys.path[0] and "implementations" in sys.path[0]:
    sys.path.pop(0)

import os

import matplotlib.pyplot as plt
import numpy as np


# Theme configuration
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"

# Okabe-Ito palette (positions 1-4)
COLORS = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]

# Data - Quarterly revenue by product category (in millions $)
np.random.seed(42)
categories = ["Q1", "Q2", "Q3", "Q4"]
components = ["Software", "Hardware", "Services", "Support"]

# Revenue data (realistic quarterly figures in millions)
data = {
    "Software": [45, 52, 58, 62],
    "Hardware": [30, 28, 35, 42],
    "Services": [25, 32, 38, 45],
    "Support": [15, 18, 22, 28],
}

# Create figure with theme-adaptive background
fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

# Create stacked bars
x = np.arange(len(categories))
width = 0.6
bottom = np.zeros(len(categories))

bars_list = []
for i, (component, values) in enumerate(data.items()):
    bars = ax.bar(x, values, width, bottom=bottom, label=component, color=COLORS[i], edgecolor="white", linewidth=1.5)
    bars_list.append(bars)
    bottom += values

# Calculate totals for labels
totals = np.sum([data[comp] for comp in components], axis=0)

# Add total labels above each bar stack
for i, total in enumerate(totals):
    ax.text(x[i], total + 3, f"${total}M", ha="center", va="bottom", fontsize=20, fontweight="bold", color=INK)

# Add segment labels inside bars for larger segments
for i, (_component, values) in enumerate(data.items()):
    cumulative = np.zeros(len(categories))
    for j in range(i):
        cumulative += list(data.values())[j]
    for j, val in enumerate(values):
        if val >= 20:  # Only label segments >= 20
            y_pos = cumulative[j] + val / 2
            ax.text(x[j], y_pos, f"{val}", ha="center", va="center", fontsize=14, color="white", fontweight="bold")

# Styling with theme-adaptive colors
ax.set_xlabel("Quarter", fontsize=20, color=INK)
ax.set_ylabel("Revenue ($ Millions)", fontsize=20, color=INK)
ax.set_title("bar-stacked-labeled · matplotlib · pyplots.ai", fontsize=24, color=INK)
ax.set_xticks(x)
ax.set_xticklabels(categories)
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT, labelcolor=INK_SOFT)

# Legend with theme-adaptive styling
leg = ax.legend(fontsize=16, loc="upper left", framealpha=0.9)
if leg:
    leg.get_frame().set_facecolor(ELEVATED_BG)
    leg.get_frame().set_edgecolor(INK_SOFT)
    for text in leg.get_texts():
        text.set_color(INK_SOFT)

ax.set_ylim(0, max(totals) * 1.15)  # Space for labels

# Grid with theme-adaptive styling
ax.yaxis.grid(True, alpha=0.1, linestyle="-", color=INK, linewidth=0.8)

# Spines with theme-adaptive colors
for spine in ("left", "bottom"):
    ax.spines[spine].set_color(INK_SOFT)
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)
