Horizontal Box Plot — lets-plot

A horizontal box plot displays the distribution of numerical data through quartiles with the boxes oriented horizontally. This orientation is particularly useful when category labels are long or when comparing many groups, as it allows for easier reading of labels on the y-axis.

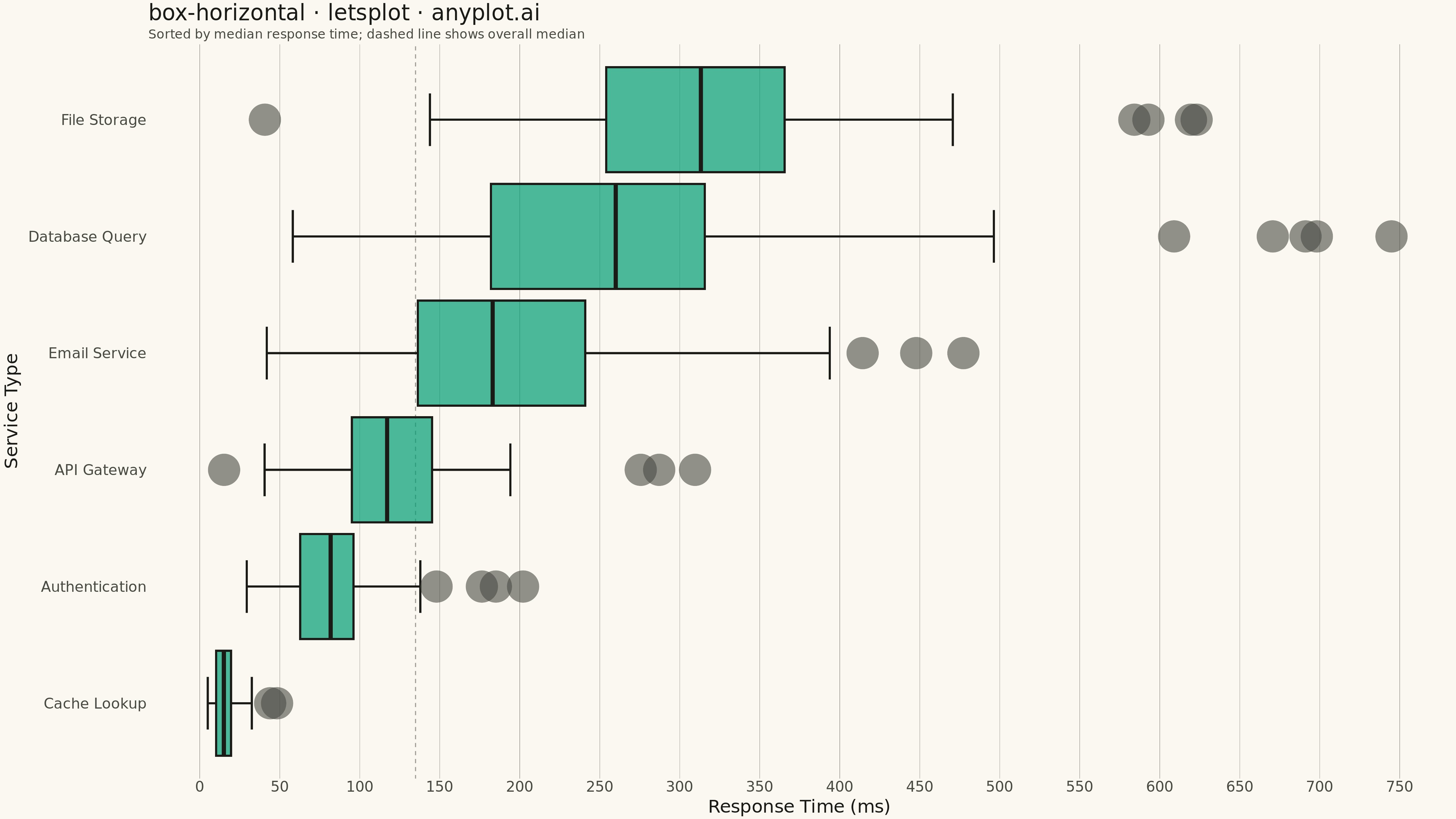

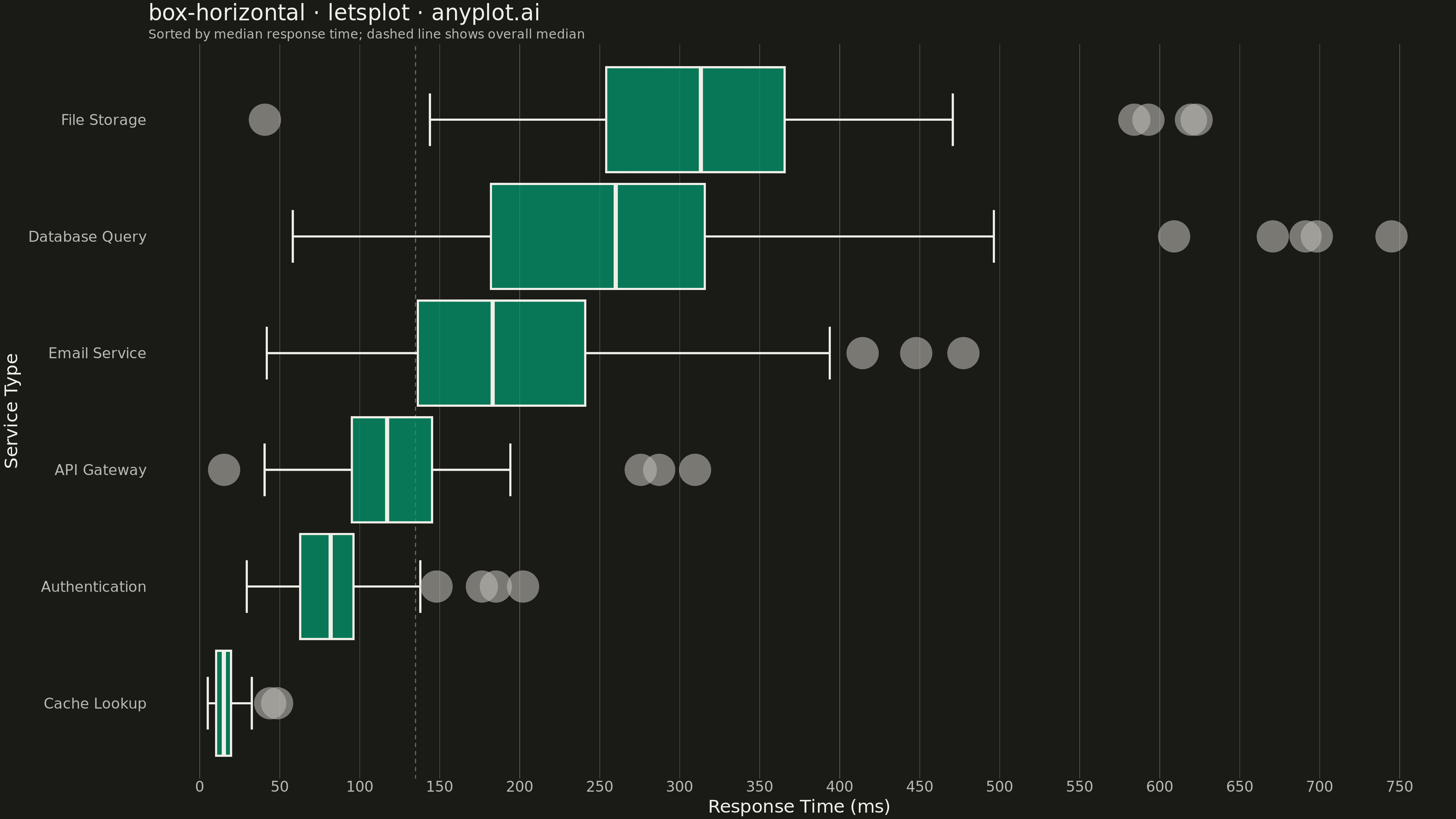

Horizontal Box Plot rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
box-horizontal: Horizontal Box Plot
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 87/100 | Updated: 2026-05-12
"""

import os

import numpy as np
import pandas as pd
from lets_plot import *


LetsPlot.setup_html()

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
BRAND = "#009E73"  # Okabe-Ito position 1

# Data - Response times by service type
np.random.seed(42)

services = ["API Gateway", "Database Query", "Authentication", "File Storage", "Cache Lookup", "Email Service"]

data = []
distributions = {
    "API Gateway": (120, 40, 3),
    "Database Query": (250, 100, 5),
    "Authentication": (80, 25, 2),
    "File Storage": (300, 80, 4),
    "Cache Lookup": (15, 8, 2),
    "Email Service": (180, 60, 6),
}

for service in services:
    mean, std, n_outliers = distributions[service]
    values = np.random.normal(mean, std, 80)
    outliers = np.random.normal(mean + 4 * std, std / 2, n_outliers)
    all_values = np.concatenate([values, outliers])
    all_values = np.maximum(all_values, 5)

    for val in all_values:
        data.append({"Service": service, "Response Time (ms)": val})

df = pd.DataFrame(data)

# Create horizontal box plot
plot = (
    ggplot(df, aes(x="Response Time (ms)", y="Service"))
    + geom_boxplot(
        fill=BRAND, color=INK_SOFT, alpha=0.7, outlier_color=INK_SOFT, outlier_size=4, outlier_alpha=0.6, size=1.0
    )
    + labs(x="Response Time (ms)", y="Service Type", title="box-horizontal · letsplot · anyplot.ai")
    + theme_minimal()
    + theme(
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        axis_title=element_text(size=20, color=INK),
        axis_text=element_text(size=16, color=INK_SOFT),
        axis_text_y=element_text(size=16, color=INK_SOFT),
        plot_title=element_text(size=24, color=INK),
        panel_grid_major_x=element_line(color=INK_SOFT, size=0.2),
        panel_grid_major_y=element_blank(),
        panel_grid_minor=element_blank(),
        axis_line=element_line(color=INK_SOFT, size=0.5),
    )
    + ggsize(1600, 900)
)

# Save PNG (scale 3x to get 4800 x 2700 px)
ggsave(plot, f"plot-{THEME}.png", path=".", scale=3)

# Save interactive HTML
ggsave(plot, f"plot-{THEME}.html", path=".")

Part of Horizontal Box Plot on anyplot.ai.
