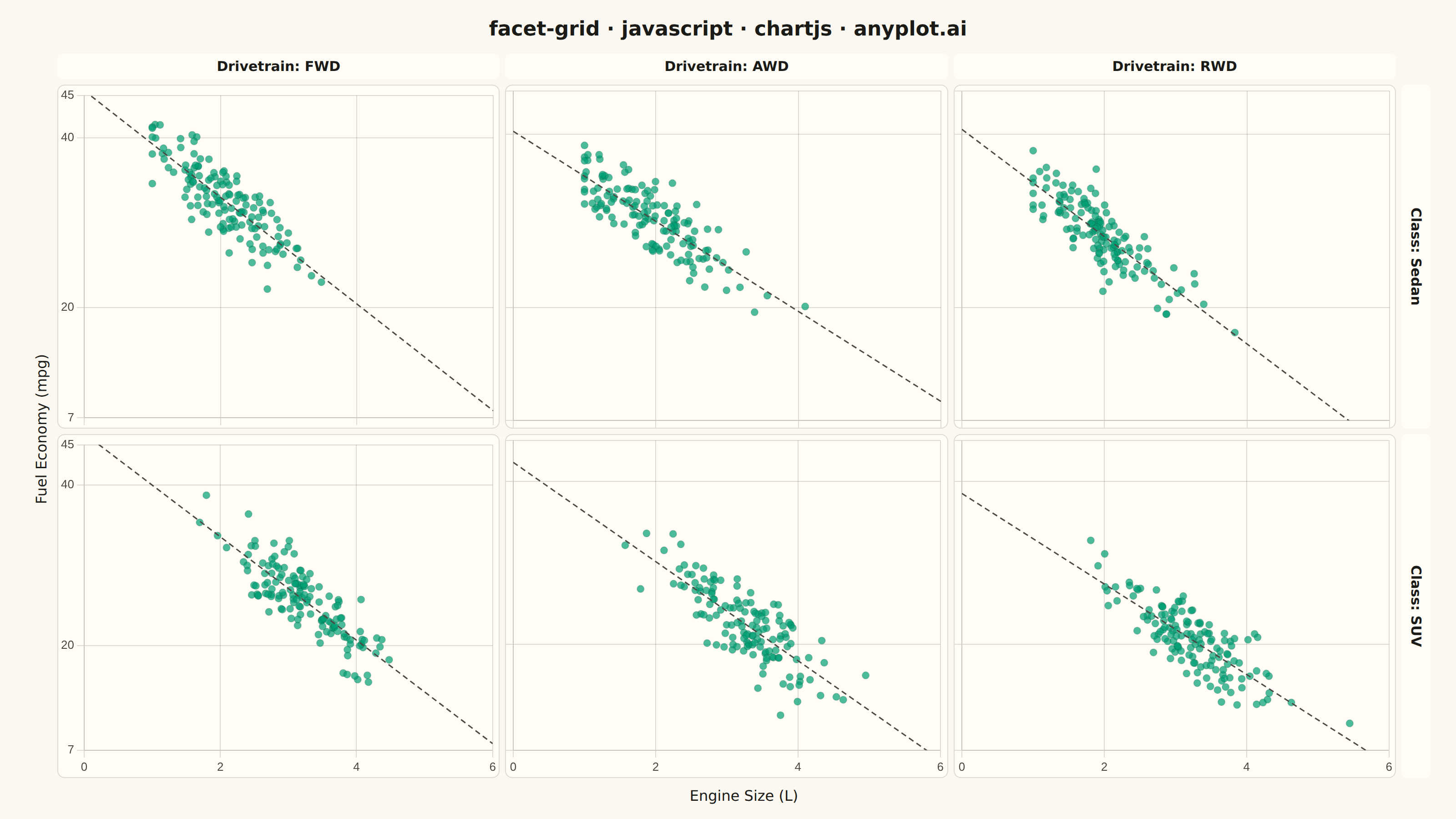

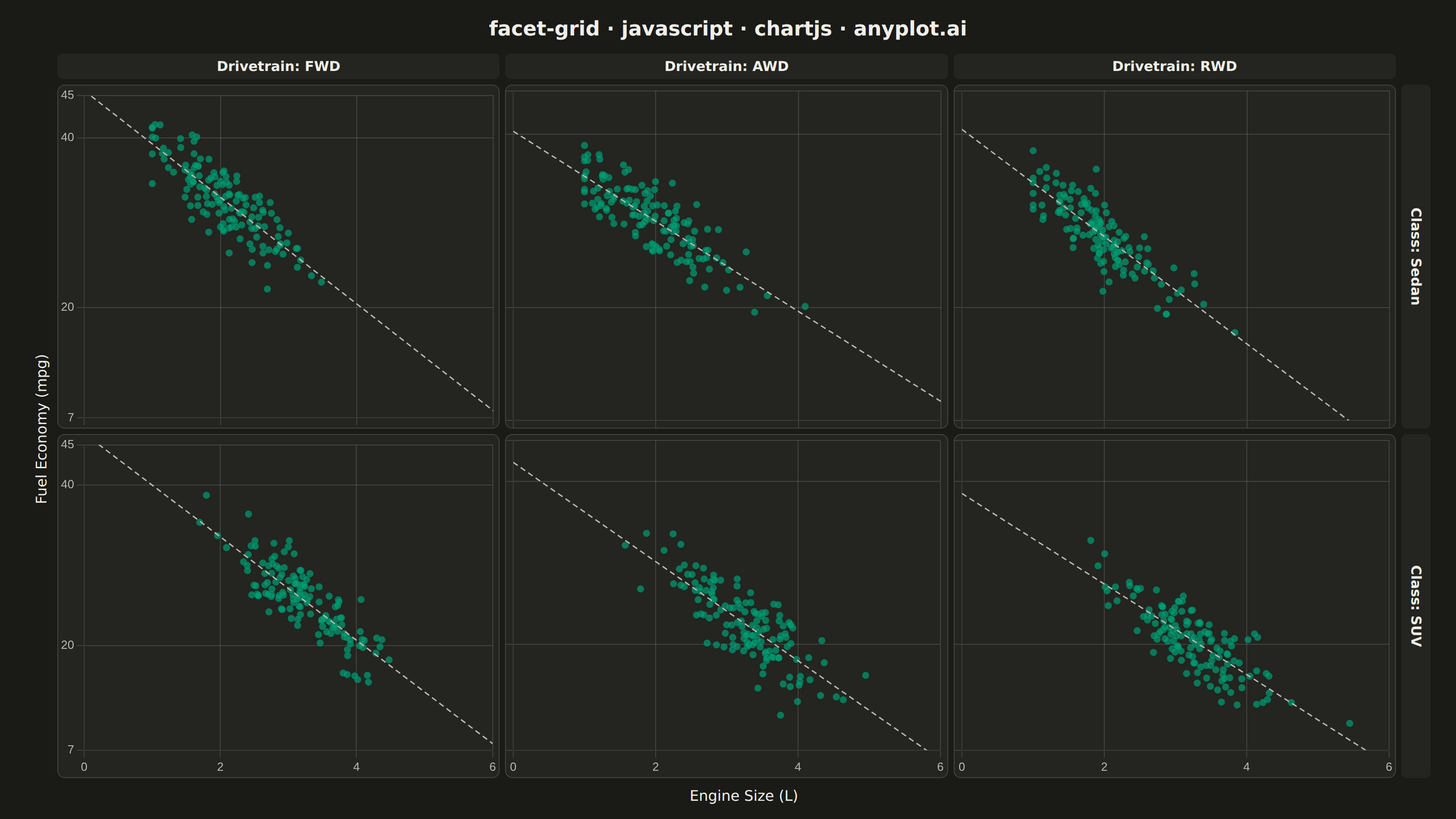

A grid of subplots where each cell shows the same type of plot for a different subset of data, split by one or two categorical variables. Enables systematic comparison across multiple dimensions.
// anyplot.ai
// facet-grid: Faceted Grid Plot
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 89/100 | Created: 2026-09-05
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic LCG) ------------------------------------
function makeLcg(seed) {
let state = seed;
return () => {
state = (state * 1664525 + 1013904223) % 4294967296;
return state / 4294967296;
};
}
const rand = makeLcg(42);
function randNormal(mean, std) {
const u1 = Math.max(rand(), 1e-9);
const u2 = rand();
const z = Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
return mean + z * std;
}
function linearRegression(points) {
const n = points.length;
const sumX = points.reduce((s, p) => s + p.x, 0);
const sumY = points.reduce((s, p) => s + p.y, 0);
const sumXY = points.reduce((s, p) => s + p.x * p.y, 0);
const sumXX = points.reduce((s, p) => s + p.x * p.x, 0);
const slope = (n * sumXY - sumX * sumY) / (n * sumXX - sumX * sumX);
const intercept = (sumY - slope * sumX) / n;
return { slope, intercept };
}
const vehicleClasses = ["Sedan", "SUV"];
const drivetrains = ["FWD", "AWD", "RWD"];
const engineBaseByClass = { Sedan: 2.0, SUV: 3.2 };
const mpgPenaltyByDrivetrain = { FWD: 0, AWD: -3, RWD: -5 };
const POINTS_PER_FACET = 140;
const facets = [];
for (const vehicleClass of vehicleClasses) {
for (const drivetrain of drivetrains) {
const points = [];
for (let i = 0; i < POINTS_PER_FACET; i++) {
const engineSize = Math.max(
1.0,
randNormal(engineBaseByClass[vehicleClass], 0.6),
);
const baseMpg = 45 - engineSize * 6 + mpgPenaltyByDrivetrain[drivetrain];
const fuelEconomy = Math.max(8, baseMpg + randNormal(0, 2.5));
points.push({ x: engineSize, y: fuelEconomy });
}
facets.push({
row: vehicleClass,
col: drivetrain,
points,
trend: linearRegression(points),
});
}
}
// Shared axis range across every facet, per the spec's "same axes scales by default"
const allX = facets.flatMap((f) => f.points.map((p) => p.x));
const allY = facets.flatMap((f) => f.points.map((p) => p.y));
const xPad = (Math.max(...allX) - Math.min(...allX)) * 0.08;
const yPad = (Math.max(...allY) - Math.min(...allY)) * 0.08;
const X_MIN = Math.floor(Math.min(...allX) - xPad);
const X_MAX = Math.ceil(Math.max(...allX) + xPad);
const Y_MIN = Math.floor(Math.min(...allY) - yPad);
const Y_MAX = Math.ceil(Math.max(...allY) + yPad);
// --- Scaffolding -------------------------------------------------------------
const style = document.createElement("style");
style.textContent = "#container, #container * { box-sizing: border-box; }";
document.head.appendChild(style);
const container = document.getElementById("container");
container.style.display = "flex";
container.style.flexDirection = "column";
container.style.padding = "20px 28px 16px 28px";
container.style.background = t.pageBg;
container.style.fontFamily =
"system-ui, -apple-system, Helvetica, Arial, sans-serif";
const title = document.createElement("div");
title.textContent = "facet-grid · javascript · chartjs · anyplot.ai";
title.style.color = t.ink;
title.style.fontSize = "22px";
title.style.fontWeight = "600";
title.style.textAlign = "center";
title.style.marginBottom = "14px";
container.appendChild(title);
const body = document.createElement("div");
body.style.display = "flex";
body.style.flex = "1";
body.style.minHeight = "0";
container.appendChild(body);
const yAxisLabel = document.createElement("div");
yAxisLabel.textContent = "Fuel Economy (mpg)";
yAxisLabel.style.color = t.ink;
yAxisLabel.style.fontSize = "16px";
yAxisLabel.style.writingMode = "vertical-rl";
yAxisLabel.style.transform = "rotate(180deg)";
yAxisLabel.style.display = "flex";
yAxisLabel.style.alignItems = "center";
yAxisLabel.style.justifyContent = "center";
yAxisLabel.style.padding = "0 8px";
body.appendChild(yAxisLabel);
const gridArea = document.createElement("div");
gridArea.style.display = "flex";
gridArea.style.flexDirection = "column";
gridArea.style.flex = "1";
gridArea.style.minWidth = "0";
body.appendChild(gridArea);
// Column strip labels (top), with a trailing spacer matching the row-label column
const colHeaderRow = document.createElement("div");
colHeaderRow.style.display = "flex";
colHeaderRow.style.gap = "6px";
for (const drivetrain of drivetrains) {
const cell = document.createElement("div");
cell.textContent = `Drivetrain: ${drivetrain}`;
cell.style.flex = "1";
cell.style.textAlign = "center";
cell.style.color = t.ink;
cell.style.fontSize = "15px";
cell.style.fontWeight = "600";
cell.style.background = t.elevatedBg;
cell.style.borderRadius = "6px";
cell.style.padding = "5px 6px";
cell.style.marginBottom = "6px";
colHeaderRow.appendChild(cell);
}
const colHeaderSpacer = document.createElement("div");
colHeaderSpacer.style.width = "32px";
colHeaderSpacer.style.flexShrink = "0";
colHeaderRow.appendChild(colHeaderSpacer);
gridArea.appendChild(colHeaderRow);
const rowsWrap = document.createElement("div");
rowsWrap.style.display = "flex";
rowsWrap.style.flexDirection = "column";
rowsWrap.style.flex = "1";
rowsWrap.style.minHeight = "0";
rowsWrap.style.gap = "6px";
gridArea.appendChild(rowsWrap);
vehicleClasses.forEach((vehicleClass, rowIdx) => {
const rowDiv = document.createElement("div");
rowDiv.style.display = "flex";
rowDiv.style.flex = "1";
rowDiv.style.minHeight = "0";
rowDiv.style.gap = "6px";
drivetrains.forEach((drivetrain, colIdx) => {
const cellWrap = document.createElement("div");
cellWrap.style.position = "relative";
cellWrap.style.flex = "1";
cellWrap.style.minWidth = "0";
cellWrap.style.background = t.elevatedBg;
cellWrap.style.border = `1px solid ${t.grid}`;
cellWrap.style.borderRadius = "8px";
cellWrap.style.overflow = "hidden";
const canvas = document.createElement("canvas");
cellWrap.appendChild(canvas);
rowDiv.appendChild(cellWrap);
const facet = facets.find(
(f) => f.row === vehicleClass && f.col === drivetrain,
);
const isLeftCol = colIdx === 0;
const isBottomRow = rowIdx === vehicleClasses.length - 1;
const { slope, intercept } = facet.trend;
const trendLine = [
{ x: X_MIN, y: slope * X_MIN + intercept },
{ x: X_MAX, y: slope * X_MAX + intercept },
];
new Chart(canvas, {
type: "scatter",
data: {
datasets: [
{
label: "points",
data: facet.points,
backgroundColor: `${t.palette[0]}B3`,
pointRadius: 4,
pointHoverRadius: 5,
order: 1,
},
{
type: "line",
label: "trend",
data: trendLine,
borderColor: t.inkSoft,
borderWidth: 1.5,
borderDash: [6, 4],
pointRadius: 0,
pointHoverRadius: 0,
fill: false,
tension: 0,
order: 0,
},
],
},
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
plugins: {
legend: { display: false },
title: { display: false },
tooltip: {
filter: (item) => item.datasetIndex === 0,
callbacks: {
title: () => `${vehicleClass} · ${drivetrain}`,
label: (ctx) =>
`${ctx.parsed.x.toFixed(1)}L → ${ctx.parsed.y.toFixed(1)} mpg`,
},
},
},
scales: {
x: {
min: X_MIN,
max: X_MAX,
ticks: {
display: isBottomRow,
color: t.inkSoft,
font: { size: 13 },
maxTicksLimit: 5,
},
grid: { color: t.grid },
},
y: {
min: Y_MIN,
max: Y_MAX,
ticks: {
display: isLeftCol,
color: t.inkSoft,
font: { size: 13 },
maxTicksLimit: 5,
},
grid: { color: t.grid },
},
},
},
});
});
const rowLabel = document.createElement("div");
rowLabel.textContent = `Class: ${vehicleClass}`;
rowLabel.style.width = "32px";
rowLabel.style.flexShrink = "0";
rowLabel.style.display = "flex";
rowLabel.style.alignItems = "center";
rowLabel.style.justifyContent = "center";
rowLabel.style.writingMode = "vertical-rl";
rowLabel.style.color = t.ink;
rowLabel.style.fontSize = "15px";
rowLabel.style.fontWeight = "600";
rowLabel.style.background = t.elevatedBg;
rowLabel.style.borderRadius = "6px";
rowDiv.appendChild(rowLabel);
rowsWrap.appendChild(rowDiv);
});
const xAxisLabel = document.createElement("div");
xAxisLabel.textContent = "Engine Size (L)";
xAxisLabel.style.color = t.ink;
xAxisLabel.style.fontSize = "16px";
xAxisLabel.style.textAlign = "center";
xAxisLabel.style.marginTop = "10px";
gridArea.appendChild(xAxisLabel);
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/facet-grid/chartjs/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "facet-grid",
"language": "javascript",
"library": "chartjs",
"page": "https://anyplot.ai/facet-grid/javascript/chartjs",
"hub": "https://anyplot.ai/facet-grid",
"code_json": "https://api.anyplot.ai/specs/facet-grid/chartjs/code",
"spec_json": "https://api.anyplot.ai/specs/facet-grid",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/facet-grid/javascript/chartjs/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/facet-grid/javascript/chartjs/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/facet-grid/javascript/chartjs/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/facet-grid/javascript/chartjs/plot-dark.html",
"quality_score": 89.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Faceted Grid Plot on anyplot.ai.
