Frequency Polygon for Distribution Comparison — Chart.js

A frequency polygon connects the midpoints of histogram bins with straight line segments, creating a smooth outline of the distribution shape. This visualization excels at comparing multiple distributions simultaneously since lines overlap without obscuring each other, unlike stacked or overlapping histogram bars. Frequency polygons reveal differences in central tendency, spread, skewness, and modality across groups with minimal visual clutter.

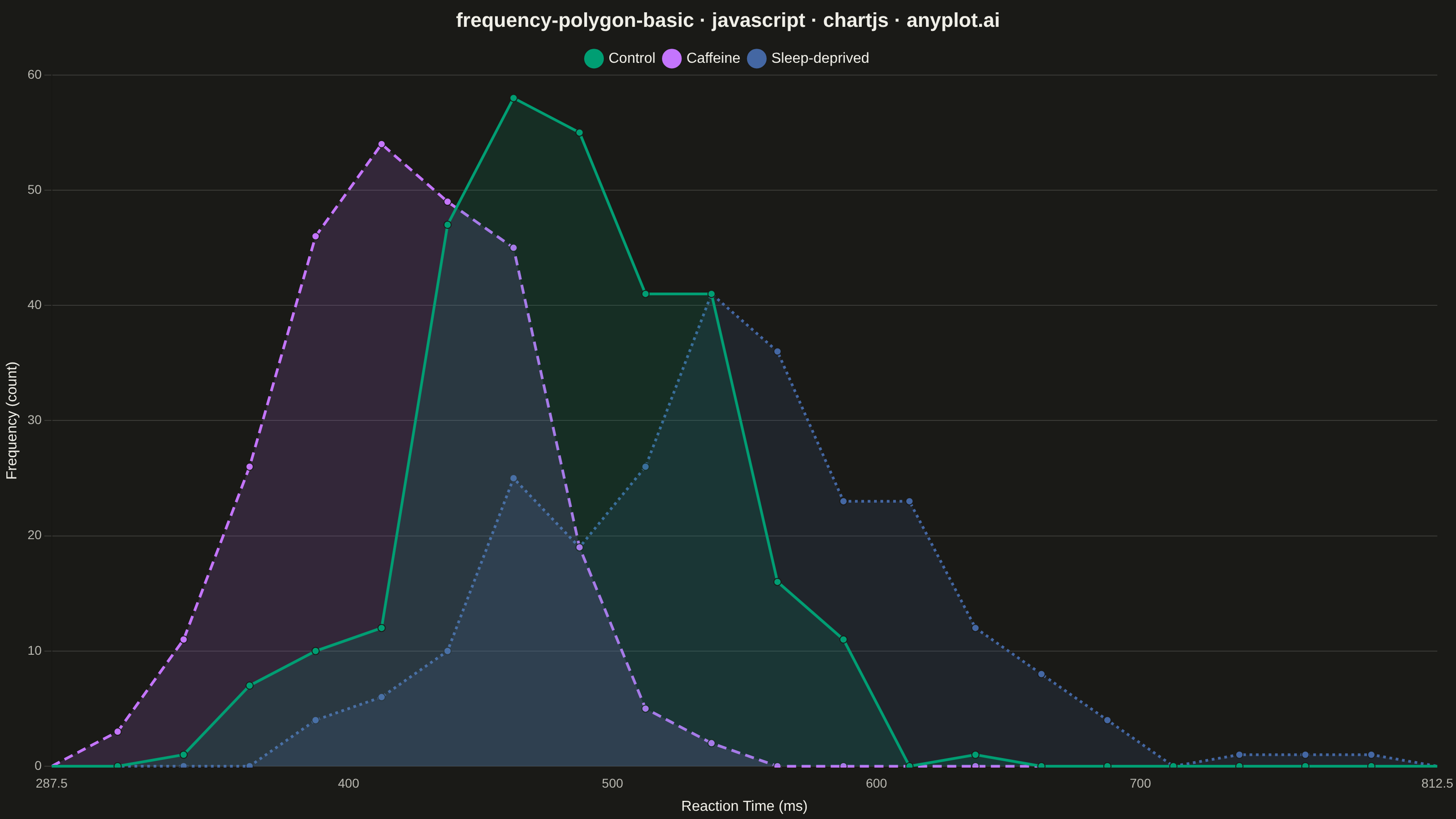

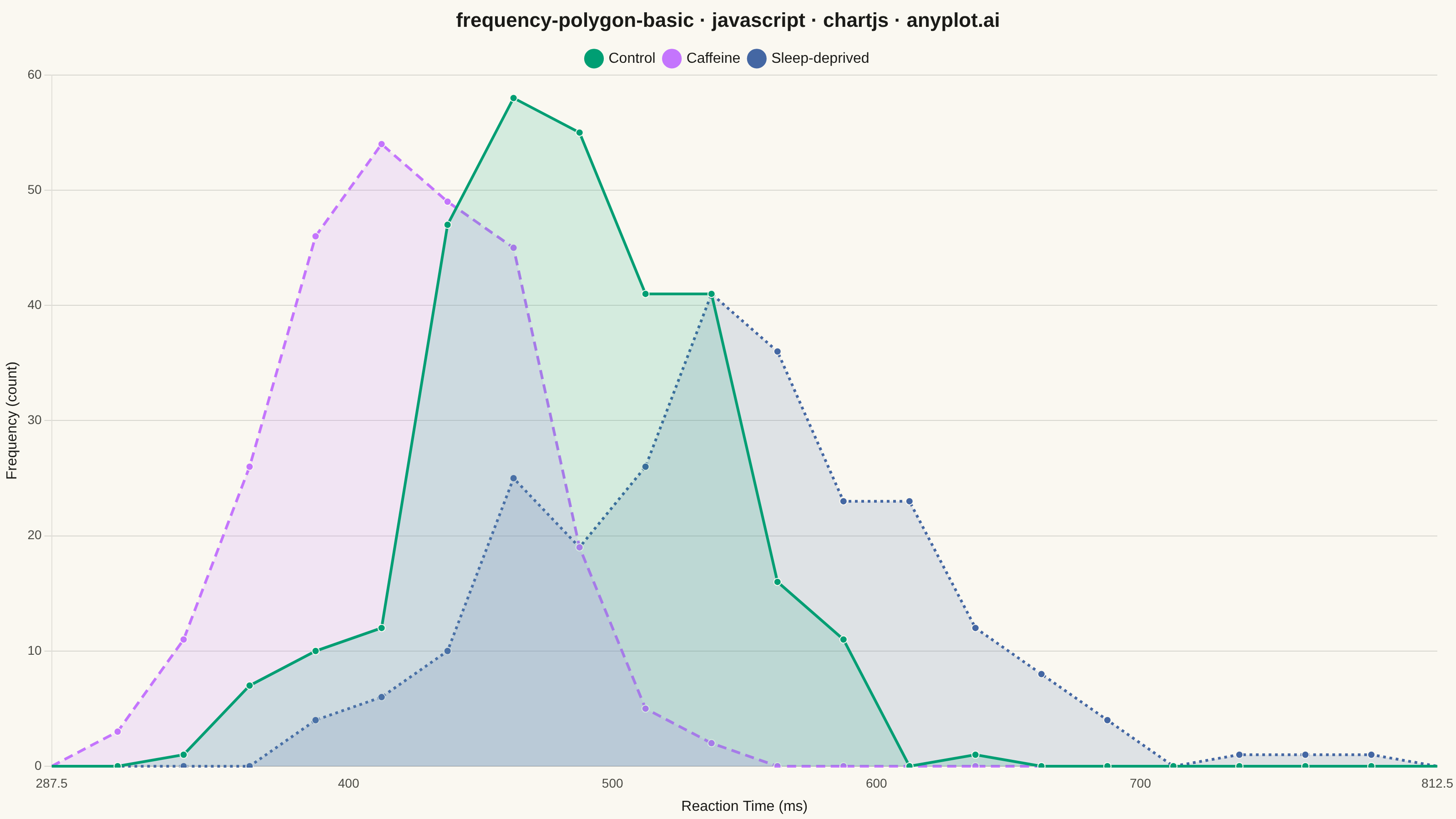

Frequency Polygon for Distribution Comparison rendered with Chart.js

Renders

JavaScript source (Chart.js)

// anyplot.ai
// frequency-polygon-basic: Frequency Polygon for Distribution Comparison
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 88/100 | Created: 2026-09-02
//# anyplot-orientation: landscape

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Reaction times (ms) recorded across three experimental conditions in a
// psychology response-time study.
function makeLcg(seed) {
  let state = seed;
  return function lcg() {
    state = (state * 1664525 + 1013904223) % 4294967296;
    return state / 4294967296;
  };
}

function normalSamples(rng, n, mean, std) {
  const samples = [];
  for (let i = 0; i < n; i += 2) {
    const u1 = Math.max(rng(), 1e-9);
    const u2 = rng();
    const mag = std * Math.sqrt(-2 * Math.log(u1));
    samples.push(mean + mag * Math.cos(2 * Math.PI * u2));
    samples.push(mean + mag * Math.sin(2 * Math.PI * u2));
  }
  return samples.slice(0, n);
}

const rng = makeLcg(42);
const groups = [
  { name: "Control", n: 300, mean: 480, std: 55 },
  { name: "Caffeine", n: 260, mean: 420, std: 48 },
  { name: "Sleep-deprived", n: 240, mean: 545, std: 70 },
];
const groupSamples = groups.map((g) => normalSamples(rng, g.n, g.mean, g.std));

// Shared bin edges across all groups for accurate comparison
const binWidth = 25;
const allValues = groupSamples.flat();
const minVal = Math.floor(Math.min(...allValues) / binWidth) * binWidth;
const maxVal = Math.ceil(Math.max(...allValues) / binWidth) * binWidth;
const binCount = Math.round((maxVal - minVal) / binWidth);

function frequencyPolygon(samples) {
  const counts = new Array(binCount).fill(0);
  samples.forEach((v) => {
    const idx = Math.min(Math.max(Math.floor((v - minVal) / binWidth), 0), binCount - 1);
    counts[idx] += 1;
  });
  const midpoints = counts.map((_, i) => minVal + (i + 0.5) * binWidth);
  // Extend to zero at both ends to close the polygon shape
  const points = [{ x: midpoints[0] - binWidth, y: 0 }];
  counts.forEach((c, i) => points.push({ x: midpoints[i], y: c }));
  points.push({ x: midpoints[midpoints.length - 1] + binWidth, y: 0 });
  return points;
}

const groupPoints = groupSamples.map((samples) => frequencyPolygon(samples));
const dashPatterns = [[], [10, 6], [3, 4]];

const datasets = groups.map((g, i) => {
  const points = groupPoints[i];
  return {
    label: g.name,
    data: points,
    borderColor: t.palette[i],
    backgroundColor: `${t.palette[i]}26`,
    borderDash: dashPatterns[i % dashPatterns.length],
    borderWidth: 3,
    fill: true,
    tension: 0,
    pointRadius: points.map((_, idx) => (idx === 0 || idx === points.length - 1 ? 0 : 4)),
    pointBackgroundColor: t.palette[i],
    pointBorderColor: t.pageBg,
    pointBorderWidth: 1,
  };
});

// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);

// --- Chart -------------------------------------------------------------------
new Chart(canvas, {
  type: "line",
  data: { datasets },
  options: {
    responsive: true,
    maintainAspectRatio: false,
    animation: false,
    parsing: false,
    plugins: {
      title: {
        display: true,
        text: "frequency-polygon-basic · javascript · chartjs · anyplot.ai",
        color: t.ink,
        font: { size: 22 },
      },
      legend: {
        position: "top",
        labels: { color: t.ink, font: { size: 16 }, usePointStyle: true },
      },
    },
    scales: {
      x: {
        type: "linear",
        min: minVal - binWidth / 2,
        max: maxVal + binWidth / 2,
        ticks: { color: t.inkSoft, font: { size: 14 } },
        grid: { display: false },
        title: { display: true, text: "Reaction Time (ms)", color: t.ink, font: { size: 16 } },
      },
      y: {
        beginAtZero: true,
        ticks: { color: t.inkSoft, font: { size: 14 } },
        grid: { color: t.grid },
        title: { display: true, text: "Frequency (count)", color: t.ink, font: { size: 16 } },
      },
    },
  },
});

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/frequency-polygon-basic/chartjs/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "frequency-polygon-basic",
  "language": "javascript",
  "library": "chartjs",
  "page": "https://anyplot.ai/frequency-polygon-basic/javascript/chartjs",
  "hub": "https://anyplot.ai/frequency-polygon-basic",
  "code_json": "https://api.anyplot.ai/specs/frequency-polygon-basic/chartjs/code",
  "spec_json": "https://api.anyplot.ai/specs/frequency-polygon-basic",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/frequency-polygon-basic/javascript/chartjs/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/frequency-polygon-basic/javascript/chartjs/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/frequency-polygon-basic/javascript/chartjs/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/frequency-polygon-basic/javascript/chartjs/plot-dark.html",
  "quality_score": 88.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Frequency Polygon for Distribution Comparison on anyplot.ai.
