Frequency Polygon for Distribution Comparison — Highcharts

A frequency polygon connects the midpoints of histogram bins with straight line segments, creating a smooth outline of the distribution shape. This visualization excels at comparing multiple distributions simultaneously since lines overlap without obscuring each other, unlike stacked or overlapping histogram bars. Frequency polygons reveal differences in central tendency, spread, skewness, and modality across groups with minimal visual clutter.

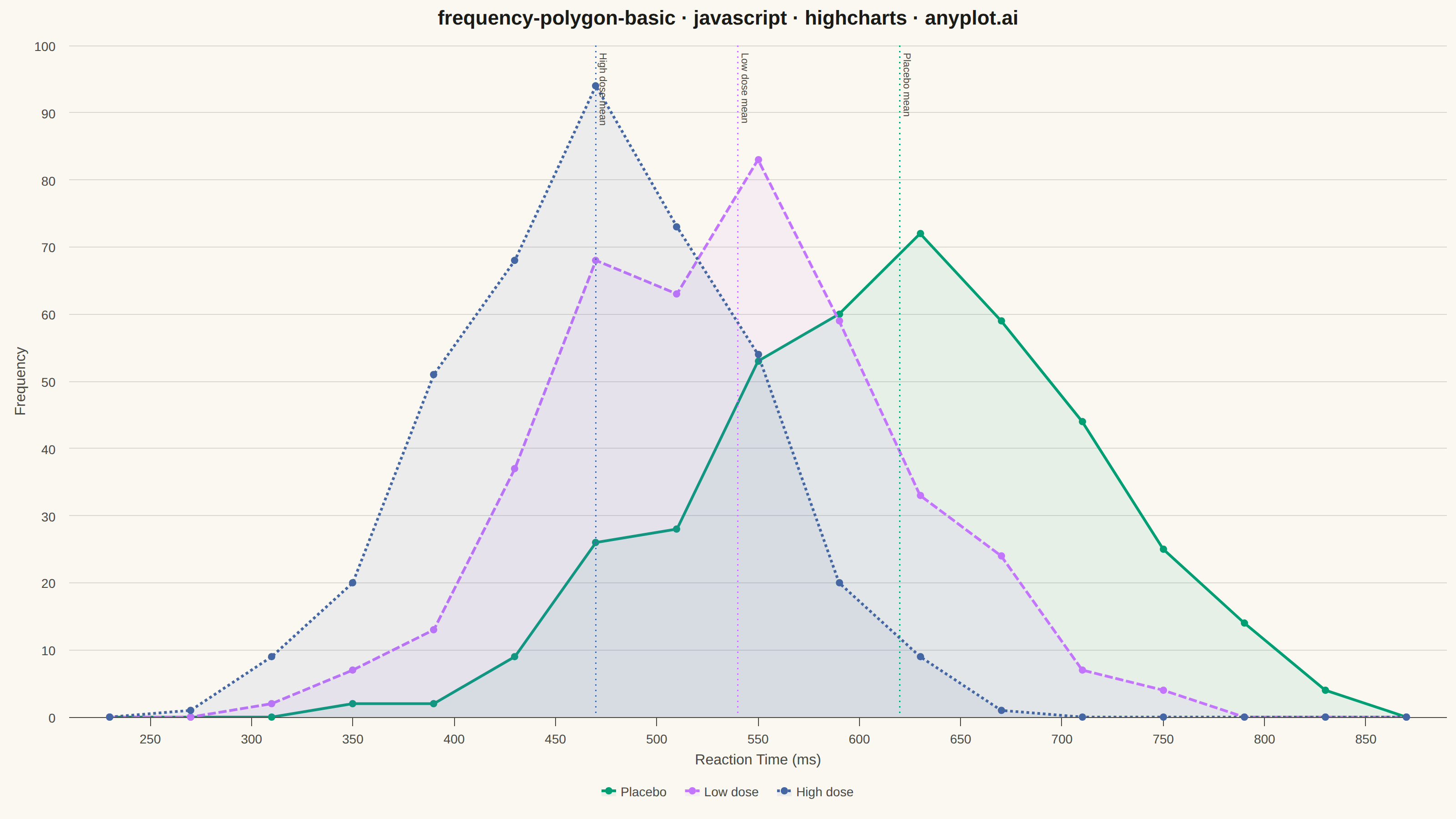

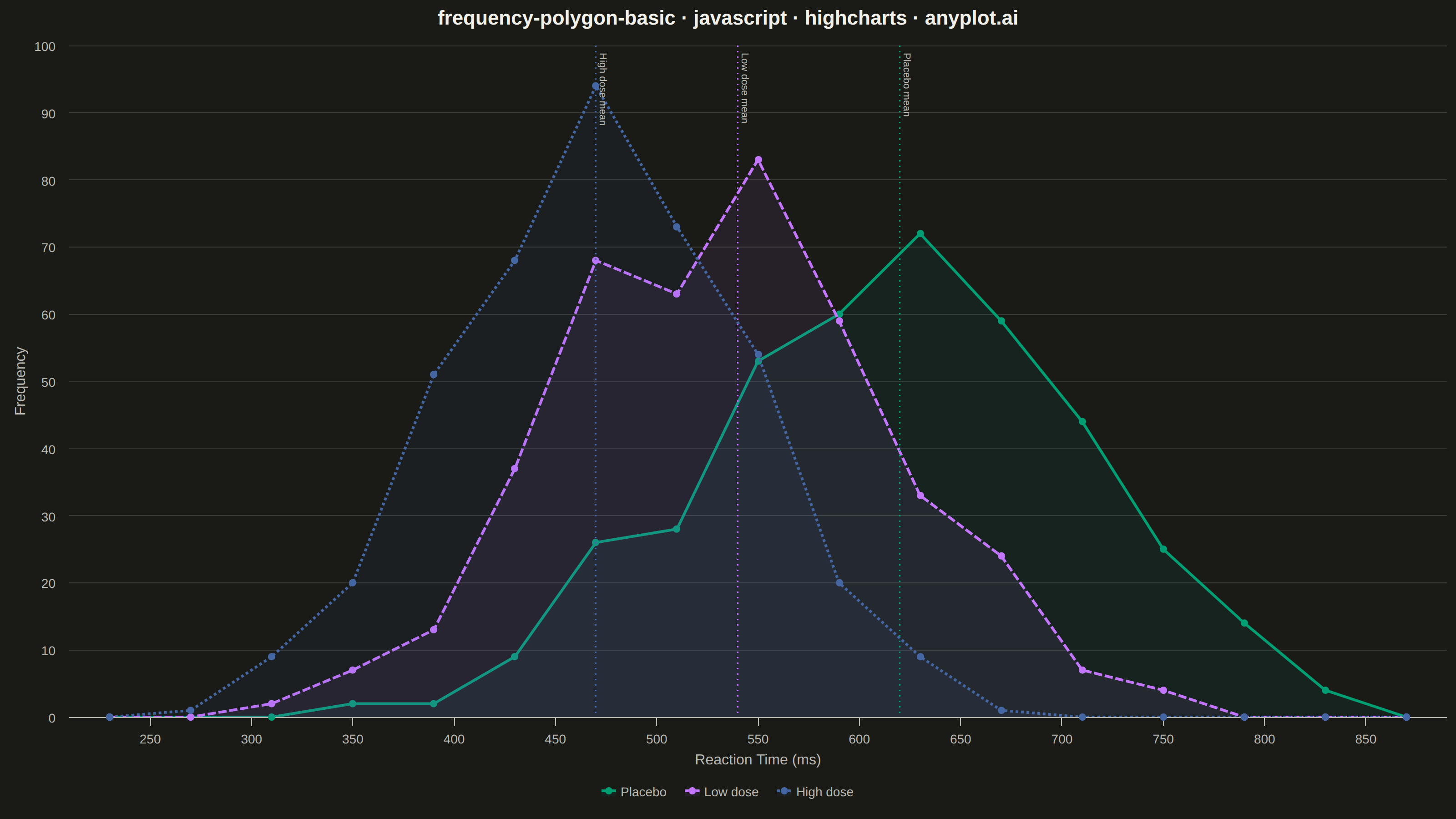

Frequency Polygon for Distribution Comparison rendered with Highcharts

Renders

JavaScript source (Highcharts)

// anyplot.ai
// frequency-polygon-basic: Frequency Polygon for Distribution Comparison
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 88/100 | Created: 2026-09-02

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Tiny fixed-seed LCG — the browser has no seeded RNG.
let seed = 42;
function lcg() {
  seed = (seed * 1664525 + 1013904223) % 4294967296;
  return seed / 4294967296;
}
function randNormal(mean, sd) {
  const u1 = 1 - lcg();
  const u2 = lcg();
  const z = Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
  return mean + z * sd;
}

const groups = [
  { name: "Placebo", mean: 620, sd: 90, n: 400 },
  { name: "Low dose", mean: 540, sd: 80, n: 400 },
  { name: "High dose", mean: 470, sd: 70, n: 400 },
];

// Shared bin edges across all groups so the polygons compare fairly.
const BIN_WIDTH = 40;
const BIN_MIN = 250;
const BIN_MAX = 850;
const binEdges = [];
for (let edge = BIN_MIN; edge <= BIN_MAX; edge += BIN_WIDTH) binEdges.push(edge);
const binCount = binEdges.length - 1;
const binMidpoints = Array.from(
  { length: binCount },
  (_, i) => (binEdges[i] + binEdges[i + 1]) / 2,
);

function frequencyPolygon(mean, sd, n) {
  const counts = new Array(binCount).fill(0);
  for (let i = 0; i < n; i++) {
    const v = randNormal(mean, sd);
    const bin = Math.floor((v - BIN_MIN) / BIN_WIDTH);
    if (bin >= 0 && bin < binCount) counts[bin] += 1;
  }
  // Extend the polygon to zero at both ends by padding one empty bin on each side.
  const midpoints = [binMidpoints[0] - BIN_WIDTH, ...binMidpoints, binMidpoints[binCount - 1] + BIN_WIDTH];
  const values = [0, ...counts, 0];
  return midpoints.map((x, i) => [x, values[i]]);
}

// Redundant color+style encoding (spec: "distinct line colors and/or styles")
// so overlapping fills near ~530-590ms remain distinguishable by stroke alone.
const DASH_STYLES = ["Solid", "ShortDash", "ShortDot"];

const series = groups.map((g, i) => ({
  name: g.name,
  data: frequencyPolygon(g.mean, g.sd, g.n),
  color: t.palette[i],
  lineWidth: 3,
  dashStyle: DASH_STYLES[i],
  marker: { enabled: true, radius: 4, symbol: "circle", fillColor: t.palette[i], lineWidth: 0 },
  fillOpacity: 0.08,
}));

// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
  chart: {
    type: "area",
    backgroundColor: "transparent",
    animation: false,
    style: { fontFamily: "inherit" },
  },
  credits: { enabled: false },
  colors: t.palette,
  title: {
    text: "frequency-polygon-basic · javascript · highcharts · anyplot.ai",
    style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
  },
  xAxis: {
    title: { text: "Reaction Time (ms)", style: { color: t.inkSoft, fontSize: "16px" } },
    lineColor: t.inkSoft,
    tickColor: t.inkSoft,
    gridLineColor: t.grid,
    min: BIN_MIN - BIN_WIDTH,
    max: BIN_MAX + BIN_WIDTH,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
    // Distinctive Highcharts touch: mark each group's mean reaction time.
    plotLines: groups.map((g, i) => ({
      value: g.mean,
      color: t.palette[i],
      dashStyle: "Dot",
      width: 1.5,
      zIndex: 5,
      label: {
        text: `${g.name} mean`,
        rotation: 90,
        align: "left",
        x: 4,
        y: 8,
        style: { color: t.inkSoft, fontSize: "11px" },
      },
    })),
  },
  yAxis: {
    title: { text: "Frequency", style: { color: t.inkSoft, fontSize: "16px" } },
    gridLineColor: t.grid,
    min: 0,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
  },
  legend: {
    itemStyle: { color: t.inkSoft, fontSize: "14px" },
    itemHoverStyle: { color: t.ink },
  },
  plotOptions: {
    series: { animation: false },
    area: { marker: { enabled: true, radius: 4 }, lineWidth: 3, fillOpacity: 0.08 },
  },
  tooltip: { enabled: false },
  series,
});

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/frequency-polygon-basic/highcharts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "frequency-polygon-basic",
  "language": "javascript",
  "library": "highcharts",
  "page": "https://anyplot.ai/frequency-polygon-basic/javascript/highcharts",
  "hub": "https://anyplot.ai/frequency-polygon-basic",
  "code_json": "https://api.anyplot.ai/specs/frequency-polygon-basic/highcharts/code",
  "spec_json": "https://api.anyplot.ai/specs/frequency-polygon-basic",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/frequency-polygon-basic/javascript/highcharts/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/frequency-polygon-basic/javascript/highcharts/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/frequency-polygon-basic/javascript/highcharts/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/frequency-polygon-basic/javascript/highcharts/plot-dark.html",
  "quality_score": 88.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Frequency Polygon for Distribution Comparison on anyplot.ai.
