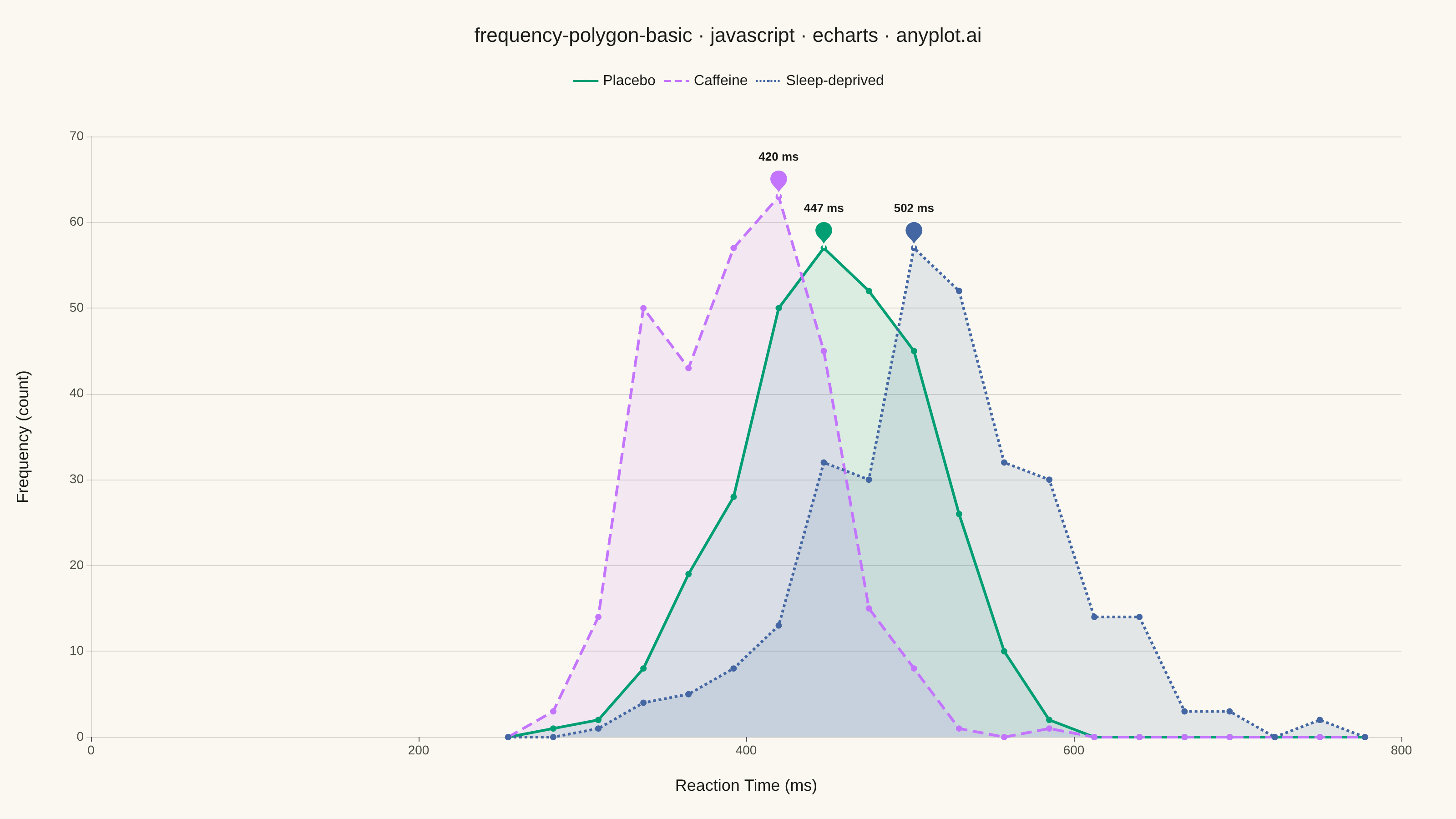

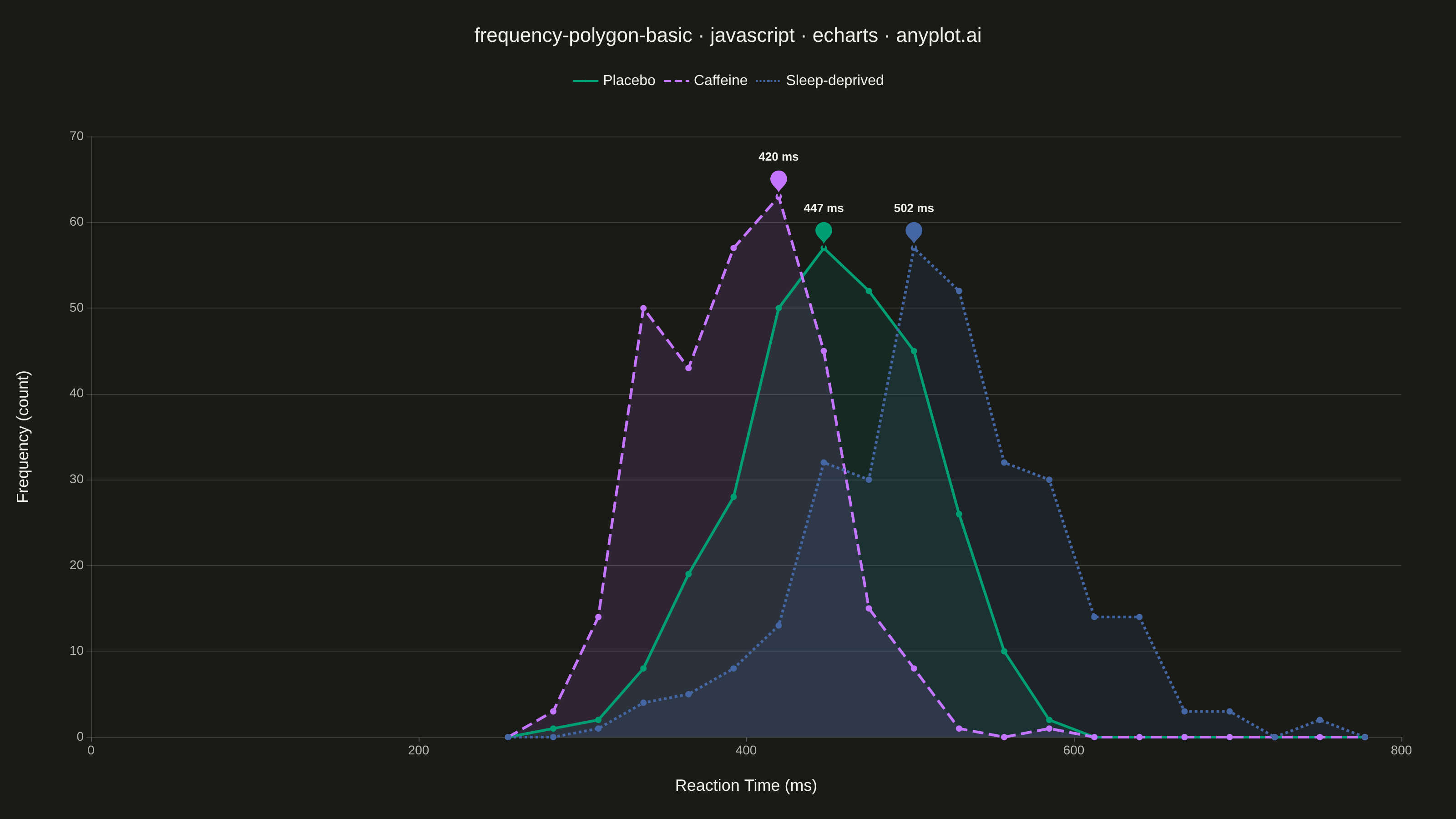

A frequency polygon connects the midpoints of histogram bins with straight line segments, creating a smooth outline of the distribution shape. This visualization excels at comparing multiple distributions simultaneously since lines overlap without obscuring each other, unlike stacked or overlapping histogram bars. Frequency polygons reveal differences in central tendency, spread, skewness, and modality across groups with minimal visual clutter.
// anyplot.ai
// frequency-polygon-basic: Frequency Polygon for Distribution Comparison
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-02
const t = window.ANYPLOT_TOKENS;
// --- Data: reaction times (ms) across three experimental conditions --------
function lcg(seed) {
let state = seed;
return () => {
state = (state * 1664525 + 1013904223) % 4294967296;
return state / 4294967296;
};
}
function normalSamples(rand, mean, std, n) {
const samples = [];
for (let i = 0; i < n; i++) {
const u1 = rand();
const u2 = rand();
const z = Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
samples.push(mean + z * std);
}
return samples;
}
const rand = lcg(42);
const groups = [
{ name: "Placebo", values: normalSamples(rand, 450, 60, 300) },
{ name: "Caffeine", values: normalSamples(rand, 400, 50, 300) },
{ name: "Sleep-deprived", values: normalSamples(rand, 520, 80, 300) },
];
// Shared bin edges across all groups so the polygons compare fairly.
const allValues = groups.flatMap((g) => g.values);
const dataMin = Math.min(...allValues);
const dataMax = Math.max(...allValues);
const binCount = 18;
const binWidth = (dataMax - dataMin) / binCount;
const midpoints = Array.from({ length: binCount }, (_, i) => dataMin + (i + 0.5) * binWidth);
function toPolygon(values) {
const counts = new Array(binCount).fill(0);
values.forEach((v) => {
const idx = Math.min(binCount - 1, Math.floor((v - dataMin) / binWidth));
counts[idx] += 1;
});
// Extend to zero at both ends so the polygon closes.
const points = counts.map((c, i) => [midpoints[i], c]);
const peakIdx = counts.indexOf(Math.max(...counts));
const peak = [midpoints[peakIdx], counts[peakIdx]];
points.unshift([midpoints[0] - binWidth, 0]);
points.push([midpoints[midpoints.length - 1] + binWidth, 0]);
return { points, peak };
}
const lineStyles = ["solid", "dashed", "dotted"];
const polygons = groups.map((g) => toPolygon(g.values));
// --- Init --------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option -------------------------------------------------------------------
const title = "frequency-polygon-basic · javascript · echarts · anyplot.ai";
const titleFontSize = Math.round(22 * Math.min(1, 67 / title.length));
chart.setOption({
animation: false,
color: t.palette,
backgroundColor: "transparent",
title: {
text: title,
left: "center",
top: 24,
textStyle: { color: t.ink, fontSize: titleFontSize, fontWeight: 500 },
},
legend: {
data: groups.map((g) => g.name),
top: 76,
textStyle: { color: t.ink, fontSize: 16 },
itemWidth: 28,
itemHeight: 3,
},
tooltip: {
trigger: "axis",
backgroundColor: t.elevatedBg,
borderColor: t.grid,
textStyle: { color: t.ink },
formatter: (params) =>
[
`${Math.round(params[0].value[0])} ms`,
...params.map((p) => `${p.marker} ${p.seriesName}: ${p.value[1]}`),
].join("<br/>"),
},
grid: { left: 100, right: 60, top: 150, bottom: 90 },
xAxis: {
type: "value",
name: "Reaction Time (ms)",
nameLocation: "middle",
nameGap: 45,
nameTextStyle: { color: t.ink, fontSize: 18 },
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { show: false },
splitLine: { show: false },
},
yAxis: {
type: "value",
name: "Frequency (count)",
nameLocation: "middle",
nameGap: 65,
nameTextStyle: { color: t.ink, fontSize: 18 },
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.grid, width: 1 } },
splitLine: { lineStyle: { color: t.grid } },
},
series: groups.map((g, i) => ({
name: g.name,
type: "line",
data: polygons[i].points,
symbol: "circle",
symbolSize: 7,
lineStyle: { width: 3, type: lineStyles[i], color: t.palette[i] },
itemStyle: { color: t.palette[i] },
areaStyle: { color: t.palette[i], opacity: 0.12 },
emphasis: { focus: "series", lineStyle: { width: 4 } },
markPoint: {
symbol: "pin",
symbolSize: 34,
itemStyle: { color: t.palette[i], borderColor: t.pageBg, borderWidth: 2 },
label: {
color: t.ink,
fontSize: 13,
fontWeight: 600,
position: "top",
distance: 6,
formatter: () => `${Math.round(polygons[i].peak[0])} ms`,
},
data: [{ coord: polygons[i].peak }],
},
})),
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/frequency-polygon-basic/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
