Frequency Polygon for Distribution Comparison — Altair

A frequency polygon connects the midpoints of histogram bins with straight line segments, creating a smooth outline of the distribution shape. This visualization excels at comparing multiple distributions simultaneously since lines overlap without obscuring each other, unlike stacked or overlapping histogram bars. Frequency polygons reveal differences in central tendency, spread, skewness, and modality across groups with minimal visual clutter.

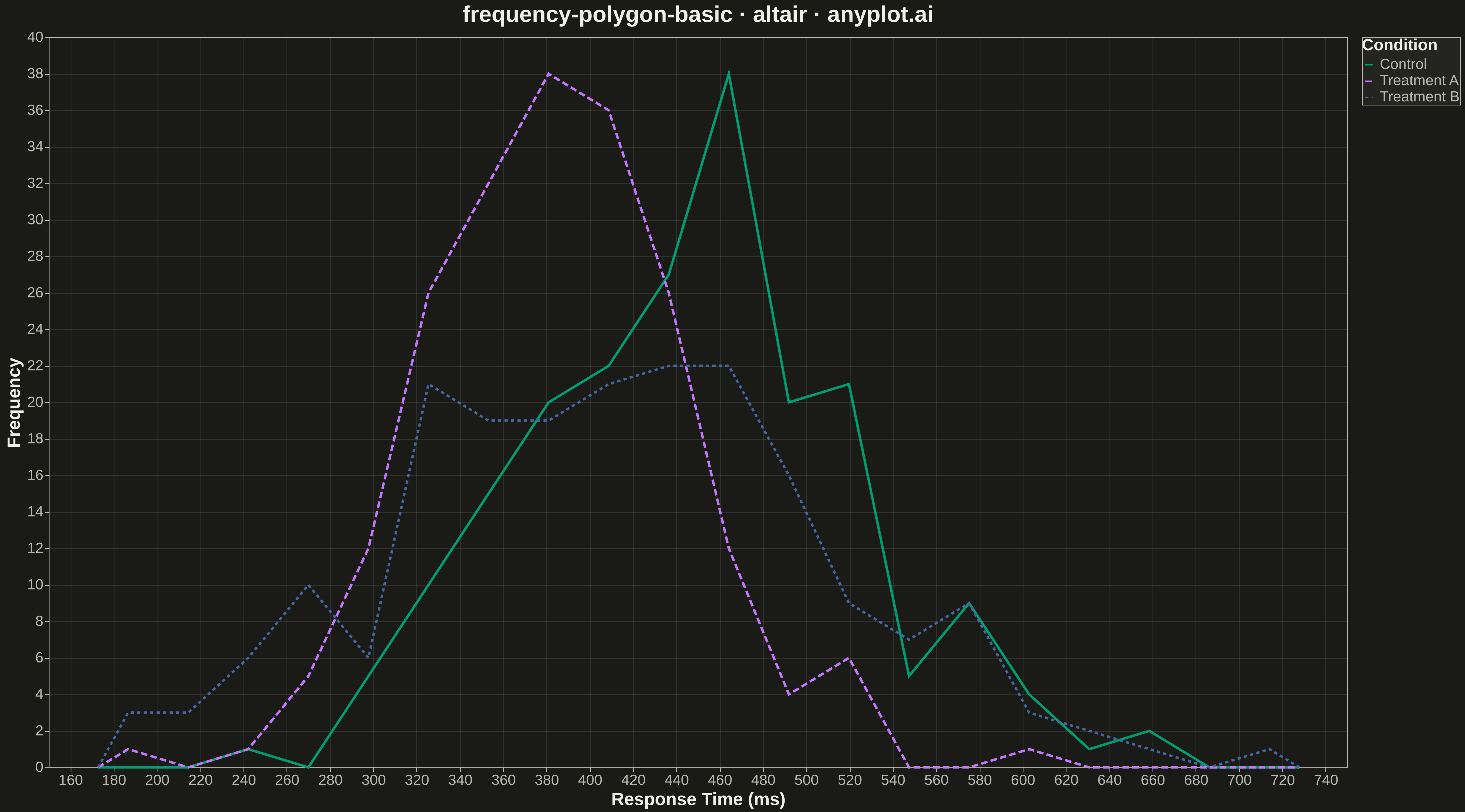

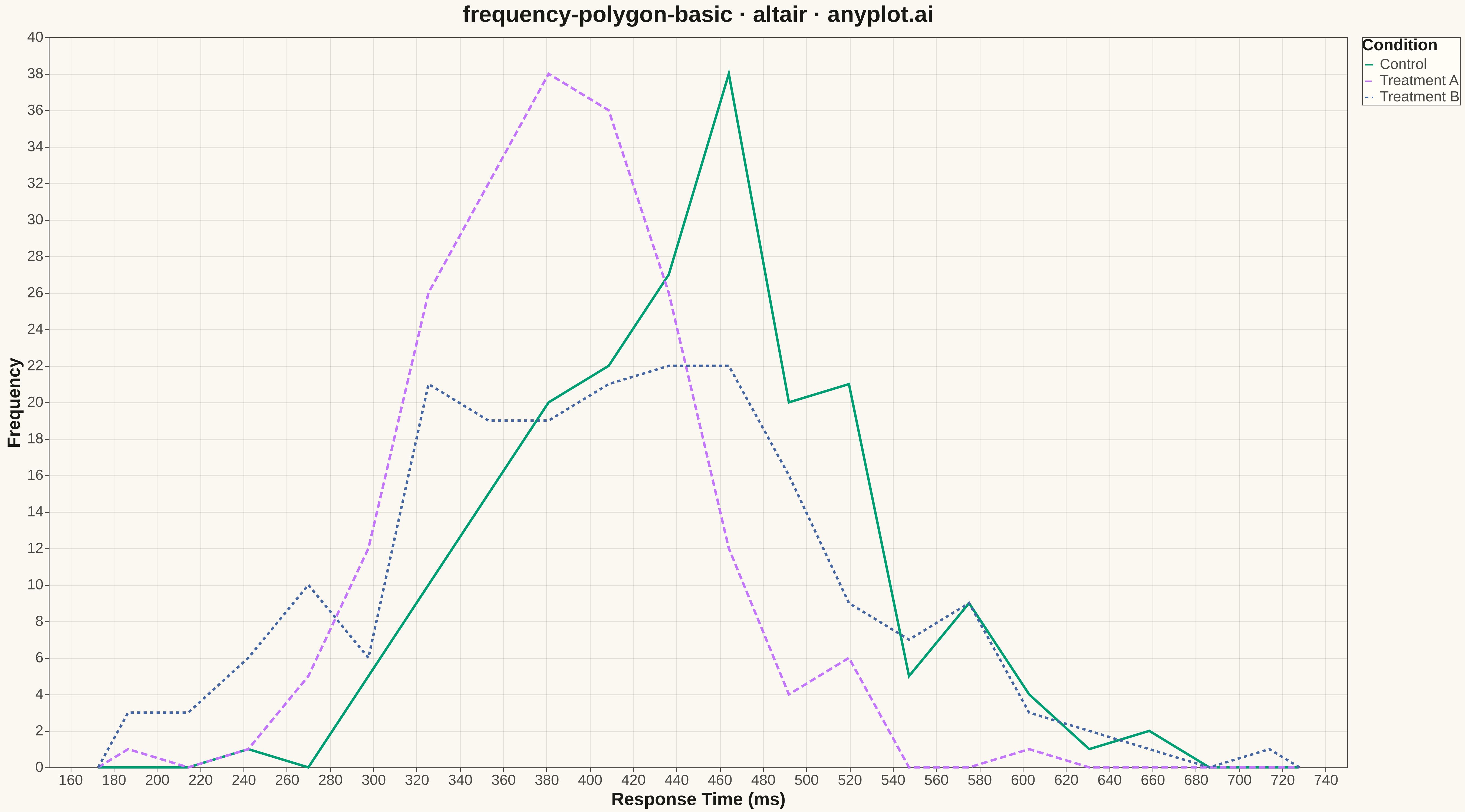

Frequency Polygon for Distribution Comparison rendered with Altair

Python source (Altair)

""" anyplot.ai
frequency-polygon-basic: Frequency Polygon for Distribution Comparison
Library: altair 6.1.0 | Python 3.13.13
Quality: 88/100 | Updated: 2026-05-17
"""

import os
import site
import sys


# Workaround for script name shadowing the altair package
sys.path = (
    site.getsitepackages()
    + [site.getusersitepackages()]
    + [p for p in sys.path if p not in site.getsitepackages() + [site.getusersitepackages()]]
)

import altair as alt
import numpy as np
import pandas as pd


# Theme tokens (Okabe-Ito palette + theme-adaptive chrome)
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette (colorblind-safe)
IMPRINT = ["#009E73", "#C475FD", "#4467A3"]

# Data: Response times (ms) by experimental condition
np.random.seed(42)

# Three groups with different distributions
control = np.random.normal(loc=450, scale=80, size=200)
treatment_a = np.random.normal(loc=380, scale=60, size=200)
treatment_b = np.random.normal(loc=420, scale=100, size=200)

# Compute histogram bins aligned across all groups
all_data = np.concatenate([control, treatment_a, treatment_b])
bin_edges = np.histogram_bin_edges(all_data, bins=20)
bin_centers = (bin_edges[:-1] + bin_edges[1:]) / 2

# Compute frequencies for each group and build polygon data
data_rows = []
for data, group_name in [(control, "Control"), (treatment_a, "Treatment A"), (treatment_b, "Treatment B")]:
    counts, _ = np.histogram(data, bins=bin_edges)
    # Extend to zero at both ends to close the polygon shape
    x = np.concatenate([[bin_edges[0]], bin_centers, [bin_edges[-1]]])
    y = np.concatenate([[0], counts, [0]])
    for xi, yi in zip(x, y, strict=True):
        data_rows.append({"Response Time (ms)": xi, "Frequency": yi, "Condition": group_name})

df = pd.DataFrame(data_rows)

# Create frequency polygon chart
chart = (
    alt.Chart(df)
    .mark_line(strokeWidth=3)
    .encode(
        x=alt.X("Response Time (ms):Q", title="Response Time (ms)"),
        y=alt.Y("Frequency:Q", title="Frequency"),
        color=alt.Color(
            "Condition:N",
            scale=alt.Scale(domain=["Control", "Treatment A", "Treatment B"], range=IMPRINT),
            legend=alt.Legend(title="Condition", titleFontSize=20, labelFontSize=18),
        ),
        strokeDash=alt.StrokeDash(
            "Condition:N",
            scale=alt.Scale(domain=["Control", "Treatment A", "Treatment B"], range=[[1, 0], [8, 4], [4, 4]]),
            legend=None,
        ),
    )
    .properties(width=1600, height=900, background=PAGE_BG)
    .configure_title(fontSize=28, anchor="middle", color=INK)
    .configure_axis(
        labelFontSize=18,
        titleFontSize=22,
        labelColor=INK_SOFT,
        titleColor=INK,
        domainColor=INK_SOFT,
        tickColor=INK_SOFT,
        gridOpacity=0.10,
        gridColor=INK,
    )
    .configure_legend(fillColor=ELEVATED_BG, strokeColor=INK_SOFT, titleColor=INK, labelColor=INK_SOFT)
    .configure_view(fill=PAGE_BG, stroke=INK_SOFT)
)

# Add title with format: spec-id · library · anyplot.ai
chart = chart.properties(title="frequency-polygon-basic · altair · anyplot.ai")

# Save as PNG (4800 x 2700 px) and HTML
chart.save(f"plot-{THEME}.png", scale_factor=3.0)
chart.save(f"plot-{THEME}.html")

Part of Frequency Polygon for Distribution Comparison on anyplot.ai.
