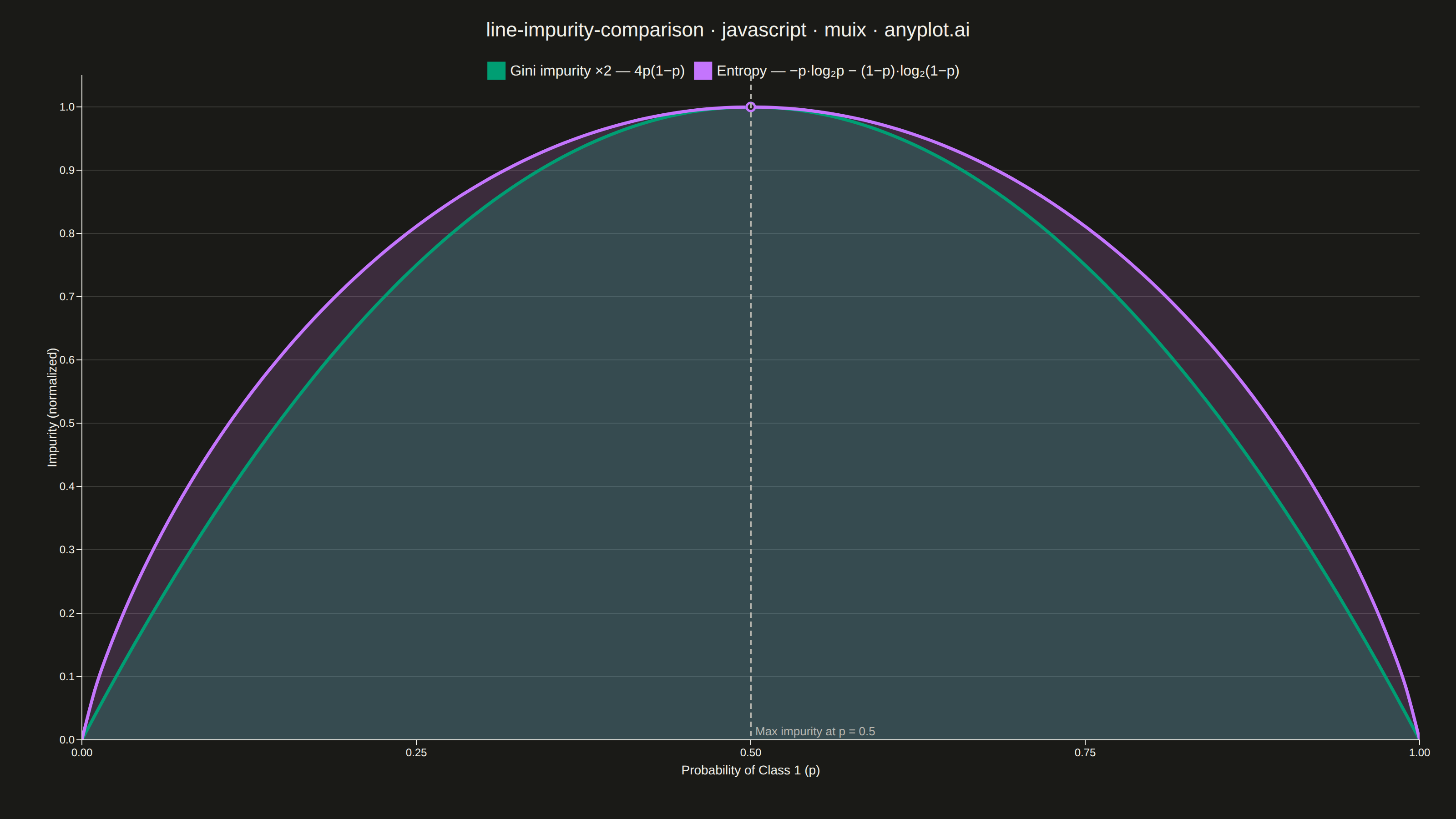

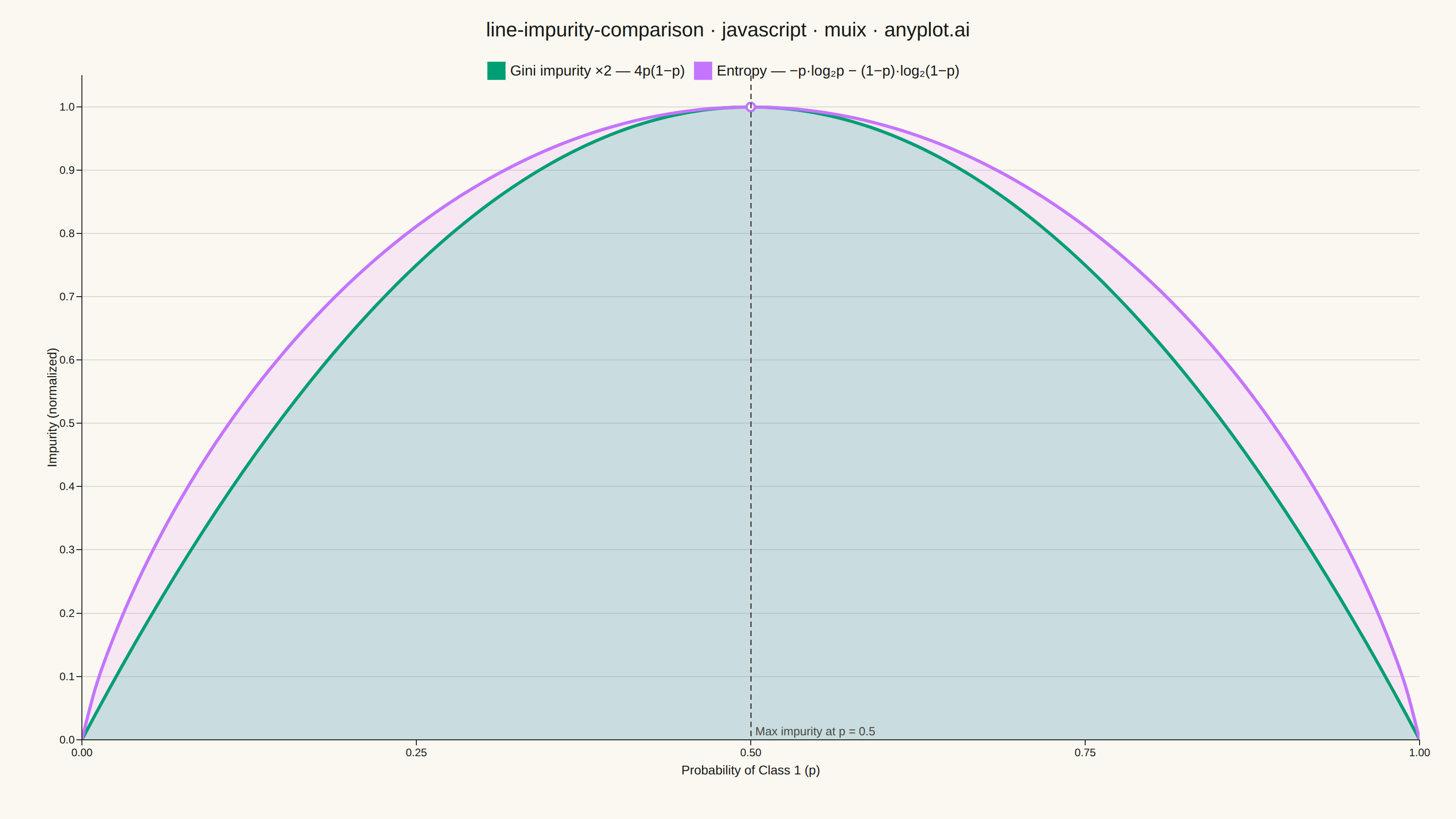

A theoretical comparison plot showing Gini impurity and entropy (information gain) as splitting criteria for decision trees across the probability range [0, 1]. Both curves are displayed on the same axes to illustrate their similar behavior and slight differences. This educational visualization helps understand the mathematical foundation of tree-based algorithms and why both criteria lead to similar tree structures in practice.
// anyplot.ai
// line-impurity-comparison: Gini Impurity vs Entropy Comparison
// Library: muix 7.29.1 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-08-26
import { LineChart } from "@mui/x-charts/LineChart";
import { ChartsReferenceLine } from "@mui/x-charts/ChartsReferenceLine";
import Box from "@mui/material/Box";
import Typography from "@mui/material/Typography";
const t = window.ANYPLOT_TOKENS;
// --- Data (theoretical splitting-criterion curves over p in [0, 1]) --------
// 101 points (step 0.01) so p=0.5 lands exactly on a sample — needed to mark
// the shared peak on both curves, not just at the reference line.
const POINT_COUNT = 101;
const probabilities = Array.from({ length: POINT_COUNT }, (_, i) => i / (POINT_COUNT - 1));
// Gini impurity: 2p(1-p) peaks at 0.5 (p=0.5). Scaled x2 so it shares the
// same [0, 1] range as entropy and the two curves can be read off one axis.
const giniScaled = probabilities.map((p) => 4 * p * (1 - p));
// Binary entropy in bits: -p*log2(p) - (1-p)*log2(1-p), already in [0, 1].
// The 0*log2(0) term is undefined at p=0 and p=1, taken as its limit of 0.
function binaryEntropy(p: number): number {
if (p <= 0 || p >= 1) return 0;
return -p * Math.log2(p) - (1 - p) * Math.log2(1 - p);
}
const entropy = probabilities.map(binaryEntropy);
const TITLE_HEIGHT = 60;
// --- Chart (default-exported component — the harness mounts it) -----------
export default function Chart() {
const { width, height } = window.ANYPLOT_SIZE;
return (
<Box
sx={{
width,
height,
display: "flex",
flexDirection: "column",
paddingTop: "20px",
}}
>
<Typography
sx={{
color: t.ink,
fontSize: 22,
fontWeight: 500,
textAlign: "center",
lineHeight: 1.2,
}}
>
line-impurity-comparison · javascript · muix · anyplot.ai
</Typography>
<LineChart
width={width}
height={height - TITLE_HEIGHT}
skipAnimation
colors={[t.palette[0], t.palette[1]]}
series={[
{
id: "gini",
data: giniScaled,
label: "Gini impurity ×2 — 4p(1−p)",
showMark: (params) => params.position === 0.5,
curve: "natural",
area: true,
},
{
id: "entropy",
data: entropy,
label: "Entropy — −p·log₂p − (1−p)·log₂(1−p)",
showMark: (params) => params.position === 0.5,
curve: "natural",
area: true,
},
]}
xAxis={[
{
data: probabilities,
scaleType: "linear",
label: "Probability of Class 1 (p)",
min: 0,
max: 1,
valueFormatter: (v: number) => v.toFixed(2),
tickInterval: [0, 0.25, 0.5, 0.75, 1],
},
]}
yAxis={[
{
label: "Impurity (normalized)",
min: 0,
max: 1.05,
},
]}
grid={{ horizontal: true }}
margin={{ left: 90, right: 40, top: 30, bottom: 80 }}
sx={{
"& .MuiChartsAxis-tickLabel": { fontSize: "14px" },
"& .MuiChartsAxis-label": { fontSize: "16px" },
"& .MuiChartsLegend-label": { fontSize: "14px" },
"& .MuiLineElement-root": { strokeWidth: 3.5 },
// Two low-opacity area fills, gini drawn under entropy: where they
// overlap (0..gini(p)) the fills blend, while the uncovered band
// above (gini(p)..entropy(p)) reads as a single lavender wash —
// visually calling out where the two criteria diverge most.
"& .MuiAreaElement-series-gini": { fillOpacity: 0.22 },
"& .MuiAreaElement-series-entropy": { fillOpacity: 0.16 },
"& .MuiMarkElement-root": { strokeWidth: 2.5 },
}}
>
<ChartsReferenceLine
x={0.5}
label="Max impurity at p = 0.5"
labelAlign="end"
lineStyle={{ stroke: t.inkSoft, strokeDasharray: "6 4", strokeWidth: 1.5 }}
labelStyle={{ fill: t.inkSoft, fontSize: 13 }}
/>
</LineChart>
</Box>
);
}
Part of Gini Impurity vs Entropy Comparison on anyplot.ai.
