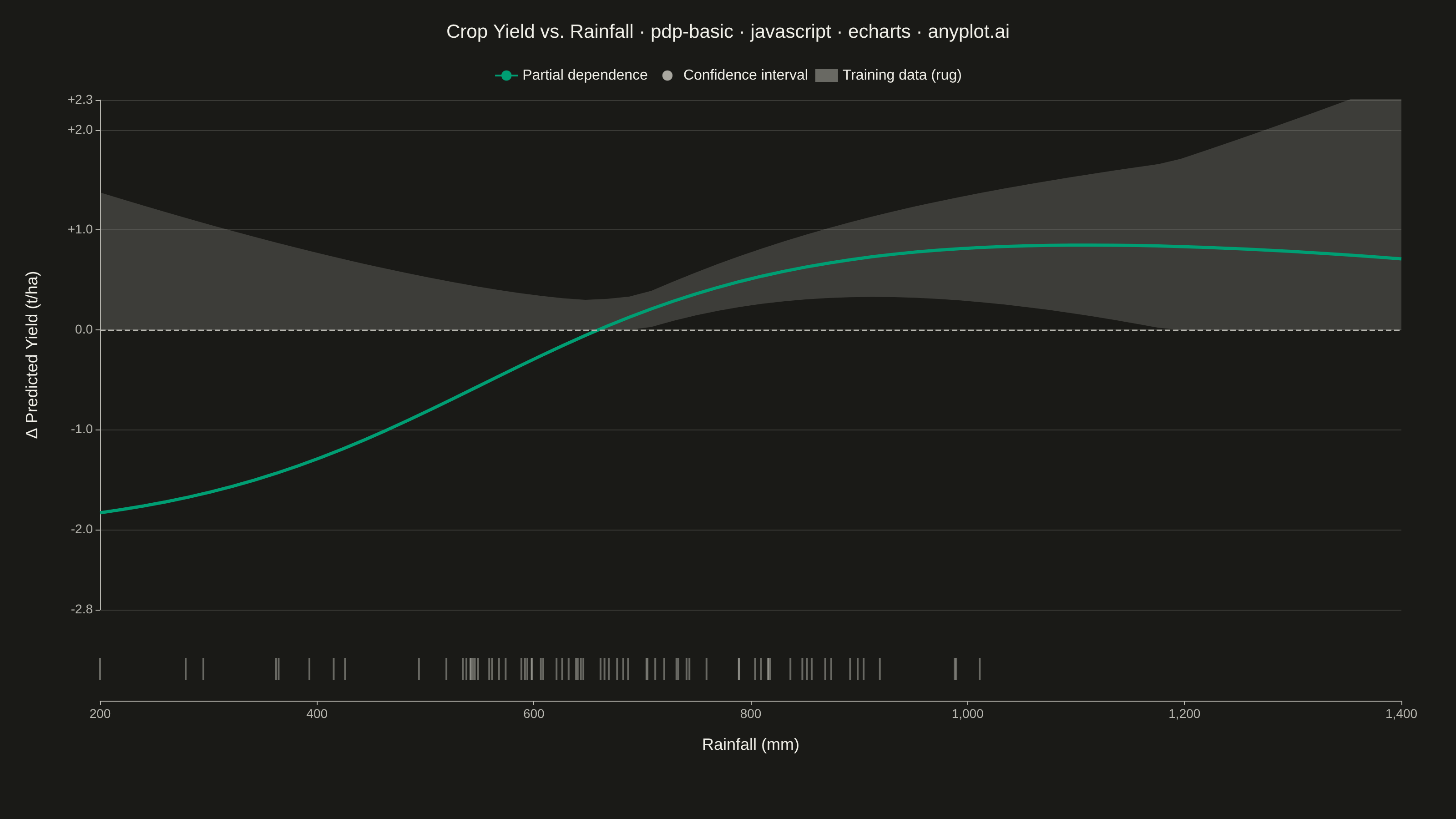

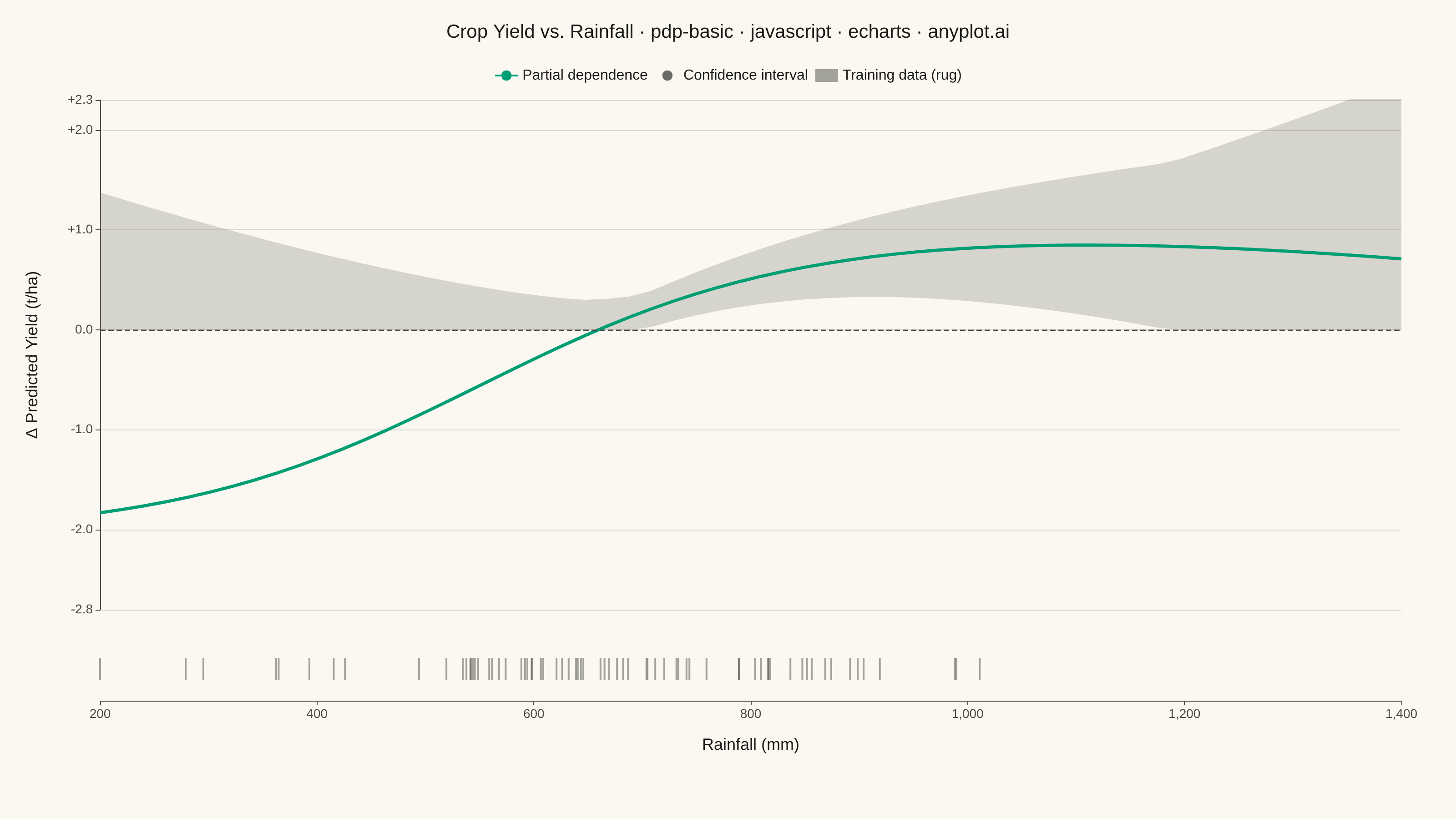

A partial dependence plot (PDP) showing the marginal effect of one feature on the predicted outcome of a machine learning model. The plot displays how predictions change as a feature varies across its range, while averaging over the effects of all other features. This visualization is essential for understanding the relationship between individual features and model predictions in interpretable machine learning.
// anyplot.ai
// pdp-basic: Partial Dependence Plot
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-05
const t = window.ANYPLOT_TOKENS;
// The harness only exposes pageBg/elevatedBg/ink/inkSoft/grid/palette/amber/seq/div —
// the "muted" semantic anchor (confidence-band fill) isn't a token field, so it's
// derived here the same way the Python reference snippet derives INK_MUTED.
const MUTED = window.ANYPLOT_THEME === "dark" ? "#A8A79F" : "#6B6A63";
// --- Data (in-memory, deterministic) ----------------------------------------
// Gradient-boosting model predicting crop yield; partial dependence of the
// "rainfall" feature, averaged over all other features, centered at zero.
let seed = 42;
function lcg() {
seed = (seed * 1664525 + 1013904223) >>> 0;
return seed / 4294967296;
}
function gaussian() {
const u1 = Math.max(lcg(), 1e-9);
const u2 = lcg();
return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}
const GRID_POINTS = 60;
const R_MIN = 200;
const R_MAX = 1400;
function rawResponse(r) {
const logistic = 3.0 / (1 + Math.exp(-(r - 550) / 140));
const waterlogging = r > 900 ? 0.0000009 * Math.pow(r - 900, 2) : 0;
return logistic - waterlogging;
}
const featureValues = [];
const rawCurve = [];
for (let i = 0; i < GRID_POINTS; i++) {
const r = R_MIN + (i * (R_MAX - R_MIN)) / (GRID_POINTS - 1);
featureValues.push(r);
rawCurve.push(rawResponse(r));
}
const meanResponse = rawCurve.reduce((a, b) => a + b, 0) / rawCurve.length;
const partialDependence = rawCurve.map((v) => v - meanResponse);
// Pointwise confidence half-width — widest at the tails, where training
// samples (see rug plot below) are sparse and the estimate is less certain.
const DATA_CENTER = 650;
const halfWidth = featureValues.map(
(r) => 0.15 + 0.9 * Math.pow(Math.abs(r - DATA_CENTER) / DATA_CENTER, 1.4)
);
const ciLower = partialDependence.map((v, i) => v - halfWidth[i]);
const ciBandHeight = halfWidth.map((h) => 2 * h);
// ECharts pairs series data against an implicit index on a continuous
// "value" xAxis unless each point is given explicitly as [x, y].
const partialDependenceXY = featureValues.map((r, i) => [r, partialDependence[i]]);
const ciLowerXY = featureValues.map((r, i) => [r, ciLower[i]]);
const ciBandHeightXY = featureValues.map((r, i) => [r, ciBandHeight[i]]);
// Training-data rug: rainfall samples clustered around the data center.
const RUG_SAMPLES = 70;
const rugValues = [];
for (let i = 0; i < RUG_SAMPLES; i++) {
const r = Math.min(R_MAX, Math.max(R_MIN, DATA_CENTER + gaussian() * 180));
rugValues.push([r, 0.5]);
}
const yMin = Math.min(...ciLower) - 0.25;
const yMax = Math.max(...partialDependence.map((v, i) => v + halfWidth[i])) + 0.25;
// --- Init --------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Title (scales down for long titles per style guide) --------------------
const titleText = "Crop Yield vs. Rainfall · pdp-basic · javascript · echarts · anyplot.ai";
const baseTitleFontSize = 22;
const titleFontSize =
titleText.length > 67 ? Math.round((baseTitleFontSize * 67) / titleText.length) : baseTitleFontSize;
// --- Option -------------------------------------------------------------------
chart.setOption({
animation: false,
color: t.palette,
backgroundColor: "transparent",
title: {
text: titleText,
left: "center",
top: 20,
textStyle: { color: t.ink, fontSize: titleFontSize, fontWeight: 500 },
},
legend: {
data: ["Partial dependence", "Confidence interval", "Training data (rug)"],
top: 70,
textStyle: { color: t.ink, fontSize: 16 },
},
grid: [
{ left: 110, right: 60, top: 110, height: 560 },
{ left: 110, right: 60, top: 700, height: 70 },
],
xAxis: [
{
gridIndex: 0,
type: "value",
min: R_MIN,
max: R_MAX,
axisLabel: { show: false },
axisLine: { show: false },
axisTick: { show: false },
splitLine: { show: false },
},
{
gridIndex: 1,
type: "value",
min: R_MIN,
max: R_MAX,
name: "Rainfall (mm)",
nameLocation: "middle",
nameGap: 40,
nameTextStyle: { color: t.ink, fontSize: 18 },
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { lineStyle: { color: t.inkSoft } },
splitLine: { show: false },
},
],
yAxis: [
{
gridIndex: 0,
type: "value",
min: Math.floor(yMin * 10) / 10,
max: Math.ceil(yMax * 10) / 10,
name: "Δ Predicted Yield (t/ha)",
nameLocation: "middle",
nameGap: 65,
nameTextStyle: { color: t.ink, fontSize: 18 },
axisLabel: {
color: t.inkSoft,
fontSize: 14,
formatter: (v) => (v > 0 ? "+" : "") + v.toFixed(1),
},
axisLine: { lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } },
},
{
gridIndex: 1,
type: "value",
min: 0,
max: 1,
show: false,
splitLine: { show: false },
},
],
series: [
{
name: "CI lower (hidden)",
type: "line",
xAxisIndex: 0,
yAxisIndex: 0,
data: ciLowerXY,
stack: "confidence",
symbol: "none",
lineStyle: { opacity: 0 },
areaStyle: { opacity: 0 },
silent: true,
legendHoverLink: false,
z: 1,
},
{
name: "Confidence interval",
type: "line",
xAxisIndex: 0,
yAxisIndex: 0,
data: ciBandHeightXY,
stack: "confidence",
symbol: "none",
lineStyle: { opacity: 0 },
areaStyle: { color: MUTED, opacity: 0.25 },
itemStyle: { color: MUTED },
silent: true,
z: 1,
},
{
name: "Partial dependence",
type: "line",
xAxisIndex: 0,
yAxisIndex: 0,
data: partialDependenceXY,
symbol: "none",
lineStyle: { width: 3.5, color: t.palette[0] },
itemStyle: { color: t.palette[0] },
markLine: {
silent: true,
symbol: "none",
lineStyle: { color: t.inkSoft, type: "dashed", width: 1.5 },
label: { show: false },
data: [{ yAxis: 0 }],
},
z: 3,
},
{
name: "Training data (rug)",
type: "scatter",
xAxisIndex: 1,
yAxisIndex: 1,
data: rugValues,
symbol: "rect",
symbolSize: [2, 24],
itemStyle: { color: t.inkSoft, opacity: 0.5 },
},
],
});
