Partial Dependence Plot — Plotly

A partial dependence plot (PDP) showing the marginal effect of one feature on the predicted outcome of a machine learning model. The plot displays how predictions change as a feature varies across its range, while averaging over the effects of all other features. This visualization is essential for understanding the relationship between individual features and model predictions in interpretable machine learning.

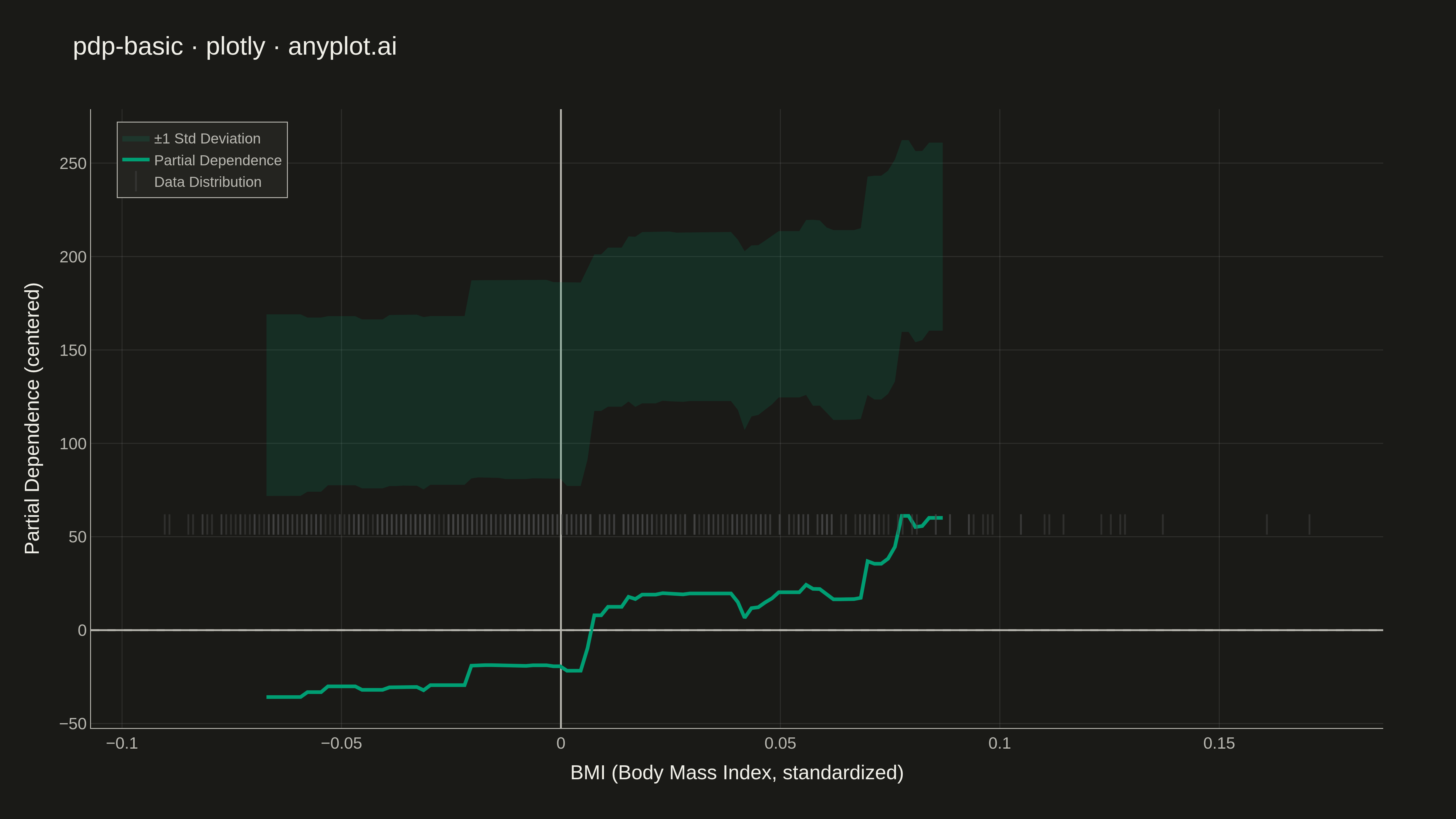

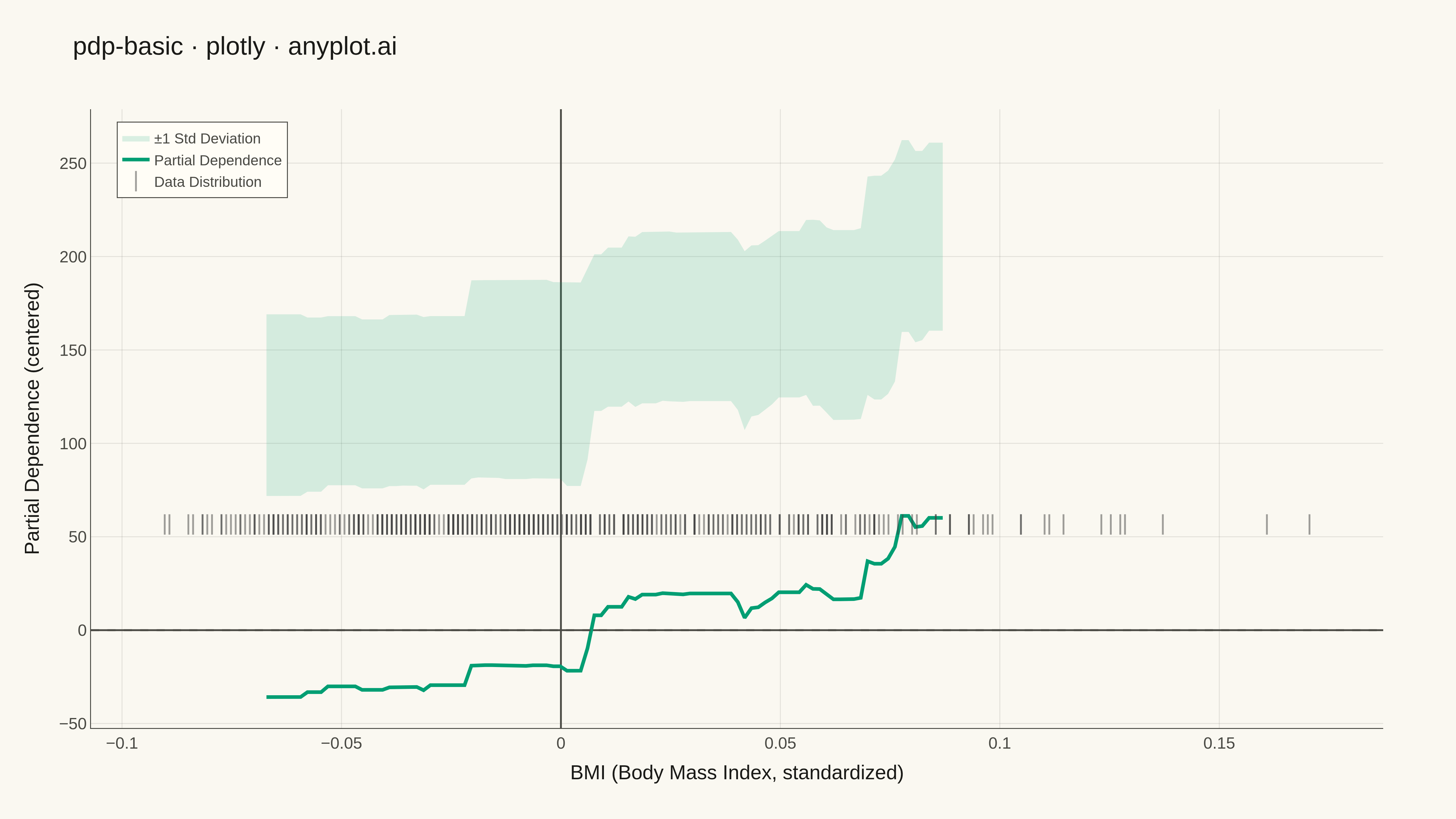

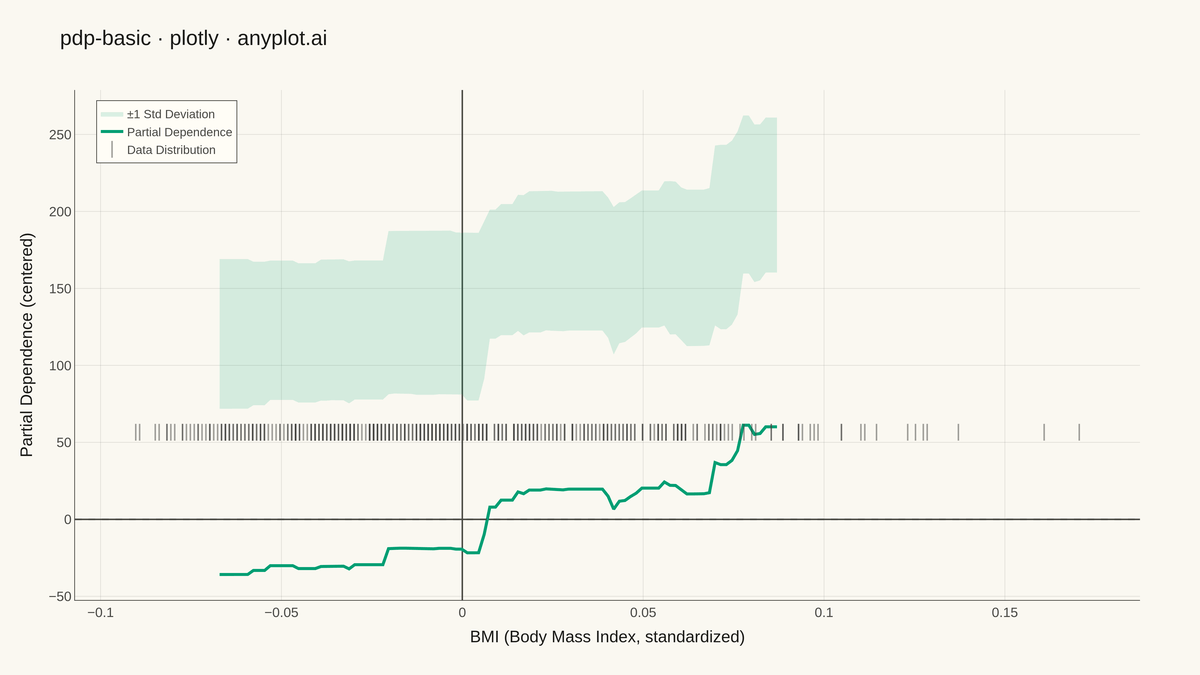

Partial Dependence Plot rendered with Plotly

Python source (Plotly)

""" anyplot.ai
pdp-basic: Partial Dependence Plot
Library: plotly 6.7.0 | Python 3.13.13
Quality: 96/100 | Updated: 2026-05-15
"""

import os

import numpy as np
import plotly.graph_objects as go
from sklearn.datasets import load_diabetes
from sklearn.ensemble import GradientBoostingRegressor
from sklearn.inspection import partial_dependence


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)"

BRAND = "#009E73"  # Okabe-Ito position 1

# Data - Use diabetes dataset for realistic PDP
diabetes = load_diabetes()
X, y = diabetes.data, diabetes.target
feature_names = diabetes.feature_names

# Train model
np.random.seed(42)
model = GradientBoostingRegressor(n_estimators=100, max_depth=4, random_state=42)
model.fit(X, y)

# Compute partial dependence for BMI (feature 2) - known to have strong effect
feature_idx = 2  # bmi
pdp_result = partial_dependence(model, X, features=[feature_idx], kind="average", grid_resolution=100)
feature_values = pdp_result["grid_values"][0]
pd_values = pdp_result["average"][0]

# Compute individual conditional expectation (ICE) for uncertainty visualization
ice_result = partial_dependence(model, X, features=[feature_idx], kind="individual", grid_resolution=100)
ice_lines = ice_result["individual"][0]

# Calculate confidence intervals (mean ± 1 std for variability band)
ice_mean = np.mean(ice_lines, axis=0)
ice_std = np.std(ice_lines, axis=0)
ci_lower = ice_mean - ice_std
ci_upper = ice_mean + ice_std

# Center partial dependence at zero for easier interpretation
pd_centered = pd_values - np.mean(pd_values)
ci_lower_centered = ci_lower - np.mean(pd_values)
ci_upper_centered = ci_upper - np.mean(pd_values)

# Create figure
fig = go.Figure()

# Add confidence band (±1 std)
fig.add_trace(
    go.Scatter(
        x=np.concatenate([feature_values, feature_values[::-1]]),
        y=np.concatenate([ci_upper_centered, ci_lower_centered[::-1]]),
        fill="toself",
        fillcolor=f"rgba({int(BRAND[1:3], 16)}, {int(BRAND[3:5], 16)}, {int(BRAND[5:7], 16)}, 0.15)",
        line=dict(color="rgba(255,255,255,0)"),
        name="±1 Std Deviation",
        showlegend=True,
        hoverinfo="skip",
    )
)

# Add partial dependence line
fig.add_trace(
    go.Scatter(
        x=feature_values, y=pd_centered, mode="lines", line=dict(color=BRAND, width=4), name="Partial Dependence"
    )
)

# Add rug plot showing distribution of training data
y_range = np.max(ci_upper_centered) - np.min(ci_lower_centered)
rug_y = np.full(len(X), np.min(ci_lower_centered) - 0.08 * y_range)
fig.add_trace(
    go.Scatter(
        x=X[:, feature_idx],
        y=rug_y,
        mode="markers",
        marker=dict(symbol="line-ns", size=16, color=INK_SOFT, opacity=0.5, line=dict(width=2)),
        name="Data Distribution",
        hoverinfo="skip",
    )
)

# Add zero reference line
fig.add_hline(y=0, line_dash="dash", line_color=INK_SOFT, line_width=2)

# Layout
fig.update_layout(
    title=dict(text="pdp-basic · plotly · anyplot.ai", font=dict(size=28, color=INK)),
    xaxis=dict(
        title=dict(text="BMI (Body Mass Index, standardized)", font=dict(size=22, color=INK)),
        tickfont=dict(size=18, color=INK_SOFT),
        showgrid=True,
        gridcolor=GRID,
        gridwidth=1,
        linecolor=INK_SOFT,
        zerolinecolor=INK_SOFT,
    ),
    yaxis=dict(
        title=dict(text="Partial Dependence (centered)", font=dict(size=22, color=INK)),
        tickfont=dict(size=18, color=INK_SOFT),
        showgrid=True,
        gridcolor=GRID,
        gridwidth=1,
        linecolor=INK_SOFT,
        zerolinecolor=INK_SOFT,
    ),
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    legend=dict(
        font=dict(size=16, color=INK_SOFT),
        x=0.02,
        y=0.98,
        xanchor="left",
        yanchor="top",
        bgcolor=ELEVATED_BG,
        bordercolor=INK_SOFT,
        borderwidth=1,
    ),
    margin=dict(l=100, r=80, t=120, b=100),
)

# Save as PNG (4800 x 2700 px) and HTML
fig.write_image(f"plot-{THEME}.png", width=1600, height=900, scale=3)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")

Part of Partial Dependence Plot on anyplot.ai.
