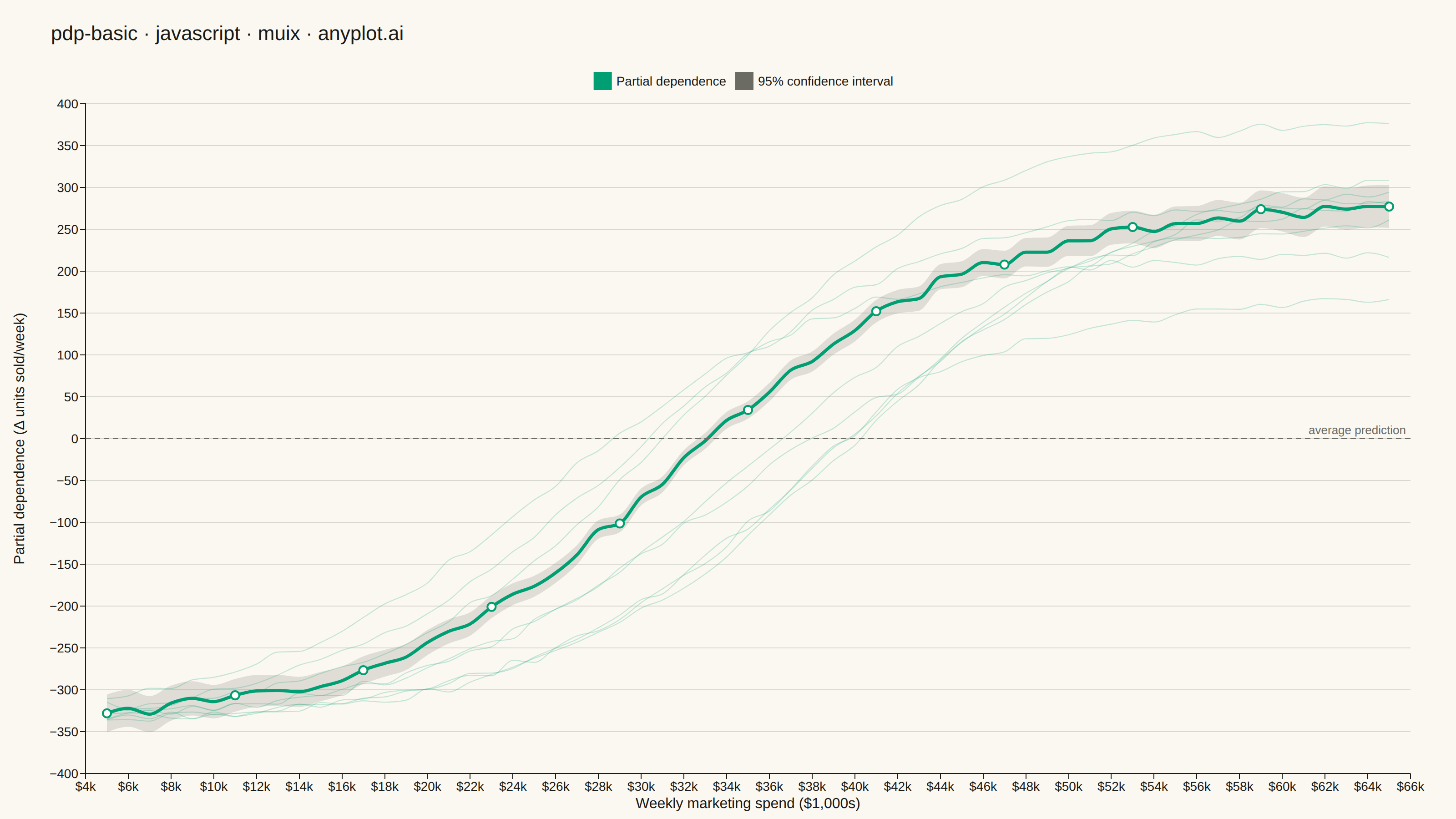

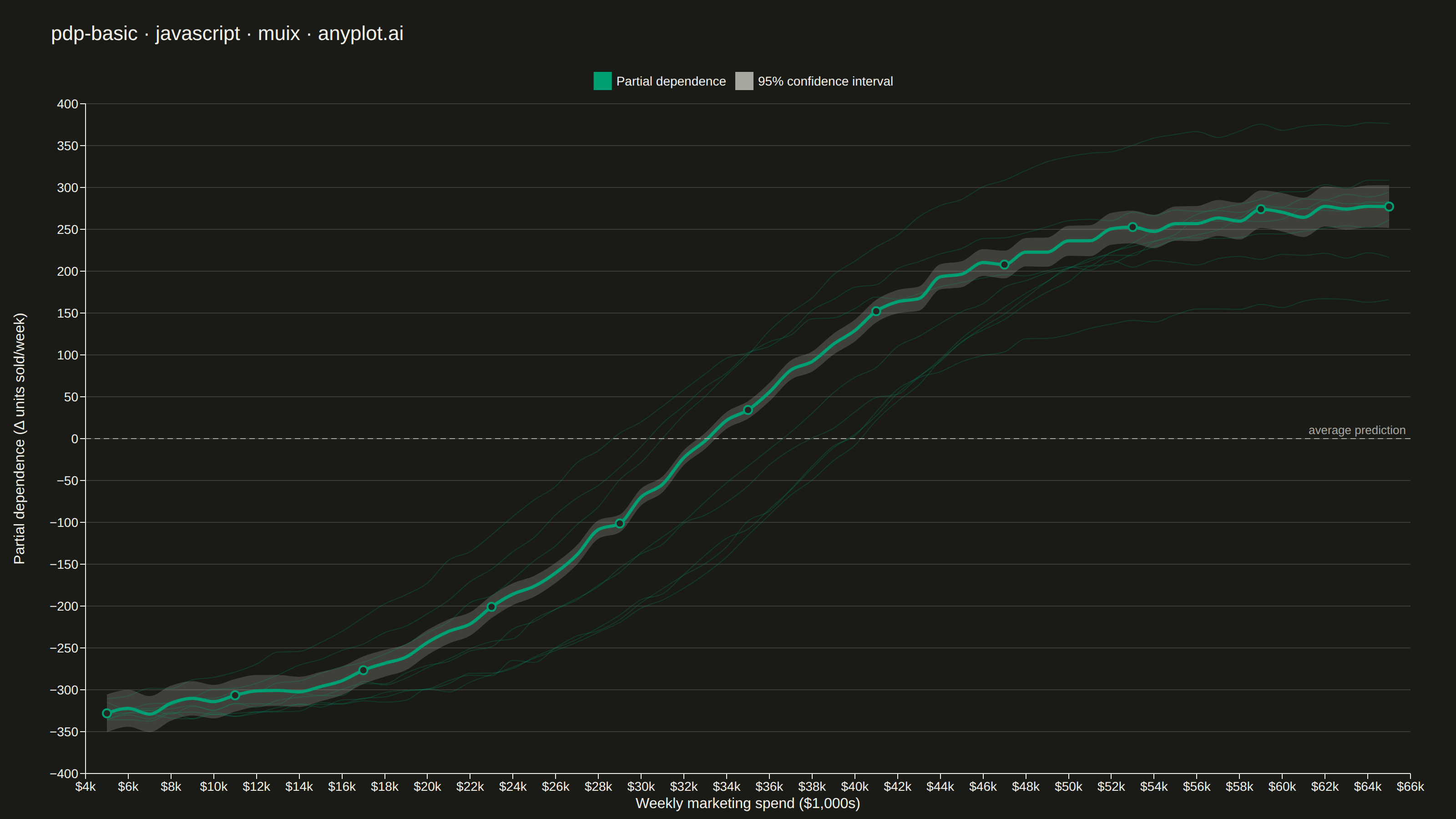

A partial dependence plot (PDP) showing the marginal effect of one feature on the predicted outcome of a machine learning model. The plot displays how predictions change as a feature varies across its range, while averaging over the effects of all other features. This visualization is essential for understanding the relationship between individual features and model predictions in interpretable machine learning.
// anyplot.ai
// pdp-basic: Partial Dependence Plot
// Library: muix 7.29.1 | JavaScript 22.23.2
// Quality: 97/100 | Created: 2026-09-05
import { LineChart } from "@mui/x-charts/LineChart";
import { ChartsReferenceLine } from "@mui/x-charts/ChartsReferenceLine";
import Box from "@mui/material/Box";
import Typography from "@mui/material/Typography";
const t = window.ANYPLOT_TOKENS;
const muted = window.ANYPLOT_THEME === "dark" ? "#A8A79F" : "#6B6A63";
// --- Data (in-memory, deterministic) ---------------------------------------
// Tiny fixed-seed LCG — the browser has no seeded RNG.
function makeLcg(seed: number) {
let state = seed >>> 0;
return function next() {
state = (Math.imul(state, 1664525) + 1013904223) >>> 0;
return state / 4294967296;
};
}
const rng = makeLcg(20260905);
const GRID_POINTS = 61;
const SPEND_MIN = 5;
const SPEND_MAX = 65;
// Simulated PartialDependenceDisplay output for a GradientBoostingRegressor
// predicting weekly units sold from weekly marketing spend, averaging over
// every other feature in the model.
const spend = Array.from(
{ length: GRID_POINTS },
(_, i) => SPEND_MIN + (i * (SPEND_MAX - SPEND_MIN)) / (GRID_POINTS - 1),
);
const rawPrediction = spend.map((x) => {
const saturating = 620 / (1 + Math.exp(-(x - 32) / 7));
const modelWiggle = (rng() - 0.5) * 16;
return saturating + modelWiggle;
});
// Center at zero so the curve reads as "effect relative to the average
// prediction" rather than an absolute (and arbitrary-looking) sales count.
const meanPrediction =
rawPrediction.reduce((sum, v) => sum + v, 0) / rawPrediction.length;
const partialDependence = rawPrediction.map((v) => v - meanPrediction);
// Confidence band widens toward both ends of the spend range, where training
// samples are sparser and the model's average prediction is less certain.
const ciHalfWidth = spend.map((x) => 9 + 0.5 * Math.abs(x - 32));
const ciLowerBound = partialDependence.map((v, i) => v - ciHalfWidth[i]);
const ciBandWidth = ciHalfWidth.map((halfWidth) => 2 * halfWidth);
// A handful of individual conditional expectation (ICE) curves — the
// per-instance predictions the PDP curve is the average of. Each sample
// varies the saturation midpoint/amplitude and carries its own model noise,
// then is shifted by the same meanPrediction constant as the PDP so it reads
// in the same "effect relative to average" units.
const ICE_SAMPLE_COUNT = 8;
const iceCurves = Array.from({ length: ICE_SAMPLE_COUNT }, () => {
const midpointShift = (rng() - 0.5) * 16;
const amplitudeScale = 0.82 + rng() * 0.36;
return spend.map((x) => {
const saturating =
(620 * amplitudeScale) /
(1 + Math.exp(-(x - (32 + midpointShift)) / 7));
const modelWiggle = (rng() - 0.5) * 12;
return saturating + modelWiggle - meanPrediction;
});
});
// --- Chart (default-exported component — the harness mounts it) -------------
export default function Chart() {
const W = window.ANYPLOT_SIZE.width;
const H = window.ANYPLOT_SIZE.height;
const CHART_TOP = 64;
const title = "pdp-basic · javascript · muix · anyplot.ai";
const titleSize =
title.length > 67 ? Math.round((22 * 67) / title.length) : 22;
// MUI X's built-in y-axis title sits at a fixed, small offset from the
// axis line — too small to clear wide 4-digit tick numbers, so it renders
// the axis label as its own rotated element in a reserved strip instead.
const Y_LABEL_W = 44;
const yAxisLabel = "Partial dependence (Δ units sold/week)";
return (
<Box sx={{ position: "relative", width: W, height: H, bgcolor: t.pageBg }}>
<Box sx={{ position: "absolute", top: 20, left: 56, right: 56 }}>
<Typography sx={{ color: t.ink, fontSize: titleSize, fontWeight: 500 }}>
{title}
</Typography>
</Box>
<Box
sx={{
position: "absolute",
top: CHART_TOP,
left: 0,
width: Y_LABEL_W,
bottom: 0,
display: "flex",
alignItems: "center",
justifyContent: "center",
}}
>
<Typography
sx={{
color: t.ink,
fontSize: 16,
whiteSpace: "nowrap",
transform: "rotate(-90deg)",
}}
>
{yAxisLabel}
</Typography>
</Box>
<Box
sx={{
position: "absolute",
top: CHART_TOP,
left: Y_LABEL_W,
right: 0,
bottom: 0,
}}
>
<LineChart
width={W - Y_LABEL_W}
height={H - CHART_TOP}
skipAnimation
series={[
...iceCurves.map((curve, i) => ({
id: `ice-${i}`,
data: curve,
color: t.palette[0],
curve: "monotoneX" as const,
area: false,
showMark: false,
valueFormatter: () => null,
})),
{
id: "pdp",
data: partialDependence,
label: "Partial dependence",
color: t.palette[0],
curve: "monotoneX",
area: false,
showMark: ({ index }: { index: number }) => index % 6 === 0,
valueFormatter: (value: number | null) =>
value == null
? null
: `${value >= 0 ? "+" : ""}${value.toFixed(0)} units/week`,
},
{
id: "ci-lower",
data: ciLowerBound,
color: muted,
curve: "monotoneX",
area: true,
stack: "ci",
showMark: false,
valueFormatter: () => null,
},
{
id: "ci-band",
data: ciBandWidth,
label: "95% confidence interval",
color: muted,
curve: "monotoneX",
area: true,
stack: "ci",
showMark: false,
valueFormatter: (value: number | null) =>
value == null ? null : `±${(value / 2).toFixed(0)} units/week`,
},
]}
xAxis={[
{
data: spend,
scaleType: "linear",
label: "Weekly marketing spend ($1,000s)",
labelStyle: { fontSize: 16 },
tickLabelStyle: { fontSize: 14 },
valueFormatter: (value: number) => `$${value.toFixed(0)}k`,
},
]}
yAxis={[
{
tickLabelStyle: { fontSize: 14 },
},
]}
grid={{ horizontal: true }}
slotProps={{ legend: { labelStyle: { fontSize: 14 } } }}
sx={{
"& .MuiLineElement-series-pdp": { strokeWidth: 3.5 },
"& .MuiLineElement-series-ci-band": { strokeWidth: 0 },
"& .MuiLineElement-series-ci-lower": { strokeWidth: 0 },
"& .MuiAreaElement-series-ci-lower": { fill: "none" },
"& .MuiAreaElement-series-ci-band": { fillOpacity: 0.22 },
...Object.fromEntries(
iceCurves.map((_, i) => [
`& .MuiLineElement-series-ice-${i}`,
{ strokeWidth: 1.1, strokeOpacity: 0.22 },
]),
),
}}
>
<ChartsReferenceLine
y={0}
label="average prediction"
labelAlign="end"
labelStyle={{ fontSize: 13, fill: muted }}
lineStyle={{ stroke: muted, strokeDasharray: "6 4" }}
/>
</LineChart>
</Box>
</Box>
);
}
