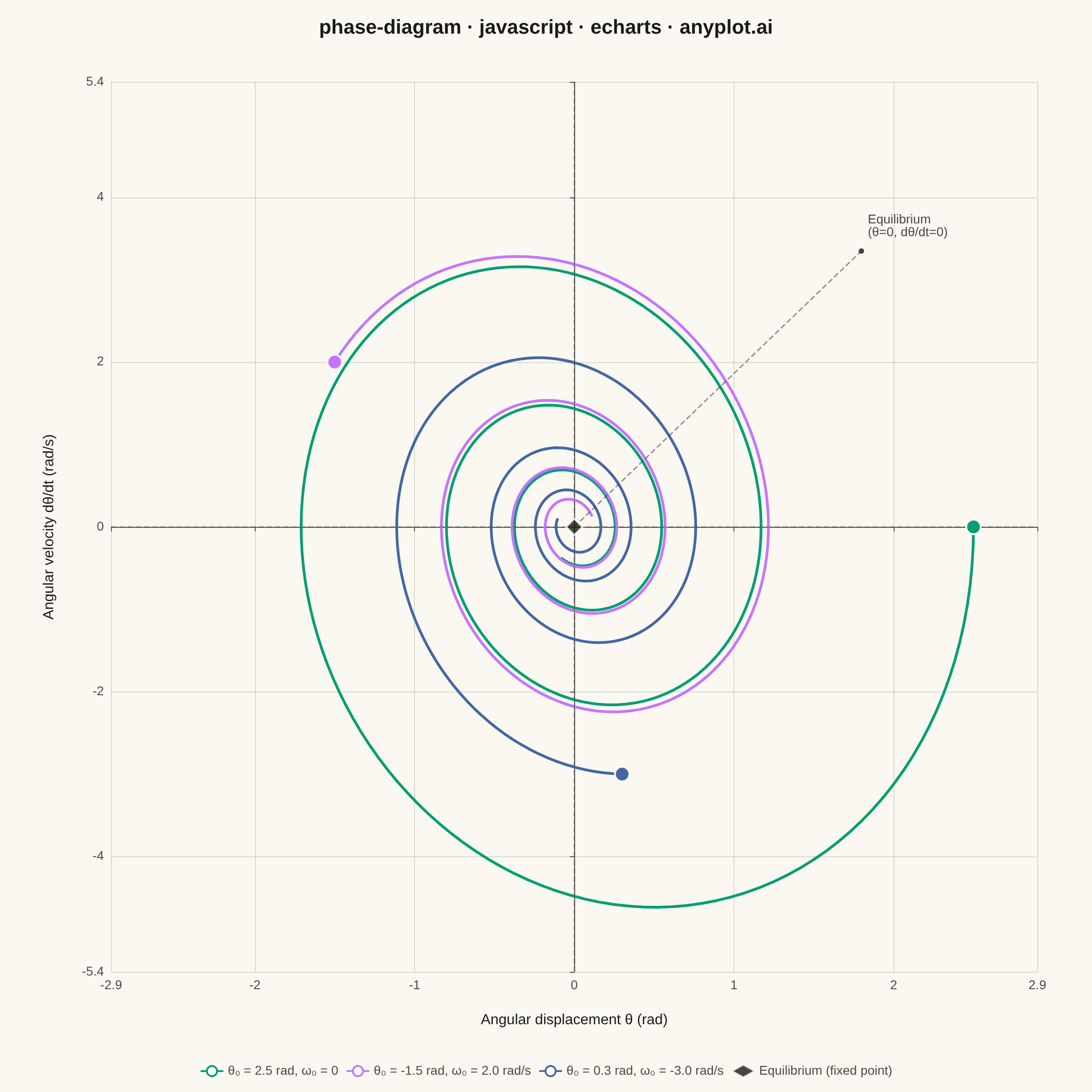

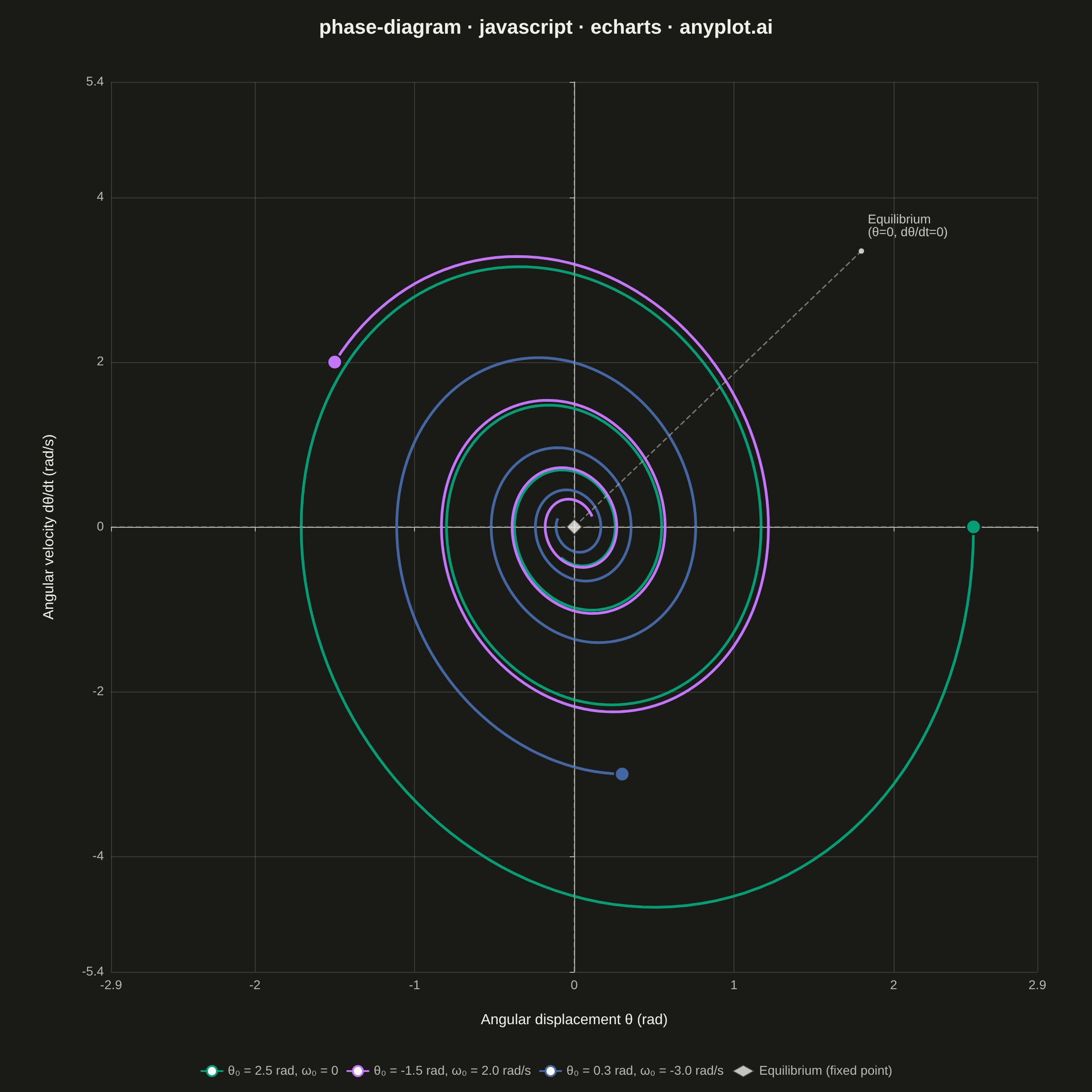

A phase diagram (or state space plot) displays the trajectory of a dynamical system by plotting a variable against its derivative (x vs dx/dt). This visualization reveals the qualitative behavior of systems including fixed points, limit cycles, stability, and oscillation patterns. It is essential for analyzing differential equations without solving them explicitly.
// anyplot.ai
// phase-diagram: Phase Diagram (State Space Plot)
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 88/100 | Created: 2026-09-05
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Linear damped oscillator: theta'' + 2*zeta*omega*theta' + omega^2*theta = 0.
// This linearized model captures the phase-plane structure common to many damped
// systems (spring-mass-damper, RLC circuit, weakly-driven pendulum). Three initial
// conditions all spiral into the same fixed point (theta=0, dtheta/dt=0), revealing
// the shared basin of attraction of the damped system.
const OMEGA = 2.2; // natural frequency (rad/s)
const ZETA = 0.12; // damping ratio (underdamped -> spiral, not overdamped decay)
const DT = 0.02;
const STEPS = 480;
function derivative(theta, omega_) {
return [omega_, -2 * ZETA * OMEGA * omega_ - OMEGA * OMEGA * theta];
}
function integrate(theta0, omega0) {
const points = [[theta0, omega0]];
let theta = theta0;
let omega_ = omega0;
for (let i = 0; i < STEPS; i++) {
const k1 = derivative(theta, omega_);
const k2 = derivative(theta + (DT / 2) * k1[0], omega_ + (DT / 2) * k1[1]);
const k3 = derivative(theta + (DT / 2) * k2[0], omega_ + (DT / 2) * k2[1]);
const k4 = derivative(theta + DT * k3[0], omega_ + DT * k3[1]);
theta += (DT / 6) * (k1[0] + 2 * k2[0] + 2 * k3[0] + k4[0]);
omega_ += (DT / 6) * (k1[1] + 2 * k2[1] + 2 * k3[1] + k4[1]);
points.push([theta, omega_]);
}
return points;
}
const trajectories = [
{ name: "θ₀ = 2.5 rad, ω₀ = 0", points: integrate(2.5, 0) },
{ name: "θ₀ = -1.5 rad, ω₀ = 2.0 rad/s", points: integrate(-1.5, 2.0) },
{ name: "θ₀ = 0.3 rad, ω₀ = -3.0 rad/s", points: integrate(0.3, -3.0) },
];
const allPoints = trajectories.flatMap((traj) => traj.points);
const thetaBound = Math.ceil(Math.max(...allPoints.map((p) => Math.abs(p[0]))) * 1.15 * 10) / 10;
const omegaBound = Math.ceil(Math.max(...allPoints.map((p) => Math.abs(p[1]))) * 1.15 * 10) / 10;
// Pick the quadrant corner farthest from every trajectory point, so the
// "Equilibrium" callout label never lands on top of the converging spirals.
const labelCandidates = [
[0.62 * thetaBound, 0.62 * omegaBound],
[-0.62 * thetaBound, 0.62 * omegaBound],
[-0.62 * thetaBound, -0.62 * omegaBound],
[0.62 * thetaBound, -0.62 * omegaBound],
];
const [labelX, labelY] = labelCandidates.reduce((best, candidate) => {
const minDist = (pt) => Math.min(...allPoints.map((p) => Math.hypot(p[0] - pt[0], p[1] - pt[1])));
return minDist(candidate) > minDist(best) ? candidate : best;
});
// --- Init -------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option -----------------------------------------------------------------
chart.setOption({
animation: false,
color: t.palette,
backgroundColor: "transparent",
title: {
text: "phase-diagram · javascript · echarts · anyplot.ai",
left: "center",
textStyle: { color: t.ink, fontSize: 22 },
},
legend: {
bottom: 10,
textStyle: { color: t.inkSoft, fontSize: 14 },
},
grid: { left: 90, right: 60, top: 90, bottom: 110, containLabel: true },
xAxis: {
type: "value",
name: "Angular displacement θ (rad)",
nameLocation: "middle",
nameGap: 45,
nameTextStyle: { color: t.ink, fontSize: 16 },
min: -thetaBound,
max: thetaBound,
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } },
},
yAxis: {
type: "value",
name: "Angular velocity dθ/dt (rad/s)",
nameLocation: "middle",
nameGap: 60,
nameTextStyle: { color: t.ink, fontSize: 16 },
min: -omegaBound,
max: omegaBound,
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } },
},
series: [
...trajectories.map((traj, i) => ({
name: traj.name,
type: "line",
data: traj.points,
showSymbol: false,
smooth: false,
lineStyle: { width: 3, color: t.palette[i] },
markPoint: {
symbol: "circle",
symbolSize: 16,
itemStyle: { color: t.palette[i], borderColor: t.pageBg, borderWidth: 2 },
label: { show: false },
data: [{ coord: traj.points[0], name: "start" }],
},
// nullclines theta=0 / dtheta/dt=0 -- attached once, to the first trajectory
markLine:
i === 0
? {
symbol: "none",
silent: true,
lineStyle: { type: "dashed", width: 1.5, color: t.inkSoft, opacity: 0.4 },
label: { show: false },
data: [{ xAxis: 0 }, { yAxis: 0 }],
}
: undefined,
})),
{
name: "Equilibrium (fixed point)",
type: "scatter",
data: [[0, 0]],
symbol: "diamond",
symbolSize: 18,
itemStyle: { color: t.ink, borderColor: t.pageBg, borderWidth: 2 },
label: { show: false },
z: 10,
},
// Leader line from the true fixed point to the callout label, placed in
// whichever corner sits farthest from the converging trajectories.
{
type: "line",
data: [
[0, 0],
[labelX, labelY],
],
showSymbol: false,
silent: true,
lineStyle: { type: "dashed", width: 1.5, color: t.inkSoft, opacity: 0.6 },
z: 9,
},
{
type: "scatter",
data: [[labelX, labelY]],
symbol: "circle",
symbolSize: 6,
itemStyle: { color: t.ink },
label: {
show: true,
formatter: "Equilibrium\n(θ=0, dθ/dt=0)",
position: [labelX >= 0 ? 10 : -10, labelY >= 0 ? -10 : 10],
align: labelX >= 0 ? "left" : "right",
verticalAlign: labelY >= 0 ? "bottom" : "top",
color: t.ink,
fontSize: 14,
},
z: 10,
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/phase-diagram/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
