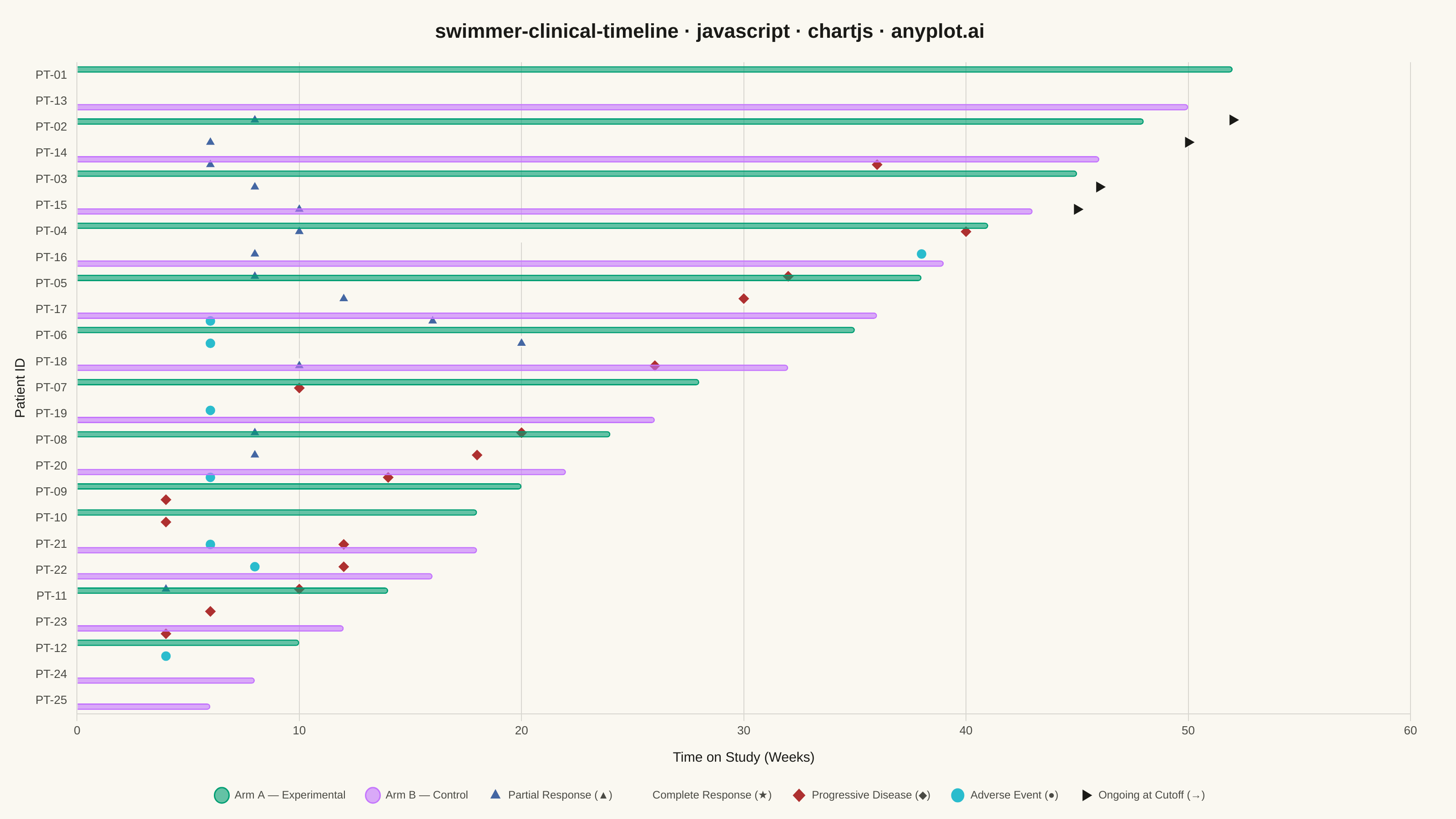

A swimmer plot displays individual patient timelines as horizontal bars, commonly used in clinical oncology to visualize treatment duration, response events, and disease progression across a study cohort. Each bar represents one patient, typically sorted by treatment duration, with symbols or color changes marking key clinical events such as partial response, complete response, or progressive disease. This plot is standard in clinical trial publications and regulatory submissions for conveying patient-level longitudinal outcomes at a glance.
// anyplot.ai
// swimmer-clinical-timeline: Swimmer Plot for Clinical Trial Timelines
// Library: chartjs 4.4.7 | JavaScript 22.22.3
// Quality: 88/100 | Created: 2026-06-08
const t = window.ANYPLOT_TOKENS;
// --- Data ---
const rawPatients = [
{ id: "PT-01", duration: 52, group: "A", ongoing: true, events: [{t:8,type:"PR"},{t:18,type:"CR"}] },
{ id: "PT-02", duration: 48, group: "A", ongoing: false, events: [{t:6,type:"PR"},{t:36,type:"PD"}] },
{ id: "PT-03", duration: 45, group: "A", ongoing: true, events: [{t:10,type:"PR"}] },
{ id: "PT-04", duration: 41, group: "A", ongoing: false, events: [{t:8,type:"PR"},{t:16,type:"CR"},{t:38,type:"AE"}] },
{ id: "PT-05", duration: 38, group: "A", ongoing: false, events: [{t:12,type:"PR"},{t:30,type:"PD"}] },
{ id: "PT-06", duration: 35, group: "A", ongoing: false, events: [{t:6,type:"AE"},{t:20,type:"PR"}] },
{ id: "PT-07", duration: 28, group: "A", ongoing: false, events: [{t:10,type:"PD"}] },
{ id: "PT-08", duration: 24, group: "A", ongoing: false, events: [{t:8,type:"PR"},{t:20,type:"PD"}] },
{ id: "PT-09", duration: 20, group: "A", ongoing: false, events: [{t:6,type:"AE"},{t:14,type:"PD"}] },
{ id: "PT-10", duration: 18, group: "A", ongoing: false, events: [{t:4,type:"PD"}] },
{ id: "PT-11", duration: 14, group: "A", ongoing: false, events: [{t:8,type:"AE"},{t:12,type:"PD"}] },
{ id: "PT-12", duration: 10, group: "A", ongoing: false, events: [{t:6,type:"PD"}] },
{ id: "PT-13", duration: 50, group: "B", ongoing: true, events: [{t:6,type:"PR"},{t:14,type:"CR"}] },
{ id: "PT-14", duration: 46, group: "B", ongoing: true, events: [{t:8,type:"PR"},{t:22,type:"CR"}] },
{ id: "PT-15", duration: 43, group: "B", ongoing: false, events: [{t:10,type:"PR"},{t:20,type:"CR"},{t:40,type:"PD"}] },
{ id: "PT-16", duration: 39, group: "B", ongoing: false, events: [{t:8,type:"PR"},{t:32,type:"PD"}] },
{ id: "PT-17", duration: 36, group: "B", ongoing: false, events: [{t:6,type:"AE"},{t:16,type:"PR"}] },
{ id: "PT-18", duration: 32, group: "B", ongoing: false, events: [{t:10,type:"PR"},{t:26,type:"PD"}] },
{ id: "PT-19", duration: 26, group: "B", ongoing: false, events: [{t:6,type:"AE"}] },
{ id: "PT-20", duration: 22, group: "B", ongoing: false, events: [{t:8,type:"PR"},{t:18,type:"PD"}] },
{ id: "PT-21", duration: 18, group: "B", ongoing: false, events: [{t:4,type:"PD"}] },
{ id: "PT-22", duration: 16, group: "B", ongoing: false, events: [{t:6,type:"AE"},{t:12,type:"PD"}] },
{ id: "PT-23", duration: 12, group: "B", ongoing: false, events: [{t:4,type:"PR"},{t:10,type:"PD"}] },
{ id: "PT-24", duration: 8, group: "B", ongoing: false, events: [{t:4,type:"PD"}] },
{ id: "PT-25", duration: 6, group: "B", ongoing: false, events: [{t:4,type:"AE"}] },
];
// Sort descending by duration — longest patient at top of chart
const patients = rawPatients.sort((a, b) => b.duration - a.duration);
const labels = patients.map(p => p.id);
const n = patients.length;
// Bar data per arm (null for patients in the other arm — Chart.js skips nulls)
const armAData = patients.map(p => p.group === "A" ? p.duration : null);
const armBData = patients.map(p => p.group === "B" ? p.duration : null);
// Scatter event data — y2 is a hidden linear axis aligned to the categorical y-axis.
// Alignment formula: for categorical index i (0=top), y2 = n - 1 - i
// so index 0 (top bar) → y2 = n-1 (near y2 max = top), index n-1 (bottom) → y2 = 0.
const prPts = [], crPts = [], pdPts = [], aePts = [], ongoingPts = [];
patients.forEach((p, i) => {
const y = n - 1 - i;
if (p.ongoing) ongoingPts.push({ x: p.duration, y });
p.events.forEach(e => {
const pt = { x: e.t, y };
if (e.type === "PR") prPts.push(pt);
else if (e.type === "CR") crPts.push(pt);
else if (e.type === "PD") pdPts.push(pt);
else if (e.type === "AE") aePts.push(pt);
});
});
// --- Mount ---
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Chart ---
new Chart(canvas, {
type: "bar",
data: {
labels,
datasets: [
{
type: "bar",
label: "Arm A — Experimental",
data: armAData,
backgroundColor: t.palette[0] + "99",
borderColor: t.palette[0],
borderWidth: 1.5,
borderRadius: 4,
yAxisID: "y",
xAxisID: "x",
barPercentage: 0.55,
categoryPercentage: 0.9,
},
{
type: "bar",
label: "Arm B — Control",
data: armBData,
backgroundColor: t.palette[1] + "99",
borderColor: t.palette[1],
borderWidth: 1.5,
borderRadius: 4,
yAxisID: "y",
xAxisID: "x",
barPercentage: 0.55,
categoryPercentage: 0.9,
},
{
type: "scatter",
label: "Partial Response (▲)",
data: prPts,
yAxisID: "y2",
xAxisID: "x",
backgroundColor: t.palette[2],
borderColor: t.pageBg,
borderWidth: 1.5,
pointStyle: "triangle",
pointRadius: 7,
pointHoverRadius: 9,
},
{
type: "scatter",
label: "Complete Response (★)",
data: crPts,
yAxisID: "y2",
xAxisID: "x",
backgroundColor: t.palette[3],
borderColor: t.pageBg,
borderWidth: 1.5,
pointStyle: "star",
pointRadius: 12,
pointHoverRadius: 14,
},
{
type: "scatter",
label: "Progressive Disease (◆)",
data: pdPts,
yAxisID: "y2",
xAxisID: "x",
backgroundColor: t.palette[4],
borderColor: t.pageBg,
borderWidth: 1.5,
pointStyle: "rectRot",
pointRadius: 7,
pointHoverRadius: 9,
},
{
type: "scatter",
label: "Adverse Event (●)",
data: aePts,
yAxisID: "y2",
xAxisID: "x",
backgroundColor: t.palette[5],
borderColor: t.pageBg,
borderWidth: 1.5,
pointStyle: "circle",
pointRadius: 6,
pointHoverRadius: 8,
},
{
type: "scatter",
label: "Ongoing at Cutoff (→)",
data: ongoingPts,
yAxisID: "y2",
xAxisID: "x",
backgroundColor: t.ink,
borderColor: t.pageBg,
borderWidth: 1,
pointStyle: "triangle",
rotation: 90,
pointRadius: 8,
pointHoverRadius: 10,
},
],
},
options: {
indexAxis: "y",
responsive: true,
maintainAspectRatio: false,
animation: false,
plugins: {
title: {
display: true,
text: "swimmer-clinical-timeline · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 22, weight: "600" },
padding: { top: 12, bottom: 20 },
},
legend: {
display: true,
position: "bottom",
labels: {
color: t.inkSoft,
font: { size: 12 },
padding: 22,
usePointStyle: true,
pointStyleWidth: 16,
},
},
},
layout: {
padding: { top: 10, right: 50, bottom: 10, left: 10 },
},
scales: {
x: {
type: "linear",
position: "bottom",
min: 0,
max: 60,
title: {
display: true,
text: "Time on Study (Weeks)",
color: t.ink,
font: { size: 15, weight: "500" },
padding: { top: 10 },
},
ticks: {
color: t.inkSoft,
font: { size: 13 },
stepSize: 10,
},
grid: { color: t.grid },
border: { color: t.grid },
},
y: {
type: "category",
position: "left",
title: {
display: true,
text: "Patient ID",
color: t.ink,
font: { size: 15, weight: "500" },
},
ticks: {
color: t.inkSoft,
font: { size: 13 },
},
grid: { display: false },
border: { display: false },
},
// Hidden linear axis aligned to the categorical y-axis for scatter event markers.
// Range [-0.5, n-0.5] maps cleanly: index 0 (top bar) → y2 = n-1, index n-1 → y2 = 0.
y2: {
type: "linear",
display: false,
min: -0.5,
max: n - 0.5,
},
},
},
plugins: [
{
id: "bgfill",
beforeDraw(chart) {
const ctx = chart.canvas.getContext("2d");
ctx.save();
ctx.fillStyle = t.pageBg;
ctx.fillRect(0, 0, chart.width, chart.height);
ctx.restore();
},
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/swimmer-clinical-timeline/chartjs/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "swimmer-clinical-timeline",
"language": "javascript",
"library": "chartjs",
"page": "https://anyplot.ai/swimmer-clinical-timeline/javascript/chartjs",
"hub": "https://anyplot.ai/swimmer-clinical-timeline",
"code_json": "https://api.anyplot.ai/specs/swimmer-clinical-timeline/chartjs/code",
"spec_json": "https://api.anyplot.ai/specs/swimmer-clinical-timeline",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/swimmer-clinical-timeline/javascript/chartjs/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/swimmer-clinical-timeline/javascript/chartjs/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/swimmer-clinical-timeline/javascript/chartjs/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/swimmer-clinical-timeline/javascript/chartjs/plot-dark.html",
"quality_score": 88.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Swimmer Plot for Clinical Trial Timelines on anyplot.ai.
