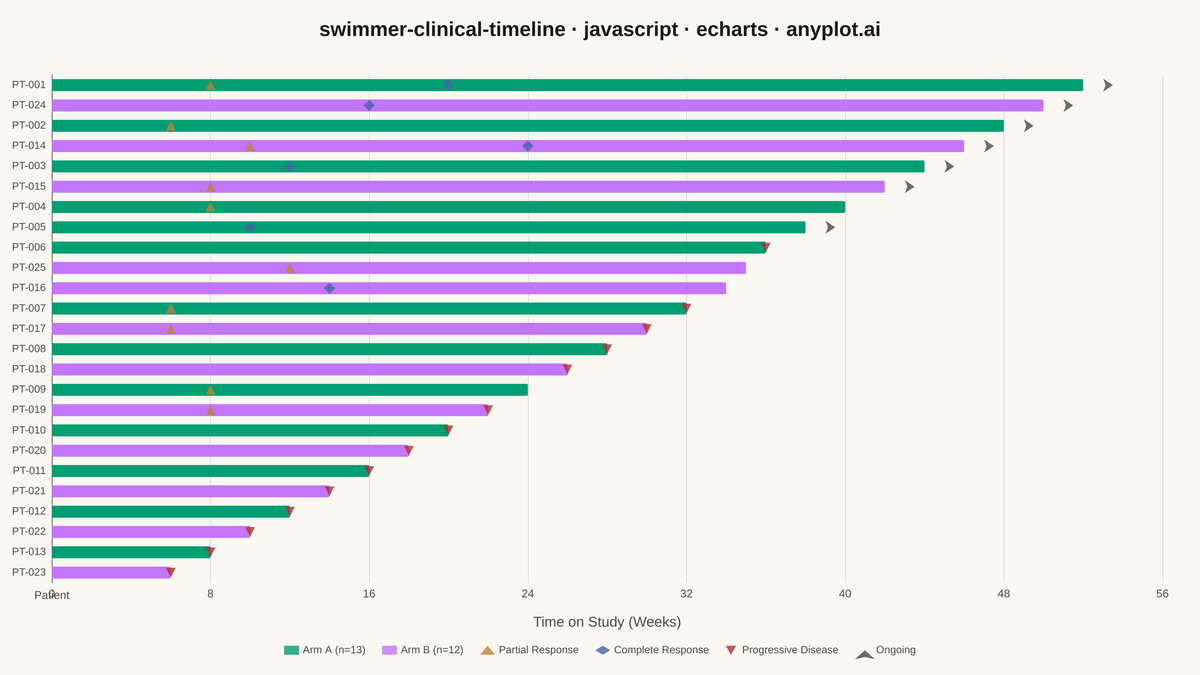

A swimmer plot displays individual patient timelines as horizontal bars, commonly used in clinical oncology to visualize treatment duration, response events, and disease progression across a study cohort. Each bar represents one patient, typically sorted by treatment duration, with symbols or color changes marking key clinical events such as partial response, complete response, or progressive disease. This plot is standard in clinical trial publications and regulatory submissions for conveying patient-level longitudinal outcomes at a glance.
// anyplot.ai
// swimmer-clinical-timeline: Swimmer Plot for Clinical Trial Timelines
// Library: echarts 5.5.1 | JavaScript 22.22.3
// Quality: 87/100 | Created: 2026-06-08
const t = window.ANYPLOT_TOKENS;
// Imprint palette — data colors stable across light/dark; only chrome tokens flip
const ARM_A_COLOR = t.palette[0]; // #009E73 — Arm A (brand green, first series)
const ARM_B_COLOR = t.palette[1]; // #C475FD — Arm B (lavender)
const PARTIAL_COLOR = t.palette[3]; // #BD8233 — ochre: partial response
const CR_COLOR = t.palette[2]; // #4467A3 — blue: complete response
const PD_COLOR = t.palette[4]; // #AE3030 — matte red: progressive disease (semantic bad/loss)
const ONGOING_COLOR = t.inkSoft; // theme-adaptive neutral: ongoing patients
// 25 simulated Phase II oncology patients, sorted longest → shortest duration
const patients = [
{ id: "PT-001", arm: "A", duration: 52, ongoing: true, events: [{time: 8, type: "PR"}, {time: 20, type: "CR"}] },
{ id: "PT-024", arm: "B", duration: 50, ongoing: true, events: [{time: 16, type: "CR"}] },
{ id: "PT-002", arm: "A", duration: 48, ongoing: true, events: [{time: 6, type: "PR"}] },
{ id: "PT-014", arm: "B", duration: 46, ongoing: true, events: [{time: 10, type: "PR"}, {time: 24, type: "CR"}] },
{ id: "PT-003", arm: "A", duration: 44, ongoing: true, events: [{time: 12, type: "CR"}] },
{ id: "PT-015", arm: "B", duration: 42, ongoing: true, events: [{time: 8, type: "PR"}] },
{ id: "PT-004", arm: "A", duration: 40, ongoing: false, events: [{time: 8, type: "PR"}] },
{ id: "PT-005", arm: "A", duration: 38, ongoing: true, events: [{time: 10, type: "CR"}] },
{ id: "PT-006", arm: "A", duration: 36, ongoing: false, events: [{time: 36, type: "PD"}] },
{ id: "PT-025", arm: "B", duration: 35, ongoing: false, events: [{time: 12, type: "PR"}] },
{ id: "PT-016", arm: "B", duration: 34, ongoing: false, events: [{time: 14, type: "CR"}] },
{ id: "PT-007", arm: "A", duration: 32, ongoing: false, events: [{time: 6, type: "PR"}, {time: 32, type: "PD"}] },
{ id: "PT-017", arm: "B", duration: 30, ongoing: false, events: [{time: 6, type: "PR"}, {time: 30, type: "PD"}] },
{ id: "PT-008", arm: "A", duration: 28, ongoing: false, events: [{time: 28, type: "PD"}] },
{ id: "PT-018", arm: "B", duration: 26, ongoing: false, events: [{time: 26, type: "PD"}] },
{ id: "PT-009", arm: "A", duration: 24, ongoing: false, events: [{time: 8, type: "PR"}] },
{ id: "PT-019", arm: "B", duration: 22, ongoing: false, events: [{time: 8, type: "PR"}, {time: 22, type: "PD"}] },
{ id: "PT-010", arm: "A", duration: 20, ongoing: false, events: [{time: 20, type: "PD"}] },
{ id: "PT-020", arm: "B", duration: 18, ongoing: false, events: [{time: 18, type: "PD"}] },
{ id: "PT-011", arm: "A", duration: 16, ongoing: false, events: [{time: 16, type: "PD"}] },
{ id: "PT-021", arm: "B", duration: 14, ongoing: false, events: [{time: 14, type: "PD"}] },
{ id: "PT-012", arm: "A", duration: 12, ongoing: false, events: [{time: 12, type: "PD"}] },
{ id: "PT-022", arm: "B", duration: 10, ongoing: false, events: [{time: 10, type: "PD"}] },
{ id: "PT-013", arm: "A", duration: 8, ongoing: false, events: [{time: 8, type: "PD"}] },
{ id: "PT-023", arm: "B", duration: 6, ongoing: false, events: [{time: 6, type: "PD"}] },
];
const patientIds = patients.map(p => p.id);
// Build scatter data arrays by event type (y = patient array index → category axis)
const prData = [], crData = [], pdData = [], ongoingData = [];
patients.forEach((p, i) => {
p.events.forEach(ev => {
if (ev.type === "PR") prData.push([ev.time, i]);
if (ev.type === "CR") crData.push([ev.time, i]);
if (ev.type === "PD") pdData.push([ev.time, i]);
});
if (p.ongoing) ongoingData.push([p.duration + 1.5, i]);
});
// --- Init -------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option -----------------------------------------------------------------
chart.setOption({
animation: false,
color: t.palette,
backgroundColor: "transparent",
title: {
text: "swimmer-clinical-timeline · javascript · echarts · anyplot.ai",
left: "center",
top: 22,
textStyle: { color: t.ink, fontSize: 27, fontWeight: "bold" }
},
legend: {
bottom: 16,
left: "center",
textStyle: { color: t.inkSoft, fontSize: 14 },
itemGap: 22,
itemWidth: 20,
itemHeight: 12,
data: [
{ name: "Arm A (n=13)", icon: "rect" },
{ name: "Arm B (n=12)", icon: "rect" },
{ name: "Partial Response", icon: "triangle" },
{ name: "Complete Response", icon: "diamond" },
{ name: "Progressive Disease", icon: "path://M0,8L-7,-4L7,-4Z" },
{ name: "Ongoing", icon: "arrow" },
]
},
grid: {
left: 16,
right: 50,
top: 100,
bottom: 100,
containLabel: true
},
xAxis: {
type: "value",
min: 0,
max: 56,
interval: 8,
name: "Time on Study (Weeks)",
nameLocation: "middle",
nameGap: 44,
nameTextStyle: { color: t.inkSoft, fontSize: 19 },
axisLabel: { color: t.inkSoft, fontSize: 15 },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } }
},
yAxis: {
type: "category",
data: patientIds,
inverse: true,
name: "Patient",
nameLocation: "end",
nameGap: 10,
nameTextStyle: { color: t.inkSoft, fontSize: 15 },
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { show: false }
},
series: [
// Legend proxy series for treatment arms (empty data — legend appearance only)
{
name: "Arm A (n=13)",
type: "scatter",
symbol: "rect",
symbolSize: [20, 10],
data: [],
itemStyle: { color: ARM_A_COLOR }
},
{
name: "Arm B (n=12)",
type: "scatter",
symbol: "rect",
symbolSize: [20, 10],
data: [],
itemStyle: { color: ARM_B_COLOR }
},
// Duration bars — per-item arm color via itemStyle
{
name: "_bars",
type: "bar",
barMaxWidth: 16,
data: patients.map(p => ({
value: p.duration,
itemStyle: {
color: p.arm === "A" ? ARM_A_COLOR : ARM_B_COLOR,
borderRadius: [0, 2, 2, 0]
}
}))
},
// Partial Response (PR) — upward triangle, ochre
{
name: "Partial Response",
type: "scatter",
symbol: "triangle",
symbolSize: 13,
data: prData,
itemStyle: { color: PARTIAL_COLOR },
z: 4
},
// Complete Response (CR) — diamond, blue
{
name: "Complete Response",
type: "scatter",
symbol: "diamond",
symbolSize: 15,
data: crData,
itemStyle: { color: CR_COLOR },
z: 4
},
// Progressive Disease (PD) — downward triangle, matte red (semantic bad/disease)
{
name: "Progressive Disease",
type: "scatter",
symbol: "triangle",
symbolRotate: 180,
symbolSize: 13,
data: pdData,
itemStyle: { color: PD_COLOR },
z: 4
},
// Ongoing — rightward arrow past bar end (symbolRotate 270 = down→right for ECharts arrow)
{
name: "Ongoing",
type: "scatter",
symbol: "arrow",
symbolRotate: 270,
symbolSize: 13,
data: ongoingData,
itemStyle: { color: ONGOING_COLOR },
z: 4
}
]
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/swimmer-clinical-timeline/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "swimmer-clinical-timeline",
"language": "javascript",
"library": "echarts",
"page": "https://anyplot.ai/swimmer-clinical-timeline/javascript/echarts",
"hub": "https://anyplot.ai/swimmer-clinical-timeline",
"code_json": "https://api.anyplot.ai/specs/swimmer-clinical-timeline/echarts/code",
"spec_json": "https://api.anyplot.ai/specs/swimmer-clinical-timeline",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/swimmer-clinical-timeline/javascript/echarts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/swimmer-clinical-timeline/javascript/echarts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/swimmer-clinical-timeline/javascript/echarts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/swimmer-clinical-timeline/javascript/echarts/plot-dark.html",
"quality_score": 87.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Swimmer Plot for Clinical Trial Timelines on anyplot.ai.
