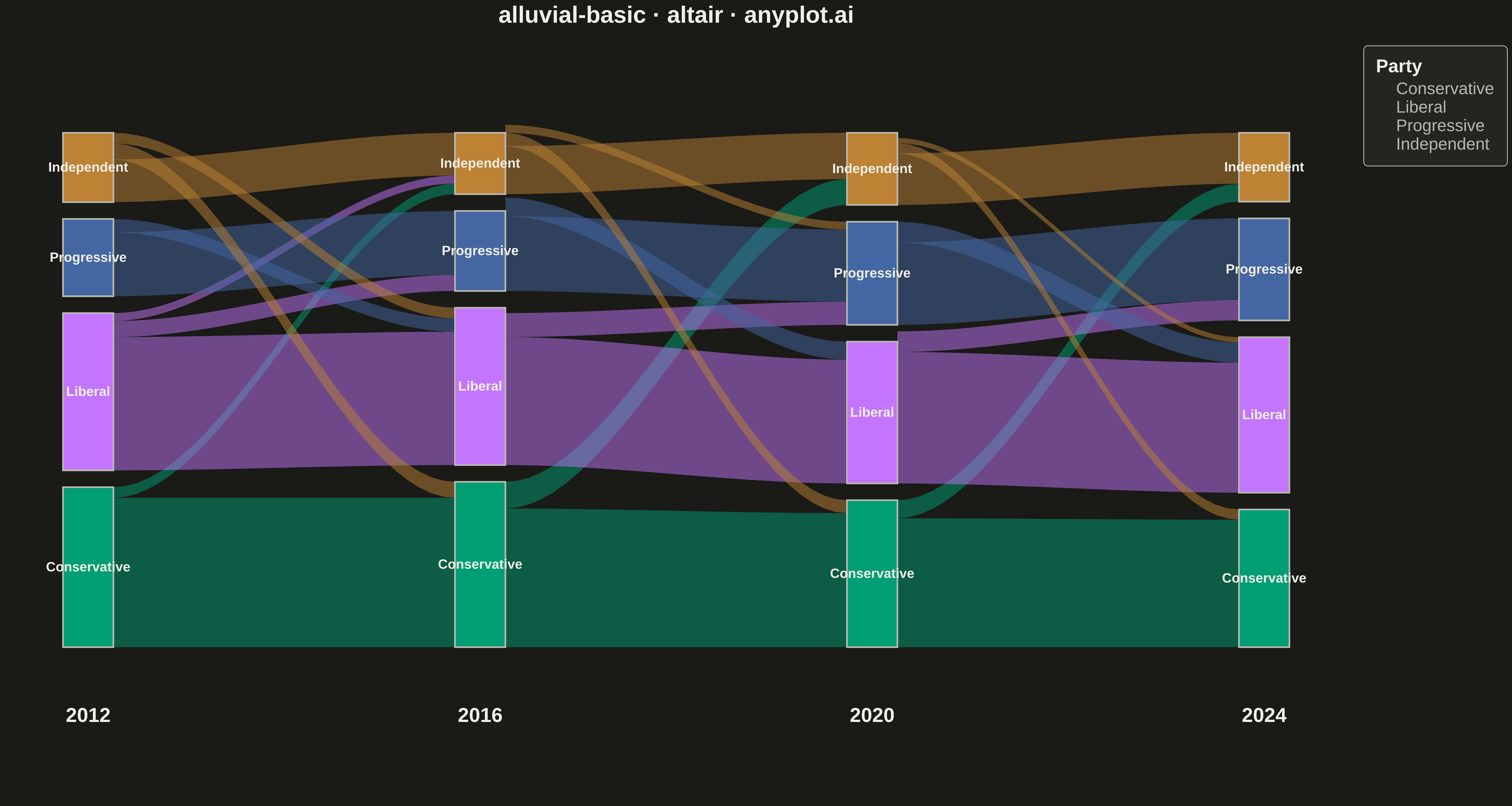

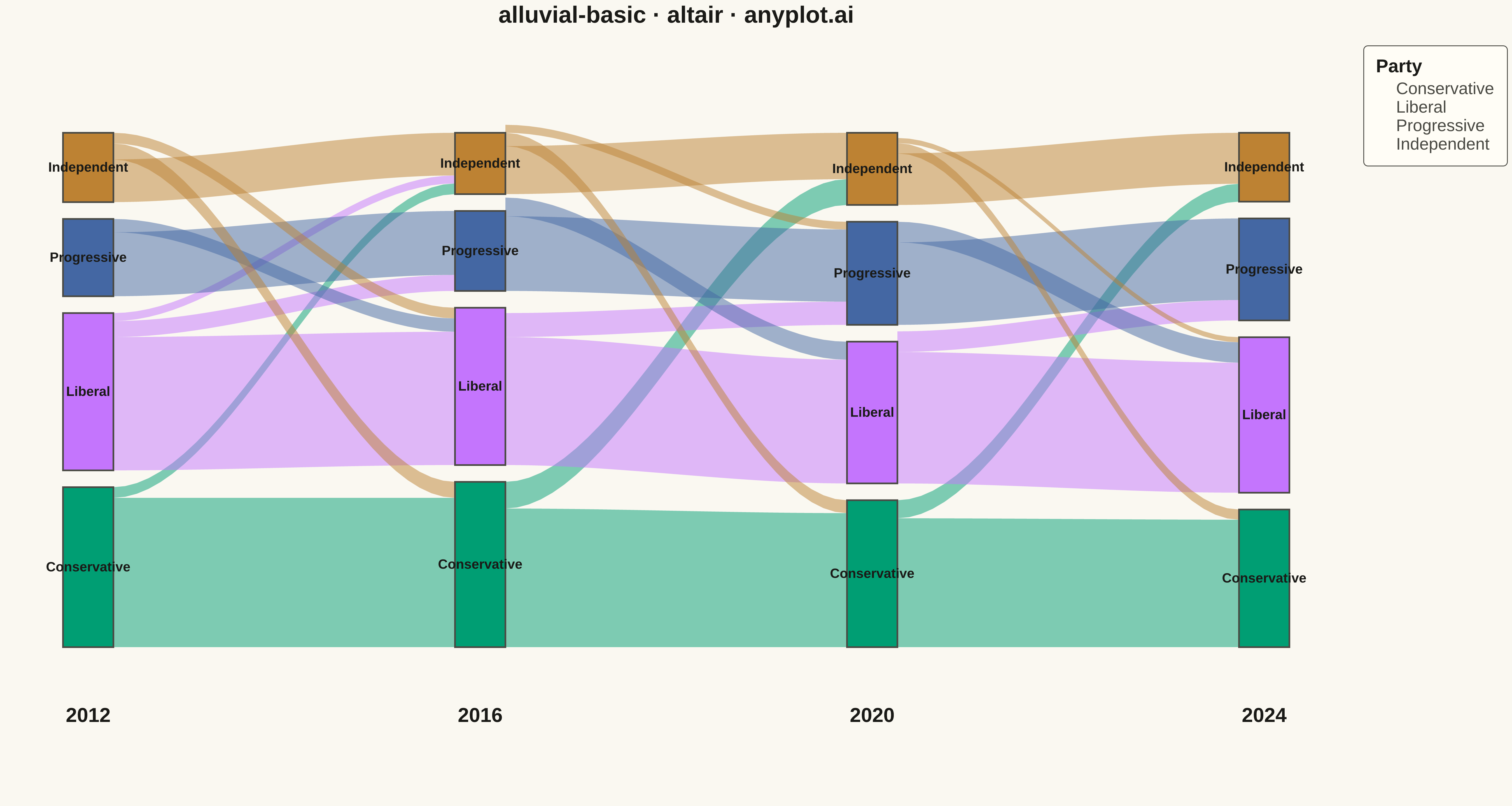

An alluvial diagram visualizes how entities flow or transition between discrete categories across multiple time points or ordered stages. Unlike general Sankey diagrams, alluvial diagrams enforce strict vertical ordering where each column represents a specific time step or category dimension. Bands connect related segments to show how proportions shift over time, making it ideal for tracking structural changes, migrations, and transitions in categorical data.
""" anyplot.ai
alluvial-basic: Basic Alluvial Diagram
Library: altair 6.1.0 | Python 3.13.13
Quality: 92/100 | Updated: 2026-05-09
"""
import os
import altair as alt
import pandas as pd
# Theme-adaptive colors
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Okabe-Ito palette (first series must be #009E73)
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]
# Data: Voter migration between political parties across 4 election cycles
# Time points: 2012, 2016, 2020, 2024
# Categories: Conservative, Liberal, Progressive, Independent
time_points = ["2012", "2016", "2020", "2024"]
categories = ["Conservative", "Liberal", "Progressive", "Independent"]
# Define flows between consecutive time points
# Format: (source_time_idx, source_cat_idx, target_cat_idx, value)
flows_data = [
# 2012 -> 2016 transitions
(0, 0, 0, 280), # Conservative stays Conservative
(0, 0, 3, 20), # Conservative to Independent
(0, 1, 1, 250), # Liberal stays Liberal
(0, 1, 2, 30), # Liberal to Progressive
(0, 1, 3, 15), # Liberal to Independent
(0, 2, 2, 120), # Progressive stays Progressive
(0, 2, 1, 25), # Progressive to Liberal
(0, 3, 3, 80), # Independent stays Independent
(0, 3, 0, 30), # Independent to Conservative
(0, 3, 1, 20), # Independent to Liberal
# 2016 -> 2020 transitions
(1, 0, 0, 260), # Conservative stays Conservative
(1, 0, 3, 50), # Conservative to Independent
(1, 1, 1, 240), # Liberal stays Liberal
(1, 1, 2, 45), # Liberal to Progressive
(1, 2, 2, 140), # Progressive stays Progressive
(1, 2, 1, 35), # Progressive to Liberal
(1, 3, 3, 90), # Independent stays Independent
(1, 3, 0, 25), # Independent to Conservative
(1, 3, 2, 15), # Independent to Progressive
# 2020 -> 2024 transitions
(2, 0, 0, 250), # Conservative stays Conservative
(2, 0, 3, 35), # Conservative to Independent
(2, 1, 1, 255), # Liberal stays Liberal
(2, 1, 2, 40), # Liberal to Progressive
(2, 2, 2, 160), # Progressive stays Progressive
(2, 2, 1, 40), # Progressive to Liberal
(2, 3, 3, 100), # Independent stays Independent
(2, 3, 0, 20), # Independent to Conservative
(2, 3, 1, 10), # Independent to Liberal
]
# Canvas dimensions: 1600x900 for 4800x2700 at scale_factor=3.0
width = 1600
height = 900
node_width = 60
node_padding = 20
# Colors for each category (using Okabe-Ito palette)
category_colors = {
"Conservative": IMPRINT[0], # #009E73 (brand green)
"Liberal": IMPRINT[1], # #C475FD (vermillion)
"Progressive": IMPRINT[2], # #4467A3 (blue)
"Independent": IMPRINT[3], # #BD8233 (reddish purple)
}
# Calculate totals at each time point for each category
totals = {}
for t in range(len(time_points)):
totals[t] = dict.fromkeys(categories, 0)
# Accumulate incoming flows for each node (except first column uses outgoing)
for src_t, src_cat_idx, tgt_cat_idx, val in flows_data:
tgt_t = src_t + 1
if src_t == 0:
totals[0][categories[src_cat_idx]] += val
totals[tgt_t][categories[tgt_cat_idx]] += val
# Margins for layout
top_margin = 130
bottom_margin = 50
left_margin = 100
right_margin = 100
available_height = height - top_margin - bottom_margin
available_width = width - left_margin - right_margin
# X positions for each time point (evenly spaced)
x_positions = []
for t in range(len(time_points)):
x_positions.append(left_margin + t * (available_width / (len(time_points) - 1)))
# Calculate node positions for each time point
node_positions = {}
for t in range(len(time_points)):
time_total = sum(totals[t].values())
if time_total == 0:
continue
# Calculate heights proportionally
total_height = available_height * 0.85
padding_total = node_padding * (len(categories) - 1)
usable_height = total_height - padding_total
current_y = top_margin + (available_height - total_height) / 2
node_positions[t] = {}
for cat in categories:
cat_total = totals[t][cat]
if cat_total > 0:
node_height = (cat_total / time_total) * usable_height
node_positions[t][cat] = {
"y": current_y,
"height": node_height,
"x": x_positions[t] - node_width / 2,
"total": cat_total,
}
current_y += node_height + node_padding
else:
node_positions[t][cat] = {"y": current_y, "height": 0, "x": x_positions[t], "total": 0}
# Create node rectangles data
nodes_data = []
for t in range(len(time_points)):
for cat in categories:
pos = node_positions[t][cat]
if pos["height"] > 0:
nodes_data.append(
{
"name": cat,
"time_point": time_points[t],
"x": pos["x"],
"y": pos["y"],
"x2": pos["x"] + node_width,
"y2": pos["y"] + pos["height"],
"color": category_colors[cat],
"total": pos["total"],
"label_x": pos["x"] + node_width / 2,
"label_y": pos["y"] + pos["height"] / 2,
}
)
nodes_df = pd.DataFrame(nodes_data)
# Track y offsets for stacking flows within nodes
source_offsets = {}
target_offsets = {}
for t in range(len(time_points)):
source_offsets[t] = {cat: node_positions[t][cat]["y"] for cat in categories}
target_offsets[t] = {cat: node_positions[t][cat]["y"] for cat in categories}
# Generate flow polygon data
all_flow_data = []
num_curve_points = 30
for flow_idx, (src_t, src_cat_idx, tgt_cat_idx, val) in enumerate(flows_data):
tgt_t = src_t + 1
src_cat = categories[src_cat_idx]
tgt_cat = categories[tgt_cat_idx]
src_pos = node_positions[src_t][src_cat]
tgt_pos = node_positions[tgt_t][tgt_cat]
if src_pos["height"] == 0 or tgt_pos["height"] == 0:
continue
# Calculate flow heights proportional to value
src_height = (val / totals[src_t][src_cat]) * src_pos["height"]
tgt_height = (val / totals[tgt_t][tgt_cat]) * tgt_pos["height"]
# Get current offset positions
src_y_top = source_offsets[src_t][src_cat]
src_y_bottom = src_y_top + src_height
tgt_y_top = target_offsets[tgt_t][tgt_cat]
tgt_y_bottom = tgt_y_top + tgt_height
# Update offsets for next flow
source_offsets[src_t][src_cat] += src_height
target_offsets[tgt_t][tgt_cat] += tgt_height
# X coordinates for flow start and end
x_start = x_positions[src_t] + node_width / 2
x_end = x_positions[tgt_t] - node_width / 2
# Generate top curve points using smoothstep
top_points = []
for i in range(num_curve_points):
t_param = i / (num_curve_points - 1)
x = x_start + t_param * (x_end - x_start)
bezier_t = t_param * t_param * (3 - 2 * t_param)
y = src_y_top + bezier_t * (tgt_y_top - src_y_top)
top_points.append((x, y))
# Generate bottom curve points (reverse order for closed polygon)
bottom_points = []
for i in range(num_curve_points - 1, -1, -1):
t_param = i / (num_curve_points - 1)
x = x_start + t_param * (x_end - x_start)
bezier_t = t_param * t_param * (3 - 2 * t_param)
y = src_y_bottom + bezier_t * (tgt_y_bottom - src_y_bottom)
bottom_points.append((x, y))
# Combine into closed polygon
all_points = top_points + bottom_points
flow_id = f"{time_points[src_t]}-{src_cat}-{tgt_cat}-{flow_idx}"
for pt_idx, (x, y) in enumerate(all_points):
all_flow_data.append(
{
"flow_id": flow_id,
"source_cat": src_cat,
"target_cat": tgt_cat,
"value": val,
"x": x,
"y": y,
"order": pt_idx,
}
)
flows_df = pd.DataFrame(all_flow_data)
# Create flow polygons layer
links_chart = (
alt.Chart(flows_df)
.mark_line(filled=True, opacity=0.5, strokeWidth=0)
.encode(
x=alt.X("x:Q", scale=alt.Scale(domain=[0, width]), axis=None),
y=alt.Y("y:Q", scale=alt.Scale(domain=[0, height]), axis=None),
color=alt.Color(
"source_cat:N",
scale=alt.Scale(domain=list(category_colors.keys()), range=list(category_colors.values())),
legend=alt.Legend(title="Party", titleFontSize=22, labelFontSize=20, orient="right"),
),
detail="flow_id:N",
order="order:Q",
)
)
# Create node rectangles layer
nodes_chart = (
alt.Chart(nodes_df)
.mark_rect(stroke=INK_SOFT, strokeWidth=2)
.encode(
x=alt.X("x:Q", scale=alt.Scale(domain=[0, width])),
y=alt.Y("y:Q", scale=alt.Scale(domain=[0, height])),
x2="x2:Q",
y2="y2:Q",
color=alt.Color("color:N", scale=None),
tooltip=[
alt.Tooltip("name:N", title="Party"),
alt.Tooltip("time_point:N", title="Year"),
alt.Tooltip("total:Q", title="Voters (thousands)"),
],
)
)
# Create node labels (full names, centered on nodes)
node_labels = (
alt.Chart(nodes_df)
.mark_text(fontSize=16, fontWeight="bold", color=INK, baseline="middle", align="center")
.encode(
x=alt.X("label_x:Q", scale=alt.Scale(domain=[0, width])),
y=alt.Y("label_y:Q", scale=alt.Scale(domain=[0, height])),
text="name:N",
)
)
# Create time point labels (column headers)
time_labels_data = []
for t, tp in enumerate(time_points):
time_labels_data.append({"x": x_positions[t], "y": top_margin - 40, "text": tp})
time_labels_df = pd.DataFrame(time_labels_data)
time_labels = (
alt.Chart(time_labels_df)
.mark_text(fontSize=24, fontWeight="bold", color=INK, baseline="bottom")
.encode(
x=alt.X("x:Q", scale=alt.Scale(domain=[0, width])),
y=alt.Y("y:Q", scale=alt.Scale(domain=[0, height])),
text="text:N",
)
)
# Combine all layers with interactivity
chart = (
alt.layer(links_chart, nodes_chart, node_labels, time_labels)
.properties(
width=width,
height=height,
background=PAGE_BG,
title=alt.Title(
text="alluvial-basic · altair · anyplot.ai", fontSize=28, anchor="middle", color=INK, offset=20
),
)
.configure_view(fill=PAGE_BG, stroke=INK_SOFT, strokeWidth=0)
.configure_legend(
padding=15, cornerRadius=5, fillColor=ELEVATED_BG, strokeColor=INK_SOFT, labelColor=INK_SOFT, titleColor=INK
)
.configure_axis(
domainColor=INK_SOFT, tickColor=INK_SOFT, gridColor=INK, gridOpacity=0.10, labelColor=INK_SOFT, titleColor=INK
)
.interactive()
)
# Save as PNG and HTML
chart.save(f"plot-{THEME}.png", scale_factor=3.0)
chart.save(f"plot-{THEME}.html")
Part of Basic Alluvial Diagram on anyplot.ai.
