An alluvial diagram visualizes how entities flow or transition between discrete categories across multiple time points or ordered stages. Unlike general Sankey diagrams, alluvial diagrams enforce strict vertical ordering where each column represents a specific time step or category dimension. Bands connect related segments to show how proportions shift over time, making it ideal for tracking structural changes, migrations, and transitions in categorical data.
""" anyplot.ai

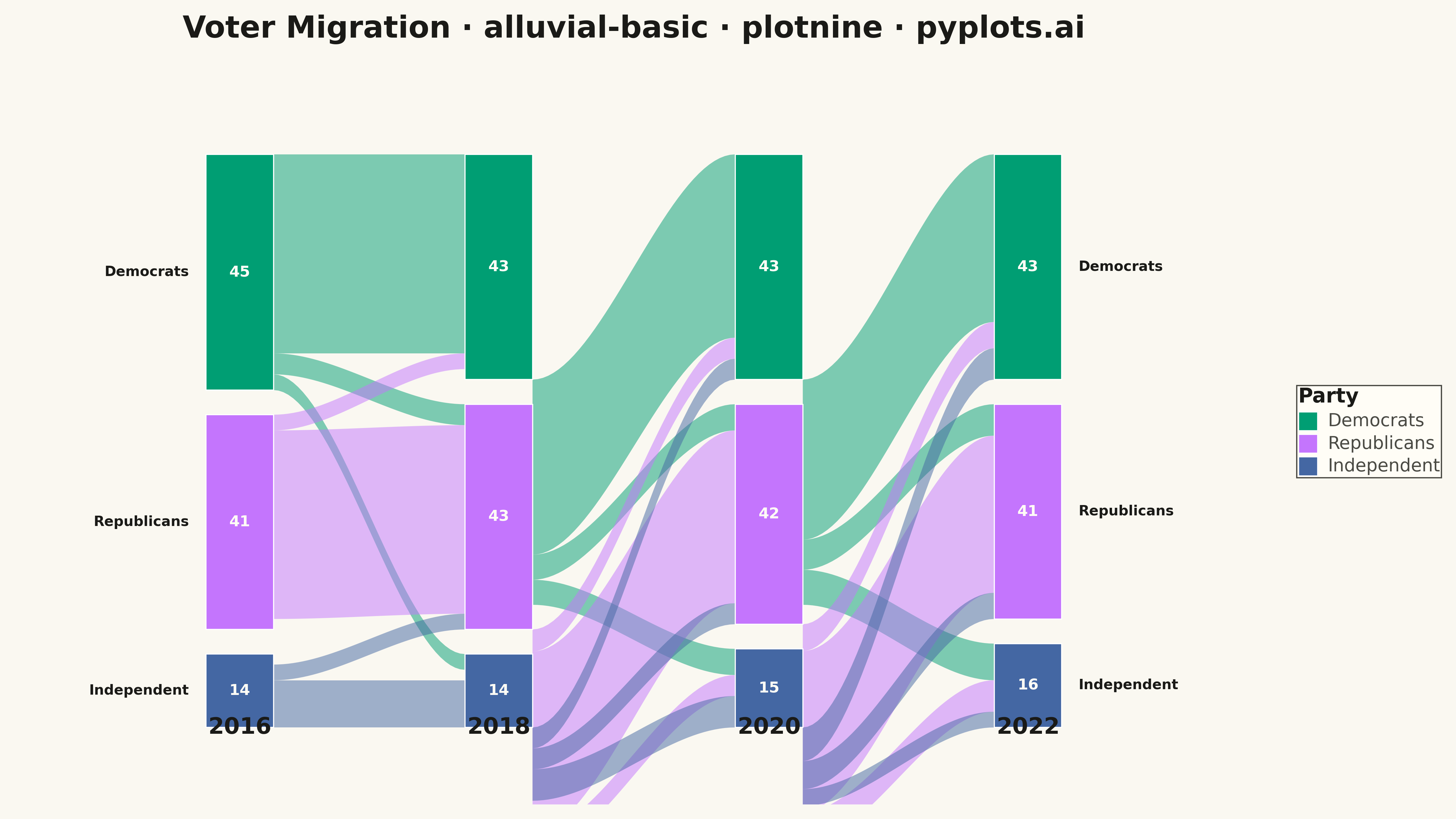

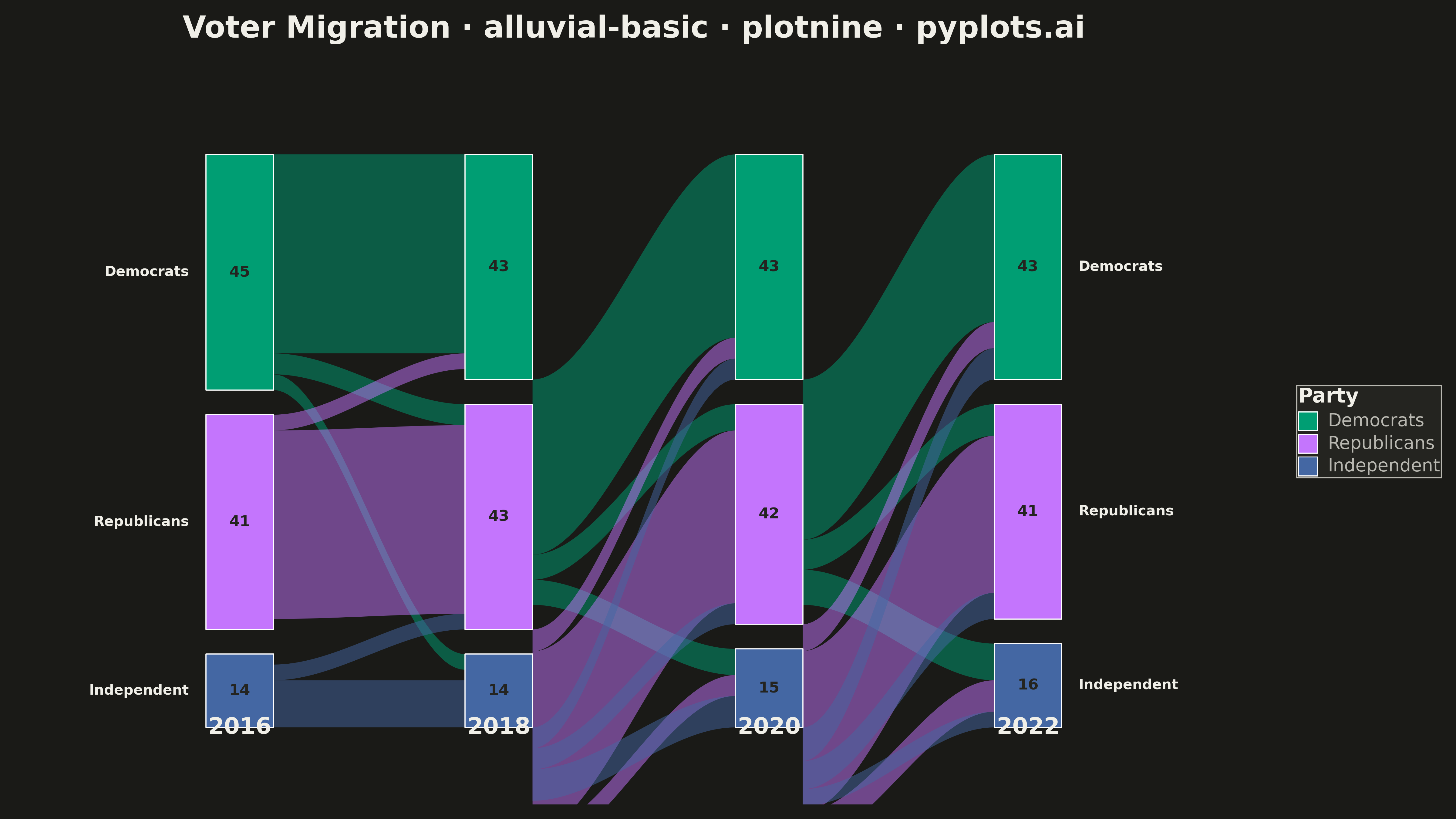

alluvial-basic: Basic Alluvial Diagram
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 74/100 | Updated: 2026-05-09
"""
import os
import sys
# Prevent current directory from shadowing the plotnine package
sys.path = [p for p in sys.path if p and not p.endswith("implementations") and not p.endswith("python")]
import numpy as np
import pandas as pd
from plotnine import (
aes,
annotate,
coord_cartesian,
element_blank,
element_rect,
element_text,
geom_polygon,
geom_rect,
geom_text,
ggplot,
labs,
scale_fill_manual,
theme,
theme_minimal,
)
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Okabe-Ito palette
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477"]
# Data - Voter migration between parties across 4 election cycles
transitions = pd.DataFrame(
{
"from_time": [0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 2],
"to_time": [1, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 3, 3, 3, 3],
"from_party": [
"Democrats",
"Democrats",
"Democrats",
"Republicans",
"Republicans",
"Republicans",
"Independent",
"Independent",
"Independent",
"Democrats",
"Democrats",
"Democrats",
"Republicans",
"Republicans",
"Republicans",
"Independent",
"Independent",
"Independent",
"Democrats",
"Democrats",
"Democrats",
"Republicans",
"Republicans",
"Republicans",
"Independent",
"Independent",
"Independent",
],
"to_party": [
"Democrats",
"Republicans",
"Independent",
"Democrats",
"Republicans",
"Independent",
"Democrats",
"Republicans",
"Independent",
"Democrats",
"Republicans",
"Independent",
"Democrats",
"Republicans",
"Independent",
"Democrats",
"Republicans",
"Independent",
"Democrats",
"Republicans",
"Independent",
"Democrats",
"Republicans",
"Independent",
"Democrats",
"Republicans",
"Independent",
],
"voters": [38, 4, 3, 3, 36, 2, 2, 3, 9, 35, 5, 5, 4, 33, 4, 4, 4, 6, 32, 6, 7, 5, 30, 6, 6, 5, 3],
}
)
# Party colors using Okabe-Ito palette
party_colors = {
"Democrats": IMPRINT[0], # #009E73 (bluish green)
"Republicans": IMPRINT[1], # #C475FD (vermillion)
"Independent": IMPRINT[2], # #4467A3 (blue)
}
parties = ["Democrats", "Republicans", "Independent"]
time_points = [0, 1, 2, 3]
time_labels = ["2016", "2018", "2020", "2022"]
# Layout parameters
x_positions = {0: 0.15, 1: 0.38, 2: 0.62, 3: 0.85}
node_width = 0.06
node_gap = 0.04
total_height = 0.85
y_start = 0.95
# Calculate node sizes at each time point
node_positions = {}
for t in time_points:
if t == 0:
totals = transitions[transitions["from_time"] == t].groupby("from_party")["voters"].sum()
else:
totals = transitions[transitions["to_time"] == t].groupby("to_party")["voters"].sum()
total_voters = totals.sum()
current_y = y_start
for party in parties:
count = totals.get(party, 0)
height = (count / total_voters) * total_height
node_positions[(t, party)] = {
"x": x_positions[t],
"y_top": current_y,
"y_bottom": current_y - height,
"height": height,
"count": count,
"flow_offset": 0,
}
current_y = current_y - height - node_gap
# Build node rectangles
node_data = []
for (t, party), pos in node_positions.items():
node_data.append(
{
"time": t,
"party": party,
"xmin": pos["x"] - node_width / 2,
"xmax": pos["x"] + node_width / 2,
"ymin": pos["y_bottom"],
"ymax": pos["y_top"],
"label_y": (pos["y_top"] + pos["y_bottom"]) / 2,
"count": pos["count"],
}
)
nodes_df = pd.DataFrame(node_data)
# Build flow polygons between adjacent time points
flow_polygons = []
min_voters_for_flow = 3
for _, row in transitions.iterrows():
from_t = row["from_time"]
to_t = row["to_time"]
from_party = row["from_party"]
to_party = row["to_party"]
voters = row["voters"]
if voters < min_voters_for_flow:
src_pos = node_positions[(from_t, from_party)]
tgt_pos = node_positions[(to_t, to_party)]
total_src = sum(
transitions[(transitions["from_time"] == from_t) & (transitions["from_party"] == from_party)]["voters"]
)
flow_height_src = (voters / total_src) * src_pos["height"] if total_src > 0 else 0
total_tgt = sum(transitions[(transitions["to_time"] == to_t) & (transitions["to_party"] == to_party)]["voters"])
flow_height_tgt = (voters / total_tgt) * tgt_pos["height"] if total_tgt > 0 else 0
src_pos["flow_offset"] += flow_height_src
tgt_pos["flow_offset"] += flow_height_tgt
continue
src_pos = node_positions[(from_t, from_party)]
tgt_pos = node_positions[(to_t, to_party)]
total_src = sum(
transitions[(transitions["from_time"] == from_t) & (transitions["from_party"] == from_party)]["voters"]
)
flow_height_src = (voters / total_src) * src_pos["height"] if total_src > 0 else 0
total_tgt = sum(transitions[(transitions["to_time"] == to_t) & (transitions["to_party"] == to_party)]["voters"])
flow_height_tgt = (voters / total_tgt) * tgt_pos["height"] if total_tgt > 0 else 0
src_y_top = src_pos["y_top"] - src_pos["flow_offset"]
src_y_bottom = src_y_top - flow_height_src
src_pos["flow_offset"] += flow_height_src
tgt_y_top = tgt_pos["y_top"] - tgt_pos["flow_offset"]
tgt_y_bottom = tgt_y_top - flow_height_tgt
tgt_pos["flow_offset"] += flow_height_tgt
flow_x_left = x_positions[from_t] + node_width / 2
flow_x_right = x_positions[to_t] - node_width / 2
n_points = 40
t_param = np.linspace(0, 1, n_points)
x_top = flow_x_left + (flow_x_right - flow_x_left) * t_param
y_top = src_y_top + (tgt_y_top - src_y_top) * (3 * t_param**2 - 2 * t_param**3)
x_bottom = flow_x_right + (flow_x_left - flow_x_right) * t_param
y_bottom = tgt_y_bottom + (src_y_bottom - tgt_y_bottom) * (3 * t_param**2 - 2 * t_param**3)
x_polygon = np.concatenate([x_top, x_bottom])
y_polygon = np.concatenate([y_top, y_bottom])
flow_id = f"{from_t}_{to_t}_{from_party}_{to_party}"
for i in range(len(x_polygon)):
flow_polygons.append({"x": x_polygon[i], "y": y_polygon[i], "flow_id": flow_id, "from_party": from_party})
flows_df = pd.DataFrame(flow_polygons)
# Create the plot
plot = (
ggplot()
+ geom_polygon(flows_df, aes(x="x", y="y", group="flow_id", fill="from_party"), alpha=0.5)
+ geom_rect(
nodes_df, aes(xmin="xmin", xmax="xmax", ymin="ymin", ymax="ymax", fill="party"), color="white", size=0.5
)
+ geom_text(
nodes_df[nodes_df["count"] >= 10],
aes(x=(nodes_df["xmin"] + nodes_df["xmax"]) / 2, y="label_y", label="count"),
ha="center",
va="center",
size=12,
color=ELEVATED_BG,
fontweight="bold",
)
+ scale_fill_manual(
values=party_colors, name="Party", breaks=parties, labels=["Democrats", "Republicans", "Independent"]
)
+ labs(title="Voter Migration · alluvial-basic · plotnine · pyplots.ai", x="", y="")
+ coord_cartesian(xlim=(0, 1), ylim=(-0.05, 1.05))
+ theme_minimal()
+ theme(
figure_size=(16, 9),
plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
panel_grid=element_blank(),
plot_title=element_text(size=24, ha="center", weight="bold", color=INK),
axis_text=element_blank(),
axis_ticks=element_blank(),
axis_title=element_blank(),
legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
legend_title=element_text(size=16, weight="bold", color=INK),
legend_text=element_text(size=14, color=INK_SOFT),
legend_position="right",
)
)
# Add time point labels at bottom
for t, label in zip(time_points, time_labels, strict=True):
plot = plot + annotate(
"text", x=x_positions[t], y=0.02, label=label, size=18, color=INK, fontweight="bold", ha="center"
)
# Add party name labels on the left side of first column nodes
for party in parties:
pos = node_positions[(0, party)]
label_y = (pos["y_top"] + pos["y_bottom"]) / 2
plot = plot + annotate(
"text",
x=x_positions[0] - node_width / 2 - 0.015,
y=label_y,
label=party,
size=11,
color=INK,
fontweight="bold",
ha="right",
va="center",
)
# Add party name labels on the right side of last column nodes
for party in parties:
pos = node_positions[(3, party)]
label_y = (pos["y_top"] + pos["y_bottom"]) / 2
plot = plot + annotate(
"text",
x=x_positions[3] + node_width / 2 + 0.015,
y=label_y,
label=party,
size=11,
color=INK,
fontweight="bold",
ha="left",
va="center",
)
plot.save(f"plot-{THEME}.png", dpi=300, verbose=False)
Part of Basic Alluvial Diagram on anyplot.ai.
