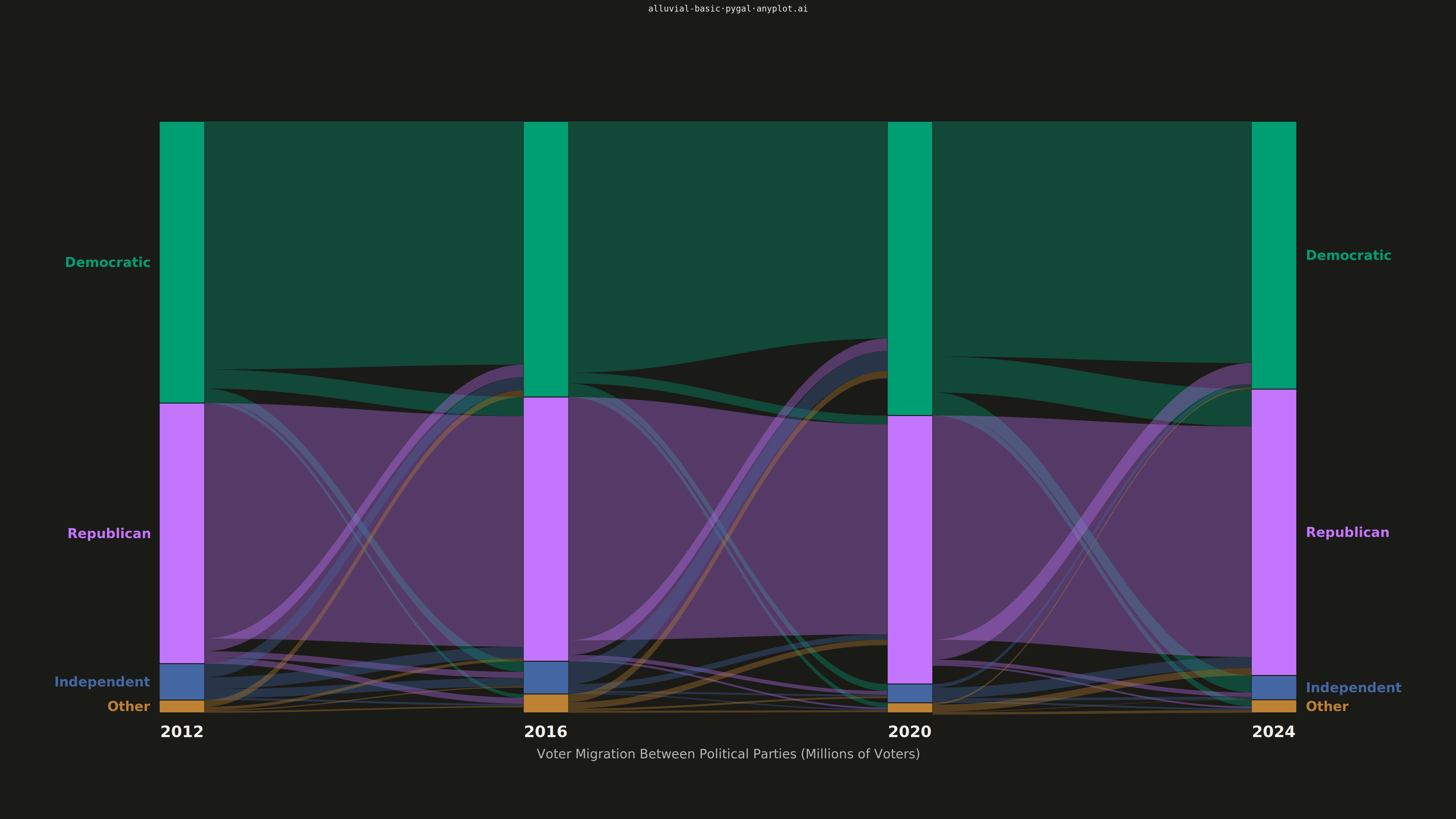

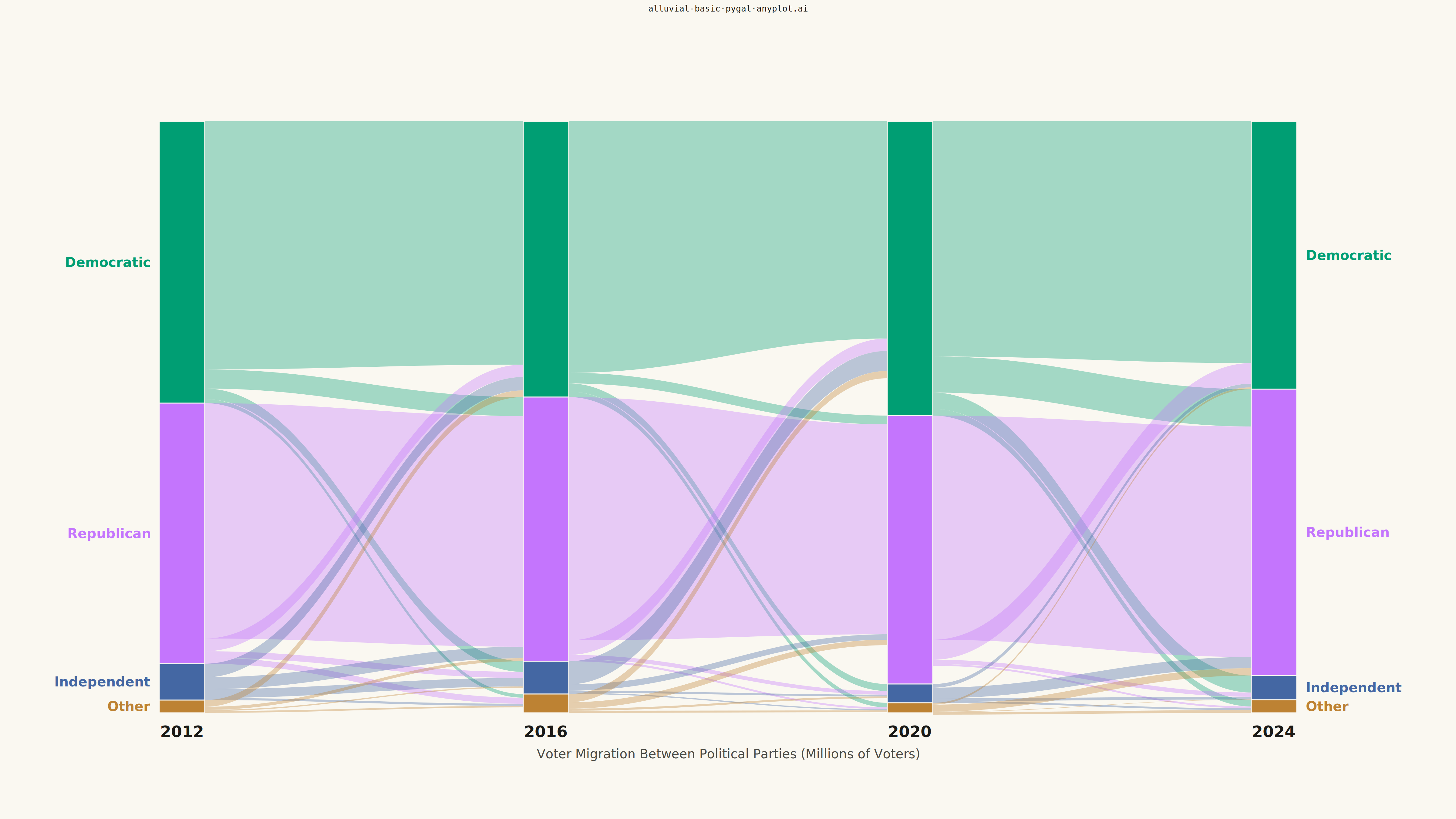

An alluvial diagram visualizes how entities flow or transition between discrete categories across multiple time points or ordered stages. Unlike general Sankey diagrams, alluvial diagrams enforce strict vertical ordering where each column represents a specific time step or category dimension. Bands connect related segments to show how proportions shift over time, making it ideal for tracking structural changes, migrations, and transitions in categorical data.
""" anyplot.ai
alluvial-basic: Basic Alluvial Diagram
Library: pygal 3.1.0 | Python 3.13.13
Quality: 83/100 | Updated: 2026-05-09
"""
import os
import cairosvg
import numpy as np
import pygal
from pygal.style import Style
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
IMPRINT = ("#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477")
np.random.seed(42)
# Data: Voter migration between political parties across 4 election cycles
years = ["2012", "2016", "2020", "2024"]
parties = ["Democratic", "Republican", "Independent", "Other"]
# Map parties to Okabe-Ito colors
party_colors = {
"Democratic": IMPRINT[0], # #009E73 (brand green)
"Republican": IMPRINT[1], # #C475FD (vermillion)
"Independent": IMPRINT[2], # #4467A3 (blue)
"Other": IMPRINT[3], # #BD8233 (reddish purple)
}
# Voter counts (millions) at each time point
voter_counts = np.array(
[
[65.9, 65.8, 81.3, 72.0], # Democratic
[60.9, 63.0, 74.2, 77.0], # Republican
[8.5, 7.8, 5.2, 6.5], # Independent
[3.0, 4.5, 2.8, 3.5], # Other
]
)
# Flow matrix between consecutive years (transitions between parties)
flows = [
# 2012 -> 2016
{
("Democratic", "Democratic"): 58.0,
("Democratic", "Republican"): 4.5,
("Democratic", "Independent"): 2.5,
("Democratic", "Other"): 0.9,
("Republican", "Republican"): 55.0,
("Republican", "Democratic"): 3.0,
("Republican", "Independent"): 1.5,
("Republican", "Other"): 1.4,
("Independent", "Democratic"): 3.2,
("Independent", "Republican"): 2.8,
("Independent", "Independent"): 2.0,
("Independent", "Other"): 0.5,
("Other", "Democratic"): 1.6,
("Other", "Republican"): 0.7,
("Other", "Independent"): 0.3,
("Other", "Other"): 0.4,
},
# 2016 -> 2020
{
("Democratic", "Democratic"): 60.0,
("Democratic", "Republican"): 2.5,
("Democratic", "Independent"): 2.0,
("Democratic", "Other"): 1.3,
("Republican", "Republican"): 58.0,
("Republican", "Democratic"): 3.5,
("Republican", "Independent"): 1.0,
("Republican", "Other"): 0.5,
("Independent", "Democratic"): 5.5,
("Independent", "Republican"): 1.5,
("Independent", "Independent"): 0.5,
("Independent", "Other"): 0.3,
("Other", "Democratic"): 2.0,
("Other", "Republican"): 1.5,
("Other", "Independent"): 0.5,
("Other", "Other"): 0.5,
},
# 2020 -> 2024
{
("Democratic", "Democratic"): 65.0,
("Democratic", "Republican"): 10.0,
("Democratic", "Independent"): 4.5,
("Democratic", "Other"): 1.8,
("Republican", "Republican"): 62.0,
("Republican", "Democratic"): 5.5,
("Republican", "Independent"): 1.2,
("Republican", "Other"): 0.5,
("Independent", "Democratic"): 1.0,
("Independent", "Republican"): 3.0,
("Independent", "Independent"): 0.7,
("Independent", "Other"): 0.5,
("Other", "Democratic"): 0.5,
("Other", "Republican"): 2.0,
("Other", "Independent"): 0.1,
("Other", "Other"): 0.7,
},
]
# Custom style for text elements
custom_style = Style(
background=PAGE_BG,
plot_background=PAGE_BG,
foreground=INK,
foreground_strong=INK,
foreground_subtle=INK_MUTED,
title_font_size=28,
label_font_size=22,
major_label_font_size=18,
legend_font_size=16,
)
# Create minimal chart just for title rendering
chart = pygal.XY(
width=4800,
height=2700,
style=custom_style,
title="alluvial-basic·pygal·anyplot.ai",
show_legend=False,
show_x_guides=False,
show_y_guides=False,
show_x_labels=False,
show_y_labels=False,
dots_size=0,
stroke=False,
range=(0, 100),
xrange=(0, 100),
)
# Add empty data to avoid "No data" message
chart.add("", [(50, 50)])
# Render base SVG
base_svg = chart.render().decode("utf-8")
# SVG coordinate mapping
margin_left = 600
margin_right = 600
margin_top = 400
margin_bottom = 350
chart_width = 4800 - margin_left - margin_right
chart_height = 2700 - margin_top - margin_bottom
# Calculate positions for each time point
n_years = len(years)
x_positions = [margin_left + i * chart_width / (n_years - 1) for i in range(n_years)]
bar_width = 150
total_height = chart_height
# Track node positions
node_positions = {}
# Build SVG elements for nodes and flows
alluvial_svg = '<g id="alluvial-diagram">'
# Calculate node positions and draw bars
for year_idx, year in enumerate(years):
x = x_positions[year_idx]
year_total = voter_counts[:, year_idx].sum()
y_top = margin_top
for party_idx, party in enumerate(parties):
height = (voter_counts[party_idx, year_idx] / year_total) * total_height
y_bottom = y_top + height
# Store position for flow drawing
node_positions[(year_idx, party)] = (y_top, y_bottom)
# Draw rectangle for this party at this year
alluvial_svg += f'''
<rect x="{x - bar_width / 2:.0f}" y="{y_top:.0f}" width="{bar_width:.0f}" height="{height:.0f}"
fill="{party_colors[party]}" stroke="{PAGE_BG}" stroke-width="3"/>'''
y_top = y_bottom
# Add year label at bottom
alluvial_svg += f'''
<text x="{x:.0f}" y="{margin_top + total_height + 80:.0f}" text-anchor="middle"
font-size="52" font-weight="bold" font-family="sans-serif"
fill="{INK}">{year}</text>'''
# Add party labels on left side
for party in parties:
y_top, y_bottom = node_positions[(0, party)]
y_center = (y_top + y_bottom) / 2
alluvial_svg += f'''
<text x="{x_positions[0] - bar_width / 2 - 30:.0f}" y="{y_center:.0f}" text-anchor="end"
font-size="44" font-weight="bold" font-family="sans-serif"
fill="{party_colors[party]}" dominant-baseline="middle">{party}</text>'''
# Add party labels on right side
for party in parties:
y_top, y_bottom = node_positions[(n_years - 1, party)]
y_center = (y_top + y_bottom) / 2
alluvial_svg += f'''
<text x="{x_positions[-1] + bar_width / 2 + 30:.0f}" y="{y_center:.0f}" text-anchor="start"
font-size="44" font-weight="bold" font-family="sans-serif"
fill="{party_colors[party]}" dominant-baseline="middle">{party}</text>'''
# Draw flows between consecutive time points
for flow_idx, flow_dict in enumerate(flows):
x0 = x_positions[flow_idx]
x1 = x_positions[flow_idx + 1]
# Calculate totals for normalization
year0_total = voter_counts[:, flow_idx].sum()
year1_total = voter_counts[:, flow_idx + 1].sum()
# Track cumulative offsets for each source and target
source_offsets = {party: node_positions[(flow_idx, party)][0] for party in parties}
target_offsets = {party: node_positions[(flow_idx + 1, party)][0] for party in parties}
# Draw each flow
for (source_party, target_party), flow_value in flow_dict.items():
if flow_value <= 0:
continue
# Calculate normalized heights
source_height = (flow_value / year0_total) * total_height
target_height = (flow_value / year1_total) * total_height
# Get current positions
y0_top = source_offsets[source_party]
y0_bottom = y0_top + source_height
y1_top = target_offsets[target_party]
y1_bottom = y1_top + target_height
# Bezier curve control points
band_x0 = x0 + bar_width / 2
band_x1 = x1 - bar_width / 2
cx0 = band_x0 + 0.4 * (band_x1 - band_x0)
cx1 = band_x0 + 0.6 * (band_x1 - band_x0)
# Create path for the curved band
path_d = (
f"M {band_x0:.0f},{y0_top:.0f} "
f"C {cx0:.0f},{y0_top:.0f} {cx1:.0f},{y1_top:.0f} {band_x1:.0f},{y1_top:.0f} "
f"L {band_x1:.0f},{y1_bottom:.0f} "
f"C {cx1:.0f},{y1_bottom:.0f} {cx0:.0f},{y0_bottom:.0f} {band_x0:.0f},{y0_bottom:.0f} "
f"Z"
)
alluvial_svg += f'''
<path d="{path_d}" fill="{party_colors[source_party]}" fill-opacity="0.35" stroke="none"/>'''
# Update offsets
source_offsets[source_party] = y0_bottom
target_offsets[target_party] = y1_bottom
# Add subtitle explaining the visualization
subtitle_y = margin_top + total_height + 150
alluvial_svg += f'''
<text x="2400" y="{subtitle_y:.0f}" text-anchor="middle"
font-size="42" font-style="italic" font-family="sans-serif"
fill="{INK_SOFT}">Voter Migration Between Political Parties (Millions of Voters)</text>'''
alluvial_svg += "\n</g>"
# Insert alluvial elements before closing </svg> tag
svg_with_alluvial = base_svg.replace("</svg>", f"{alluvial_svg}\n</svg>")
# Save outputs
cairosvg.svg2png(bytestring=svg_with_alluvial.encode("utf-8"), write_to=f"plot-{THEME}.png")
with open(f"plot-{THEME}.html", "w") as f:
f.write(
"""<!DOCTYPE html>
<html>
<head>
<title>alluvial-basic·pygal·anyplot.ai</title>
<style>
body { margin: 0; padding: 20px; background: """
+ ("#f5f5f5" if THEME == "light" else "#2a2a2a")
+ """; font-family: sans-serif; }
.container { max-width: 100%; margin: 0 auto; }
object { width: 100%; height: auto; }
</style>
</head>
<body>
<div class="container">
<object type="image/svg+xml" data="plot-"""
+ THEME
+ """.svg">
Alluvial diagram not supported
</object>
</div>
</body>
</html>"""
)
Part of Basic Alluvial Diagram on anyplot.ai.
