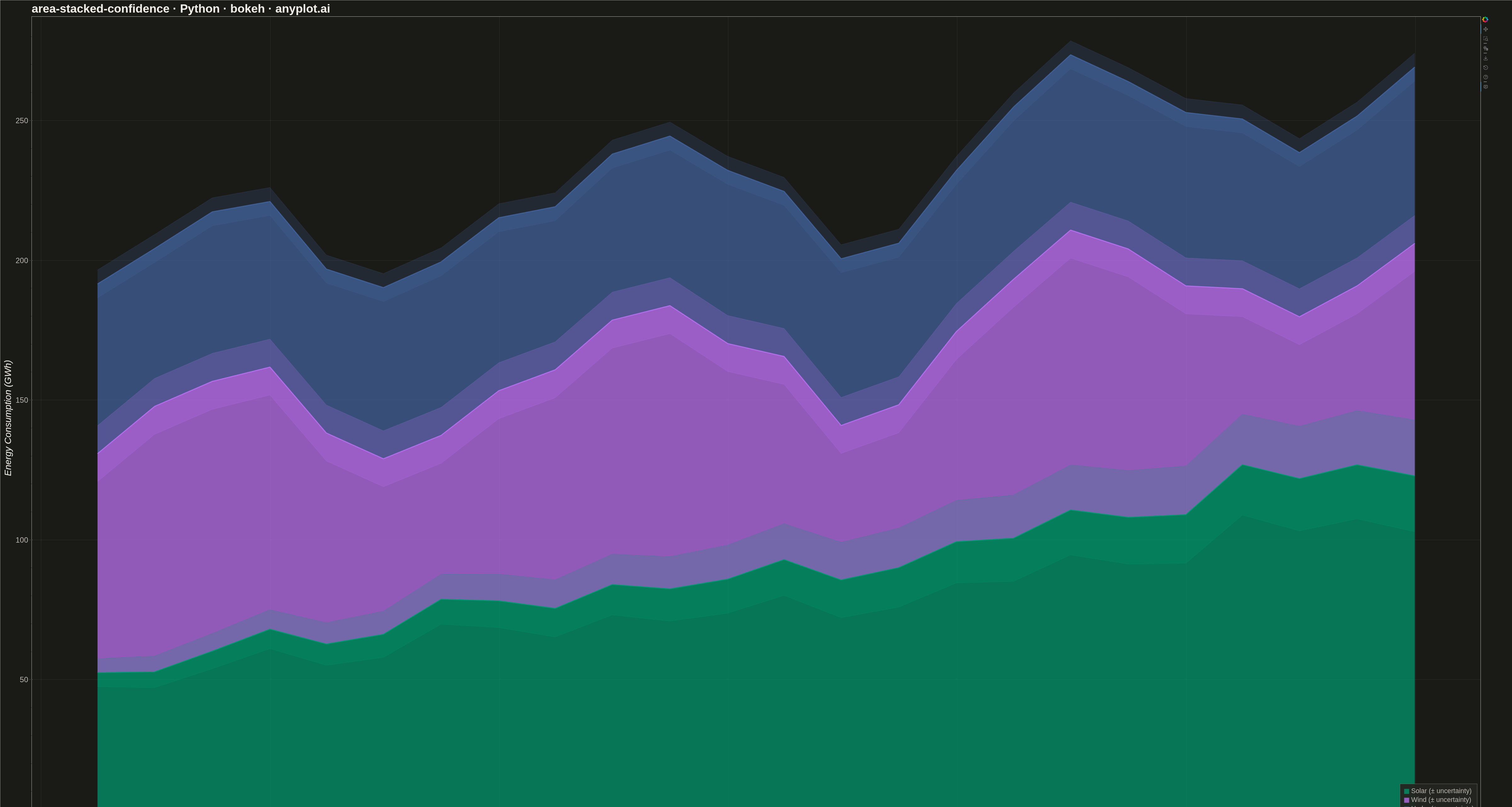

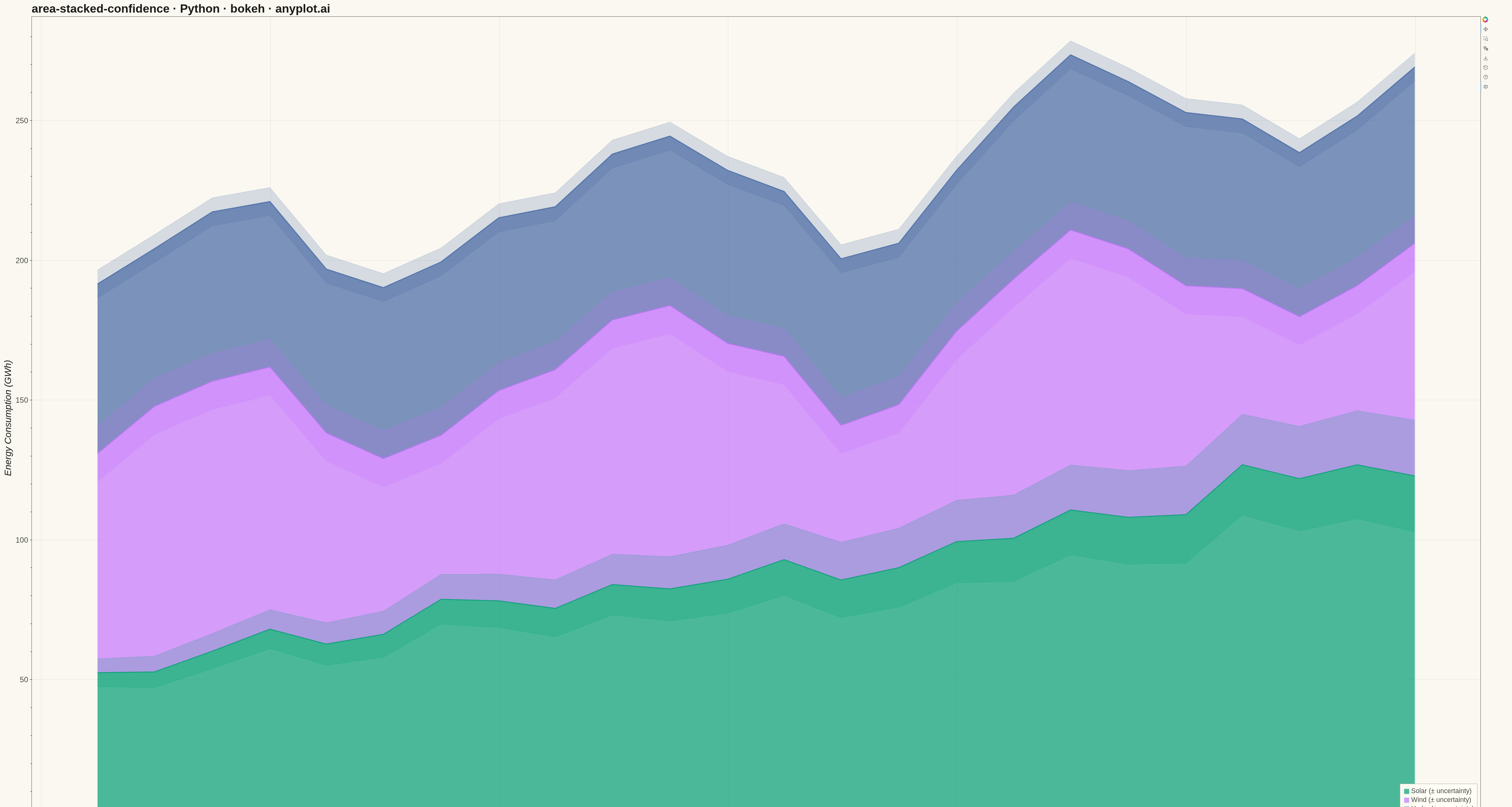

A stacked area chart that displays multiple data series as cumulative areas, with each series surrounded by uncertainty or confidence bands. This visualization combines the composition insight of stacked areas with the statistical rigor of confidence intervals, making it ideal for showing how parts contribute to a whole while simultaneously communicating uncertainty in each component. The bands reveal where estimates are precise versus uncertain across the stacked series.
""" anyplot.ai
area-stacked-confidence: Stacked Area Chart with Confidence Bands
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-18
"""
import os
import time
from pathlib import Path
import numpy as np
import pandas as pd
from bokeh.io import output_file, save
from bokeh.models import Band, ColumnDataSource, HoverTool, Legend
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Okabe-Ito palette - first series is always #009E73
IMPRINT = ["#009E73", "#C475FD", "#4467A3"]
# Data - Quarterly energy consumption by source with uncertainty
np.random.seed(42)
quarters = pd.date_range("2020-01-01", periods=24, freq="QE")
n = len(quarters)
# Generate energy consumption data (GWh) with uncertainty
# Solar - growing trend with increasing uncertainty
solar_base = 50 + np.linspace(0, 80, n) + np.random.normal(0, 5, n)
solar_lower = solar_base - (5 + np.linspace(0, 15, n))
solar_upper = solar_base + (5 + np.linspace(0, 15, n))
# Wind - seasonal variation with moderate uncertainty
wind_base = 80 + 20 * np.sin(np.linspace(0, 6 * np.pi, n)) + np.random.normal(0, 3, n)
wind_lower = wind_base - 10
wind_upper = wind_base + 10
# Hydro - stable with low uncertainty
hydro_base = 60 + np.random.normal(0, 2, n)
hydro_lower = hydro_base - 5
hydro_upper = hydro_base + 5
# Stack the values for cumulative display
# First series (Solar) starts at 0
stack1_base = solar_base
stack1_lower = solar_lower
stack1_upper = solar_upper
# Second series (Wind) stacks on top of Solar
stack2_base = stack1_base + wind_base
stack2_lower = stack1_base + wind_lower
stack2_upper = stack1_base + wind_upper
# Third series (Hydro) stacks on top of Wind
stack3_base = stack2_base + hydro_base
stack3_lower = stack2_base + hydro_lower
stack3_upper = stack2_base + hydro_upper
# Create figure with larger dimensions
p = figure(
width=4800,
height=2700,
title="area-stacked-confidence · Python · bokeh · anyplot.ai",
x_axis_label="Quarter",
y_axis_label="Energy Consumption (GWh)",
x_axis_type="datetime",
)
# Create data sources for each stacked area with bands
source_solar = ColumnDataSource(
data={"x": quarters, "y": stack1_base, "y_lower": stack1_lower, "y_upper": stack1_upper, "base": np.zeros(n)}
)
source_wind = ColumnDataSource(
data={"x": quarters, "y": stack2_base, "y_lower": stack2_lower, "y_upper": stack2_upper, "base": stack1_base}
)
source_hydro = ColumnDataSource(
data={"x": quarters, "y": stack3_base, "y_lower": stack3_lower, "y_upper": stack3_upper, "base": stack2_base}
)
# Plot confidence bands (back to front for proper layering)
solar_band = Band(
base="x",
lower="y_lower",
upper="y_upper",
source=source_solar,
fill_alpha=0.2,
fill_color=IMPRINT[0],
line_color=IMPRINT[0],
line_alpha=0.3,
)
p.add_layout(solar_band)
wind_band = Band(
base="x",
lower="y_lower",
upper="y_upper",
source=source_wind,
fill_alpha=0.2,
fill_color=IMPRINT[1],
line_color=IMPRINT[1],
line_alpha=0.3,
)
p.add_layout(wind_band)
hydro_band = Band(
base="x",
lower="y_lower",
upper="y_upper",
source=source_hydro,
fill_alpha=0.2,
fill_color=IMPRINT[2],
line_color=IMPRINT[2],
line_alpha=0.3,
)
p.add_layout(hydro_band)
# Plot stacked areas using varea
r_solar = p.varea(x="x", y1="base", y2="y", source=source_solar, fill_color=IMPRINT[0], fill_alpha=0.7)
r_wind = p.varea(x="x", y1="base", y2="y", source=source_wind, fill_color=IMPRINT[1], fill_alpha=0.7)
r_hydro = p.varea(x="x", y1="base", y2="y", source=source_hydro, fill_color=IMPRINT[2], fill_alpha=0.7)
# Add center lines for each series for better visibility
p.line(x="x", y="y", source=source_solar, line_color=IMPRINT[0], line_width=3, line_alpha=0.8)
p.line(x="x", y="y", source=source_wind, line_color=IMPRINT[1], line_width=3, line_alpha=0.8)
p.line(x="x", y="y", source=source_hydro, line_color=IMPRINT[2], line_width=3, line_alpha=0.8)
# Create legend outside plot area (bottom right)
legend = Legend(
items=[
("Solar (± uncertainty)", [r_solar]),
("Wind (± uncertainty)", [r_wind]),
("Hydro (± uncertainty)", [r_hydro]),
],
location="bottom_right",
)
legend.click_policy = "hide"
p.add_layout(legend)
# Add hover tool for interactivity
hover = HoverTool(tooltips=[("Date", "@x{%F}"), ("Value", "@y{0,0.0}")], formatters={"@x": "datetime"})
p.add_tools(hover)
# Theme-adaptive styling
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = INK_SOFT
p.title.text_color = INK
p.title.text_font_size = "28pt"
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_color = INK
p.xaxis.axis_label_text_font_size = "22pt"
p.yaxis.axis_label_text_font_size = "22pt"
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_color = INK_SOFT
p.xaxis.major_label_text_font_size = "18pt"
p.yaxis.major_label_text_font_size = "18pt"
p.xaxis.axis_line_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
p.xaxis.major_tick_line_color = INK_SOFT
p.yaxis.major_tick_line_color = INK_SOFT
p.xgrid.grid_line_color = INK
p.ygrid.grid_line_color = INK
p.xgrid.grid_line_alpha = 0.10
p.ygrid.grid_line_alpha = 0.10
p.legend.background_fill_color = ELEVATED_BG
p.legend.border_line_color = INK_SOFT
p.legend.label_text_color = INK_SOFT
p.legend.label_text_font_size = "16pt"
# Set y-axis to start at 0
p.y_range.start = 0
# Add padding
p.min_border_left = 100
p.min_border_right = 100
p.min_border_top = 50
p.min_border_bottom = 100
# Save output
output_file(f"plot-{THEME}.html")
save(p)
# Screenshot with headless Chrome
W, H = 4800, 2700
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
Part of Stacked Area Chart with Confidence Bands on anyplot.ai.
