Stacked Area Chart with Confidence Bands — plotnine

A stacked area chart that displays multiple data series as cumulative areas, with each series surrounded by uncertainty or confidence bands. This visualization combines the composition insight of stacked areas with the statistical rigor of confidence intervals, making it ideal for showing how parts contribute to a whole while simultaneously communicating uncertainty in each component. The bands reveal where estimates are precise versus uncertain across the stacked series.

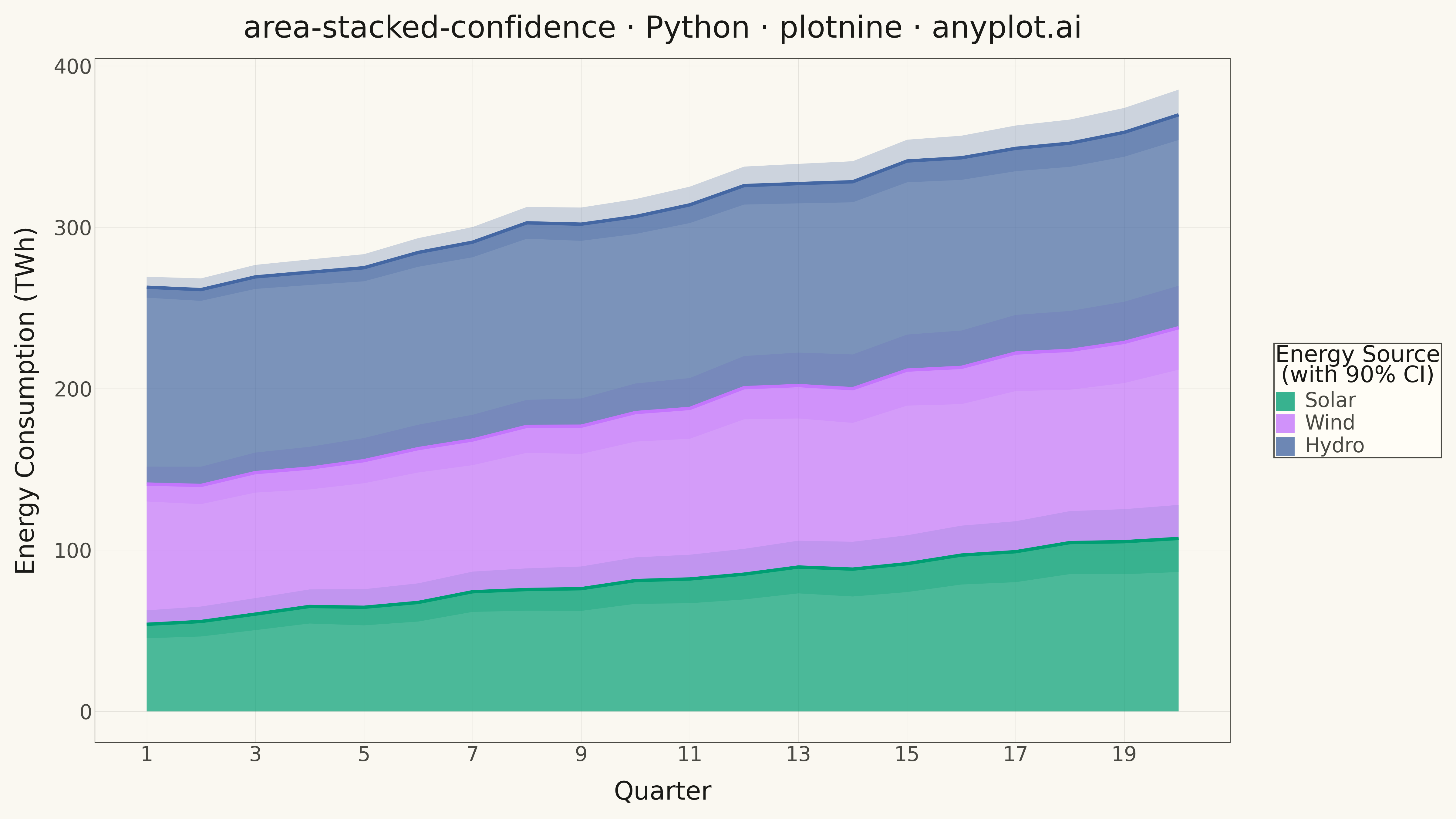

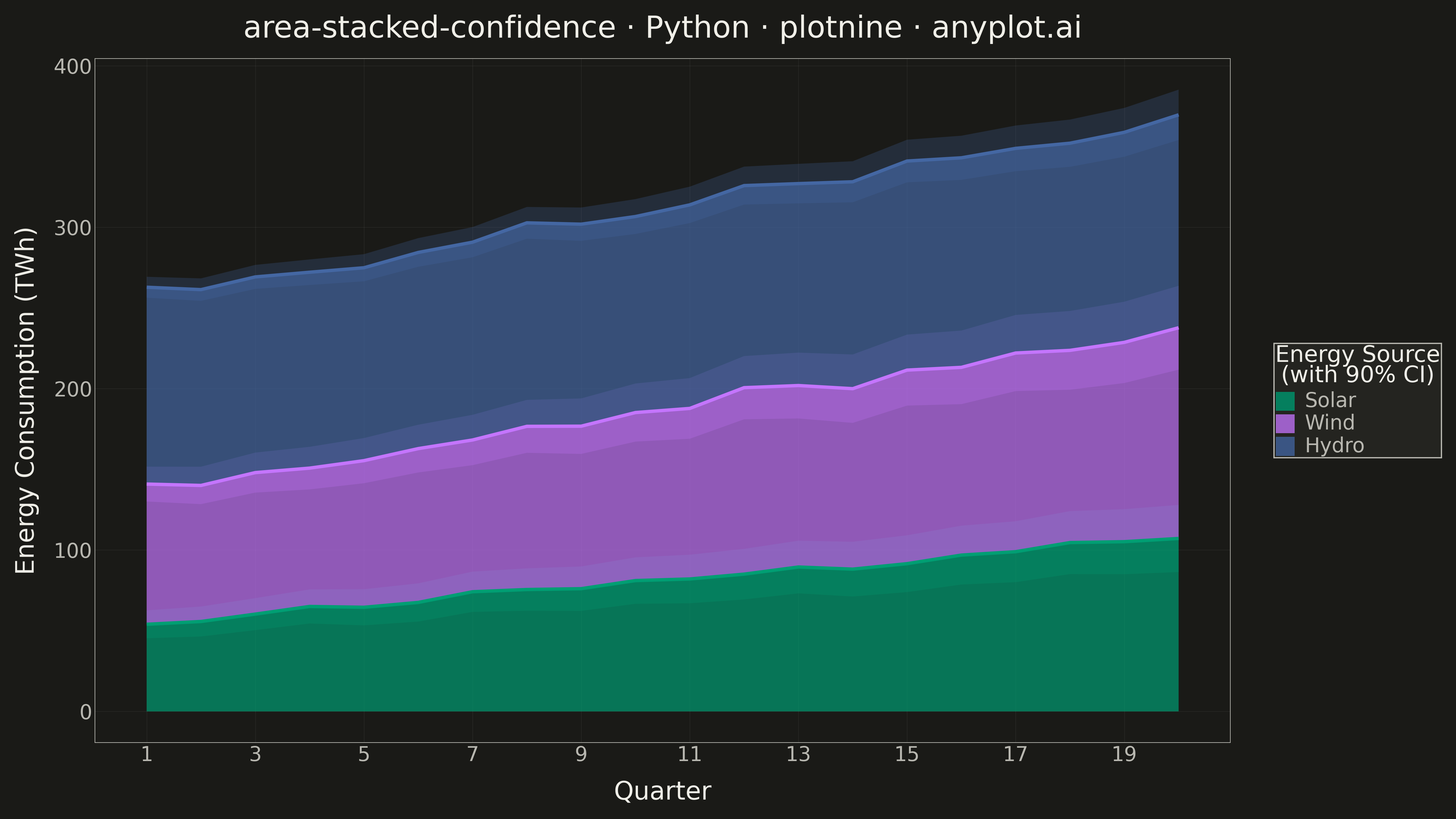

Stacked Area Chart with Confidence Bands rendered with plotnine

Python source (plotnine)

""" anyplot.ai
area-stacked-confidence: Stacked Area Chart with Confidence Bands
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 99/100 | Updated: 2026-05-18
"""

import os

import numpy as np
import pandas as pd
from plotnine import (
    aes,
    element_blank,
    element_line,
    element_rect,
    element_text,
    geom_line,
    geom_ribbon,
    ggplot,
    labs,
    scale_color_manual,
    scale_fill_manual,
    scale_x_continuous,
    theme,
    theme_minimal,
)


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette (first three series)
IMPRINT = ["#009E73", "#C475FD", "#4467A3"]

# Data - Quarterly energy consumption forecast by source with prediction intervals
np.random.seed(42)

quarters = np.arange(1, 21)  # 20 quarters (5 years)

# Base values for three energy sources (in TWh)
solar_base = 50 + quarters * 3 + np.random.randn(20) * 2
wind_base = 80 + quarters * 2.5 + np.random.randn(20) * 3
hydro_base = 120 + quarters * 0.5 + np.random.randn(20) * 2

# Confidence intervals (uncertainty grows over time for forecasts)
uncertainty_factor = 1 + quarters * 0.08

solar_lower = solar_base - 8 * uncertainty_factor
solar_upper = solar_base + 8 * uncertainty_factor

wind_lower = wind_base - 10 * uncertainty_factor
wind_upper = wind_base + 10 * uncertainty_factor

hydro_lower = hydro_base - 6 * uncertainty_factor
hydro_upper = hydro_base + 6 * uncertainty_factor

# Create stacked values (cumulative)
# Layer 1: Solar (bottom)
solar_cum = solar_base
solar_cum_lower = solar_lower
solar_cum_upper = solar_upper

# Layer 2: Wind (stacked on solar)
wind_cum = solar_base + wind_base
wind_cum_lower = solar_base + wind_lower
wind_cum_upper = solar_base + wind_upper

# Layer 3: Hydro (stacked on wind + solar)
hydro_cum = solar_base + wind_base + hydro_base
hydro_cum_lower = solar_base + wind_base + hydro_lower
hydro_cum_upper = solar_base + wind_base + hydro_upper

# Create long-form dataframe for proper legend support
df_areas = pd.concat(
    [
        pd.DataFrame(
            {
                "quarter": quarters,
                "y": solar_cum,
                "ymin": np.zeros(20),
                "ymax": solar_cum,
                "lower": solar_cum_lower,
                "upper": solar_cum_upper,
                "series": "Solar",
            }
        ),
        pd.DataFrame(
            {
                "quarter": quarters,
                "y": wind_cum,
                "ymin": solar_cum,
                "ymax": wind_cum,
                "lower": wind_cum_lower,
                "upper": wind_cum_upper,
                "series": "Wind",
            }
        ),
        pd.DataFrame(
            {
                "quarter": quarters,
                "y": hydro_cum,
                "ymin": wind_cum,
                "ymax": hydro_cum,
                "lower": hydro_cum_lower,
                "upper": hydro_cum_upper,
                "series": "Hydro",
            }
        ),
    ],
    ignore_index=True,
)

# Set order for legend
df_areas["series"] = pd.Categorical(df_areas["series"], categories=["Solar", "Wind", "Hydro"], ordered=True)

# Color mapping using Okabe-Ito palette
color_map = {"Solar": IMPRINT[0], "Wind": IMPRINT[1], "Hydro": IMPRINT[2]}

# Theme customization
anyplot_theme = theme(
    plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_background=element_rect(fill=PAGE_BG),
    panel_grid_major=element_line(color=INK, size=0.3, alpha=0.10),
    panel_grid_minor=element_blank(),
    panel_border=element_rect(color=INK_SOFT, fill=None, size=0.5),
    axis_title=element_text(color=INK, size=20),
    axis_text=element_text(color=INK_SOFT, size=16),
    axis_line=element_line(color=INK_SOFT, size=0.5),
    plot_title=element_text(color=INK, size=24, weight="medium"),
    legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
    legend_text=element_text(color=INK_SOFT, size=16),
    legend_title=element_text(color=INK, size=18),
    figure_size=(16, 9),
)

# Create the plot with stacked areas and confidence bands
plot = (
    ggplot(df_areas, aes(x="quarter"))
    # Confidence bands (lighter, drawn first)
    + geom_ribbon(aes(ymin="lower", ymax="upper", fill="series"), alpha=0.25)
    # Stacked areas (main fill)
    + geom_ribbon(aes(ymin="ymin", ymax="ymax", fill="series"), alpha=0.7)
    # Central lines for each series
    + geom_line(aes(y="y", color="series"), size=1.5)
    # Color scales
    + scale_fill_manual(values=color_map, name="Energy Source\n(with 90% CI)")
    + scale_color_manual(values=color_map, guide=None)
    # Labels and styling
    + labs(x="Quarter", y="Energy Consumption (TWh)", title="area-stacked-confidence · Python · plotnine · anyplot.ai")
    + scale_x_continuous(breaks=range(1, 21, 2))
    + theme_minimal()
    + anyplot_theme
)

# Save the plot
plot.save(f"plot-{THEME}.png", dpi=300, verbose=False)

Part of Stacked Area Chart with Confidence Bands on anyplot.ai.
