Stacked Area Chart with Confidence Bands — Plotly

A stacked area chart that displays multiple data series as cumulative areas, with each series surrounded by uncertainty or confidence bands. This visualization combines the composition insight of stacked areas with the statistical rigor of confidence intervals, making it ideal for showing how parts contribute to a whole while simultaneously communicating uncertainty in each component. The bands reveal where estimates are precise versus uncertain across the stacked series.

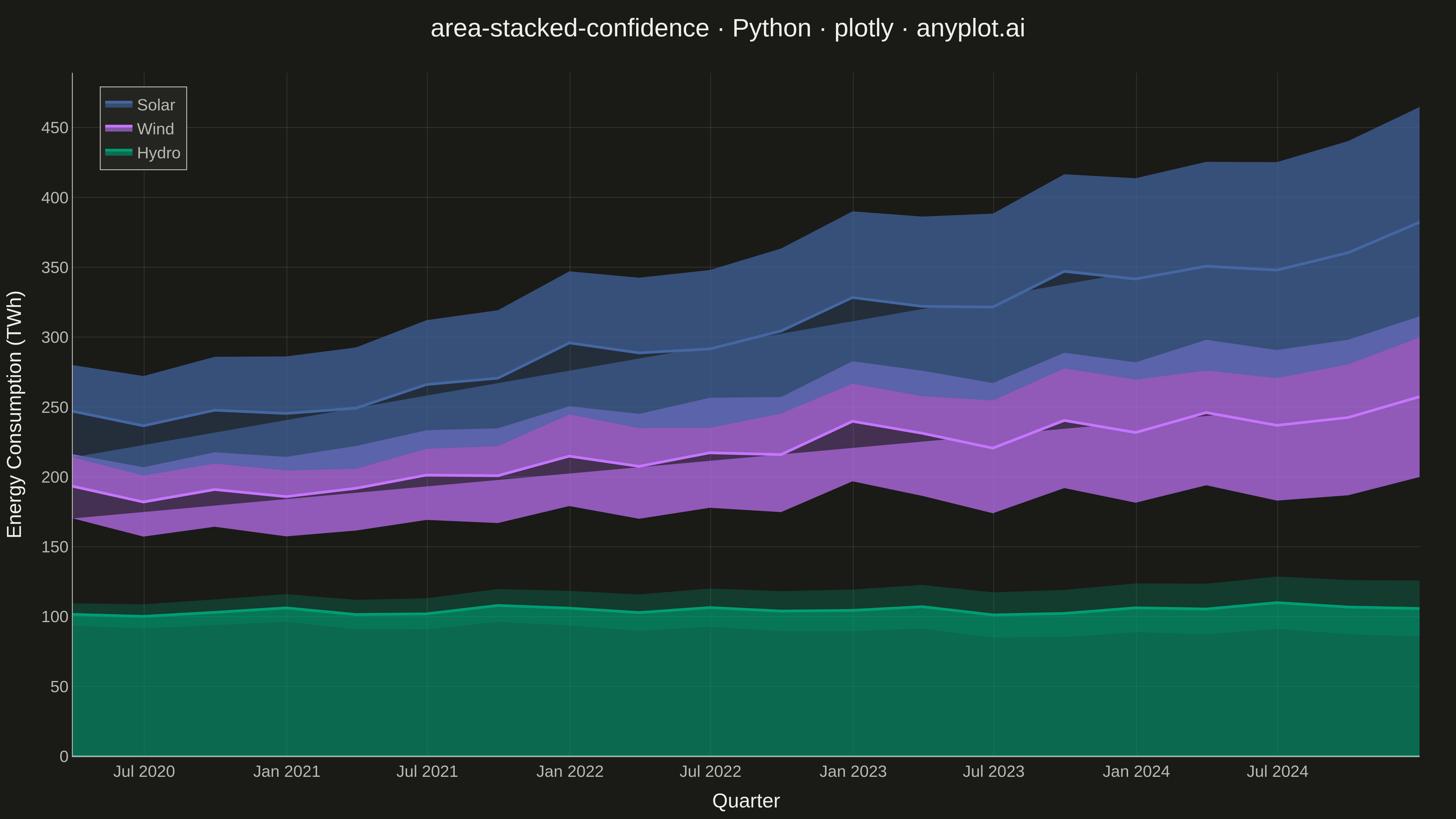

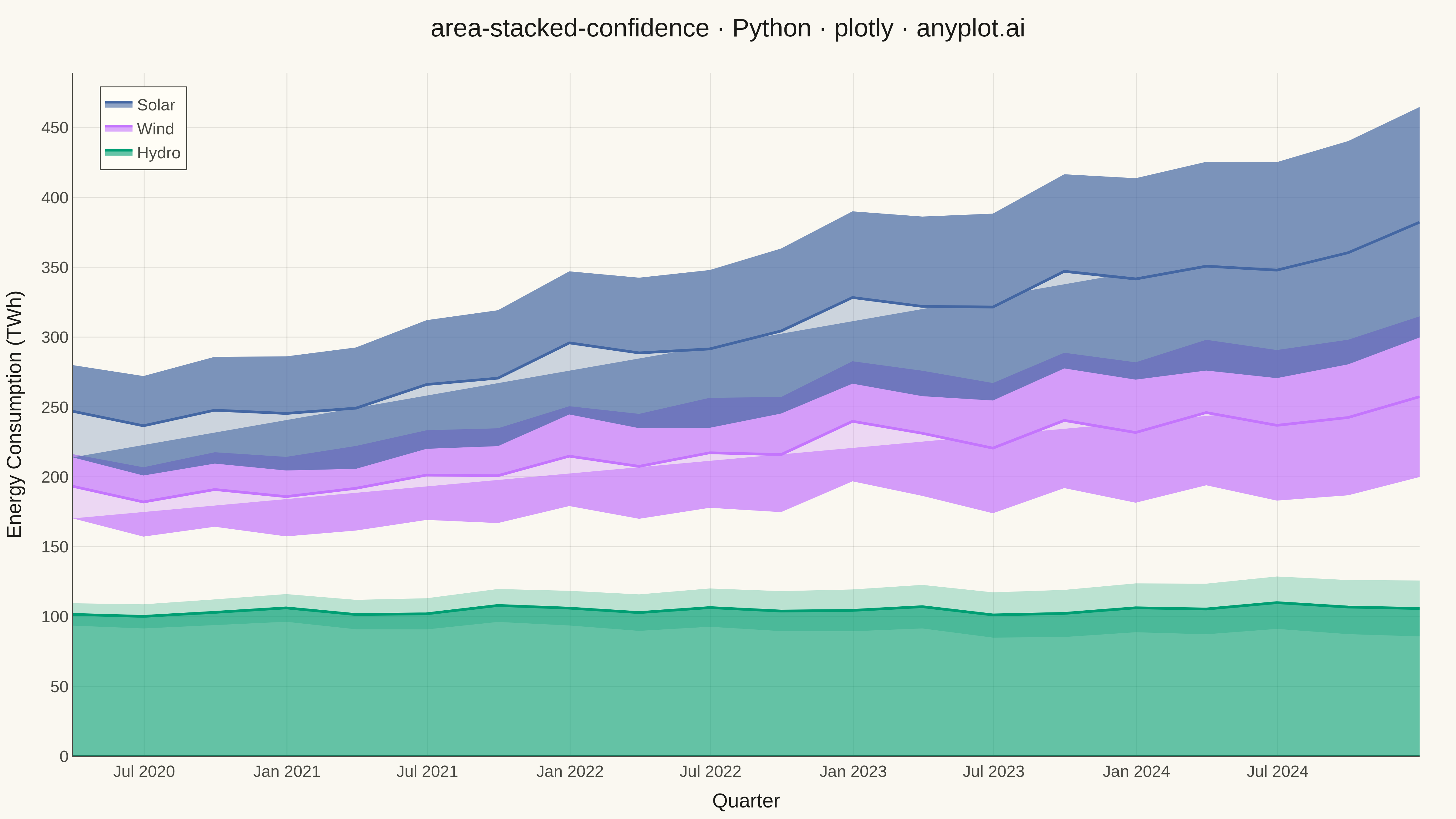

Stacked Area Chart with Confidence Bands rendered with Plotly

Python source (Plotly)

""" anyplot.ai
area-stacked-confidence: Stacked Area Chart with Confidence Bands
Library: plotly 6.7.0 | Python 3.13.13
Quality: 94/100 | Updated: 2026-05-18
"""

import os

import numpy as np
import pandas as pd
import plotly.graph_objects as go


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26, 26, 23, 0.10)" if THEME == "light" else "rgba(240, 239, 232, 0.10)"

# Okabe-Ito palette (positions 1-3 for three series)
HYDRO_COLOR = "#009E73"  # Okabe-Ito position 1 (brand green)
WIND_COLOR = "#C475FD"  # Okabe-Ito position 2 (vermillion)
SOLAR_COLOR = "#4467A3"  # Okabe-Ito position 3 (blue)

# Data - Quarterly energy consumption forecast by source with uncertainty bands
np.random.seed(42)
quarters = [d.strftime("%Y-%m-%d") for d in pd.date_range("2020-01-01", periods=20, freq="QE")]

# Base values for energy consumption (in TWh)
hydro_base = np.linspace(100, 110, 20) + np.random.randn(20) * 3
wind_base = np.linspace(80, 150, 20) + np.random.randn(20) * 8
solar_base = np.linspace(50, 120, 20) + np.random.randn(20) * 5

# Uncertainty increases over time (forecast uncertainty)
uncertainty_growth = np.linspace(1, 2.5, 20)
hydro_lower = hydro_base - 8 * uncertainty_growth
hydro_upper = hydro_base + 8 * uncertainty_growth
wind_lower = wind_base - 15 * uncertainty_growth
wind_upper = wind_base + 15 * uncertainty_growth
solar_lower = solar_base - 10 * uncertainty_growth
solar_upper = solar_base + 10 * uncertainty_growth

# Calculate stacked positions for central values
hydro_stack = hydro_base
wind_stack = hydro_base + wind_base
solar_stack = hydro_base + wind_base + solar_base

# Calculate stacked positions for confidence bands
hydro_lower_stack = hydro_lower
hydro_upper_stack = hydro_upper

wind_lower_stack = hydro_lower + wind_lower
wind_upper_stack = hydro_upper + wind_upper

solar_lower_stack = hydro_lower + wind_lower + solar_lower
solar_upper_stack = hydro_upper + wind_upper + solar_upper

# Create figure
fig = go.Figure()

# Hydro confidence band (bottom layer)
fig.add_trace(
    go.Scatter(
        x=quarters + quarters[::-1],
        y=list(hydro_upper_stack) + list(hydro_lower_stack[::-1]),
        fill="toself",
        fillcolor="rgba(0, 158, 115, 0.25)",
        line=dict(color="rgba(255, 255, 255, 0)"),
        showlegend=False,
        name="Hydro Band",
        hoverinfo="skip",
    )
)

# Hydro central area
fig.add_trace(
    go.Scatter(
        x=quarters,
        y=hydro_stack,
        mode="lines",
        line=dict(color=HYDRO_COLOR, width=3),
        name="Hydro",
        fill="tozeroy",
        fillcolor="rgba(0, 158, 115, 0.6)",
    )
)

# Wind confidence band (middle layer)
fig.add_trace(
    go.Scatter(
        x=quarters + quarters[::-1],
        y=list(wind_upper_stack) + list(wind_lower_stack[::-1]),
        fill="toself",
        fillcolor="rgba(196, 117, 253, 0.25)",
        line=dict(color="rgba(255, 255, 255, 0)"),
        showlegend=False,
        name="Wind Band",
        hoverinfo="skip",
    )
)

# Wind central area
fig.add_trace(
    go.Scatter(
        x=quarters,
        y=wind_stack,
        mode="lines",
        line=dict(color=WIND_COLOR, width=3),
        name="Wind",
        fill="tonexty",
        fillcolor="rgba(196, 117, 253, 0.6)",
    )
)

# Solar confidence band (top layer)
fig.add_trace(
    go.Scatter(
        x=quarters + quarters[::-1],
        y=list(solar_upper_stack) + list(solar_lower_stack[::-1]),
        fill="toself",
        fillcolor="rgba(68, 103, 163, 0.25)",
        line=dict(color="rgba(255, 255, 255, 0)"),
        showlegend=False,
        name="Solar Band",
        hoverinfo="skip",
    )
)

# Solar central area
fig.add_trace(
    go.Scatter(
        x=quarters,
        y=solar_stack,
        mode="lines",
        line=dict(color=SOLAR_COLOR, width=3),
        name="Solar",
        fill="tonexty",
        fillcolor="rgba(68, 103, 163, 0.6)",
    )
)

# Layout
fig.update_layout(
    title=dict(
        text="area-stacked-confidence · Python · plotly · anyplot.ai",
        font=dict(size=28, color=INK),
        x=0.5,
        xanchor="center",
    ),
    xaxis=dict(
        title=dict(text="Quarter", font=dict(size=22, color=INK)),
        tickfont=dict(size=18, color=INK_SOFT),
        showgrid=True,
        gridwidth=1,
        gridcolor=GRID,
        linecolor=INK_SOFT,
        zerolinecolor=INK_SOFT,
    ),
    yaxis=dict(
        title=dict(text="Energy Consumption (TWh)", font=dict(size=22, color=INK)),
        tickfont=dict(size=18, color=INK_SOFT),
        showgrid=True,
        gridwidth=1,
        gridcolor=GRID,
        linecolor=INK_SOFT,
        zerolinecolor=INK_SOFT,
    ),
    legend=dict(
        font=dict(size=18, color=INK_SOFT), x=0.02, y=0.98, bgcolor=ELEVATED_BG, bordercolor=INK_SOFT, borderwidth=1
    ),
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    hovermode="x unified",
    margin=dict(l=80, r=40, t=80, b=60),
)

# Save
fig.write_image(f"plot-{THEME}.png", width=1600, height=900, scale=3)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")

Part of Stacked Area Chart with Confidence Bands on anyplot.ai.
