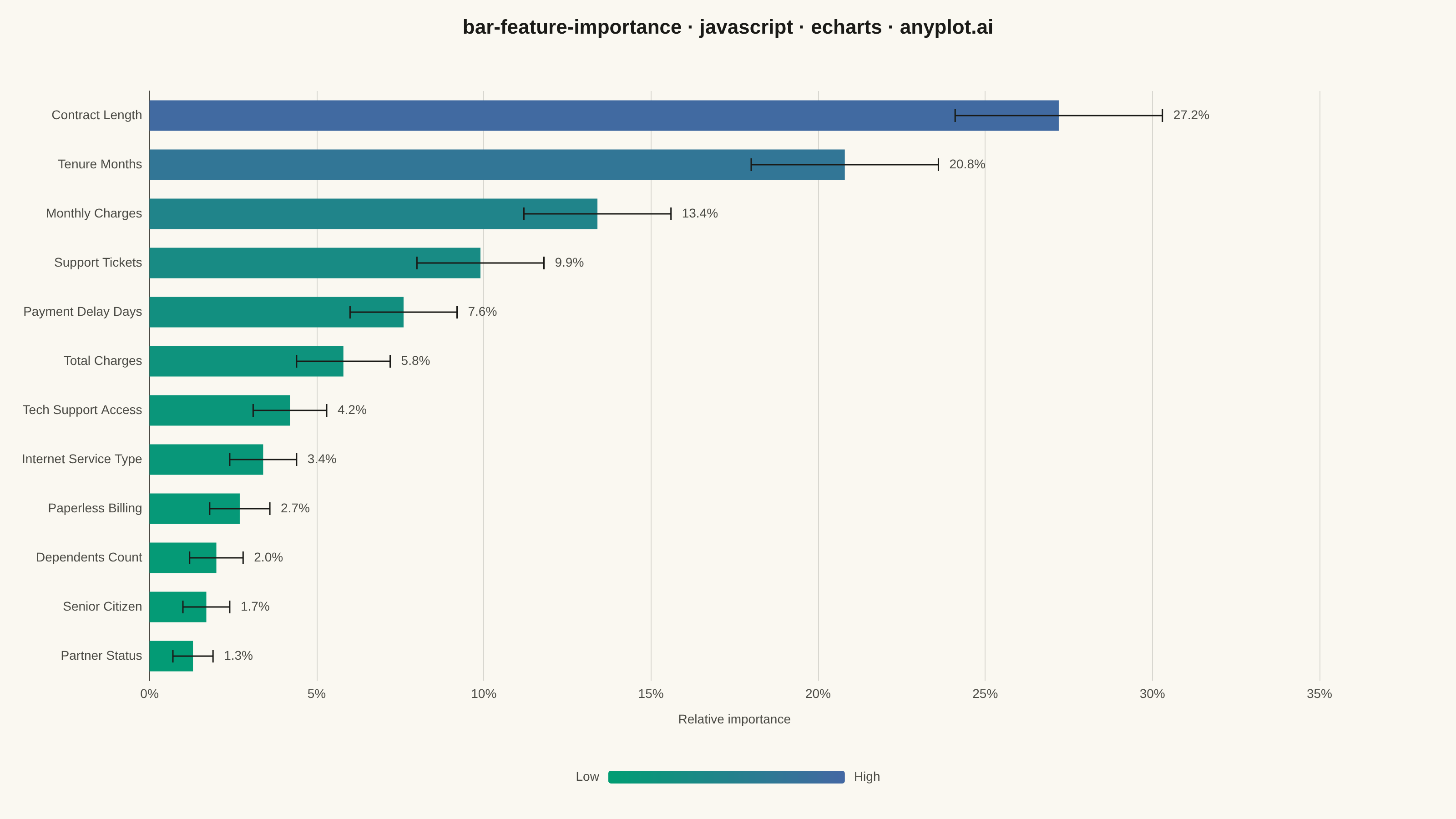

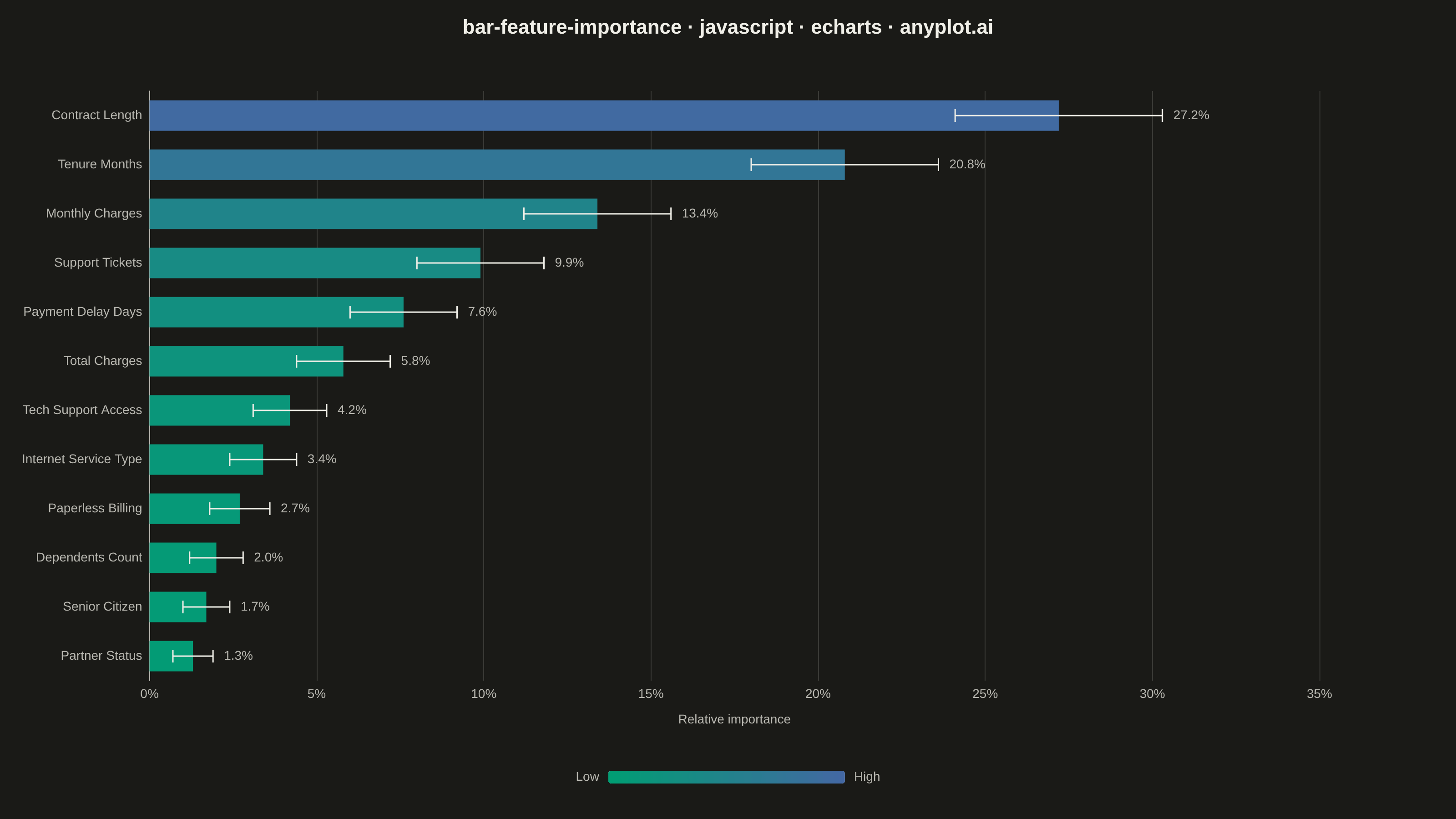

A horizontal bar chart displaying feature importances from machine learning models, with features sorted by importance value and bars colored by a gradient to emphasize relative contribution. This visualization is essential for model interpretability, helping data scientists and stakeholders understand which features drive model predictions. The horizontal orientation allows for readable feature names of varying lengths.
// anyplot.ai
// bar-feature-importance: Feature Importance Bar Chart
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-02
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Gradient-boosting churn model — feature_importances_ + per-tree std, ascending
// by importance so the category axis (bottom-to-top) puts the top driver on top.
const features = [
"Partner Status",
"Senior Citizen",
"Dependents Count",
"Paperless Billing",
"Internet Service Type",
"Tech Support Access",
"Total Charges",
"Payment Delay Days",
"Support Tickets",
"Monthly Charges",
"Tenure Months",
"Contract Length",
];
const importance = [0.013, 0.017, 0.020, 0.027, 0.034, 0.042, 0.058, 0.076, 0.099, 0.134, 0.208, 0.272];
const std = [0.006, 0.007, 0.008, 0.009, 0.010, 0.011, 0.014, 0.016, 0.019, 0.022, 0.028, 0.031];
const errorBarData = features.map((name, i) => [name, importance[i] - std[i], importance[i] + std[i]]);
// --- Init ---------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Error bar renderer (ECharts has no built-in error-bar series) ----------
// The precision label lives here, anchored past the high cap, so its position
// always clears the error bar regardless of how wide the std interval is.
function renderErrorBar(params, api) {
const category = api.value(0);
const centerValue = importance[params.dataIndex];
const lowPoint = api.coord([api.value(1), category]);
const highPoint = api.coord([api.value(2), category]);
const capHalf = 7;
const style = api.style({ stroke: t.ink, fill: undefined, lineWidth: 1.5 });
return {
type: "group",
children: [
{ type: "line", shape: { x1: lowPoint[0], y1: lowPoint[1], x2: highPoint[0], y2: highPoint[1] }, style },
{ type: "line", shape: { x1: lowPoint[0], y1: lowPoint[1] - capHalf, x2: lowPoint[0], y2: lowPoint[1] + capHalf }, style },
{ type: "line", shape: { x1: highPoint[0], y1: highPoint[1] - capHalf, x2: highPoint[0], y2: highPoint[1] + capHalf }, style },
{
type: "text",
style: {
x: highPoint[0] + 12,
y: highPoint[1],
text: `${(centerValue * 100).toFixed(1)}%`,
fill: t.inkSoft,
fontSize: 14,
verticalAlign: "middle",
align: "left",
},
},
],
};
}
// --- Option -------------------------------------------------------------------
chart.setOption({
animation: false,
backgroundColor: "transparent",
title: {
text: "bar-feature-importance · javascript · echarts · anyplot.ai",
left: "center",
textStyle: { color: t.ink, fontSize: 22 },
},
tooltip: {
trigger: "axis",
axisPointer: { type: "shadow" },
valueFormatter: (v) => `${(v * 100).toFixed(1)}%`,
},
grid: { left: 24, right: 150, top: 100, bottom: 130, containLabel: true },
xAxis: {
type: "value",
name: "Relative importance",
nameLocation: "middle",
nameGap: 36,
nameTextStyle: { color: t.inkSoft, fontSize: 14 },
axisLabel: { color: t.inkSoft, fontSize: 14, formatter: (v) => `${Math.round(v * 100)}%` },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { lineStyle: { color: t.grid } },
},
yAxis: {
type: "category",
data: features,
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { show: false },
},
visualMap: {
type: "continuous",
dimension: 0,
min: 0,
max: Math.max(...importance) * 1.05,
calculable: false,
orient: "horizontal",
left: "center",
bottom: 24,
// Under orient:"horizontal" ECharts swaps the usual meaning: itemHeight is
// the bar's length, itemWidth its thickness — the reverse of "vertical".
itemWidth: 14,
itemHeight: 260,
text: ["High", "Low"],
textStyle: { color: t.inkSoft, fontSize: 14 },
inRange: { color: t.seq },
},
series: [
{
type: "bar",
data: importance,
barWidth: "62%",
},
{
type: "custom",
renderItem: renderErrorBar,
encode: { x: [1, 2], y: 0 },
data: errorBarData,
z: 10,
silent: true,
},
],
});
chart.on("finished", () => {
window.__anyplotReady = true;
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/bar-feature-importance/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
