Feature Importance Bar Chart — lets-plot

A horizontal bar chart displaying feature importances from machine learning models, with features sorted by importance value and bars colored by a gradient to emphasize relative contribution. This visualization is essential for model interpretability, helping data scientists and stakeholders understand which features drive model predictions. The horizontal orientation allows for readable feature names of varying lengths.

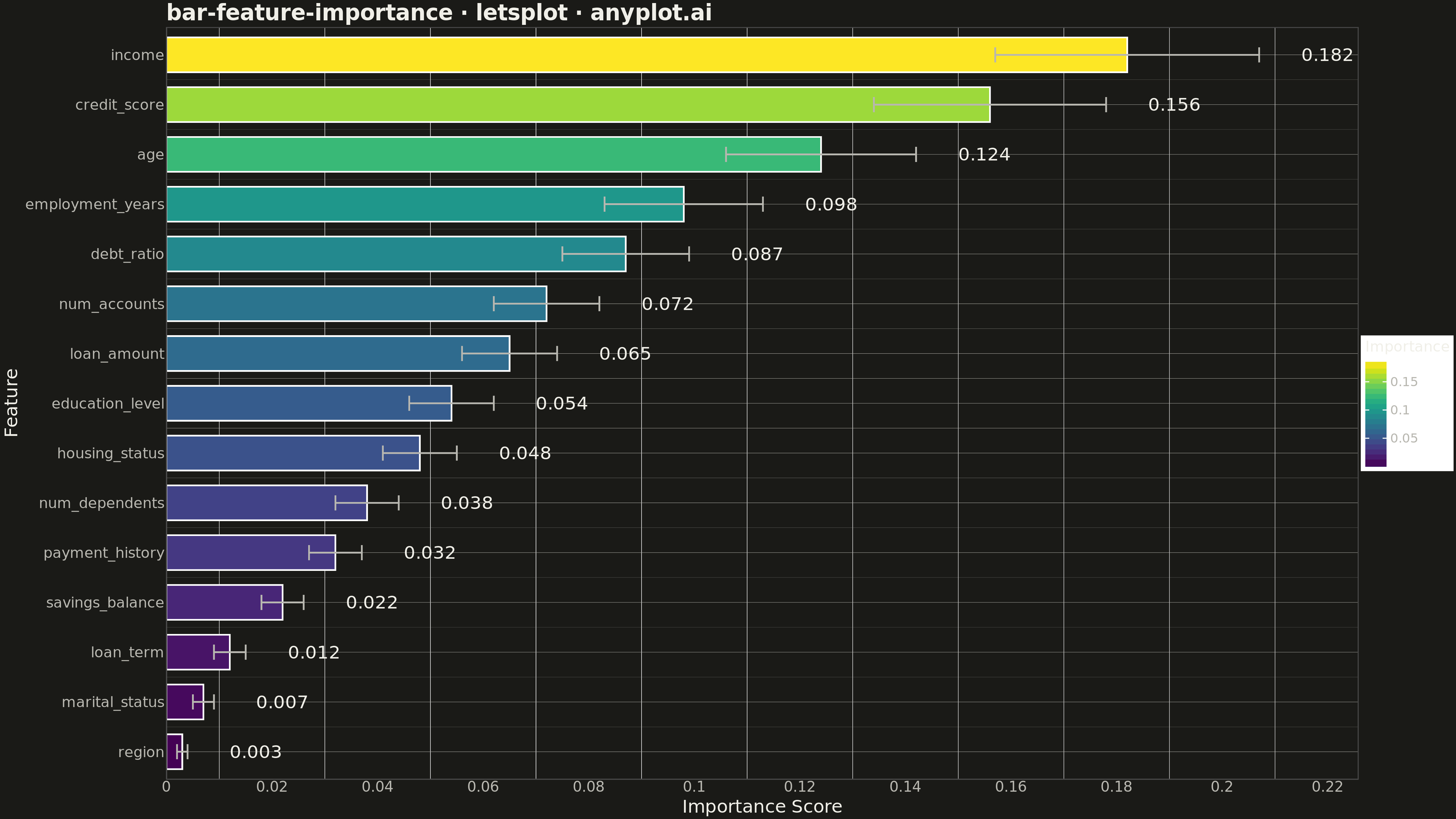

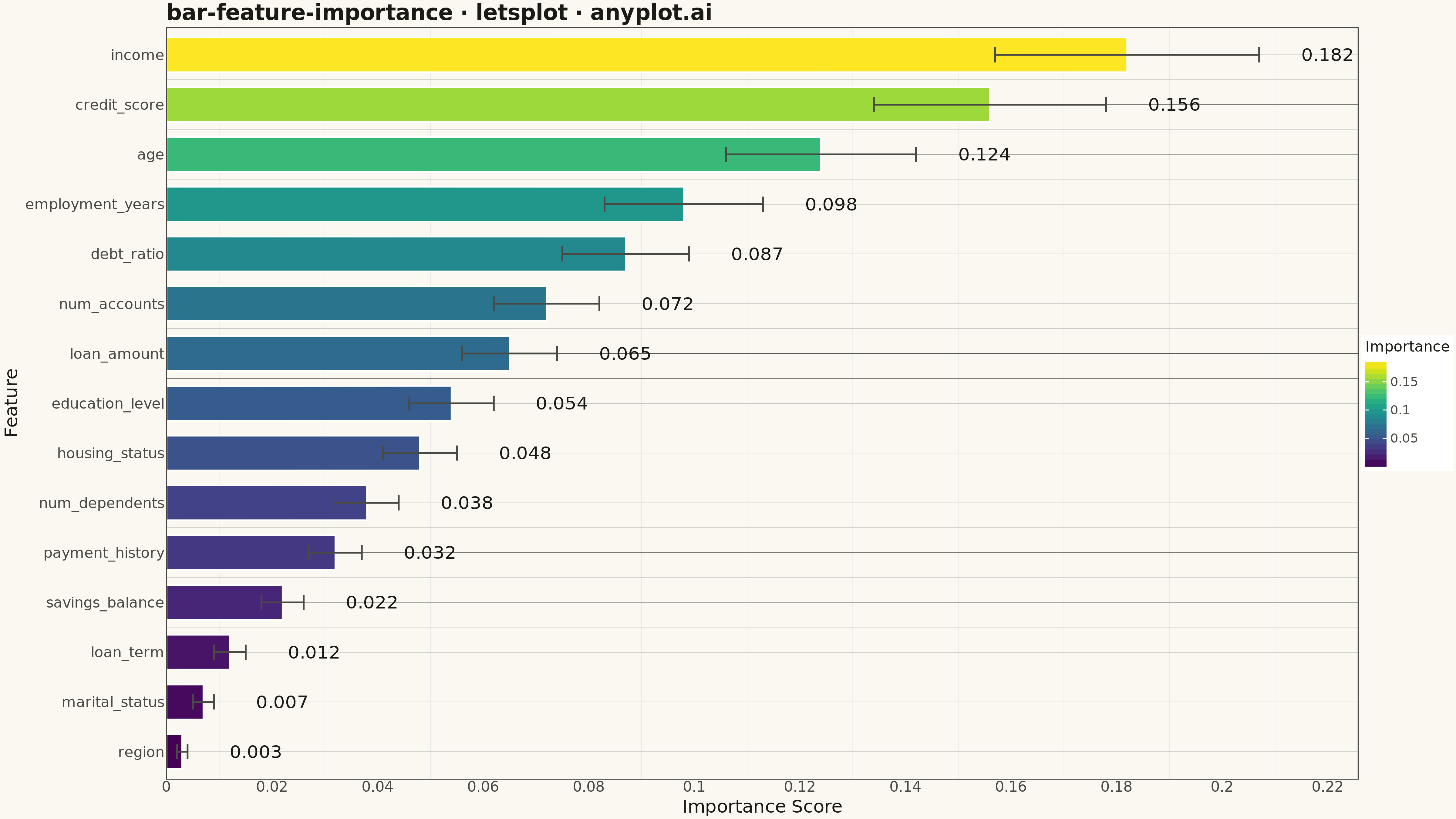

Feature Importance Bar Chart rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
bar-feature-importance: Feature Importance Bar Chart
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 74/100 | Updated: 2026-05-10
"""

import pandas as pd
from lets_plot import (
    LetsPlot,
    aes,
    coord_flip,
    element_line,
    element_text,
    geom_bar,
    geom_errorbar,
    geom_text,
    ggplot,
    ggsave,
    ggsize,
    labs,
    scale_fill_gradient,
    theme,
    theme_minimal,
)


LetsPlot.setup_html()

# Data - Feature importances from a Random Forest model (loan default prediction)
data = {
    "feature": [
        "income",
        "credit_score",
        "age",
        "employment_years",
        "debt_ratio",
        "num_accounts",
        "loan_amount",
        "education_level",
        "housing_status",
        "num_dependents",
        "payment_history",
        "savings_balance",
        "loan_term",
        "marital_status",
        "region",
    ],
    "importance": [
        0.182,
        0.156,
        0.124,
        0.098,
        0.087,
        0.072,
        0.065,
        0.054,
        0.048,
        0.038,
        0.032,
        0.022,
        0.012,
        0.007,
        0.003,
    ],
    "std": [0.025, 0.022, 0.018, 0.015, 0.012, 0.010, 0.009, 0.008, 0.007, 0.006, 0.005, 0.004, 0.003, 0.002, 0.001],
}

df = pd.DataFrame(data)

# Sort by importance (highest at top after coord_flip)
df = df.sort_values("importance", ascending=True)
df["feature"] = pd.Categorical(df["feature"], categories=df["feature"].tolist(), ordered=True)

# Calculate error bar limits (ymin/ymax before flip becomes xmin/xmax after flip)
df["ymin"] = df["importance"] - df["std"]
df["ymax"] = df["importance"] + df["std"]

# Label position (slightly beyond error bar)
df["label_pos"] = df["ymax"] + 0.008

# Format labels
df["label"] = df["importance"].apply(lambda x: f"{x:.3f}")

# Create plot
plot = (
    ggplot(df, aes(x="feature", y="importance", fill="importance"))
    + geom_bar(stat="identity", width=0.7)
    + geom_errorbar(aes(ymin="ymin", ymax="ymax"), width=0.3, size=0.8, color="#333333")
    + geom_text(aes(x="feature", y="label_pos", label="label"), hjust=0, size=10, color="#333333")
    + scale_fill_gradient(low="#A8D5E5", high="#306998", name="Importance")
    + coord_flip()
    + labs(title="bar-feature-importance · letsplot · pyplots.ai", x="Feature", y="Importance Score")
    + theme_minimal()
    + theme(
        plot_title=element_text(size=24, face="bold"),
        axis_title_x=element_text(size=20),
        axis_title_y=element_text(size=20),
        axis_text_x=element_text(size=16),
        axis_text_y=element_text(size=16),
        legend_title=element_text(size=16),
        legend_text=element_text(size=14),
        panel_grid_major_x=element_line(color="#E0E0E0", size=0.5),
        panel_grid_minor_x=element_line(color="#F0F0F0", size=0.3),
        panel_grid_major_y=element_line(size=0),
    )
    + ggsize(1600, 900)
)

# Save as PNG (scale 3x for 4800 x 2700 px)
ggsave(plot, "plot.png", scale=3, path=".")

# Save as HTML for interactivity
ggsave(plot, "plot.html", path=".")

Part of Feature Importance Bar Chart on anyplot.ai.
