A stacked bar chart that displays multiple data series stacked on top of each other within each category, showing both individual component values and their cumulative totals. This visualization excels at revealing part-to-whole relationships while maintaining the ability to compare totals across categories. Stacked bar charts are particularly effective for composition analysis, where understanding how different components contribute to a whole is as important as comparing totals.
// anyplot.ai
// bar-stacked: Stacked Bar Chart
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 94/100 | Created: 2026-09-02
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Monthly software company revenue composition by product line ($K)
const months = ["Jan", "Feb", "Mar", "Apr", "May", "Jun"];
const components = [
{ name: "Subscriptions", data: [20, 25, 30, 36, 42, 50] },
{ name: "Software", data: [58, 62, 65, 70, 74, 78] },
{ name: "Services", data: [30, 32, 35, 33, 38, 40] },
{ name: "Hardware", data: [42, 45, 40, 48, 44, 50] },
];
const totals = months.map((_, i) =>
components.reduce((sum, c) => sum + c.data[i], 0)
);
const avgTotal = Math.round(
totals.reduce((a, b) => a + b, 0) / totals.length
);
const subs = components[0].data;
const subsGrowthPct = Math.round(
((subs[subs.length - 1] - subs[0]) / subs[0]) * 100
);
// --- Init --------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Title (fontsize scaled to length; see plot-generator.md formula) -------
const titleText =
"Monthly SaaS Revenue by Product Line · bar-stacked · javascript · echarts · anyplot.ai";
const titleFontSize = Math.round(22 * Math.min(1, 67 / titleText.length));
// --- Option --------------------------------------------------------------------
chart.setOption({
animation: false,
color: t.palette,
backgroundColor: "transparent",
title: {
text: titleText,
left: "center",
textStyle: { color: t.ink, fontSize: titleFontSize, fontWeight: 500 },
},
legend: {
top: 70,
data: components.map((c) => c.name),
textStyle: { color: t.ink, fontSize: 16 },
},
tooltip: {
trigger: "axis",
axisPointer: { type: "shadow" },
formatter: (params) => {
const idx = params[0].dataIndex;
const total = totals[idx];
const rows = params
.map(
(p) =>
`${p.marker} ${p.seriesName}: $${p.value}K (${Math.round(
(p.value / total) * 100
)}%)`
)
.join("<br/>");
return `<strong>${months[idx]}</strong><br/>${rows}<br/><strong>Total: $${total}K</strong>`;
},
},
grid: { left: 90, right: 60, top: 130, bottom: 70 },
xAxis: {
type: "category",
data: months,
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { show: false },
},
yAxis: {
type: "value",
name: "Revenue ($K)",
nameTextStyle: { color: t.inkSoft, fontSize: 14 },
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { show: false },
axisTick: { show: false },
splitLine: { lineStyle: { color: t.grid } },
},
series: [
...components.map((c, i) => ({
name: c.name,
type: "bar",
stack: "revenue",
barWidth: "55%",
data: c.data,
// Rounded top corners on the topmost stack segment only, for polish.
...(i === components.length - 1 && {
itemStyle: { borderRadius: [6, 6, 0, 0] },
}),
// Emphasize the composition-shift story: Subscriptions is the
// fastest-growing component (+150% Jan→Jun) — call it out on the
// final bar.
...(i === 0 && {
label: {
show: true,
position: "inside",
color: "#FFFFFF",
fontSize: 12,
fontWeight: 600,
formatter: (params) =>
params.dataIndex === months.length - 1
? `+${subsGrowthPct}%`
: "",
},
}),
})),
{
name: "Total",
type: "bar",
stack: "revenue",
data: months.map(() => 0),
itemStyle: { color: "transparent" },
label: {
show: true,
position: "top",
color: t.ink,
fontSize: 15,
fontWeight: 500,
formatter: (params) => totals[params.dataIndex],
},
tooltip: { show: false },
markLine: {
silent: true,
symbol: "none",
lineStyle: { color: t.inkSoft, type: "dashed", width: 1.5 },
label: {
color: t.inkSoft,
fontSize: 12,
formatter: `Avg total: $${avgTotal}K`,
position: "insideEndTop",
},
data: [{ yAxis: avgTotal }],
},
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/bar-stacked/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "bar-stacked",
"language": "javascript",
"library": "echarts",
"page": "https://anyplot.ai/bar-stacked/javascript/echarts",
"hub": "https://anyplot.ai/bar-stacked",
"code_json": "https://api.anyplot.ai/specs/bar-stacked/echarts/code",
"spec_json": "https://api.anyplot.ai/specs/bar-stacked",

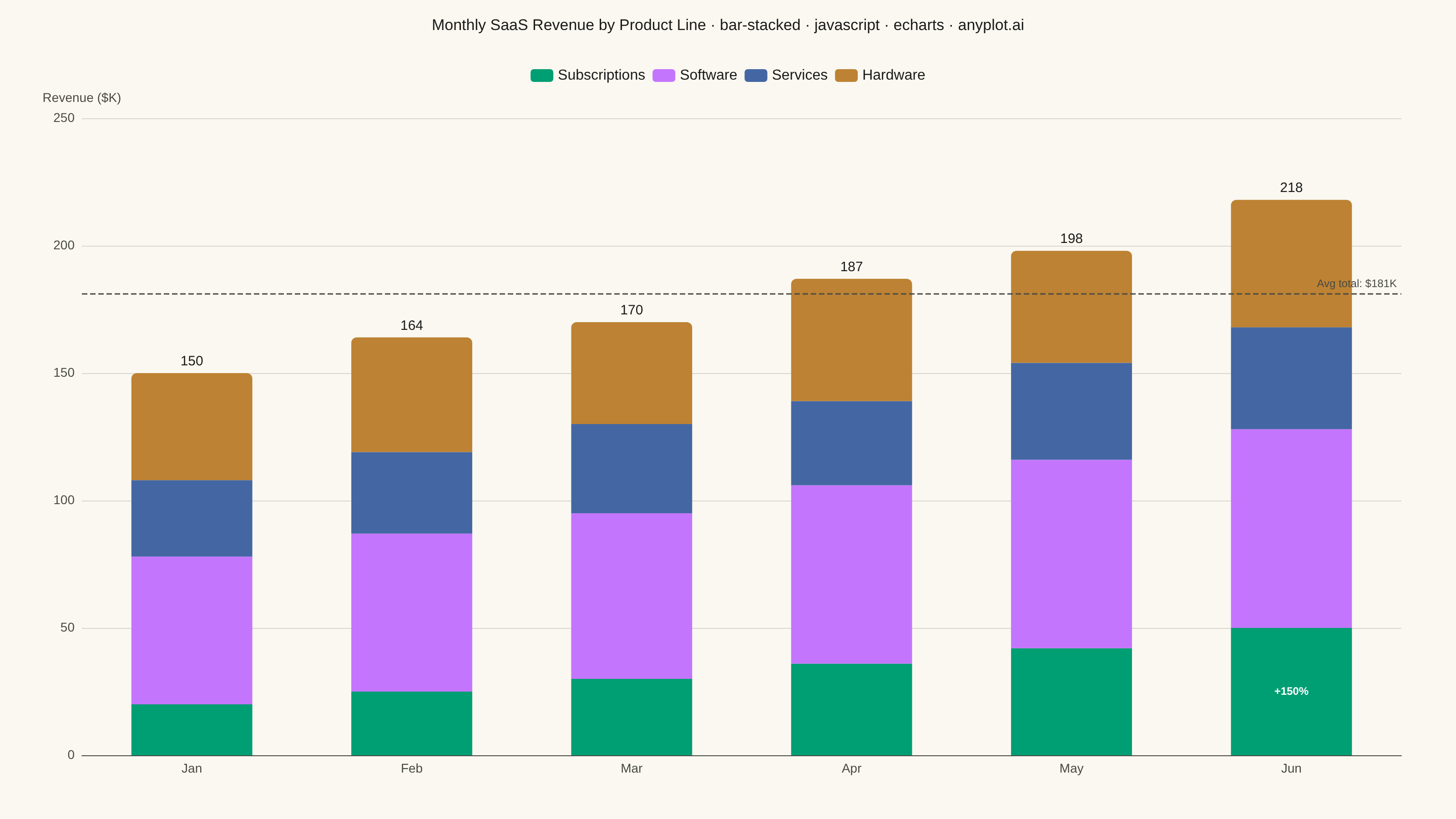

"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/bar-stacked/javascript/echarts/plot-light.png",

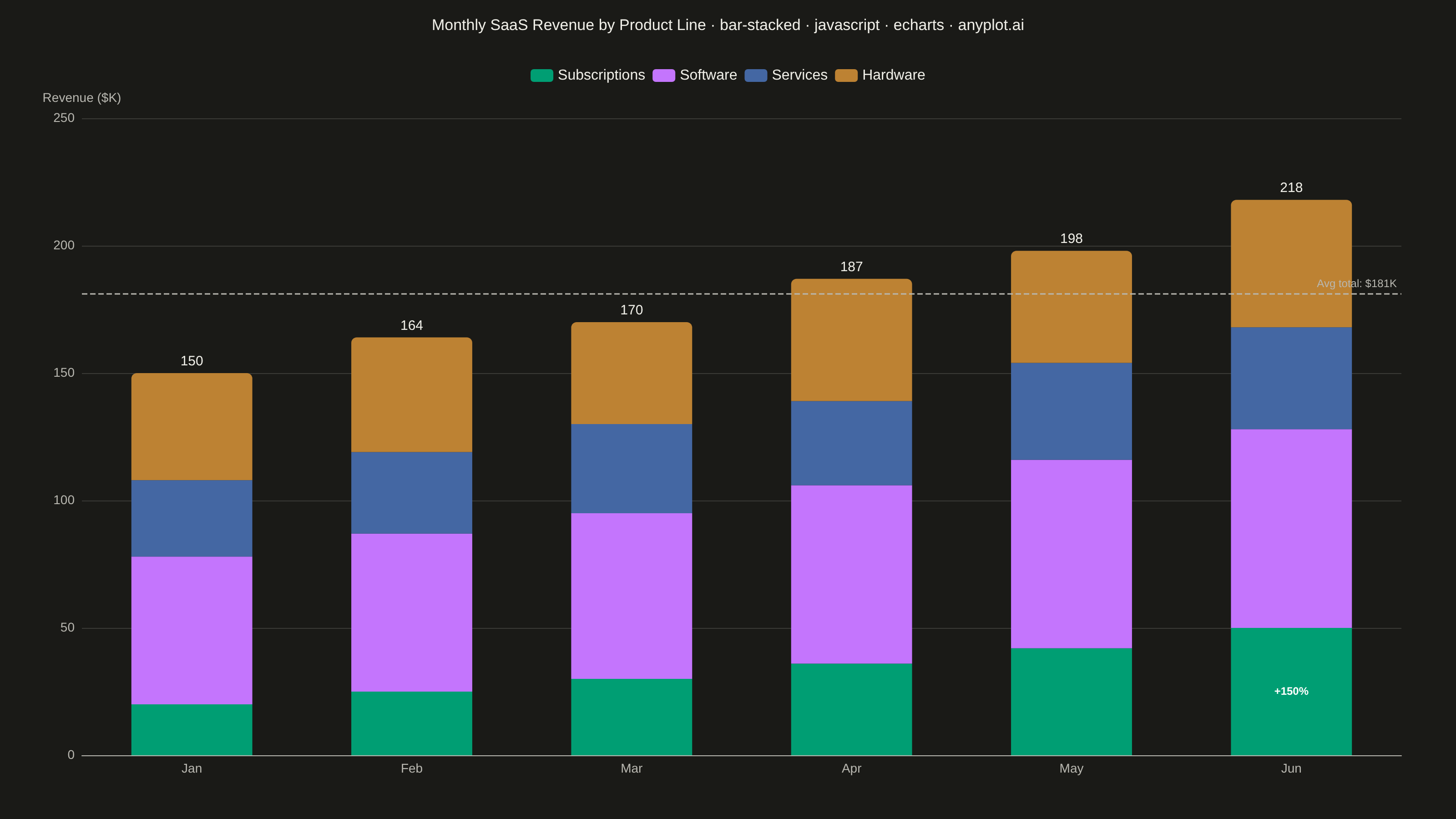

"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/bar-stacked/javascript/echarts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/bar-stacked/javascript/echarts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/bar-stacked/javascript/echarts/plot-dark.html",
"quality_score": 94.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Stacked Bar Chart on anyplot.ai.
