Stacked Bar Chart — Makie.jl

A stacked bar chart that displays multiple data series stacked on top of each other within each category, showing both individual component values and their cumulative totals. This visualization excels at revealing part-to-whole relationships while maintaining the ability to compare totals across categories. Stacked bar charts are particularly effective for composition analysis, where understanding how different components contribute to a whole is as important as comparing totals.

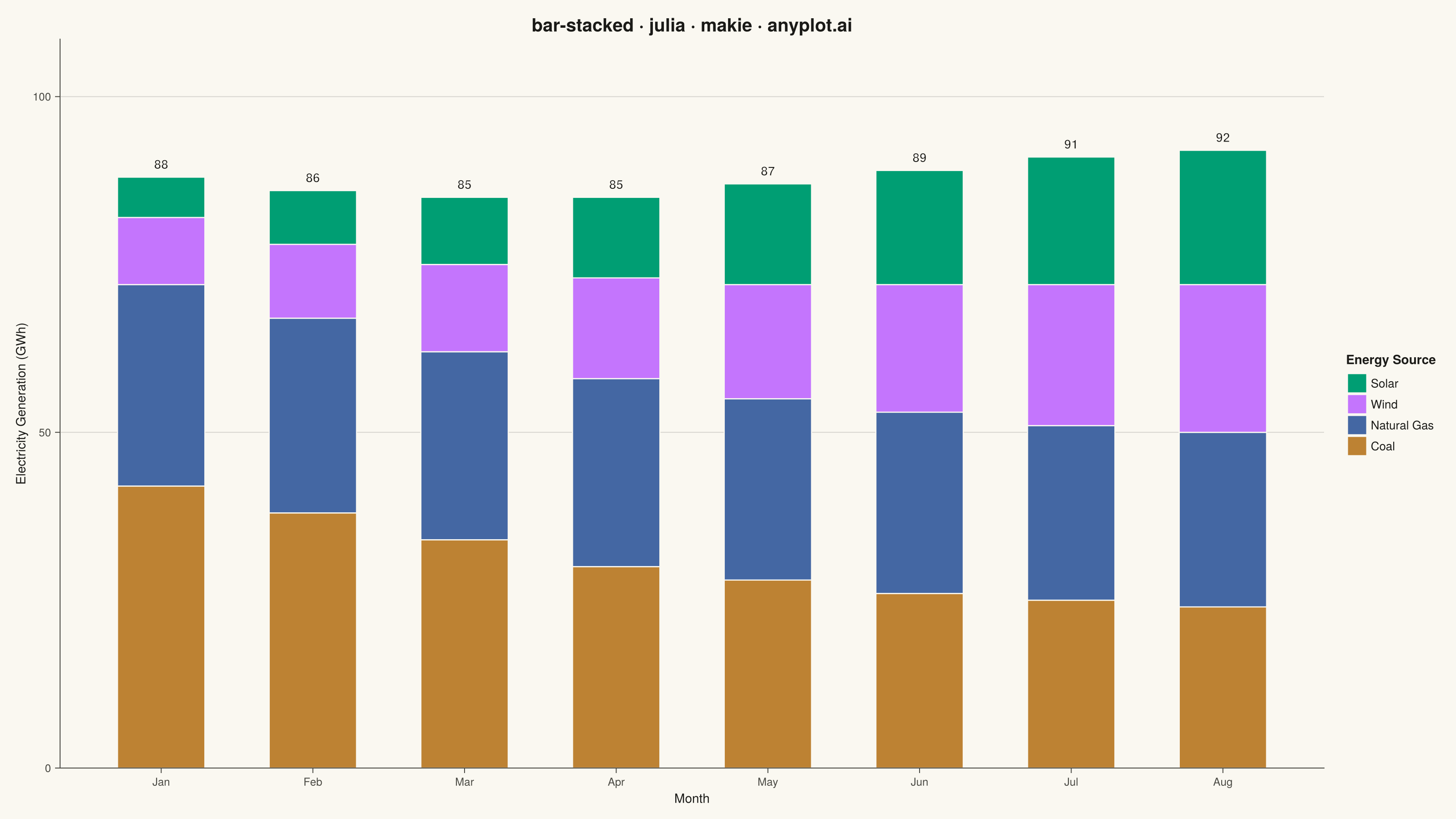

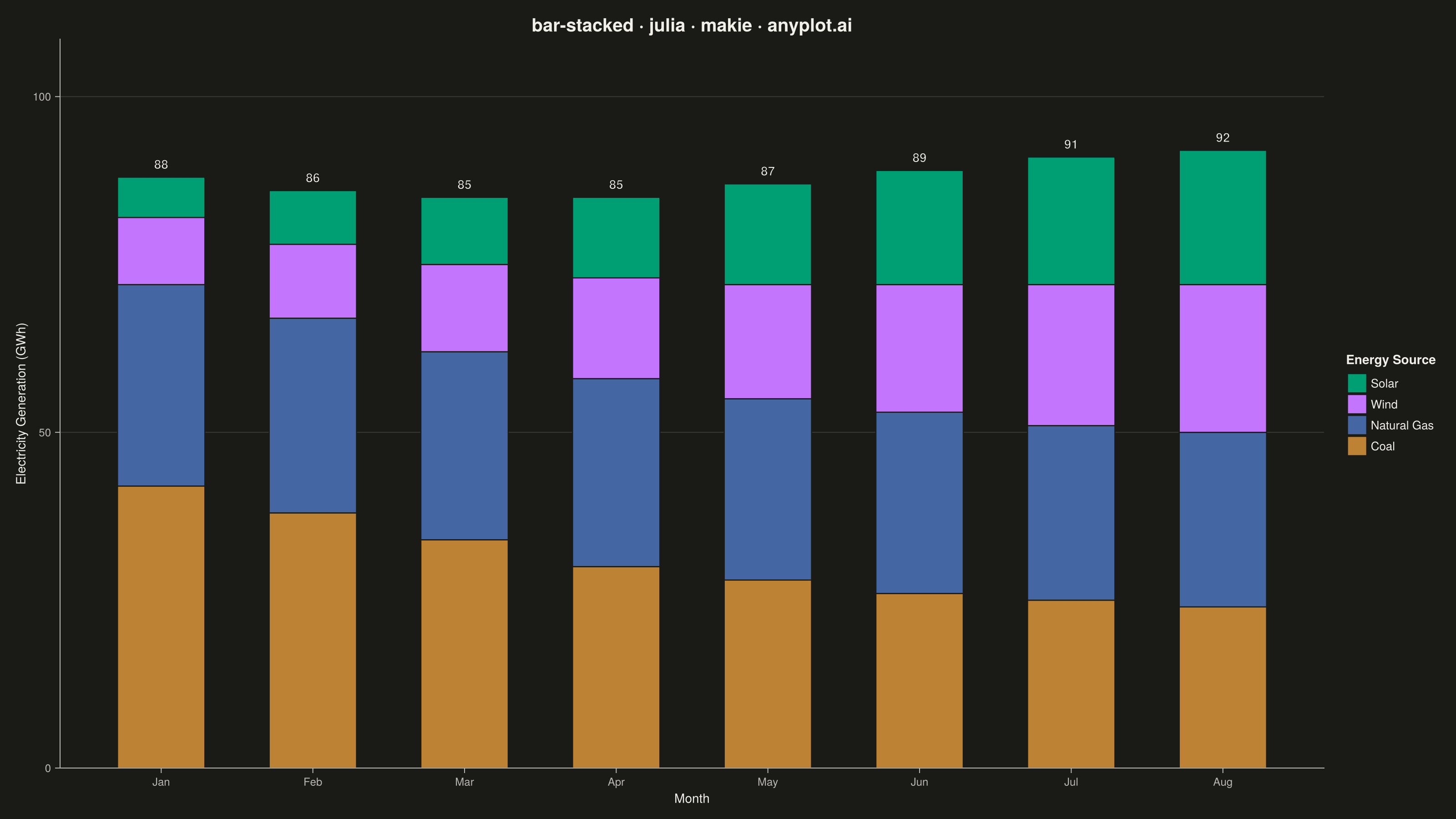

Stacked Bar Chart rendered with Makie.jl

Renders

Julia source (Makie.jl)

# anyplot.ai
# bar-stacked: Stacked Bar Chart
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 89/100 | Created: 2026-09-02

using CairoMakie
using Colors

# --- Theme tokens ------------------------------------------------------------
const THEME    = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG  = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const INK      = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"

# Imprint categorical palette — 8 hues, theme-independent, hybrid-v3 sort
const IMPRINT_PALETTE = [
    colorant"#009E73",  # 1 — brand green (ALWAYS first series)
    colorant"#C475FD",  # 2 — lavender
    colorant"#4467A3",  # 3 — blue
    colorant"#BD8233",  # 4 — ochre
]

# --- Data ---------------------------------------------------------------------
# Monthly grid-generation mix (GWh): fossil sources receding, renewables rising.
months = ["Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug"]
n_months = length(months)

solar       = [6.0, 8.0, 10.0, 12.0, 15.0, 17.0, 19.0, 20.0]
wind        = [10.0, 11.0, 13.0, 15.0, 17.0, 19.0, 21.0, 22.0]
natural_gas = [30.0, 29.0, 28.0, 28.0, 27.0, 27.0, 26.0, 26.0]
coal        = [42.0, 38.0, 34.0, 30.0, 28.0, 26.0, 25.0, 24.0]
totals = coal .+ natural_gas .+ wind .+ solar

# Legend/color order (canonical Imprint 1→4): solar, wind, natural gas, coal.
solar_color, wind_color, gas_color, coal_color = IMPRINT_PALETTE

# Visual stack order (bottom → top): coal, natural gas, wind, solar — legacy
# baseload at the bottom, emerging renewables on top.
x_idx  = repeat(1:n_months, outer = 4)
stack  = vcat(fill(1, n_months), fill(2, n_months), fill(3, n_months), fill(4, n_months))
values = vcat(coal, natural_gas, wind, solar)
colors = vcat(
    fill(coal_color, n_months),
    fill(gas_color, n_months),
    fill(wind_color, n_months),
    fill(solar_color, n_months),
)

# --- Plot ----------------------------------------------------------------------
fig = Figure(
    size            = (1600, 900),
    fontsize        = 14,
    backgroundcolor = PAGE_BG,
)

ax = Axis(
    fig[1, 1];
    title              = "bar-stacked · julia · makie · anyplot.ai",
    titlesize          = 20,
    titlecolor         = INK,
    xlabel             = "Month",
    ylabel             = "Electricity Generation (GWh)",
    xlabelsize         = 14,
    ylabelsize         = 14,
    xlabelcolor        = INK,
    ylabelcolor        = INK,
    xticklabelsize     = 12,
    yticklabelsize     = 12,
    xticklabelcolor    = INK_SOFT,
    yticklabelcolor    = INK_SOFT,
    xtickcolor         = INK_SOFT,
    ytickcolor         = INK_SOFT,
    backgroundcolor    = PAGE_BG,
    topspinevisible    = false,
    rightspinevisible  = false,
    leftspinecolor     = INK_SOFT,
    bottomspinecolor   = INK_SOFT,
    xgridvisible       = false,
    ygridcolor         = RGBAf(INK.r, INK.g, INK.b, 0.15),
)
ax.xticks = (1:n_months, months)

barplot!(
    ax, x_idx, values;
    stack = stack, color = colors, width = 0.72,
    strokewidth = 1.25, strokecolor = PAGE_BG,
)

text!(
    ax, 1:n_months, totals;
    text  = [string(round(Int, t)) for t in totals],
    align = (:center, :bottom),
    offset = (0, 6),
    color = INK,
    fontsize = 14,
    font = :bold,
    strokewidth = 0.75,
    strokecolor = PAGE_BG,
)

ylims!(ax, 0, maximum(totals) * 1.18)

elements = [PolyElement(color = c) for c in IMPRINT_PALETTE]
Legend(
    fig[1, 2], elements, ["Solar", "Wind", "Natural Gas", "Coal"], "Energy Source";
    framevisible = false,
    labelcolor   = INK,
    labelsize    = 13,
    titlecolor   = INK,
    titlesize    = 14,
    titlefont    = :bold,
    titlehalign  = :left,
)

# --- Save -----------------------------------------------------------------------
save("plot-$(THEME).png", fig; px_per_unit = 2)

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/bar-stacked/makie/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "bar-stacked",
  "language": "julia",
  "library": "makie",
  "page": "https://anyplot.ai/bar-stacked/julia/makie",
  "hub": "https://anyplot.ai/bar-stacked",
  "code_json": "https://api.anyplot.ai/specs/bar-stacked/makie/code",
  "spec_json": "https://api.anyplot.ai/specs/bar-stacked",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/bar-stacked/julia/makie/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/bar-stacked/julia/makie/plot-dark.png",
  "quality_score": 89.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Stacked Bar Chart on anyplot.ai.
