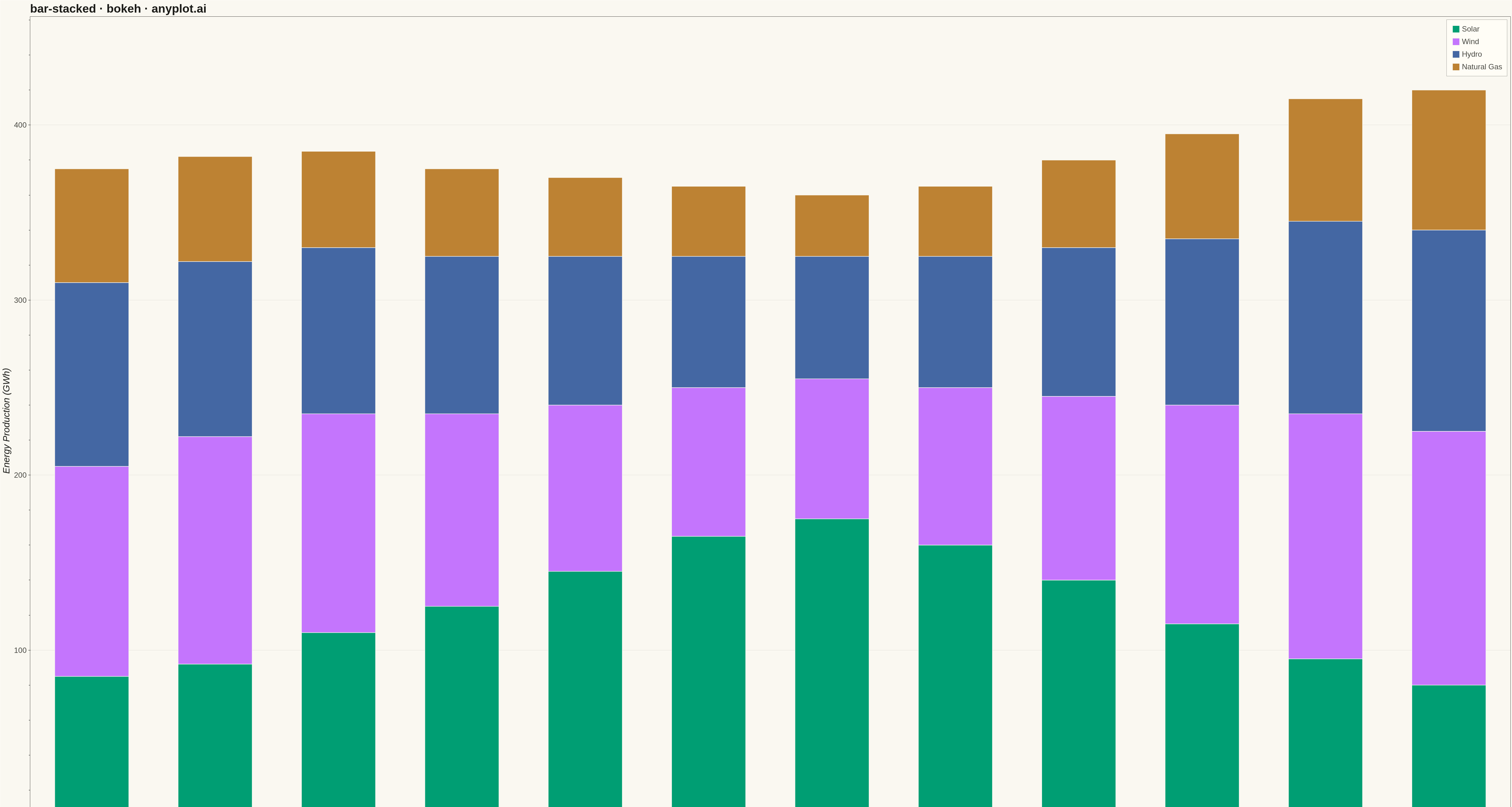

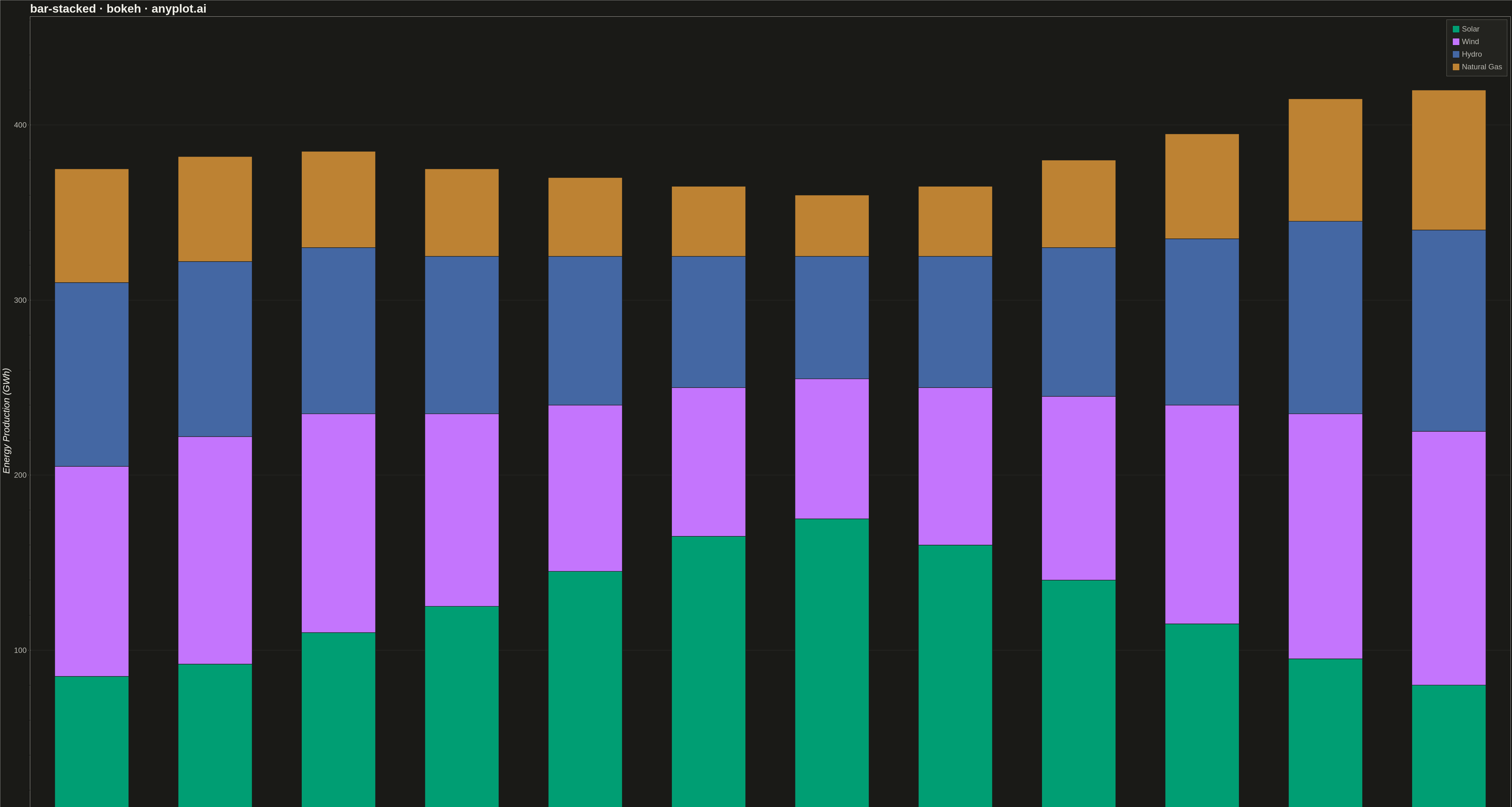

A stacked bar chart that displays multiple data series stacked on top of each other within each category, showing both individual component values and their cumulative totals. This visualization excels at revealing part-to-whole relationships while maintaining the ability to compare totals across categories. Stacked bar charts are particularly effective for composition analysis, where understanding how different components contribute to a whole is as important as comparing totals.
""" anyplot.ai
bar-stacked: Stacked Bar Chart
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 82/100 | Updated: 2026-05-09
"""
import os
import sys
import time
from pathlib import Path
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
# Remove current directory from sys.path to avoid shadowing bokeh module
current_dir = str(Path(__file__).parent.absolute())
sys.path = [p for p in sys.path if p != current_dir and p != ""]
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, HoverTool, Legend, LegendItem
from bokeh.plotting import figure
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Okabe-Ito palette (first series always #009E73)
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]
# Data: Monthly energy consumption by source (in gigawatt-hours)
months = ["Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec"]
sources = ["Solar", "Wind", "Hydro", "Natural Gas"]
colors = IMPRINT
data = {
"Solar": [85, 92, 110, 125, 145, 165, 175, 160, 140, 115, 95, 80],
"Wind": [120, 130, 125, 110, 95, 85, 80, 90, 105, 125, 140, 145],
"Hydro": [105, 100, 95, 90, 85, 75, 70, 75, 85, 95, 110, 115],
"Natural Gas": [65, 60, 55, 50, 45, 40, 35, 40, 50, 60, 70, 80],
}
# Calculate bottom positions for stacking
bottoms = {src: [0] * len(months) for src in sources}
running_total = [0] * len(months)
for src in sources:
bottoms[src] = running_total.copy()
running_total = [r + v for r, v in zip(running_total, data[src], strict=True)]
# Create figure
p = figure(
x_range=months,
width=4800,
height=2700,
title="bar-stacked · bokeh · anyplot.ai",
x_axis_label="Month",
y_axis_label="Energy Production (GWh)",
toolbar_location=None,
)
# Create stacked bars
legend_items = []
for src, color in zip(sources, colors, strict=True):
source = ColumnDataSource(
data={
"x": months,
"top": [b + v for b, v in zip(bottoms[src], data[src], strict=True)],
"bottom": bottoms[src],
"value": data[src],
"source": [src] * len(months),
}
)
renderer = p.vbar(
x="x", top="top", bottom="bottom", width=0.6, source=source, color=color, line_color=PAGE_BG, line_width=1.5
)
legend_items.append(LegendItem(label=src, renderers=[renderer]))
# Add hover tool
hover = HoverTool(
renderers=[renderer], tooltips=[("Month", "@x"), ("Source", "@source"), ("Production", "@value{0} GWh")]
)
p.add_tools(hover)
# Add legend
legend = Legend(
items=legend_items,
location="top_right",
label_text_font_size="18pt",
spacing=12,
padding=15,
background_fill_color=ELEVATED_BG,
background_fill_alpha=0.95,
border_line_color=INK_SOFT,
label_text_color=INK_SOFT,
glyph_height=28,
glyph_width=28,
)
p.add_layout(legend)
# Style the plot
p.title.text_font_size = "28pt"
p.title.text_color = INK
p.xaxis.axis_label_text_font_size = "22pt"
p.yaxis.axis_label_text_font_size = "22pt"
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_color = INK
p.xaxis.major_label_text_font_size = "18pt"
p.yaxis.major_label_text_font_size = "18pt"
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_color = INK_SOFT
# Grid styling
p.xgrid.grid_line_color = None
p.ygrid.grid_line_alpha = 0.10
p.ygrid.grid_line_color = INK
# Axis styling
p.xaxis.axis_line_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
p.xaxis.major_tick_line_color = INK_SOFT
p.yaxis.major_tick_line_color = INK_SOFT
p.outline_line_color = INK_SOFT
# Plot background
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
# Set y-axis range with padding
p.y_range.start = 0
p.y_range.end = max(running_total) * 1.1
# Determine output directory
impl_dir = Path(__file__).parent
os.chdir(impl_dir)
# Save HTML
output_file(f"plot-{THEME}.html")
save(p)
# Screenshot to PNG with headless Chrome
W, H = 4800, 2700
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{(impl_dir / f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(str(impl_dir / f"plot-{THEME}.png"))
driver.quit()
Part of Stacked Bar Chart on anyplot.ai.
