Stacked Bar Chart — ggplot2

A stacked bar chart that displays multiple data series stacked on top of each other within each category, showing both individual component values and their cumulative totals. This visualization excels at revealing part-to-whole relationships while maintaining the ability to compare totals across categories. Stacked bar charts are particularly effective for composition analysis, where understanding how different components contribute to a whole is as important as comparing totals.

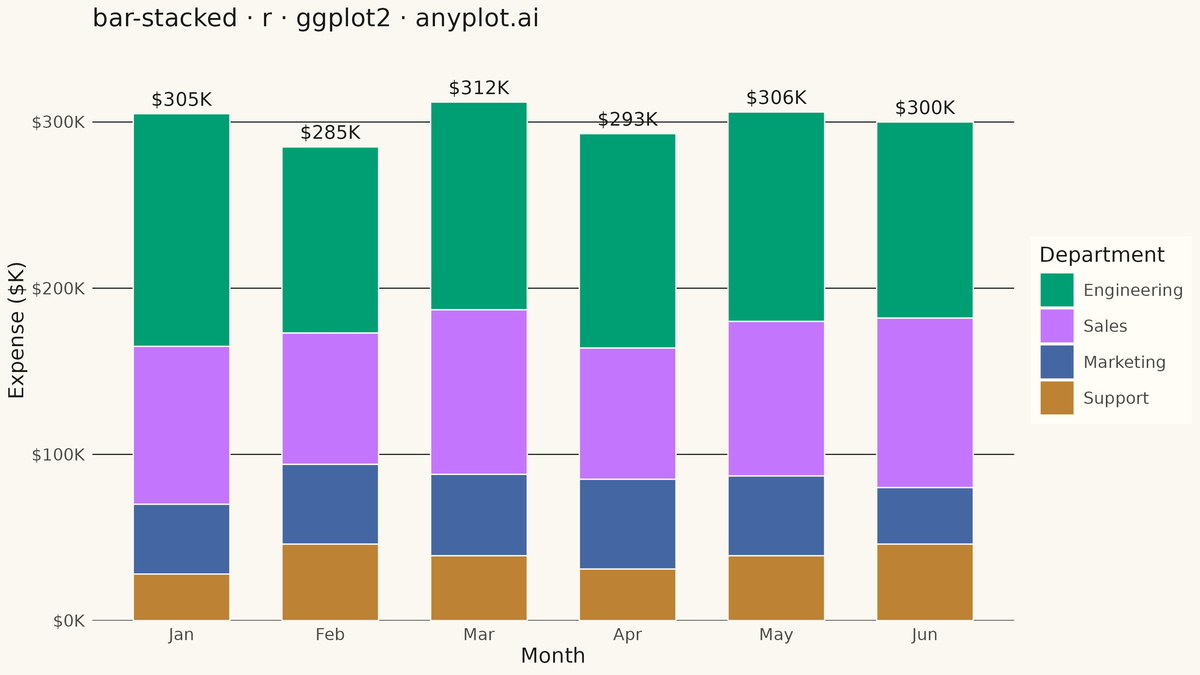

Stacked Bar Chart rendered with ggplot2

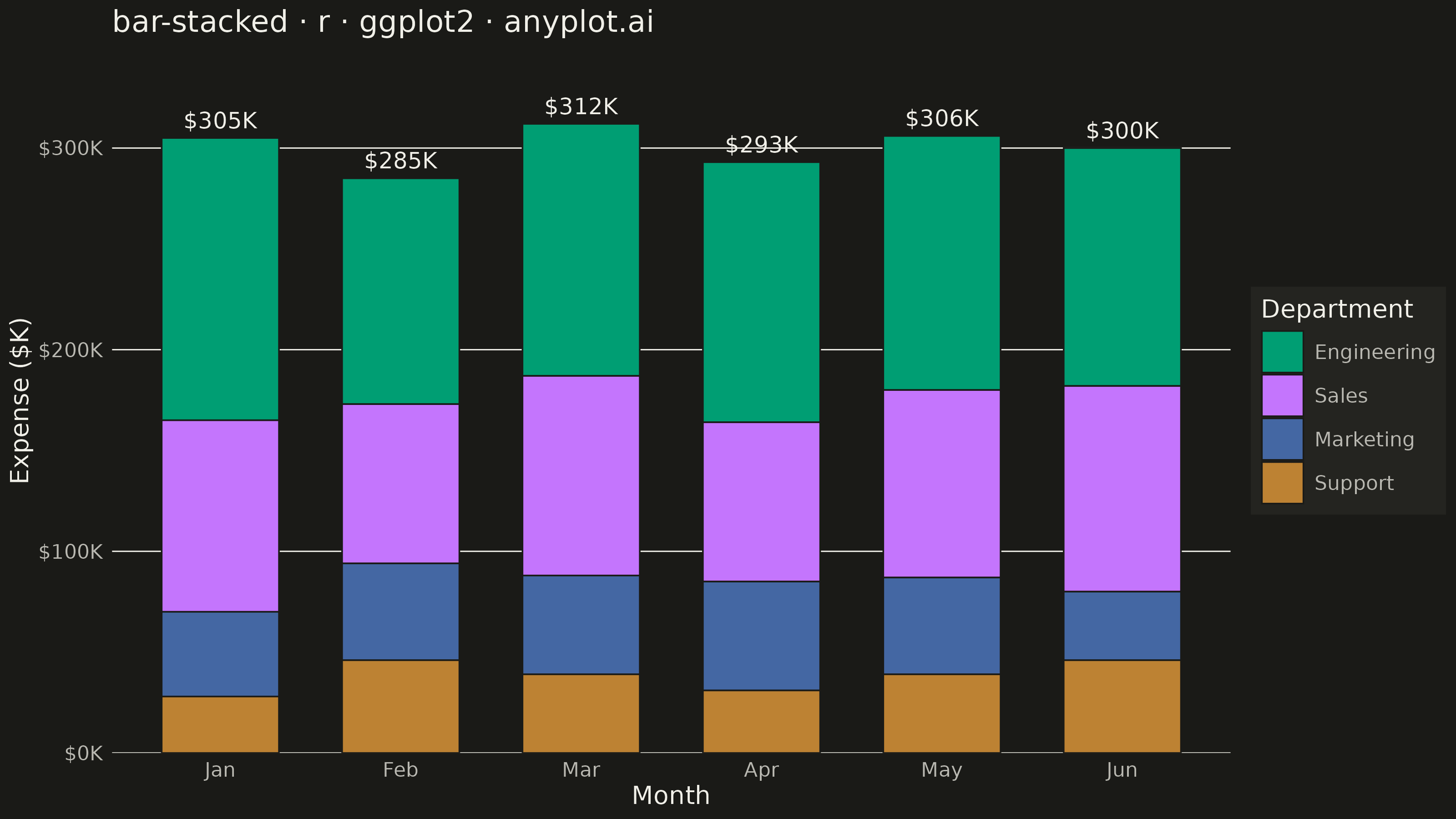

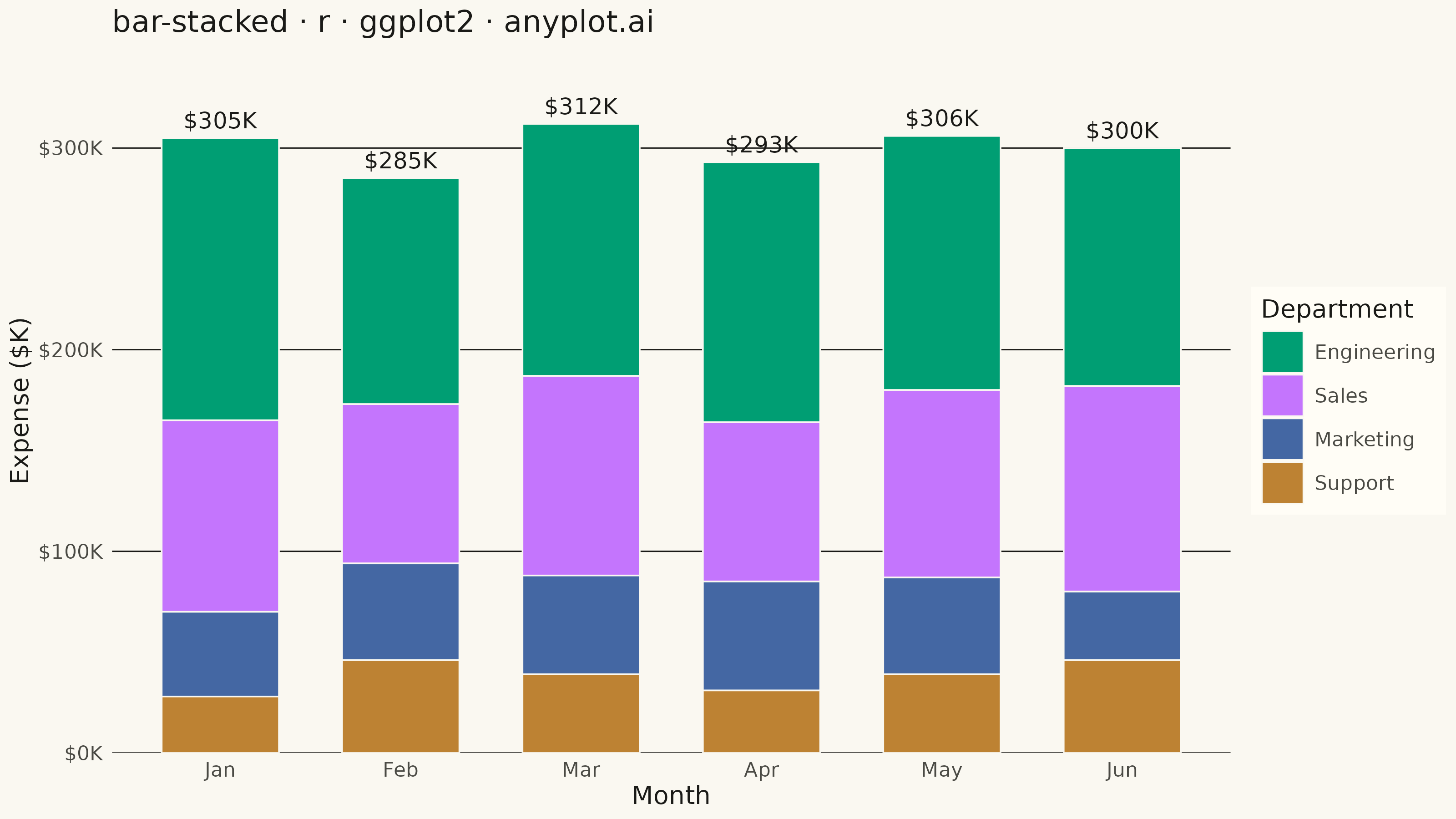

Renders

R source (ggplot2)

#' anyplot.ai
#' bar-stacked: Stacked Bar Chart
#' Library: ggplot2 3.5.1 | R 4.4.1
#' Quality: 92/100 | Created: 2026-09-02

library(ggplot2)
library(dplyr)
library(ragg)
library(scales)

set.seed(42)

# --- Theme tokens -------------------------------------------------------
THEME       <- Sys.getenv("ANYPLOT_THEME", "light")
PAGE_BG     <- if (THEME == "light") "#FAF8F1" else "#1A1A17"
ELEVATED_BG <- if (THEME == "light") "#FFFDF6" else "#242420"
INK         <- if (THEME == "light") "#1A1A17" else "#F0EFE8"
INK_SOFT    <- if (THEME == "light") "#4A4A44" else "#B8B7B0"

# Imprint categorical palette — first series is always brand green
IMPRINT_PALETTE <- c("#009E73", "#C475FD", "#4467A3", "#BD8233",
                     "#AE3030", "#2ABCCD", "#954477", "#99B314")

# --- Data -----------------------------------------------------------------
# Monthly department budget breakdown, in thousands of dollars.
department_levels   <- c("Engineering", "Sales", "Marketing", "Support")
department_baseline <- c(Engineering = 120, Sales = 80, Marketing = 50, Support = 40)

expense_df <- tibble::tibble(
  month = rep(factor(month.abb[1:6], levels = month.abb[1:6]), times = length(department_levels)),
  department = factor(rep(department_levels, each = 6), levels = department_levels),
  expense = as.vector(sapply(department_baseline, function(base) {
    pmax(round(base + rnorm(6, mean = 0, sd = base * 0.12)), 5)
  }))
)

totals_df <- expense_df %>%
  group_by(month) %>%
  summarise(total = sum(expense), .groups = "drop")

# --- Plot -------------------------------------------------------------------
p <- ggplot(expense_df, aes(x = month, y = expense, fill = department)) +
  geom_col(position = "stack", width = 0.65, color = PAGE_BG, linewidth = 0.3) +
  geom_text(
    aes(label = dollar(expense, prefix = "$", suffix = "K")),
    position = position_stack(vjust = 0.5),
    size = 2.6,
    fontface = "bold",
    color = "#FFFFFF"
  ) +
  geom_text(
    data = totals_df,
    aes(x = month, y = total, label = dollar(total, prefix = "$", suffix = "K")),
    inherit.aes = FALSE,
    vjust = -0.6,
    size = 3.2,
    color = INK
  ) +
  scale_fill_manual(values = IMPRINT_PALETTE[1:4], name = "Department") +
  scale_y_continuous(
    labels = label_dollar(prefix = "$", suffix = "K"),
    expand = expansion(mult = c(0, 0.12))
  ) +
  labs(
    title = "bar-stacked · r · ggplot2 · anyplot.ai",
    x = "Month",
    y = "Expense ($K)"
  ) +
  theme_minimal(base_size = 8) +
  theme(
    plot.background    = element_rect(fill = PAGE_BG, color = PAGE_BG),
    panel.background   = element_rect(fill = PAGE_BG, color = NA),
    panel.grid.major.x = element_blank(),
    panel.grid.minor   = element_blank(),
    panel.grid.major.y = element_line(color = INK, linewidth = 0.25),
    axis.ticks         = element_blank(),
    axis.title         = element_text(color = INK, size = 10),
    axis.text          = element_text(color = INK_SOFT, size = 8),
    plot.title         = element_text(color = INK, size = 12),
    legend.background  = element_rect(fill = ELEVATED_BG, color = INK_SOFT),
    legend.text        = element_text(color = INK_SOFT, size = 8),
    legend.title       = element_text(color = INK, size = 10),
    legend.position    = "right"
  )

# --- Save -------------------------------------------------------------------
ggsave(
  filename = sprintf("plot-%s.png", THEME),
  plot     = p,
  device   = ragg::agg_png,
  width    = 8,
  height   = 4.5,
  units    = "in",
  dpi      = 400
)

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/bar-stacked/ggplot2/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "bar-stacked",
  "language": "r",
  "library": "ggplot2",
  "page": "https://anyplot.ai/bar-stacked/r/ggplot2",
  "hub": "https://anyplot.ai/bar-stacked",
  "code_json": "https://api.anyplot.ai/specs/bar-stacked/ggplot2/code",
  "spec_json": "https://api.anyplot.ai/specs/bar-stacked",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/bar-stacked/r/ggplot2/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/bar-stacked/r/ggplot2/plot-dark.png",
  "quality_score": 92.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Stacked Bar Chart on anyplot.ai.
