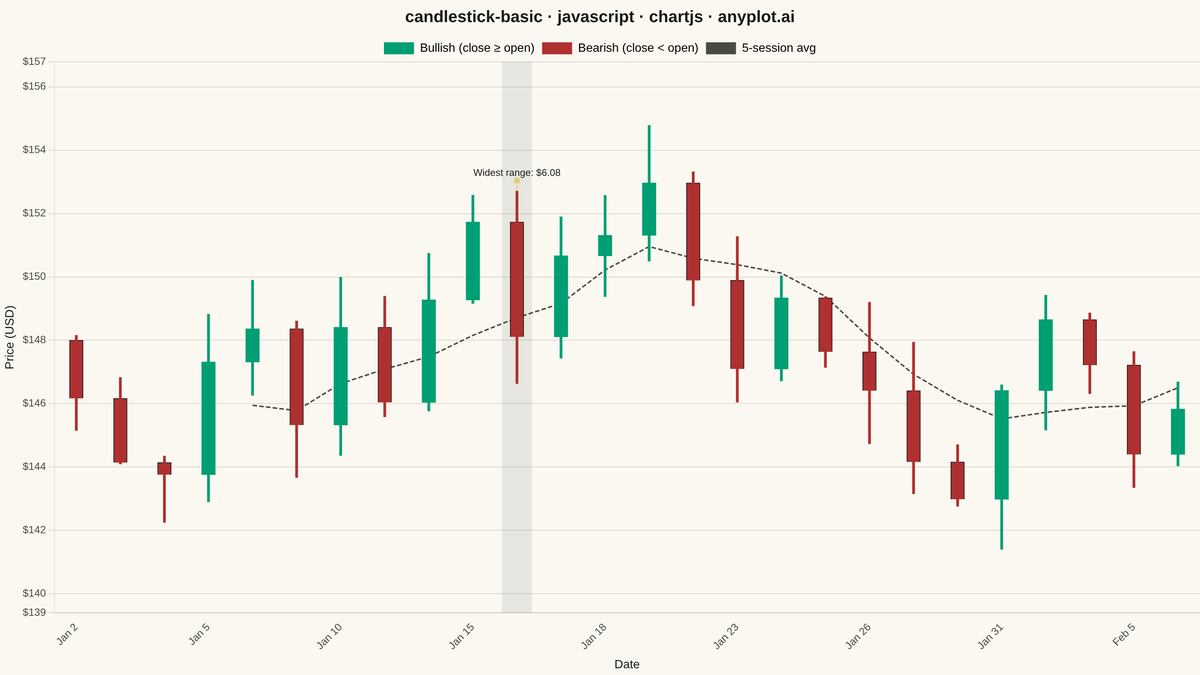

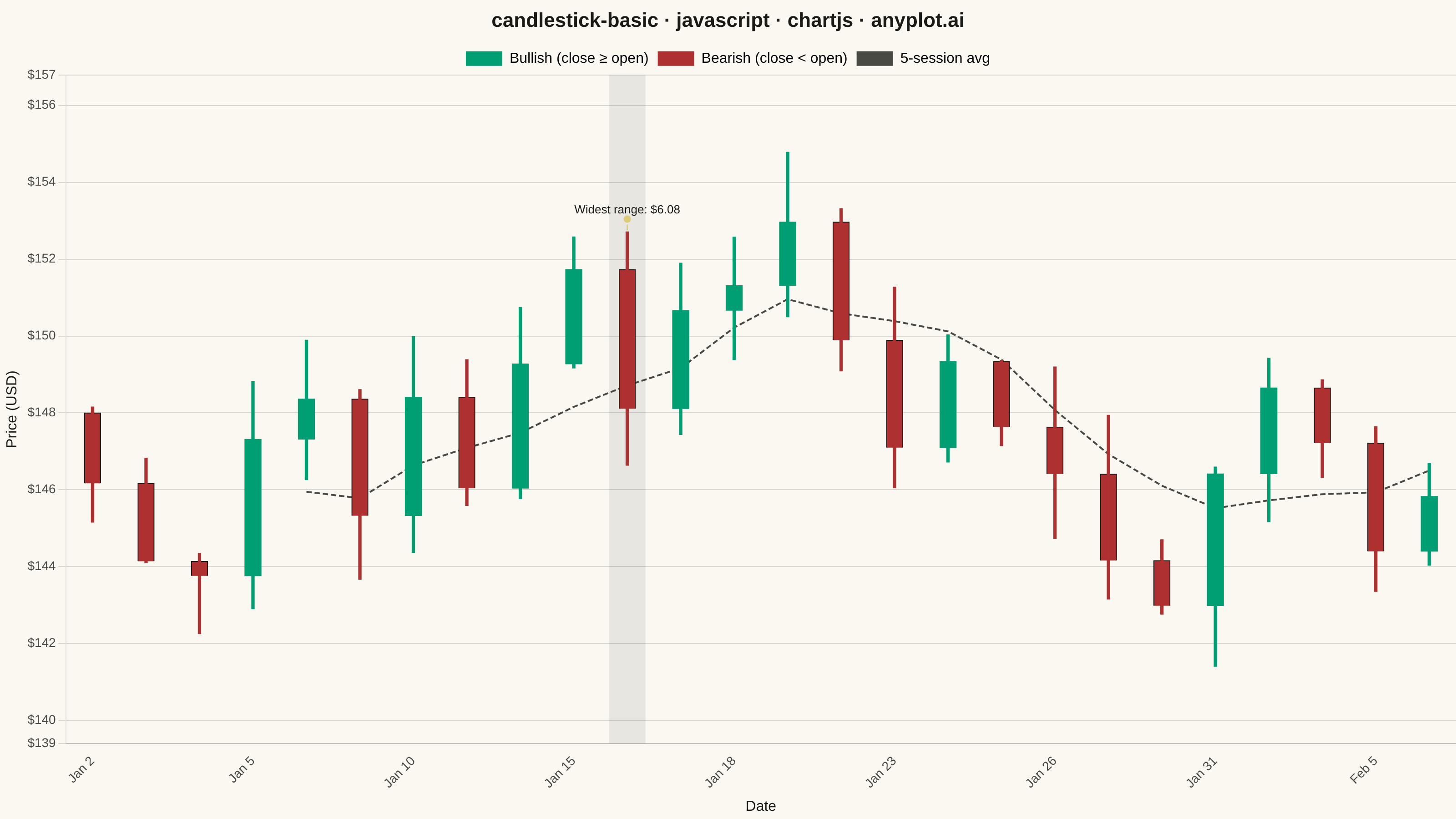

A candlestick chart displays open, high, low, and close (OHLC) price data for financial instruments over time. Each candlestick shows the price range within a specific period, with the body indicating the open-close range and the wicks (shadows) showing the high-low range. Color coding distinguishes bullish (price increase) from bearish (price decrease) periods, making it easy to identify trends and price patterns at a glance.
// anyplot.ai
// candlestick-basic: Basic Candlestick Chart
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 96/100 | Created: 2026-08-24
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Tiny fixed-seed LCG — the browser has no seeded RNG.
function lcg(seed) {
let state = seed;
return () => {
state = (state * 1664525 + 1013904223) % 4294967296;
return state / 4294967296;
};
}
const rand = lcg(42);
const sessionCount = 26;
const labels = [];
const opens = [];
const highs = [];
const lows = [];
const closes = [];
const barColors = [];
const barBorderColors = [];
const barBorderWidths = [];
let price = 148;
const date = new Date(Date.UTC(2024, 0, 2));
for (let i = 0; i < sessionCount; i++) {
while (date.getUTCDay() === 0 || date.getUTCDay() === 6) {
date.setUTCDate(date.getUTCDate() + 1);
}
const open = price;
const changePct = (rand() - 0.5) * 0.05;
const close = open * (1 + changePct);
const high = Math.max(open, close) * (1 + rand() * 0.012);
const low = Math.min(open, close) * (1 - rand() * 0.012);
const isBearish = close < open;
labels.push(date.toLocaleDateString("en-US", { month: "short", day: "numeric" }));
opens.push(open);
highs.push(high);
lows.push(low);
closes.push(close);
barColors.push(isBearish ? t.palette[4] : t.palette[0]);
// Redundant shape cue (VQ-04): bearish bodies get an ink outline so
// direction doesn't rely on hue alone for colorblind viewers.
barBorderColors.push(isBearish ? t.ink : "transparent");
barBorderWidths.push(isBearish ? 1 : 0);
price = close;
date.setUTCDate(date.getUTCDate() + 1);
}
const priceMin = Math.min(...lows);
const priceMax = Math.max(...highs);
const pricePad = (priceMax - priceMin) * 0.15;
// --- Storytelling: highlight the single widest daily range -----------------
let widestIdx = 0;
let widestRange = 0;
for (let i = 0; i < sessionCount; i++) {
const range = highs[i] - lows[i];
if (range > widestRange) {
widestRange = range;
widestIdx = i;
}
}
// --- 5-session moving average overlay ---------------------------------------
const maWindow = 5;
const movingAvg = closes.map((_, i) => {
if (i < maWindow - 1) return null;
let sum = 0;
for (let j = i - maWindow + 1; j <= i; j++) sum += closes[j];
return sum / maWindow;
});
// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Annotation plugin -------------------------------------------------------
// Draws a muted vertical band + amber marker over the widest single-day range,
// using only core Chart.js plugin hooks (no external plugin package).
const widestRangePlugin = {
id: "widestRangeHighlight",
beforeDatasetsDraw(chart) {
const { ctx, chartArea, scales } = chart;
const centerX = scales.x.getPixelForValue(widestIdx);
const bandHalfWidth = 20;
ctx.save();
ctx.globalAlpha = 0.08;
ctx.fillStyle = t.ink;
ctx.fillRect(centerX - bandHalfWidth, chartArea.top, bandHalfWidth * 2, chartArea.bottom - chartArea.top);
ctx.restore();
},
afterDatasetsDraw(chart) {
const { ctx, chartArea, scales } = chart;
const centerX = scales.x.getPixelForValue(widestIdx);
const topY = scales.y.getPixelForValue(highs[widestIdx]);
const markerY = Math.max(topY - 14, chartArea.top + 14);
let align = "center";
let textX = centerX;
if (centerX < chartArea.left + 80) {
align = "left";
textX = chartArea.left + 4;
} else if (centerX > chartArea.right - 80) {
align = "right";
textX = chartArea.right - 4;
}
ctx.save();
ctx.strokeStyle = t.amber;
ctx.lineWidth = 1.5;
ctx.beginPath();
ctx.moveTo(centerX, markerY + 6);
ctx.lineTo(centerX, topY - 2);
ctx.stroke();
ctx.fillStyle = t.amber;
ctx.beginPath();
ctx.arc(centerX, markerY, 4, 0, Math.PI * 2);
ctx.fill();
ctx.fillStyle = t.ink;
ctx.font = "13px sans-serif";
ctx.textAlign = align;
ctx.fillText(`Widest range: $${widestRange.toFixed(2)}`, textX, markerY - 10);
ctx.restore();
},
};
// --- Chart ---------------------------------------------------------------
// Core Chart.js has no dedicated candlestick type, so the candle is built from
// two overlaid floating-bar datasets on the same category axis: a thin "wick"
// (low -> high) and a wider "body" (open -> close), both centered on the same
// tick via grouped: false. This uses only core Chart.js bar-chart features.
new Chart(canvas, {
type: "bar",
data: {
labels,
datasets: [
{
label: "Wick",
data: lows.map((low, i) => [low, highs[i]]),
backgroundColor: barColors,
borderWidth: 0,
barThickness: 3,
grouped: false,
},
{
label: "Body",
data: opens.map((open, i) => [open, closes[i]]),
backgroundColor: barColors,
borderColor: barBorderColors,
borderWidth: barBorderWidths,
barThickness: 18,
grouped: false,
},
{
type: "line",
label: "5-session avg",
data: movingAvg,
borderColor: t.inkSoft,
borderWidth: 2,
borderDash: [6, 3],
pointRadius: 0,
spanGaps: false,
},
],
},
plugins: [widestRangePlugin],
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
plugins: {
title: {
display: true,
text: "candlestick-basic · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 22 },
},
legend: {
labels: {
color: t.ink,
font: { size: 16 },
generateLabels: () => [
{ text: "Bullish (close ≥ open)", fillStyle: t.palette[0], strokeStyle: t.palette[0], lineWidth: 0 },
{ text: "Bearish (close < open)", fillStyle: t.palette[4], strokeStyle: t.palette[4], lineWidth: 0 },
{ text: "5-session avg", fillStyle: t.inkSoft, strokeStyle: t.inkSoft, lineWidth: 0 },
],
},
onClick: () => {},
},
tooltip: {
mode: "index",
intersect: false,
filter: (item) => item.dataset.label === "Body",
callbacks: {
label: (item) => {
const i = item.dataIndex;
return `O: $${opens[i].toFixed(2)} H: $${highs[i].toFixed(2)} L: $${lows[i].toFixed(2)} C: $${closes[i].toFixed(2)}`;
},
},
},
},
scales: {
x: {
ticks: {
color: t.inkSoft,
font: { size: 14 },
maxRotation: 45,
minRotation: 45,
autoSkip: true,
maxTicksLimit: 12,
},
grid: { display: false },
title: { display: true, text: "Date", color: t.ink, font: { size: 16 } },
},
y: {
min: priceMin - pricePad,
max: priceMax + pricePad,
ticks: {
color: t.inkSoft,
font: { size: 14 },
callback: (value) => "$" + value.toFixed(0),
},
grid: { color: t.grid },
title: { display: true, text: "Price (USD)", color: t.ink, font: { size: 16 } },
},
},
},
});
Part of Basic Candlestick Chart on anyplot.ai.
