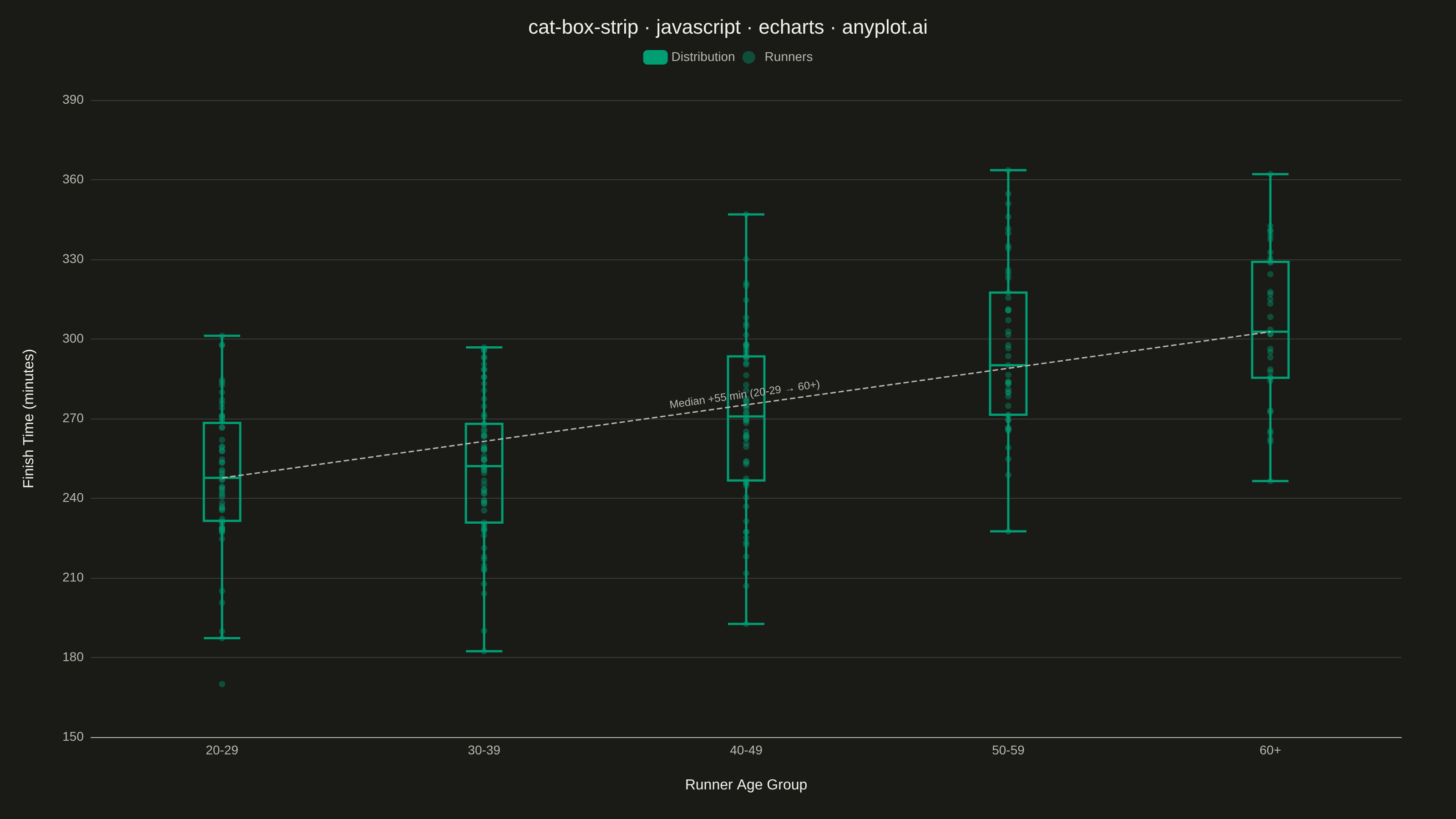

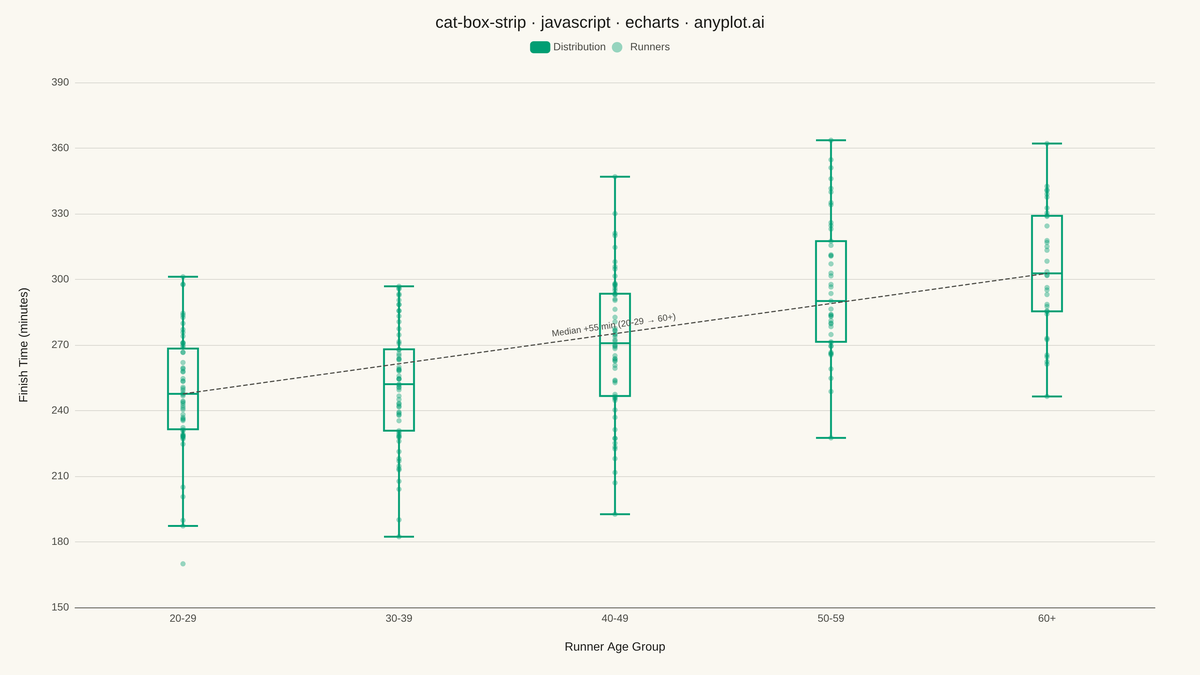

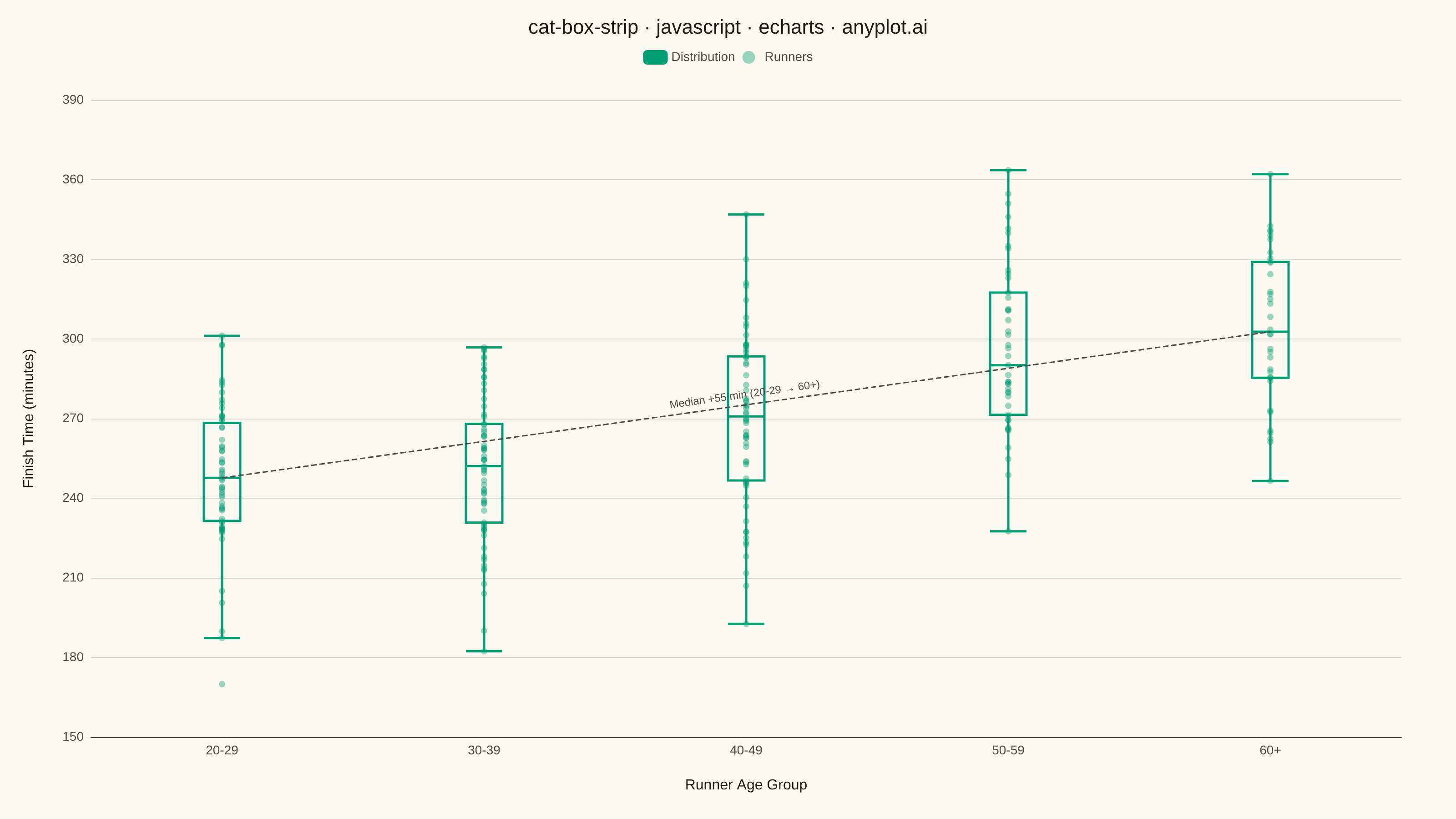

A combined visualization that overlays individual data points (strip plot) on top of a box plot. This provides both summary statistics (median, quartiles, whiskers) and visibility of the actual data distribution.
// anyplot.ai
// cat-box-strip: Box Plot with Strip Overlay
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 86/100 | Created: 2026-09-02
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Deterministic PRNG (LCG) + Box-Muller gaussian -------------------------
let seed = 42;
function lcg() {
seed = (seed * 1664525 + 1013904223) % 4294967296;
return seed / 4294967296;
}
function gaussian(mean, std) {
const u1 = Math.max(lcg(), 1e-12);
const u2 = lcg();
const z = Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
return mean + z * std;
}
// --- Box-plot summary stats (Tukey whiskers, 1.5x IQR fence) ---------------
function boxStats(values) {
const sorted = [...values].sort((a, b) => a - b);
const quantile = (p) => {
const pos = (sorted.length - 1) * p;
const lo = Math.floor(pos);
const hi = Math.ceil(pos);
return lo === hi
? sorted[lo]
: sorted[lo] + (sorted[hi] - sorted[lo]) * (pos - lo);
};
const q1 = quantile(0.25);
const median = quantile(0.5);
const q3 = quantile(0.75);
const iqr = q3 - q1;
const lowerFence = q1 - 1.5 * iqr;
const upperFence = q3 + 1.5 * iqr;
const withinFence = sorted.filter((v) => v >= lowerFence && v <= upperFence);
const whiskerMin = withinFence.length ? withinFence[0] : sorted[0];
const whiskerMax = withinFence.length
? withinFence[withinFence.length - 1]
: sorted[sorted.length - 1];
return [whiskerMin, q1, median, q3, whiskerMax];
}
// --- Data: marathon finish times (minutes) by runner age group -------------
const ageGroups = ["20-29", "30-39", "40-49", "50-59", "60+"];
const meansByGroup = [245, 252, 268, 288, 315];
const stdsByGroup = [28, 30, 32, 34, 36];
const countsByGroup = [58, 65, 62, 45, 34];
const rawByGroup = ageGroups.map((_, i) => {
const values = [];
for (let j = 0; j < countsByGroup[i]; j++) {
values.push(Math.max(150, gaussian(meansByGroup[i], stdsByGroup[i])));
}
return values;
});
const boxData = rawByGroup.map(boxStats);
const medians = boxData.map((d) => d[2]);
const medianDelta = Math.round(medians[medians.length - 1] - medians[0]);
// Strip overlay: every individual runner, jittered around its category slot
const stripPoints = [];
rawByGroup.forEach((values, catIndex) => {
values.forEach((v) => {
const jitter = (lcg() - 0.5) * 0.72;
stripPoints.push([catIndex + jitter, v]);
});
});
// --- Init --------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option --------------------------------------------------------------
chart.setOption({
animation: false,
color: t.palette,
backgroundColor: "transparent",
title: {
text: "cat-box-strip · javascript · echarts · anyplot.ai",
left: "center",
textStyle: { color: t.ink, fontSize: 22, fontWeight: 500 },
},
legend: {
data: ["Distribution", "Runners"],
top: 50,
textStyle: { color: t.inkSoft, fontSize: 14 },
},
grid: { left: 100, right: 60, top: 110, bottom: 90 },
xAxis: {
type: "category",
data: ageGroups,
name: "Runner Age Group",
nameLocation: "middle",
nameGap: 45,
nameTextStyle: { color: t.ink, fontSize: 16 },
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { show: false },
},
yAxis: {
type: "value",
scale: true,
name: "Finish Time (minutes)",
nameLocation: "middle",
nameGap: 60,
nameTextStyle: { color: t.ink, fontSize: 16 },
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
splitLine: { lineStyle: { color: t.grid } },
},
series: [
{
name: "Distribution",
type: "boxplot",
data: boxData,
boxWidth: [20, 40],
itemStyle: {
color: "transparent",
borderColor: t.palette[0],
borderWidth: 2.5,
},
markLine: {
silent: true,
symbol: ["none", "none"],
lineStyle: { color: t.inkSoft, type: "dashed", width: 1.5 },
label: {
show: true,
color: t.inkSoft,
fontSize: 12,
position: "middle",
formatter: `Median +${medianDelta} min (20-29 → 60+)`,
},
data: [
[
{ coord: [ageGroups[0], medians[0]] },
{ coord: [ageGroups[ageGroups.length - 1], medians[medians.length - 1]] },
],
],
},
z: 2,
},
{
name: "Runners",
type: "scatter",
data: stripPoints,
symbolSize: 7,
itemStyle: { color: t.palette[0], opacity: 0.4 },
z: 3,
silent: true,
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/cat-box-strip/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "cat-box-strip",
"language": "javascript",
"library": "echarts",
"page": "https://anyplot.ai/cat-box-strip/javascript/echarts",
"hub": "https://anyplot.ai/cat-box-strip",
"code_json": "https://api.anyplot.ai/specs/cat-box-strip/echarts/code",
"spec_json": "https://api.anyplot.ai/specs/cat-box-strip",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/cat-box-strip/javascript/echarts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/cat-box-strip/javascript/echarts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/cat-box-strip/javascript/echarts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/cat-box-strip/javascript/echarts/plot-dark.html",
"quality_score": 86.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Box Plot with Strip Overlay on anyplot.ai.
