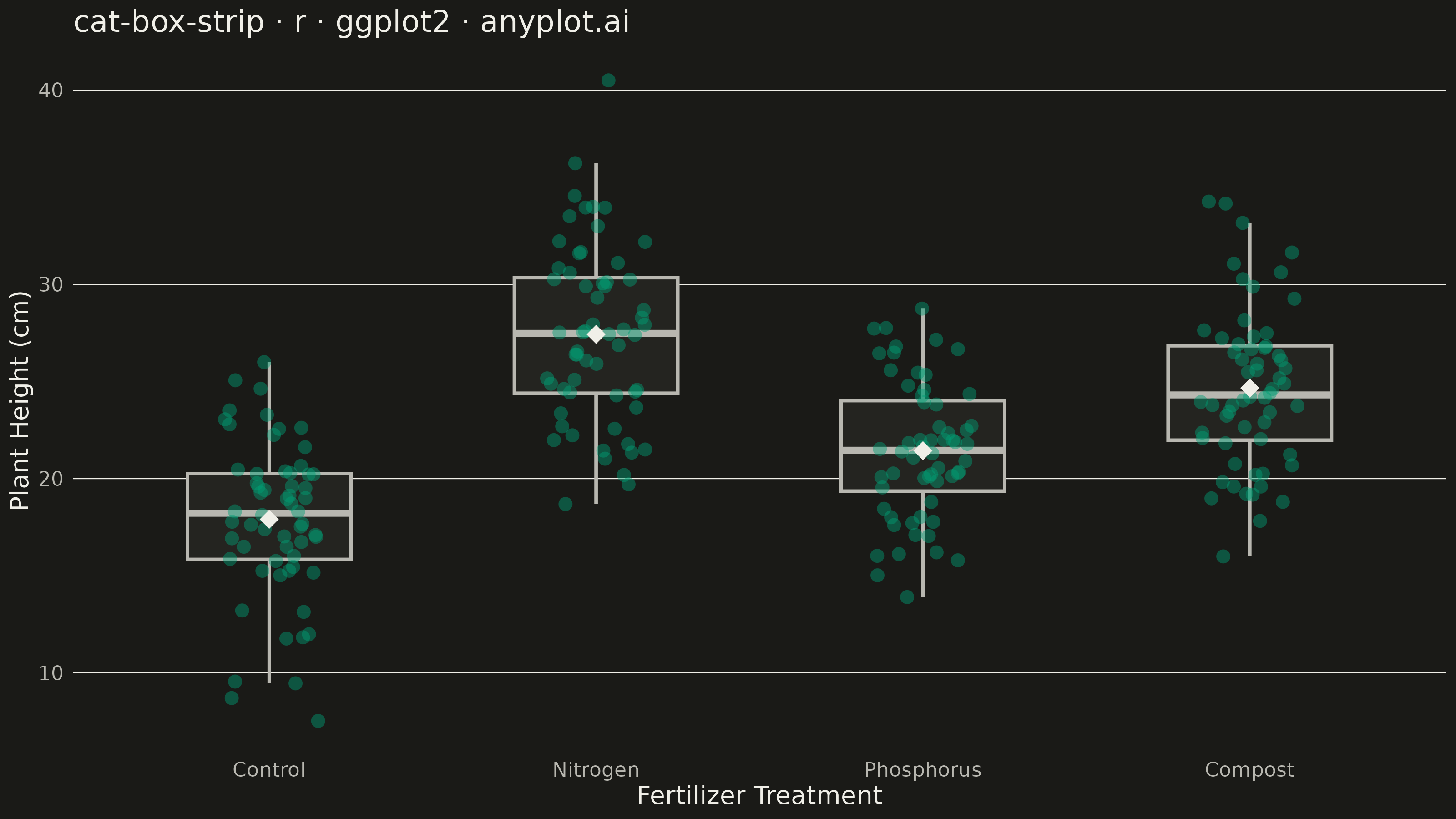

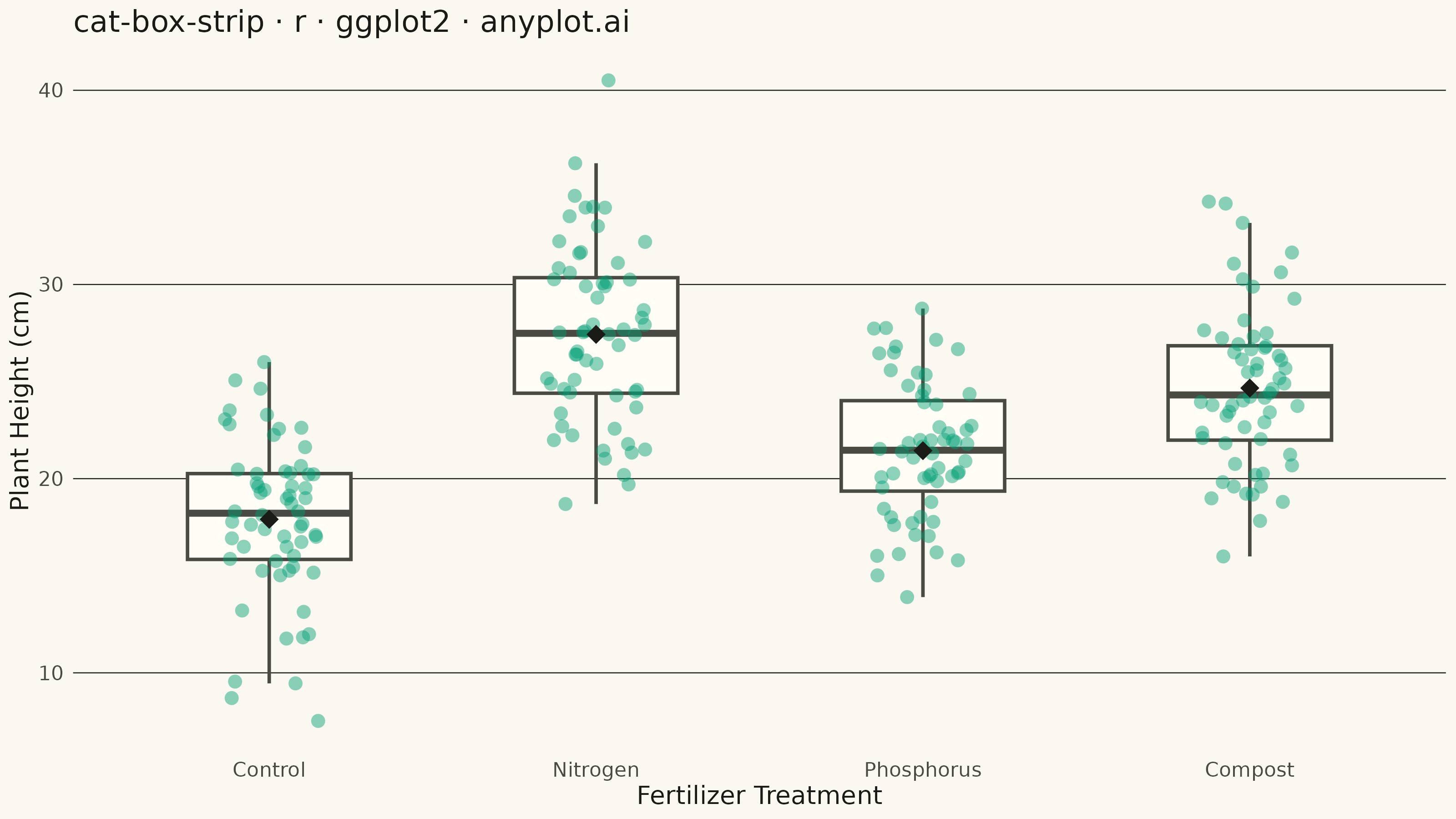

A combined visualization that overlays individual data points (strip plot) on top of a box plot. This provides both summary statistics (median, quartiles, whiskers) and visibility of the actual data distribution.
#' anyplot.ai
#' cat-box-strip: Box Plot with Strip Overlay
#' Library: ggplot2 3.5.1 | R 4.4.1
#' Quality: 89/100 | Created: 2026-09-02
library(ggplot2)
library(dplyr)
library(ragg)
set.seed(42)
# --- Theme tokens -------------------------------------------------------
THEME <- Sys.getenv("ANYPLOT_THEME", "light")
PAGE_BG <- if (THEME == "light") "#FAF8F1" else "#1A1A17"
ELEVATED_BG <- if (THEME == "light") "#FFFDF6" else "#242420"
INK <- if (THEME == "light") "#1A1A17" else "#F0EFE8"
INK_SOFT <- if (THEME == "light") "#4A4A44" else "#B8B7B0"
BRAND <- "#009E73" # Imprint palette position 1 — always first series
# --- Data -----------------------------------------------------------------
fertilizers <- c("Control", "Nitrogen", "Phosphorus", "Compost")
n_per_group <- 60
growth_df <- bind_rows(lapply(fertilizers, function(fertilizer) {
base <- switch(fertilizer,
Control = 18,
Nitrogen = 27,
Phosphorus = 22,
Compost = 25
)
spread <- switch(fertilizer,
Control = 3.5,
Nitrogen = 5.0,
Phosphorus = 4.0,
Compost = 4.5
)
data.frame(
fertilizer = fertilizer,
plant_height = rnorm(n_per_group, mean = base, sd = spread)
)
}))
growth_df$fertilizer <- factor(growth_df$fertilizer, levels = fertilizers)
# --- Plot -------------------------------------------------------------------
title_text <- "cat-box-strip · r · ggplot2 · anyplot.ai"
p <- ggplot(growth_df, aes(x = fertilizer, y = plant_height)) +
geom_boxplot(
color = INK_SOFT,
fill = ELEVATED_BG,
outlier.shape = NA,
linewidth = 0.65,
width = 0.5
) +
geom_jitter(
width = 0.15,
height = 0,
size = 2.6,
alpha = 0.45,
color = BRAND,
stroke = 0
) +
stat_summary(
fun = mean,
geom = "point",
shape = 18,
size = 3.2,
color = INK
) +
labs(
title = title_text,
x = "Fertilizer Treatment",
y = "Plant Height (cm)"
) +
theme_minimal(base_size = 8) +
theme(
plot.background = element_rect(fill = PAGE_BG, color = PAGE_BG),
panel.background = element_rect(fill = PAGE_BG, color = NA),
panel.grid.major.x = element_blank(),
panel.grid.minor = element_blank(),
panel.grid.major.y = element_line(color = INK, linewidth = 0.2),
axis.title = element_text(color = INK, size = 10),
axis.text = element_text(color = INK_SOFT, size = 8),
axis.ticks = element_blank(),
plot.title = element_text(color = INK, size = 12, face = "plain"),
legend.position = "none"
)
# --- Save -------------------------------------------------------------------
ggsave(
filename = sprintf("plot-%s.png", THEME),
plot = p,
device = ragg::agg_png,
width = 8,
height = 4.5,
units = "in",
dpi = 400
)
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/cat-box-strip/ggplot2/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
