Box Plot with Strip Overlay — Seaborn

A combined visualization that overlays individual data points (strip plot) on top of a box plot. This provides both summary statistics (median, quartiles, whiskers) and visibility of the actual data distribution.

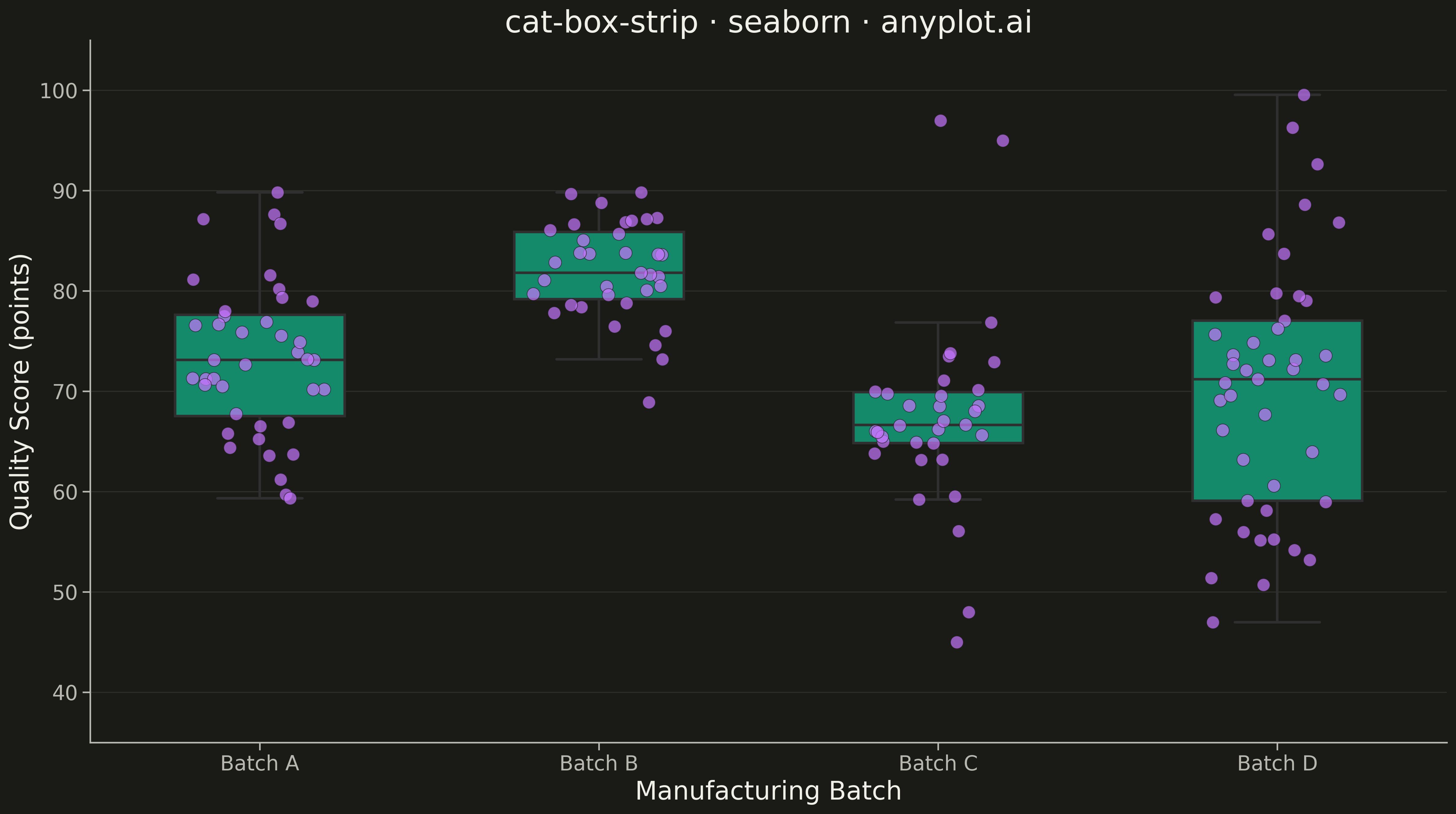

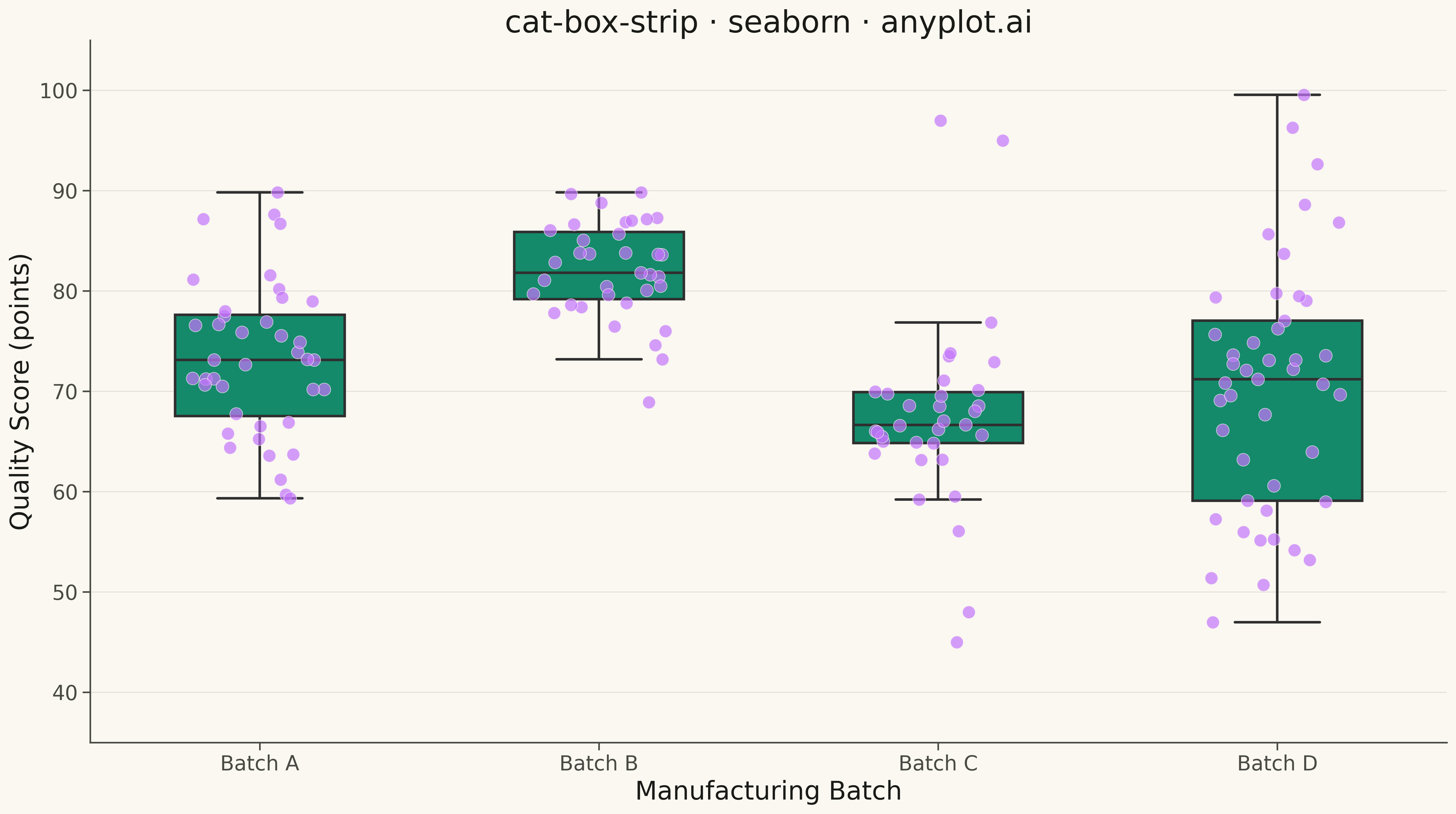

Box Plot with Strip Overlay rendered with Seaborn

Python source (Seaborn)

""" anyplot.ai
cat-box-strip: Box Plot with Strip Overlay
Library: seaborn 0.13.2 | Python 3.13.13
Quality: 92/100 | Updated: 2026-05-13
"""

import os

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette - brand green for boxes, vermillion for strip points
BRAND = "#009E73"
ACCENT = "#C475FD"

# Data - product quality scores across manufacturing batches
np.random.seed(42)

# Create groups with different distributions to show boxplot features
batch_a = np.random.normal(75, 8, 40)  # Centered, moderate spread
batch_b = np.random.normal(82, 5, 35)  # Higher center, tight spread
batch_c = np.concatenate(
    [
        np.random.normal(68, 6, 30),  # Main distribution
        [45, 48, 95, 97],  # Outliers
    ]
)
batch_d = np.random.normal(70, 12, 45)  # Wide spread

# Combine into DataFrame
df = pd.DataFrame(
    {
        "Batch": ["Batch A"] * len(batch_a)
        + ["Batch B"] * len(batch_b)
        + ["Batch C"] * len(batch_c)
        + ["Batch D"] * len(batch_d),
        "Quality Score": np.concatenate([batch_a, batch_b, batch_c, batch_d]),
    }
)

# Configure seaborn theme
sns.set_theme(
    style="ticks",
    rc={
        "figure.facecolor": PAGE_BG,
        "axes.facecolor": PAGE_BG,
        "axes.edgecolor": INK_SOFT,
        "axes.labelcolor": INK,
        "text.color": INK,
        "xtick.color": INK_SOFT,
        "ytick.color": INK_SOFT,
        "grid.color": INK,
        "grid.alpha": 0.10,
        "legend.facecolor": ELEVATED_BG,
        "legend.edgecolor": INK_SOFT,
    },
)

# Plot
fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

# Box plot in brand green
sns.boxplot(data=df, x="Batch", y="Quality Score", color=BRAND, width=0.5, linewidth=2, fliersize=0, ax=ax)

# Strip plot overlay in accent vermillion
sns.stripplot(
    data=df,
    x="Batch",
    y="Quality Score",
    color=ACCENT,
    size=10,
    alpha=0.7,
    jitter=0.2,
    edgecolor=PAGE_BG,
    linewidth=0.5,
    ax=ax,
)

# Style
ax.set_title("cat-box-strip · seaborn · anyplot.ai", fontsize=24, color=INK)
ax.set_xlabel("Manufacturing Batch", fontsize=20, color=INK)
ax.set_ylabel("Quality Score (points)", fontsize=20, color=INK)
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT)

# Spines
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
for spine in ("left", "bottom"):
    ax.spines[spine].set_color(INK_SOFT)

# Grid
ax.yaxis.grid(True, alpha=0.10, linewidth=0.8, color=INK)

# Y-axis limits with padding
ax.set_ylim(35, 105)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)

Part of Box Plot with Strip Overlay on anyplot.ai.
