Box Plot with Strip Overlay — Plotly

A combined visualization that overlays individual data points (strip plot) on top of a box plot. This provides both summary statistics (median, quartiles, whiskers) and visibility of the actual data distribution.

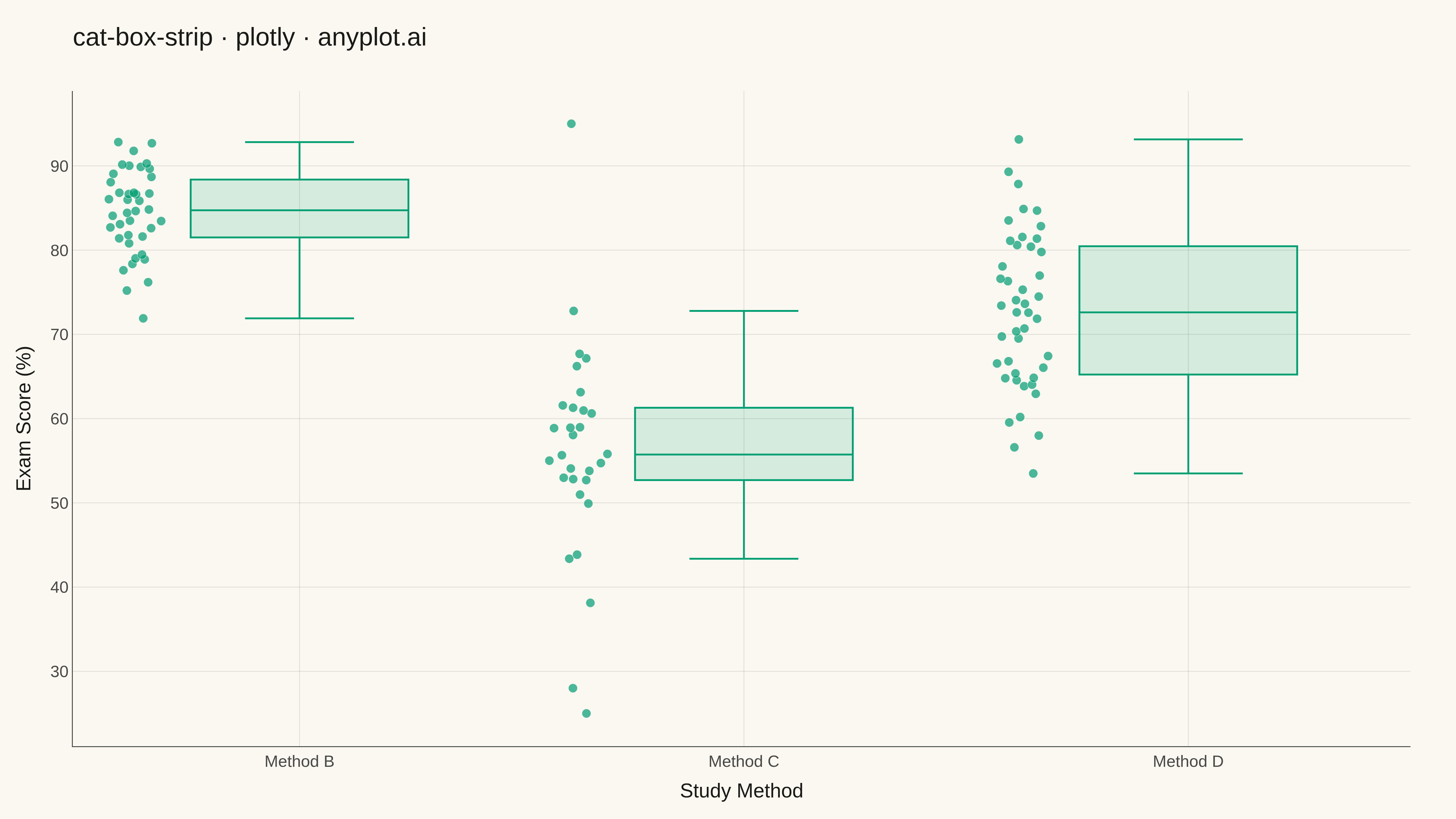

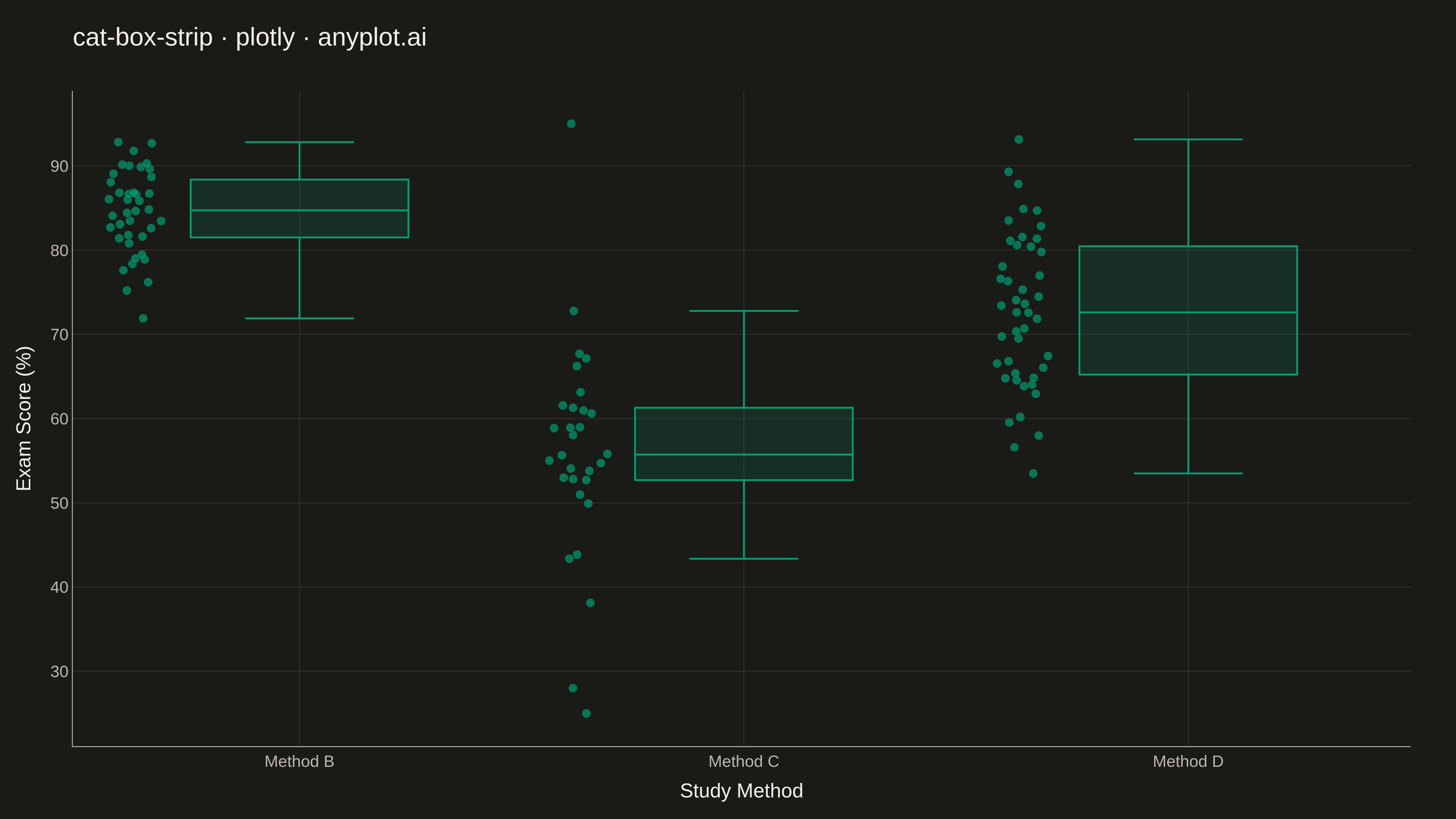

Box Plot with Strip Overlay rendered with Plotly

Python source (Plotly)

""" anyplot.ai
cat-box-strip: Box Plot with Strip Overlay
Library: plotly 6.7.0 | Python 3.13.13
Quality: 83/100 | Updated: 2026-05-13
"""

import os

import numpy as np
import pandas as pd
import plotly.graph_objects as go


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)"
BRAND = "#009E73"  # Okabe-Ito position 1
SERIES2 = "#C475FD"  # Okabe-Ito position 2

# Data - Exam scores across different study methods
np.random.seed(42)

categories = ["Methods A", "Method B", "Method C", "Method D"]
n_per_group = [35, 40, 30, 45]

data = []
# Method A: Normal distribution, moderate spread
data.extend([{"Method": "Method A", "Score": v} for v in np.random.normal(72, 8, n_per_group[0])])
# Method B: Higher scores, tighter spread
data.extend([{"Method": "Method B", "Score": v} for v in np.random.normal(85, 5, n_per_group[1])])
# Method C: Lower scores with some outliers
scores_c = np.concatenate([np.random.normal(58, 10, n_per_group[2] - 3), [25, 28, 95]])
data.extend([{"Method": "Method C", "Score": v} for v in scores_c])
# Method D: Bimodal distribution
scores_d = np.concatenate(
    [np.random.normal(65, 6, n_per_group[3] // 2), np.random.normal(80, 6, n_per_group[3] - n_per_group[3] // 2)]
)
data.extend([{"Method": "Method D", "Score": v} for v in scores_d])

df = pd.DataFrame(data)

# Create figure
fig = go.Figure()

# Add box plots for each category using native boxpoints
for cat in categories:
    cat_data = df[df["Method"] == cat]["Score"]
    fig.add_trace(
        go.Box(
            y=cat_data,
            name=cat,
            boxmean=False,
            marker_color=BRAND,
            line=dict(color=BRAND, width=2),
            fillcolor="rgba(0, 158, 115, 0.15)",
            boxpoints="all",
            jitter=0.3,
            pointpos=-1.5,
            marker=dict(size=10, color=BRAND, opacity=0.7, line=dict(color=PAGE_BG, width=0.5)),
            showlegend=False,
        )
    )

# Update layout with theme-adaptive styling
fig.update_layout(
    title=dict(text="cat-box-strip · plotly · anyplot.ai", font=dict(size=28, color=INK)),
    xaxis=dict(
        title=dict(text="Study Method", font=dict(size=22, color=INK)),
        tickfont=dict(size=18, color=INK_SOFT),
        gridcolor=GRID,
        linecolor=INK_SOFT,
        zerolinecolor=INK_SOFT,
    ),
    yaxis=dict(
        title=dict(text="Exam Score (%)", font=dict(size=22, color=INK)),
        tickfont=dict(size=18, color=INK_SOFT),
        gridcolor=GRID,
        gridwidth=1,
        linecolor=INK_SOFT,
        zerolinecolor=INK_SOFT,
    ),
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    font=dict(color=INK),
    showlegend=False,
    margin=dict(l=80, r=50, t=100, b=80),
    hovermode="closest",
)

# Save as PNG and HTML
fig.write_image(f"plot-{THEME}.png", width=1600, height=900, scale=3)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")
