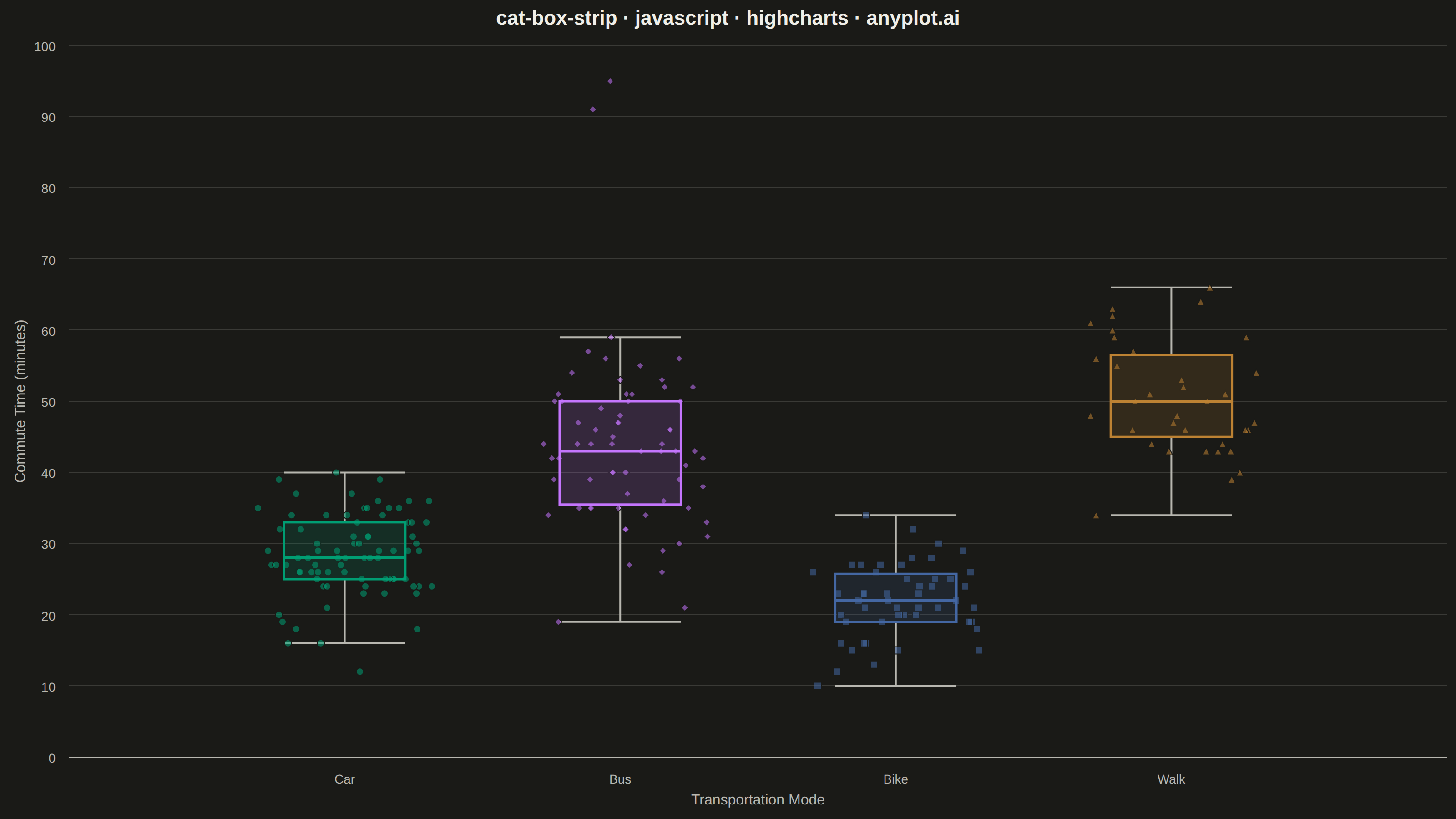

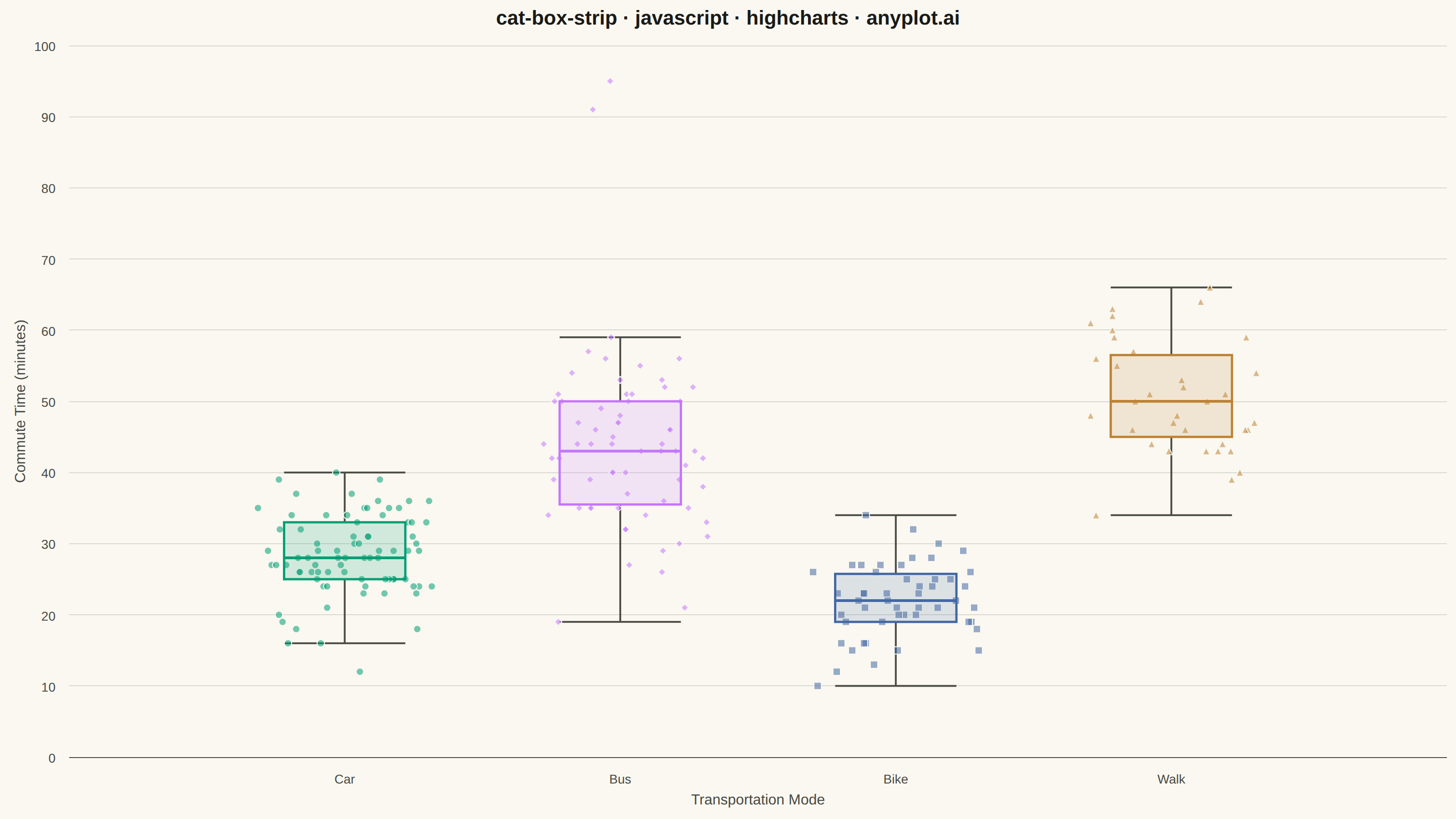

A combined visualization that overlays individual data points (strip plot) on top of a box plot. This provides both summary statistics (median, quartiles, whiskers) and visibility of the actual data distribution.
// anyplot.ai
// cat-box-strip: Box Plot with Strip Overlay
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-02
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Commute time (minutes) by transportation mode. Sample sizes differ across
// groups on purpose (comparing groups with sample size awareness).
function lcg(seed) {
let state = seed;
return function () {
state = (state * 1664525 + 1013904223) % 4294967296;
return state / 4294967296;
};
}
const rand = lcg(42);
function randNormal() {
const u1 = Math.max(rand(), 1e-9);
const u2 = rand();
return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}
function quantile(sorted, q) {
const pos = (sorted.length - 1) * q;
const base = Math.floor(pos);
const rest = pos - base;
return sorted[base + 1] !== undefined
? sorted[base] + rest * (sorted[base + 1] - sorted[base])
: sorted[base];
}
const groups = [
{ name: "Car", n: 80, mean: 28, std: 6 },
{ name: "Bus", n: 65, mean: 42, std: 10 },
{ name: "Bike", n: 50, mean: 22, std: 5 },
{ name: "Walk", n: 35, mean: 48, std: 8 },
];
const categories = groups.map((g) => g.name);
const samples = groups.map((g) => {
const values = [];
for (let i = 0; i < g.n; i++) {
values.push(Math.max(4, Math.round(g.mean + g.std * randNormal())));
}
return values;
});
// A couple of delayed-bus outliers, kept alongside the full box context.
samples[1].push(95, 91);
const stats = samples.map((values) => {
const sorted = [...values].sort((a, b) => a - b);
const q1 = quantile(sorted, 0.25);
const median = quantile(sorted, 0.5);
const q3 = quantile(sorted, 0.75);
const iqr = q3 - q1;
const lowerFence = q1 - 1.5 * iqr;
const upperFence = q3 + 1.5 * iqr;
const inFence = sorted.filter((v) => v >= lowerFence && v <= upperFence);
return {
q1,
median,
q3,
whiskerLow: inFence[0],
whiskerHigh: inFence[inFence.length - 1],
};
});
// --- Box + whiskers, drawn with the core SVG renderer -----------------------
// highcharts-more (boxplot/errorbar series) isn't loaded in this bundle, so
// the box and whiskers are built from primitive shapes anchored to real axis
// coordinates, using the actual quartile/whisker statistics computed above.
function drawBoxes(chart) {
const xAxis = chart.xAxis[0];
const yAxis = chart.yAxis[0];
const categoryPx = xAxis.toPixels(1) - xAxis.toPixels(0);
const halfWidth = categoryPx * 0.22;
stats.forEach((s, i) => {
const color = t.palette[i % t.palette.length];
const cx = xAxis.toPixels(i);
const q1Y = yAxis.toPixels(s.q1);
const q3Y = yAxis.toPixels(s.q3);
const medianY = yAxis.toPixels(s.median);
const lowY = yAxis.toPixels(s.whiskerLow);
const highY = yAxis.toPixels(s.whiskerHigh);
chart.renderer
.path(["M", cx, highY, "L", cx, q3Y])
.attr({ "stroke-width": 2, stroke: t.inkSoft, zIndex: 2 })
.add();
chart.renderer
.path(["M", cx, q1Y, "L", cx, lowY])
.attr({ "stroke-width": 2, stroke: t.inkSoft, zIndex: 2 })
.add();
chart.renderer
.path(["M", cx - halfWidth, highY, "L", cx + halfWidth, highY])
.attr({ "stroke-width": 2, stroke: t.inkSoft, zIndex: 2 })
.add();
chart.renderer
.path(["M", cx - halfWidth, lowY, "L", cx + halfWidth, lowY])
.attr({ "stroke-width": 2, stroke: t.inkSoft, zIndex: 2 })
.add();
chart.renderer
.rect(cx - halfWidth, Math.min(q1Y, q3Y), halfWidth * 2, Math.abs(q1Y - q3Y))
.attr({
fill: color,
"fill-opacity": 0.16,
stroke: color,
"stroke-width": 2.5,
zIndex: 3,
})
.add();
chart.renderer
.path(["M", cx - halfWidth, medianY, "L", cx + halfWidth, medianY])
.attr({ "stroke-width": 3, stroke: color, zIndex: 4 })
.add();
});
}
// --- Strip overlay (jittered scatter, drawn above the box) ------------------
const stripSeries = samples.map((values, i) => {
const color = t.palette[i % t.palette.length];
return {
type: "scatter",
name: categories[i],
data: values.map((v) => [i + (rand() - 0.5) * 0.64, v]),
color: color,
marker: {
radius: 4,
lineWidth: 1,
lineColor: t.pageBg,
fillColor: Highcharts.color(color).setOpacity(0.55).get("rgba"),
},
zIndex: 5,
showInLegend: false,
states: { hover: { enabled: false } },
};
});
// --- Chart --------------------------------------------------------------------
Highcharts.chart("container", {
chart: {
type: "scatter",
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" },
events: {
load: function () {
drawBoxes(this);
},
},
},
credits: { enabled: false },
colors: t.palette,
title: {
text: "cat-box-strip · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
xAxis: {
categories: categories,
min: -0.5,
max: categories.length - 0.5,
tickPositions: categories.map((_, i) => i),
lineColor: t.inkSoft,
tickColor: t.inkSoft,
gridLineColor: t.grid,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
title: {
text: "Transportation Mode",
style: { color: t.inkSoft, fontSize: "16px" },
},
},
yAxis: {
title: {
text: "Commute Time (minutes)",
style: { color: t.inkSoft, fontSize: "16px" },
},
gridLineColor: t.grid,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
},
legend: { enabled: false },
tooltip: {
pointFormat: "Commute: <b>{point.y:.0f} min</b>",
},
plotOptions: {
series: { animation: false },
},
series: stripSeries,
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/cat-box-strip/highcharts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "cat-box-strip",
"language": "javascript",
"library": "highcharts",
"page": "https://anyplot.ai/cat-box-strip/javascript/highcharts",
"hub": "https://anyplot.ai/cat-box-strip",
"code_json": "https://api.anyplot.ai/specs/cat-box-strip/highcharts/code",
"spec_json": "https://api.anyplot.ai/specs/cat-box-strip",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/cat-box-strip/javascript/highcharts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/cat-box-strip/javascript/highcharts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/cat-box-strip/javascript/highcharts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/cat-box-strip/javascript/highcharts/plot-dark.html",
"quality_score": 91.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Box Plot with Strip Overlay on anyplot.ai.
