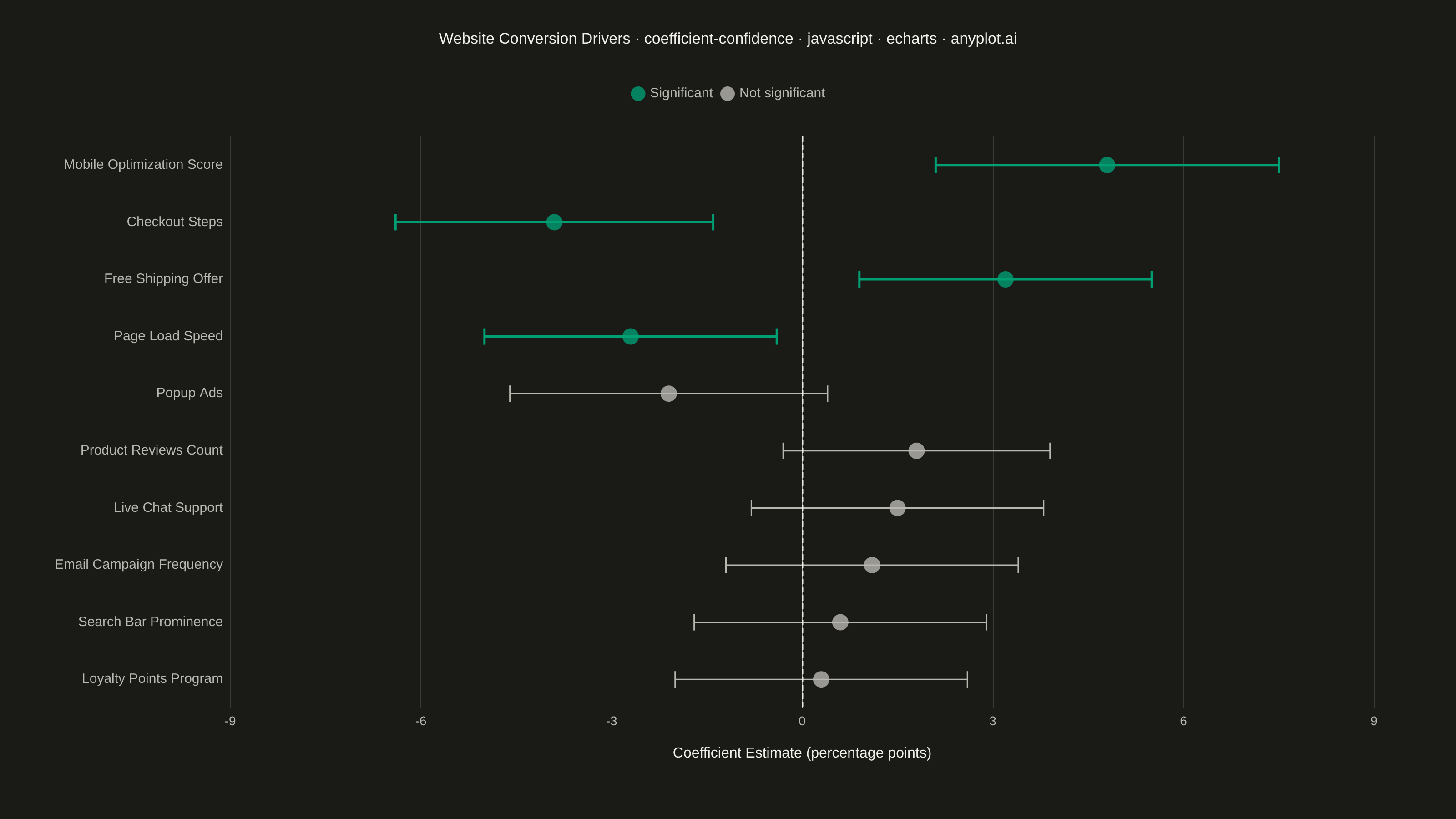

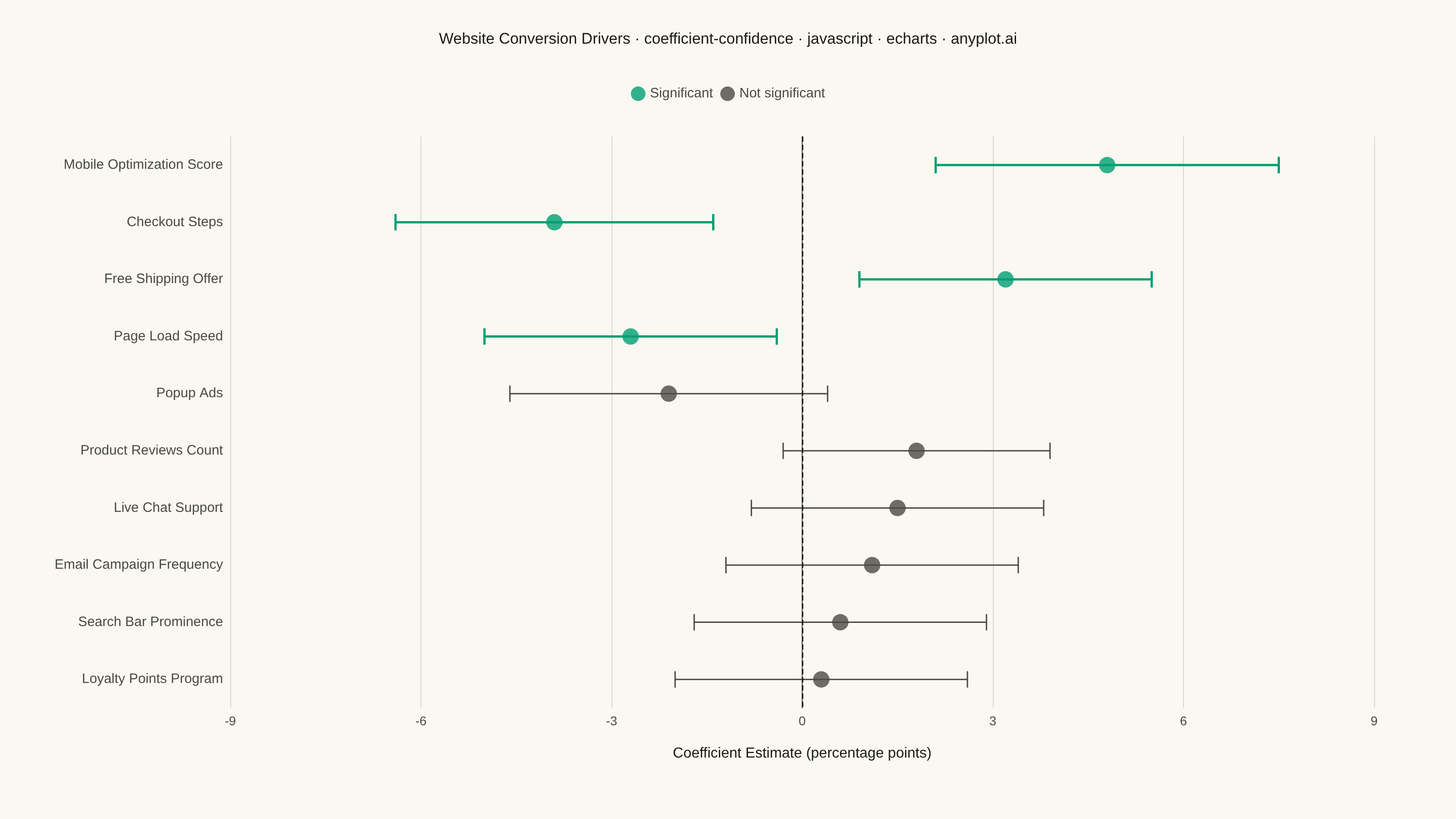

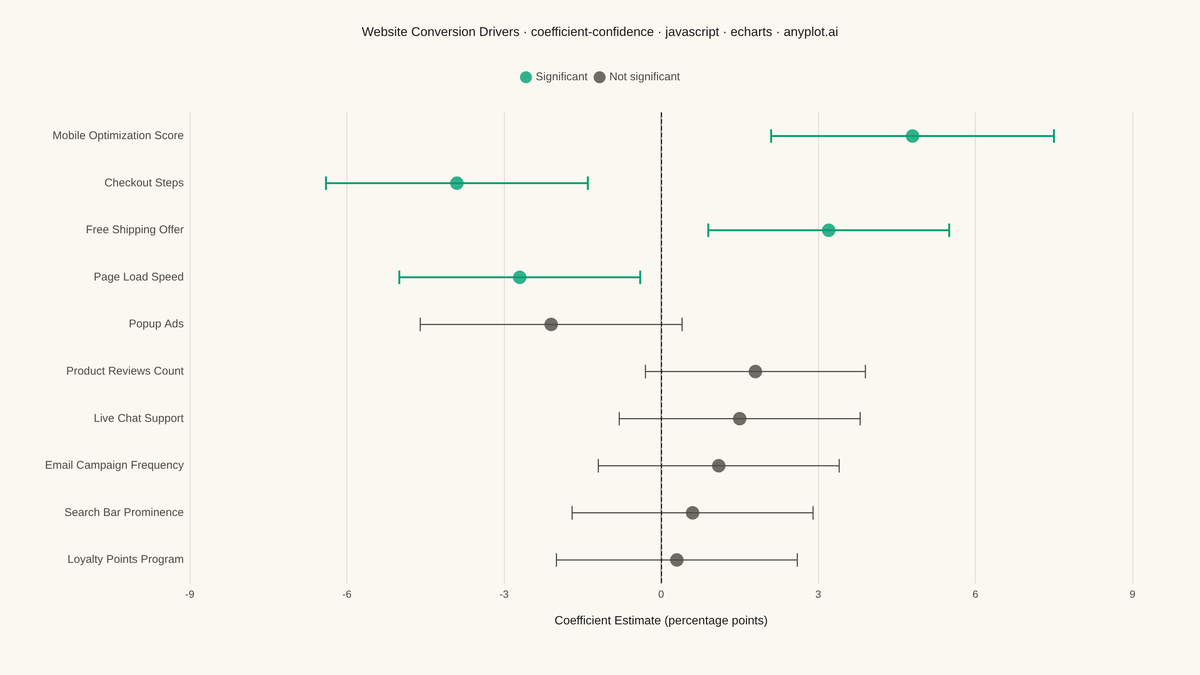

A coefficient plot displays regression coefficients as points positioned along a horizontal axis, with horizontal error bars showing confidence intervals. This visualization makes it easy to assess effect sizes and statistical significance - coefficients whose confidence intervals cross zero are not statistically significant. Typically used to summarize results from linear, logistic, or other regression models in a clear, publication-ready format.
// anyplot.ai
// coefficient-confidence: Coefficient Plot with Confidence Intervals
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 89/100 | Created: 2026-09-01
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Predictors of weekly e-commerce conversion rate (percentage-point effect),
// ordered by absolute coefficient magnitude, descending.
const rows = [
{ variable: "Mobile Optimization Score", coefficient: 4.8, ciLower: 2.1, ciUpper: 7.5, significant: true },
{ variable: "Checkout Steps", coefficient: -3.9, ciLower: -6.4, ciUpper: -1.4, significant: true },
{ variable: "Free Shipping Offer", coefficient: 3.2, ciLower: 0.9, ciUpper: 5.5, significant: true },
{ variable: "Page Load Speed", coefficient: -2.7, ciLower: -5.0, ciUpper: -0.4, significant: true },
{ variable: "Popup Ads", coefficient: -2.1, ciLower: -4.6, ciUpper: 0.4, significant: false },
{ variable: "Product Reviews Count", coefficient: 1.8, ciLower: -0.3, ciUpper: 3.9, significant: false },
{ variable: "Live Chat Support", coefficient: 1.5, ciLower: -0.8, ciUpper: 3.8, significant: false },
{ variable: "Email Campaign Frequency", coefficient: 1.1, ciLower: -1.2, ciUpper: 3.4, significant: false },
{ variable: "Search Bar Prominence", coefficient: 0.6, ciLower: -1.7, ciUpper: 2.9, significant: false },
{ variable: "Loyalty Points Program", coefficient: 0.3, ciLower: -2.0, ciUpper: 2.6, significant: false },
];
const indexed = rows.map((r, i) => ({ ...r, idx: i }));
const categories = rows.map((r) => r.variable);
const significant = indexed.filter((r) => r.significant);
const notSignificant = indexed.filter((r) => !r.significant);
// --- Custom-series renderer for horizontal confidence-interval whiskers -----
function whiskerRenderItem(color, lineWidth) {
return function (params, api) {
const categoryIndex = api.value(0);
const low = api.coord([api.value(1), categoryIndex]);
const high = api.coord([api.value(2), categoryIndex]);
const capHalf = 9;
const style = { stroke: color, lineWidth };
return {
type: "group",
children: [
{ type: "line", shape: { x1: low[0], y1: low[1] - capHalf, x2: low[0], y2: low[1] + capHalf }, style },
{ type: "line", shape: { x1: high[0], y1: high[1] - capHalf, x2: high[0], y2: high[1] + capHalf }, style },
{ type: "line", shape: { x1: low[0], y1: low[1], x2: high[0], y2: high[1] }, style },
],
};
};
}
// --- Init ---------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option ---------------------------------------------------------------
chart.setOption({
animation: false,
backgroundColor: "transparent",
title: {
text: "Website Conversion Drivers · coefficient-confidence · javascript · echarts · anyplot.ai",
left: "center",
top: 30,
textStyle: { color: t.ink, fontSize: 17, fontWeight: 500 },
},
legend: {
data: ["Significant", "Not significant"],
top: 90,
itemWidth: 16,
itemHeight: 16,
textStyle: { color: t.inkSoft, fontSize: 15 },
},
grid: { left: 60, right: 90, top: 150, bottom: 100, containLabel: true },
xAxis: {
type: "value",
name: "Coefficient Estimate (percentage points)",
nameLocation: "center",
nameGap: 42,
nameTextStyle: { color: t.ink, fontSize: 16 },
axisLabel: { color: t.inkSoft, fontSize: 14 },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { lineStyle: { color: t.grid } },
},
yAxis: {
type: "category",
data: categories,
inverse: true,
axisLabel: { color: t.inkSoft, fontSize: 15 },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { show: false },
},
series: [
{
type: "custom",
name: "__whisker_sig",
silent: true,
renderItem: whiskerRenderItem(t.palette[0], 2.5),
encode: { x: [1, 2], y: 0 },
data: significant.map((r) => [r.idx, r.ciLower, r.ciUpper]),
z: 2,
},
{
type: "custom",
name: "__whisker_notsig",
silent: true,
renderItem: whiskerRenderItem(t.inkSoft, 1.5),
encode: { x: [1, 2], y: 0 },
data: notSignificant.map((r) => [r.idx, r.ciLower, r.ciUpper]),
z: 2,
},
{
name: "Significant",
type: "scatter",
symbolSize: 18,
itemStyle: { color: t.palette[0] },
data: significant.map((r) => [r.coefficient, r.idx]),
markLine: {
silent: true,
symbol: "none",
label: { show: false },
lineStyle: { color: t.ink, type: "dashed", width: 1.5 },
data: [{ xAxis: 0 }],
},
z: 3,
},
{
name: "Not significant",
type: "scatter",
symbolSize: 18,
itemStyle: { color: t.inkSoft },
data: notSignificant.map((r) => [r.coefficient, r.idx]),
z: 3,
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/coefficient-confidence/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
