A filled contour plot displays colored regions between level curves of a 2D scalar field, creating a smooth gradient visualization of continuous data. Unlike basic contour plots that show only isolines, filled contours use color bands to represent value ranges, making it easier to perceive gradual changes and identify regions of similar magnitude. This visualization is particularly effective for showing how a quantity varies continuously across a 2D surface.

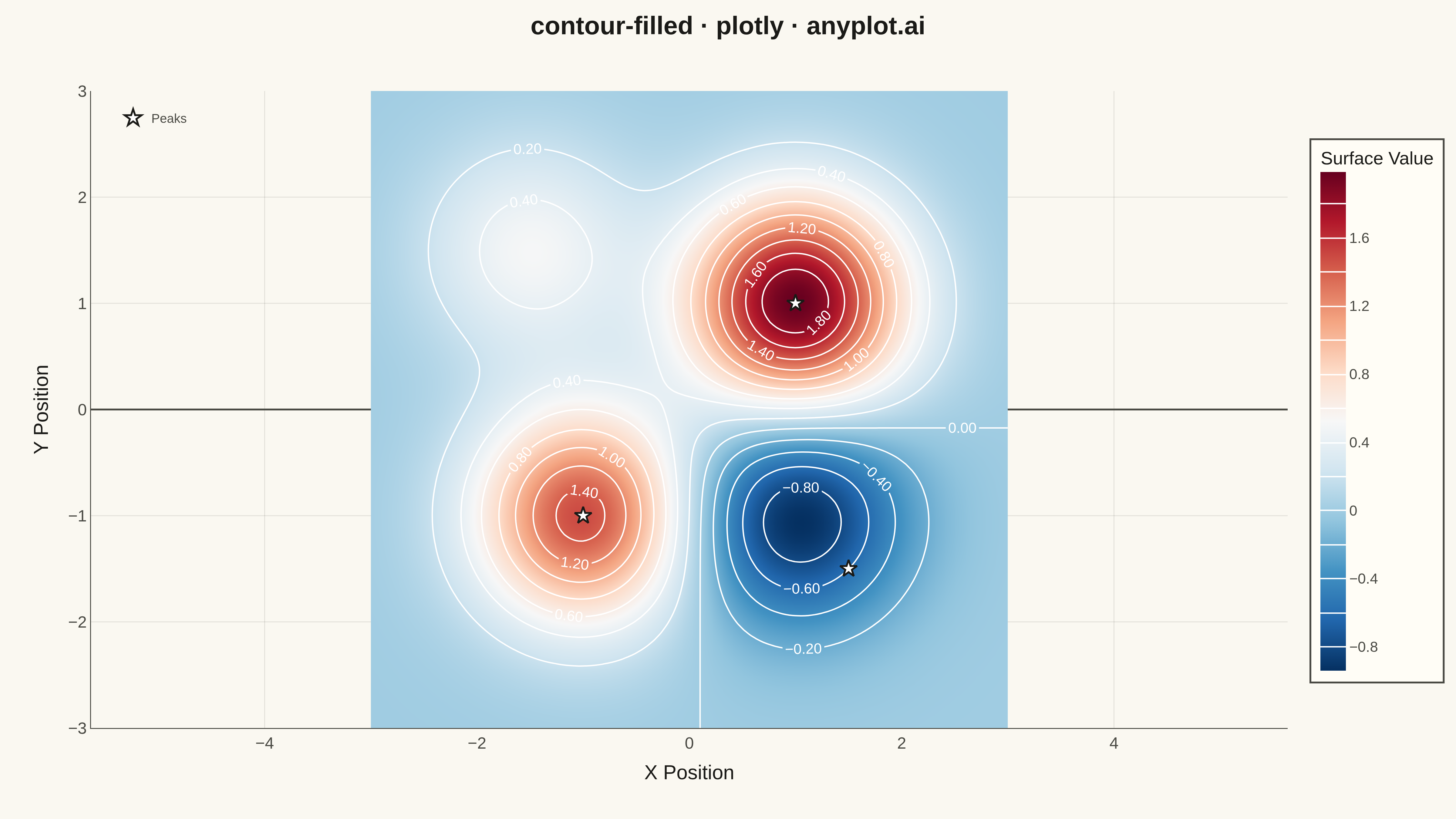

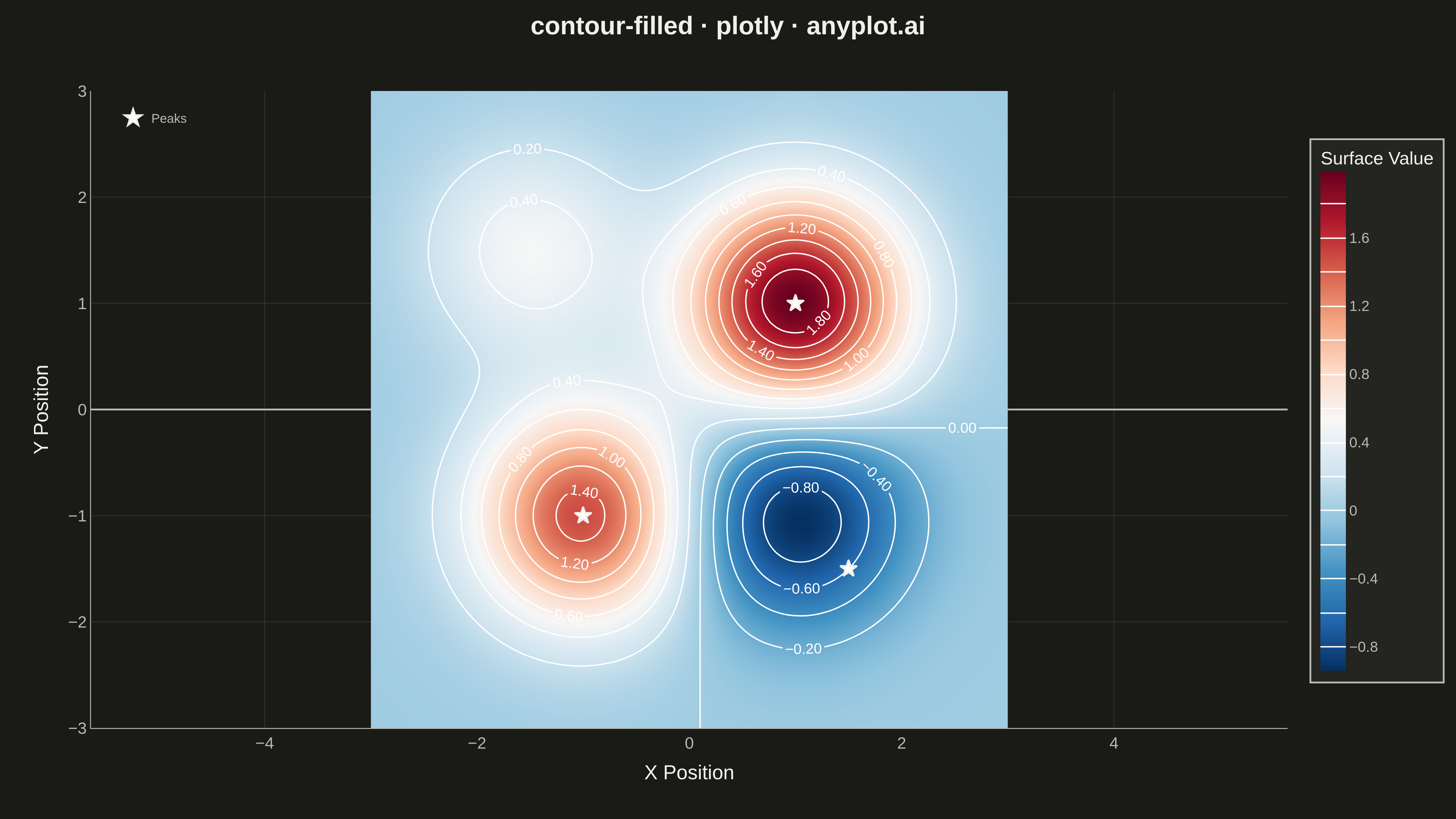

Filled Contour Plot rendered with Plotly

Python source (Plotly)

""" anyplot.ai
contour-filled: Filled Contour Plot
Library: plotly 6.7.0 | Python 3.13.13
Quality: 93/100 | Updated: 2026-05-11
"""

import os
import sys

import numpy as np


# Ensure plotly module is imported from site-packages, not local file
for p in sys.path[:]:
    if p.endswith("python") and "contour-filled" in p:
        sys.path.remove(p)

from plotly import graph_objects as go


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)"

# Data - Create a meshgrid with multiple Gaussian peaks for interesting contours
np.random.seed(42)
x = np.linspace(-3, 3, 100)
y = np.linspace(-3, 3, 100)
X, Y = np.meshgrid(x, y)

# Create surface with multiple Gaussian peaks and a saddle point
z1 = 2 * np.exp(-((X - 1) ** 2 + (Y - 1) ** 2))
z2 = 1.5 * np.exp(-((X + 1) ** 2 + (Y + 1) ** 2))
z3 = -1 * np.exp(-((X - 1) ** 2 + (Y + 1) ** 2))
z4 = 0.5 * np.exp(-((X + 1.5) ** 2 + (Y - 1.5) ** 2))
Z = z1 + z2 + z3 + z4

# Create filled contour plot with enhanced visualization
fig = go.Figure()

# Custom diverging colorscale for more sophisticated aesthetics
fig.add_trace(
    go.Contour(
        x=x,
        y=y,
        z=Z,
        colorscale="RdBu_r",
        contours=dict(
            coloring="heatmap",
            showlabels=True,
            labelfont=dict(size=16, color="white", family="Arial"),
            labelformat=".2f",
        ),
        colorbar=dict(
            title=dict(text="Surface Value", font=dict(size=20, color=INK, family="Arial")),
            tickfont=dict(size=16, color=INK_SOFT, family="Arial"),
            thickness=28,
            len=0.85,
            x=1.02,
            bgcolor=ELEVATED_BG,
            bordercolor=INK_SOFT,
            borderwidth=2,
        ),
        ncontours=18,
        line=dict(width=1.5, color="white"),
        hovertemplate="<b>Position</b><br>X: %{x:.2f}<br>Y: %{y:.2f}<br><b>Value: %{z:.3f}</b><extra></extra>",
        name="Surface",
    )
)

# Overlay scatter points at the peak locations for visual emphasis
peak_locations = np.array([[1, 1], [-1, -1], [1.5, -1.5]])
peak_values = np.array([2.0, 1.5, 0.5])
fig.add_trace(
    go.Scatter(
        x=peak_locations[:, 0],
        y=peak_locations[:, 1],
        mode="markers",
        marker=dict(size=14, color="white", line=dict(color=INK, width=2), symbol="star"),
        hovertemplate="<b>Peak</b><br>X: %{x:.2f}<br>Y: %{y:.2f}<extra></extra>",
        name="Peaks",
        showlegend=True,
    )
)

# Update layout for large canvas with theme-adaptive colors
fig.update_layout(
    title=dict(
        text="contour-filled · plotly · anyplot.ai",
        font=dict(size=28, color=INK, family="Arial", weight="bold"),
        x=0.5,
        xanchor="center",
        y=0.98,
        yanchor="top",
    ),
    xaxis=dict(
        title=dict(text="X Position", font=dict(size=22, color=INK, family="Arial")),
        tickfont=dict(size=18, color=INK_SOFT, family="Arial"),
        showgrid=True,
        gridwidth=1,
        gridcolor=GRID,
        linecolor=INK_SOFT,
        zerolinecolor=INK_SOFT,
        zeroline=True,
    ),
    yaxis=dict(
        title=dict(text="Y Position", font=dict(size=22, color=INK, family="Arial")),
        tickfont=dict(size=18, color=INK_SOFT, family="Arial"),
        showgrid=True,
        gridwidth=1,
        gridcolor=GRID,
        linecolor=INK_SOFT,
        zerolinecolor=INK_SOFT,
        zeroline=True,
        scaleanchor="x",
        scaleratio=1,
    ),
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    margin=dict(l=100, r=140, t=100, b=100),
    legend=dict(
        x=0.02,
        y=0.98,
        bgcolor="rgba(255,255,255,0)" if THEME == "light" else "rgba(0,0,0,0)",
        bordercolor=INK_SOFT,
        borderwidth=0,
        font=dict(size=14, color=INK_SOFT, family="Arial"),
    ),
    hovermode="closest",
)

# Save as PNG and HTML with theme suffix
fig.write_image(f"plot-{THEME}.png", width=1600, height=900, scale=3)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")
