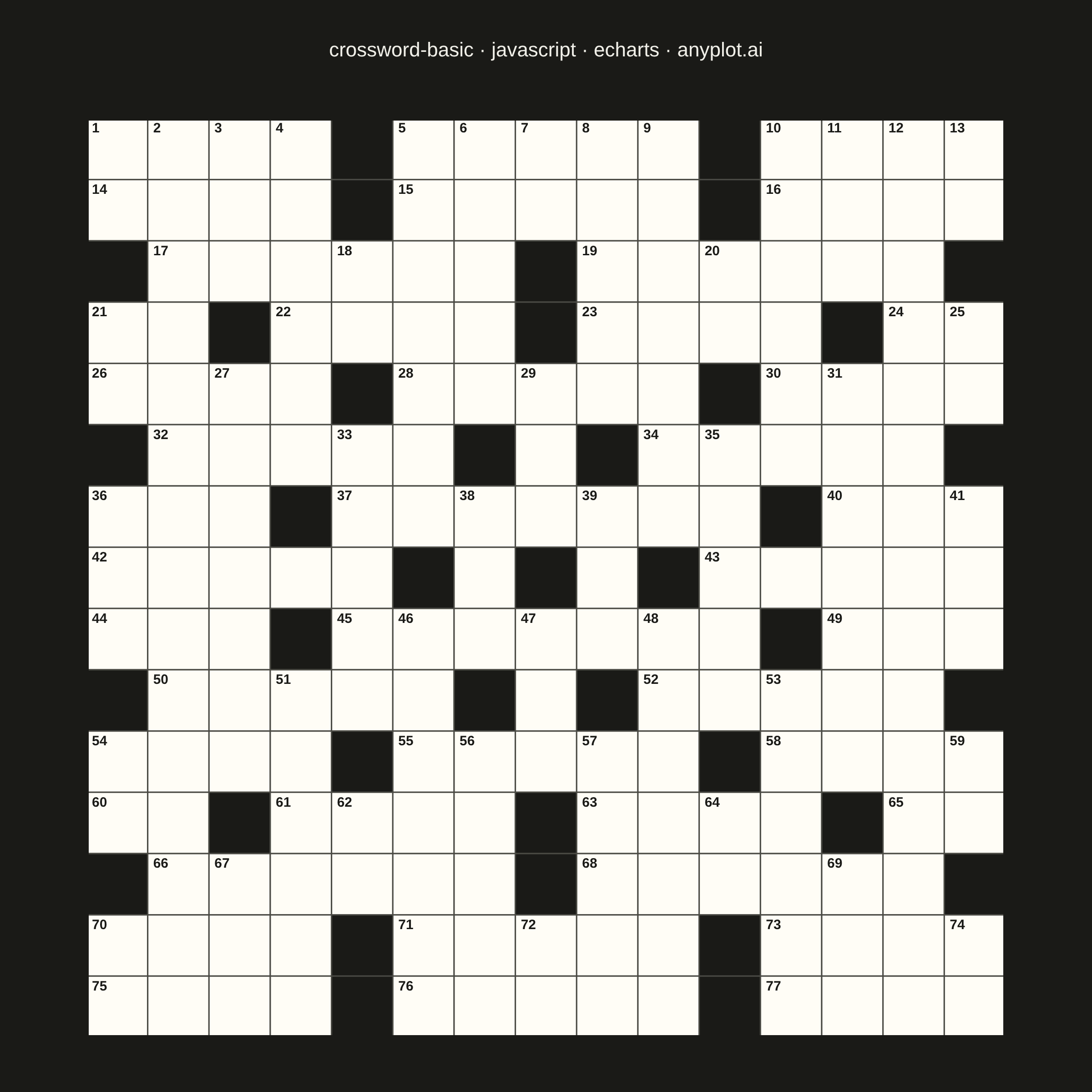

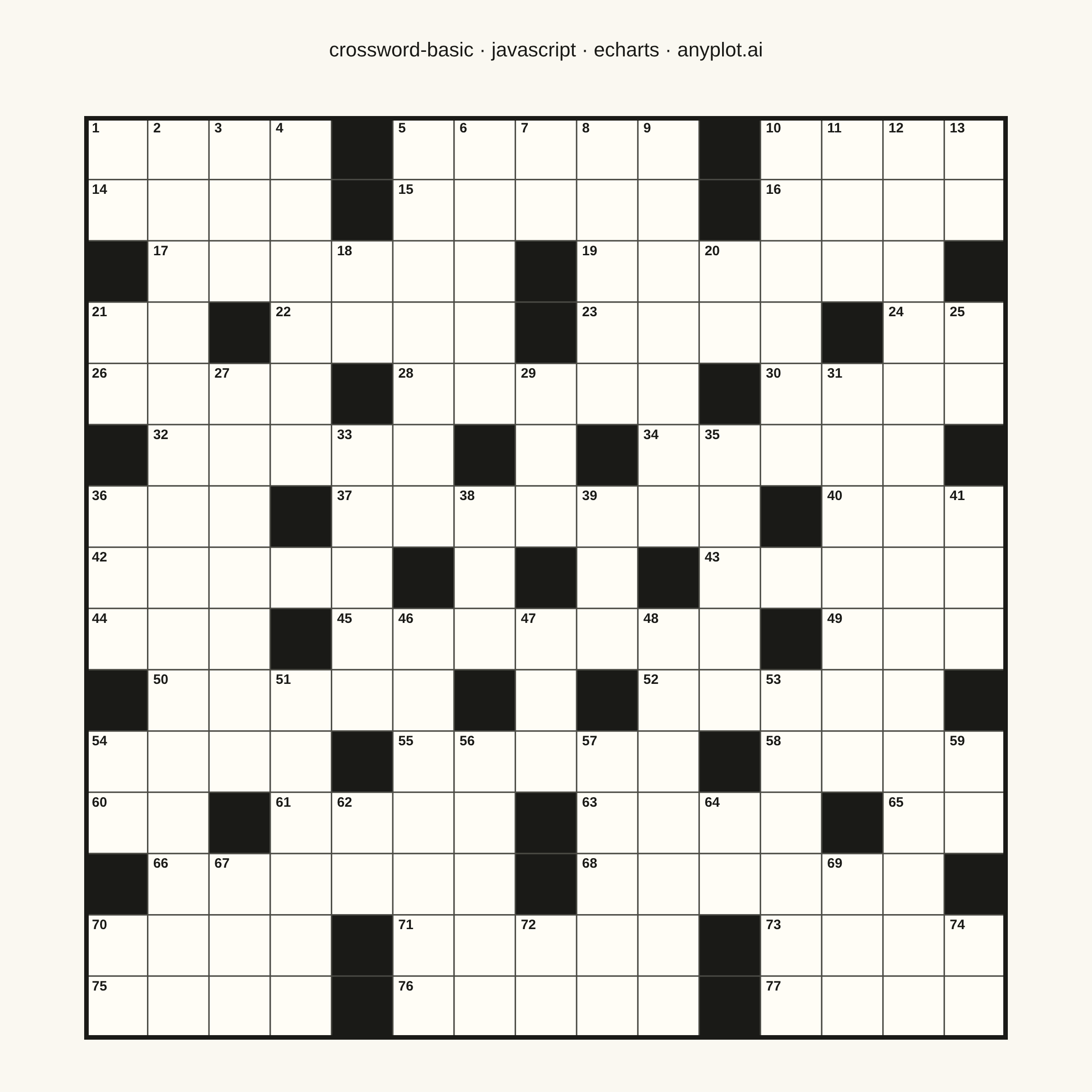

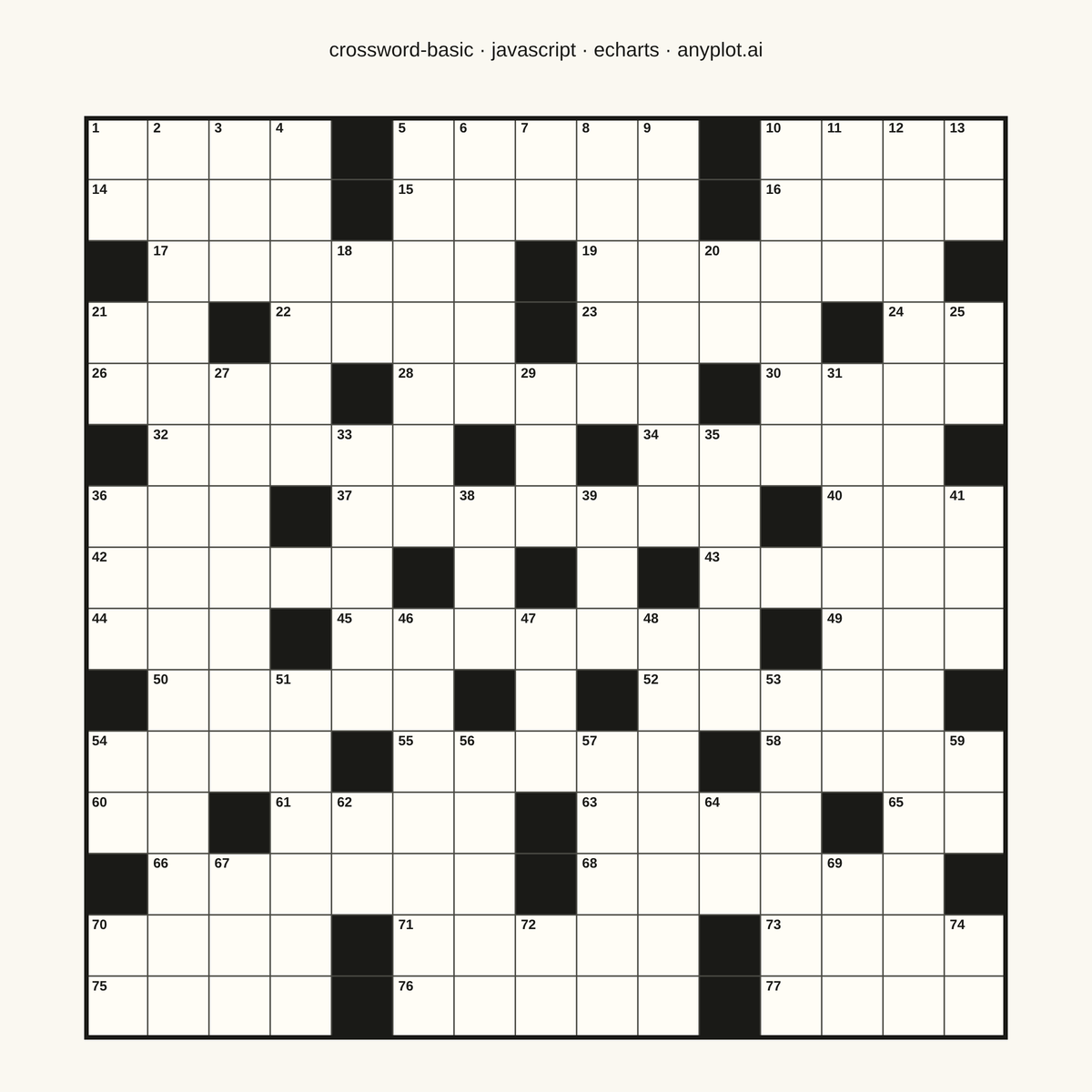

A crossword puzzle grid visualization with white entry cells for letters, black blocking cells, and numbered starting positions for across and down words. The symmetric black cell pattern follows traditional newspaper-style crossword conventions, creating a clean and recognizable puzzle layout suitable for printing or digital display.
// anyplot.ai
// crossword-basic: Crossword Puzzle Grid
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 84/100 | Created: 2026-09-02
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
const mount = window.ANYPLOT_SIZE || { width: 1200, height: 1200 };
// --- Data: 15x15 grid with 180-degree rotational symmetry -------------------
// 0 = white entry cell, 1 = black blocking cell.
// Only the top 7 rows + the palindromic middle row are authored by hand; the
// bottom 7 rows are derived by rotating the top half 180 degrees so the
// traditional newspaper-style symmetry is guaranteed by construction.
const gridSize = 15;
const topHalf = [
[0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0],
[0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0],
[1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1],
[0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0],
[0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0],
[1, 0, 0, 0, 0, 0, 1, 0, 1, 0, 0, 0, 0, 0, 1],
[0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0],
];
const middleRow = [0, 0, 0, 0, 0, 1, 0, 1, 0, 1, 0, 0, 0, 0, 0];
const grid = [];
for (let row = 0; row < gridSize; row += 1) {
if (row < topHalf.length) {
grid.push(topHalf[row].slice());
} else if (row === Math.floor(gridSize / 2)) {
grid.push(middleRow.slice());
} else {
grid.push(topHalf[gridSize - 1 - row].slice().reverse());
}
}
// --- Numbering: standard across/down word-start scan -------------------------
const cells = [];
let nextNumber = 1;
for (let row = 0; row < gridSize; row += 1) {
for (let col = 0; col < gridSize; col += 1) {
const blocked = grid[row][col] === 1;
let number = null;
if (!blocked) {
const startsAcross =
(col === 0 || grid[row][col - 1] === 1) &&
col < gridSize - 1 &&
grid[row][col + 1] === 0;
const startsDown =
(row === 0 || grid[row - 1][col] === 1) &&
row < gridSize - 1 &&
grid[row + 1][col] === 0;
if (startsAcross || startsDown) {
number = nextNumber;
nextNumber += 1;
}
}
cells.push({ col, row, blocked, number });
}
}
// --- Square plotting area, regardless of exact mount pixel size -------------
const titleSpace = 130;
const margin = 60;
const available = Math.min(
mount.width - margin * 2,
mount.height - titleSpace - margin
);
const gridLeft = (mount.width - available) / 2;
const gridTop = titleSpace + (mount.height - titleSpace - margin - available) / 2;
// The grid itself is content (like a heatmap's cell colors), not UI chrome —
// it reads as a printed puzzle card, so its paper/ink tones stay fixed
// instead of flipping with ANYPLOT_THEME (which would invert the black/white
// cell metaphor and crush entry-cell contrast against a dark page).
const entryFill = "#FFFDF6";
const blockedFill = "#1A1A17";
const cellStroke = "#4A4A44";
const outerFrameStroke = "#1A1A17";
const numberFill = "#1A1A17";
// --- Init ---------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option ---------------------------------------------------------------
chart.setOption({
animation: false,
backgroundColor: "transparent",
title: {
text: "crossword-basic · javascript · echarts · anyplot.ai",
left: "center",
top: 40,
textStyle: { color: t.ink, fontSize: 22, fontWeight: 500 },
},
grid: { left: gridLeft, top: gridTop, width: available, height: available },
xAxis: {
type: "value",
min: -0.5,
max: gridSize - 0.5,
show: false,
},
yAxis: {
type: "value",
min: -0.5,
max: gridSize - 0.5,
inverse: true,
show: false,
},
series: [
{
type: "custom",
coordinateSystem: "cartesian2d",
data: cells.map((cell) => [cell.col, cell.row]),
encode: { x: 0, y: 1 },
renderItem: (params, api) => {
const cell = cells[params.dataIndex];
const topLeft = api.coord([cell.col - 0.5, cell.row - 0.5]);
const size = api.size([1, 1]);
const children = [
{
type: "rect",
shape: { x: topLeft[0], y: topLeft[1], width: size[0], height: size[1] },
style: {
fill: cell.blocked ? blockedFill : entryFill,
stroke: cellStroke,
lineWidth: 1.5,
},
},
];
if (cell.number !== null) {
children.push({
type: "text",
style: {
text: String(cell.number),
x: topLeft[0] + 6,
y: topLeft[1] + 4,
fill: numberFill,
fontSize: 15,
fontWeight: 600,
textVerticalAlign: "top",
textAlign: "left",
},
});
}
return { type: "group", children };
},
},
],
// Bolder outer frame vs. the thinner inner dividers gives the printed card a
// typographic hierarchy instead of one uniform line weight throughout.
graphic: [
{
type: "rect",
shape: { x: gridLeft, y: gridTop, width: available, height: available },
style: { fill: "none", stroke: outerFrameStroke, lineWidth: 5 },
z: 100,
silent: true,
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/crossword-basic/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "crossword-basic",
"language": "javascript",
"library": "echarts",
"page": "https://anyplot.ai/crossword-basic/javascript/echarts",
"hub": "https://anyplot.ai/crossword-basic",
"code_json": "https://api.anyplot.ai/specs/crossword-basic/echarts/code",
"spec_json": "https://api.anyplot.ai/specs/crossword-basic",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/crossword-basic/javascript/echarts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/crossword-basic/javascript/echarts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/crossword-basic/javascript/echarts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/crossword-basic/javascript/echarts/plot-dark.html",
"quality_score": 84.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Crossword Puzzle Grid on anyplot.ai.
