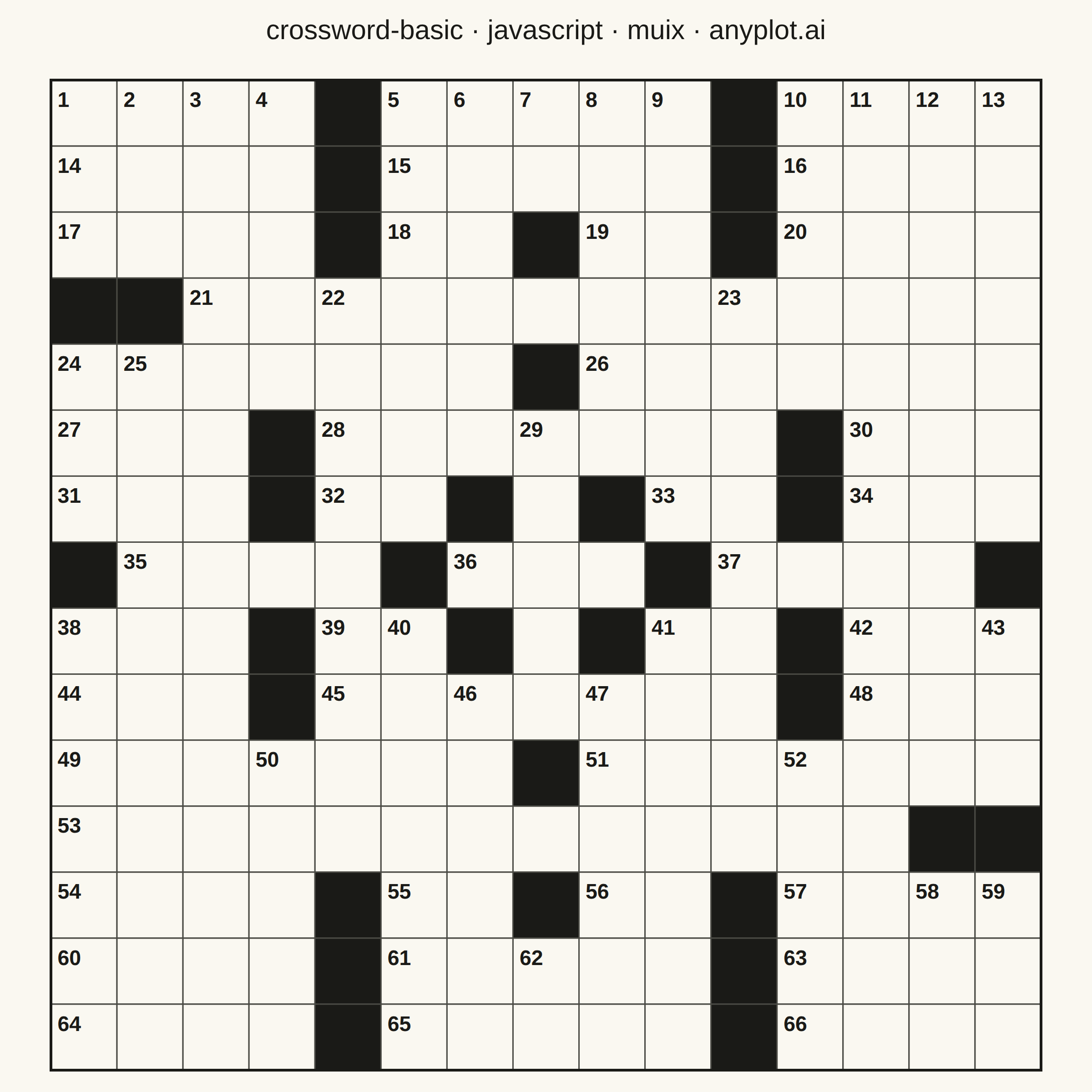

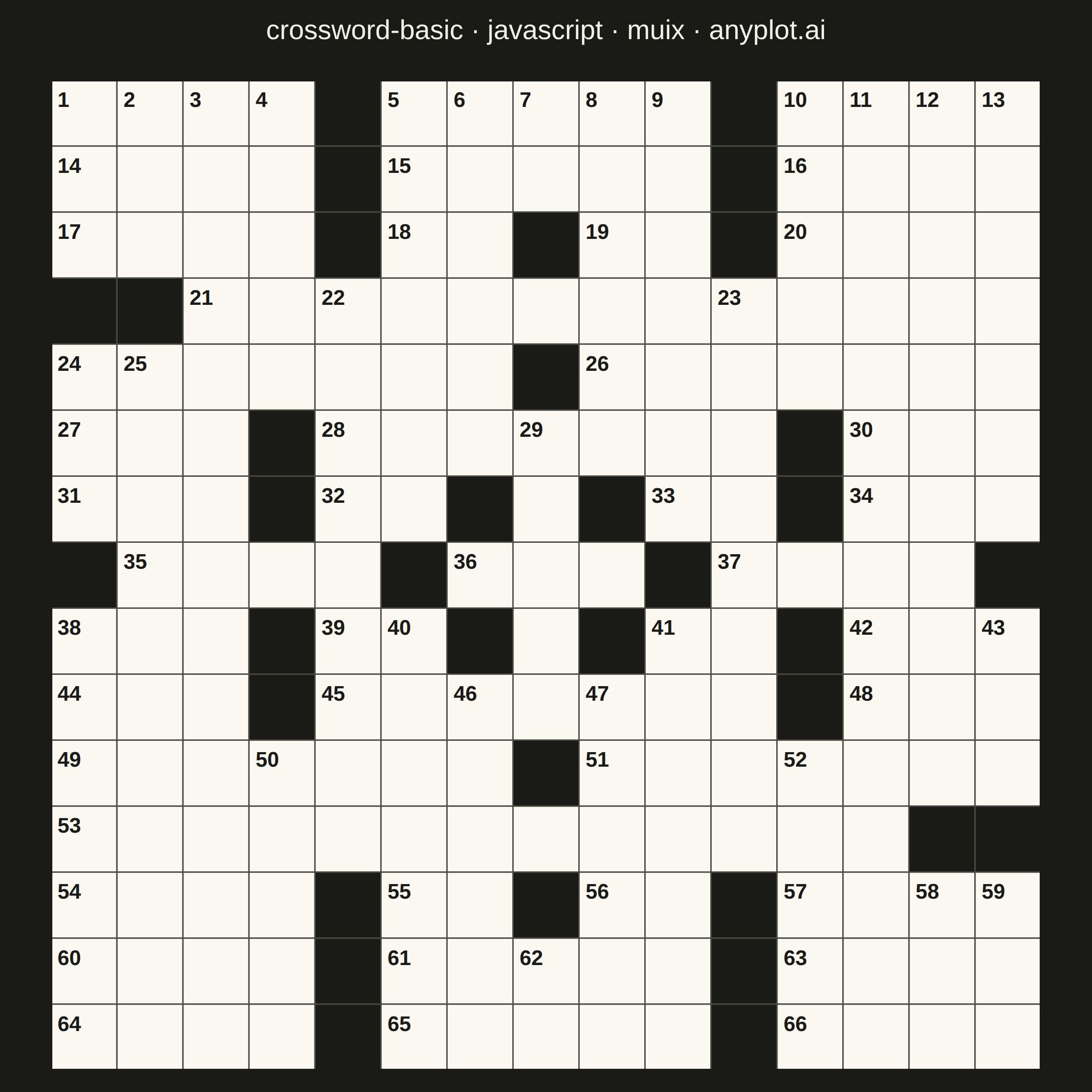

A crossword puzzle grid visualization with white entry cells for letters, black blocking cells, and numbered starting positions for across and down words. The symmetric black cell pattern follows traditional newspaper-style crossword conventions, creating a clean and recognizable puzzle layout suitable for printing or digital display.
// anyplot.ai
// crossword-basic: Crossword Puzzle Grid
// Library: muix 7.29.1 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-09-02
//# anyplot-orientation: square
import Box from "@mui/material/Box";
import Typography from "@mui/material/Typography";
import { ScatterChart } from "@mui/x-charts/ScatterChart";
const t = window.ANYPLOT_TOKENS;
// The puzzle itself is a monochrome print artifact (per spec: "Monochrome
// design optimized for printing") — its black/white pattern is the chart's
// data, so it stays fixed across themes, like a categorical data color would.
// Only the surrounding page and title (below) follow ANYPLOT_THEME.
const GRID_PAPER = "#FAF8F1";
const GRID_INK = "#1A1A17";
const GRID_LINE = "#4A4A44";
const GRID_SIZE = 15;
// Black-cell coordinates for one half of the grid; mirrored below to enforce
// the traditional 180-degree rotational symmetry of newspaper-style crosswords.
const HALF_BLOCKS = [
[0, 4], [0, 10],
[1, 4], [1, 10],
[2, 4], [2, 7], [2, 10],
[3, 0], [3, 1],
[4, 7],
[5, 3], [5, 11],
[6, 3], [6, 6], [6, 8], [6, 11],
[7, 0], [7, 5],
];
const BLOCKED = new Set();
HALF_BLOCKS.forEach(([r, c]) => {
BLOCKED.add(`${r},${c}`);
BLOCKED.add(`${GRID_SIZE - 1 - r},${GRID_SIZE - 1 - c}`);
});
const isBlocked = (r, c) => BLOCKED.has(`${r},${c}`);
const isOpen = (r, c) =>
r >= 0 && r < GRID_SIZE && c >= 0 && c < GRID_SIZE && !isBlocked(r, c);
// Number every cell that starts an across or down entry, in reading order —
// the same rule newspaper puzzle constructors use.
const numbers = new Map();
let nextNumber = 1;
for (let r = 0; r < GRID_SIZE; r++) {
for (let c = 0; c < GRID_SIZE; c++) {
if (isBlocked(r, c)) continue;
const startsAcross = !isOpen(r, c - 1) && isOpen(r, c + 1);
const startsDown = !isOpen(r - 1, c) && isOpen(r + 1, c);
if (startsAcross || startsDown) {
numbers.set(`${r},${c}`, nextNumber++);
}
}
}
const COLS = Array.from({ length: GRID_SIZE }, (_, c) => `c${c}`);
const ROWS = Array.from({ length: GRID_SIZE }, (_, r) => `r${r}`);
const cells = [];
for (let r = 0; r < GRID_SIZE; r++) {
for (let c = 0; c < GRID_SIZE; c++) {
cells.push({ id: `${r}-${c}`, x: COLS[c], y: ROWS[r], r, c });
}
}
// Every square renders in one custom marker: a black fill for blocked cells,
// a paper-white fill with a clue number for cells that start a word.
function GridMark(props) {
const { series, xScale, yScale } = props;
const cellW = xScale.bandwidth();
const cellH = yScale.bandwidth();
return (
<g>
{series.data.map((pt) => {
const cx = xScale(pt.x) ?? 0;
const cy = yScale(pt.y) ?? 0;
const blocked = isBlocked(pt.r, pt.c);
const number = numbers.get(`${pt.r},${pt.c}`);
return (
<g key={pt.id}>
<rect
x={cx}
y={cy}
width={cellW}
height={cellH}
fill={blocked ? GRID_INK : GRID_PAPER}
stroke={GRID_LINE}
strokeWidth={1.5}
/>
{number !== undefined && (
<text
x={cx + cellW * 0.1}
y={cy + cellH * 0.32}
fontSize={cellW * 0.32}
fontWeight={600}
fill={GRID_INK}
textAnchor="start"
dominantBaseline="middle"
>
{number}
</text>
)}
</g>
);
})}
<rect
x={xScale(COLS[0]) ?? 0}
y={yScale(ROWS[0]) ?? 0}
width={cellW * GRID_SIZE}
height={cellH * GRID_SIZE}
fill="none"
stroke={GRID_INK}
strokeWidth={3}
/>
</g>
);
}
const TITLE = "crossword-basic · javascript · muix · anyplot.ai";
const TITLE_HEIGHT = 64;
export default function Chart() {
const { width, height } = window.ANYPLOT_SIZE;
const chartHeight = height - TITLE_HEIGHT;
// Keep every cell perfectly square: shrink the board to the smaller of the
// two available dimensions, then center it with even margins on both axes.
const MARGIN = 24;
const boardSize = Math.min(width, chartHeight) - MARGIN * 2;
const vMargin = (chartHeight - boardSize) / 2;
const hMargin = (width - boardSize) / 2;
return (
<Box sx={{ width, height, bgcolor: t.pageBg, display: "flex", flexDirection: "column" }}>
<Typography
sx={{
color: t.ink,
fontSize: 30,
fontWeight: 500,
textAlign: "center",
lineHeight: 1.2,
pt: "16px",
height: TITLE_HEIGHT,
fontFamily: "inherit",
}}
>
{TITLE}
</Typography>
<Box sx={{ flex: 1, display: "flex", alignItems: "center", justifyContent: "center" }}>
<ScatterChart
width={width}
height={chartHeight}
skipAnimation
disableVoronoi
series={[{ id: "cells", type: "scatter", data: cells, xAxisId: "col", yAxisId: "row" }]}
xAxis={[
{
id: "col",
scaleType: "band",
data: COLS,
categoryGapRatio: 0,
disableTicks: true,
disableLine: true,
},
]}
yAxis={[
{
id: "row",
scaleType: "band",
data: ROWS,
categoryGapRatio: 0,
disableTicks: true,
disableLine: true,
},
]}
topAxis={null}
bottomAxis={null}
leftAxis={null}
rightAxis={null}
margin={{ top: vMargin, bottom: vMargin, left: hMargin, right: hMargin }}
slots={{ scatter: GridMark }}
slotProps={{ legend: { hidden: true } }}
/>
</Box>
</Box>
);
}
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/crossword-basic/muix/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "crossword-basic",
"language": "javascript",
"library": "muix",
"page": "https://anyplot.ai/crossword-basic/javascript/muix",
"hub": "https://anyplot.ai/crossword-basic",
"code_json": "https://api.anyplot.ai/specs/crossword-basic/muix/code",
"spec_json": "https://api.anyplot.ai/specs/crossword-basic",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/crossword-basic/javascript/muix/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/crossword-basic/javascript/muix/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/crossword-basic/javascript/muix/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/crossword-basic/javascript/muix/plot-dark.html",
"quality_score": 90.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Crossword Puzzle Grid on anyplot.ai.
