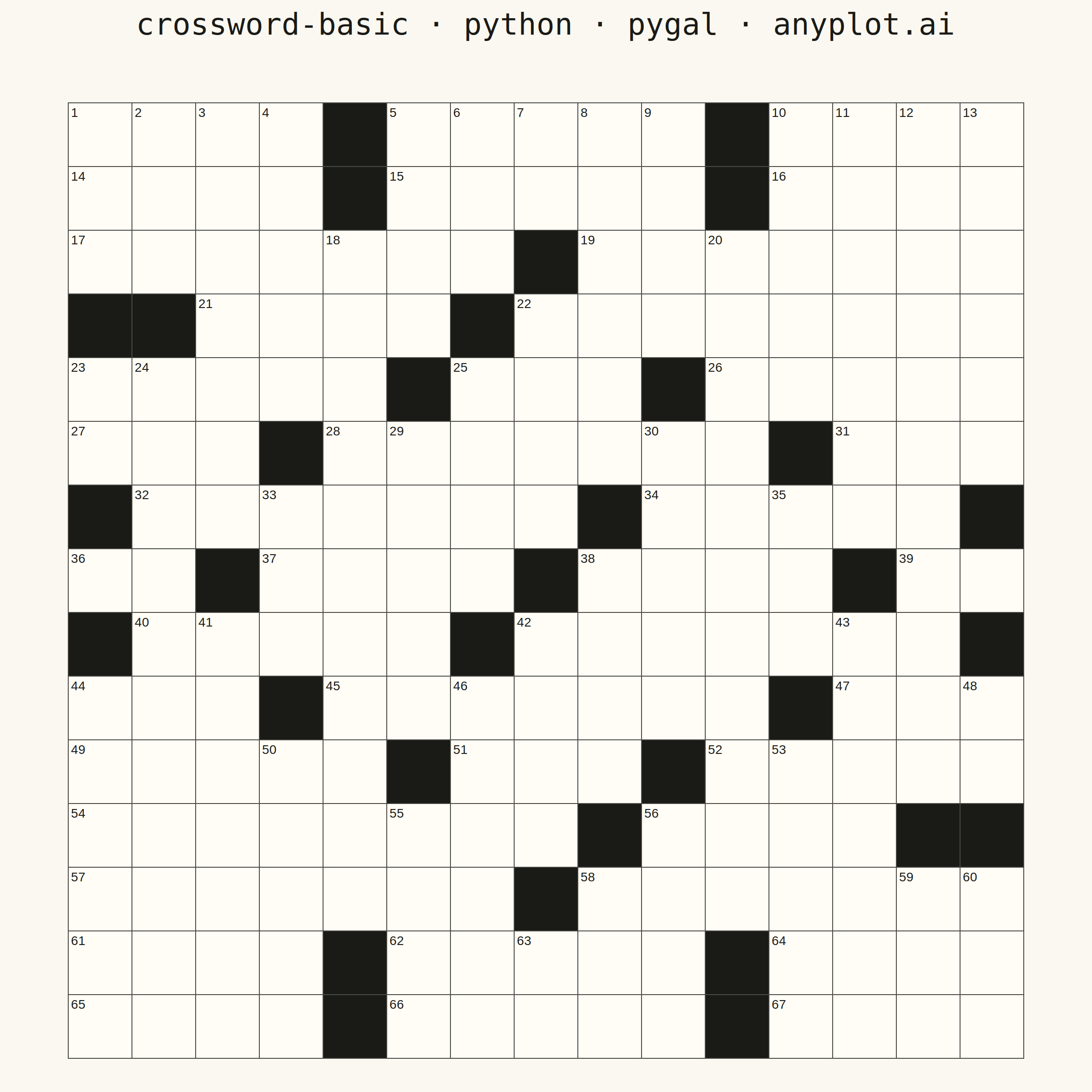

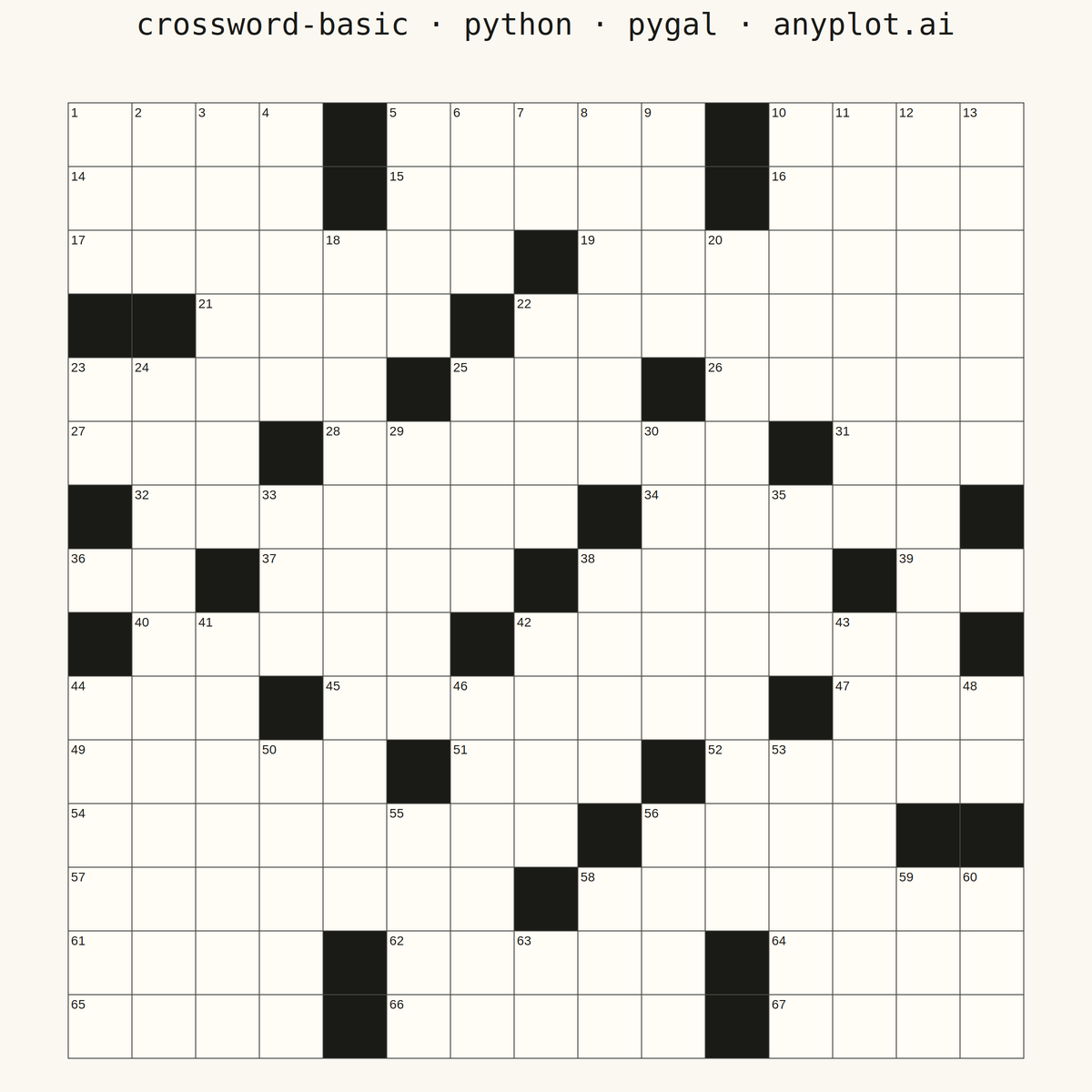

A crossword puzzle grid visualization with white entry cells for letters, black blocking cells, and numbered starting positions for across and down words. The symmetric black cell pattern follows traditional newspaper-style crossword conventions, creating a clean and recognizable puzzle layout suitable for printing or digital display.
""" anyplot.ai
crossword-basic: Crossword Puzzle Grid
Library: pygal 3.1.0 | Python 3.13.13
Quality: 87/100 | Updated: 2026-05-20
"""
import os as _os
import sys as _sys
# This file is named pygal.py — remove its directory from sys.path first so
# Python resolves `pygal` to the installed package, not this file itself.
_here = _os.path.abspath(_os.path.dirname(__file__))
_sys.path = [p for p in _sys.path if _os.path.abspath(p or ".") != _here]
import os
import cairosvg
import numpy as np
from pygal.graph.graph import Graph
from pygal.style import Style
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
CANVAS = 2400
CELL = 140
GRID_SIZE = 15
GRID_W = CELL * GRID_SIZE # 2100 px — fills the plot area exactly
NUM_SZ = 28
TITLE = "crossword-basic · python · pygal · anyplot.ai"
# Pygal Style — applied to the chart for theme-consistent background, title, and chrome
custom_style = Style(
background=PAGE_BG,
plot_background=PAGE_BG,
foreground=INK,
foreground_strong=INK,
foreground_subtle=INK_SOFT,
colors=("#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477"),
title_font_size=66,
label_font_size=56,
major_label_font_size=44,
legend_font_size=44,
value_font_size=36,
stroke_width=2.5,
)
# Crossword grid data — 15×15 with 180° rotational symmetry
np.random.seed(42)
grid = np.zeros((GRID_SIZE, GRID_SIZE), dtype=int)
black_positions_top = [
(0, 4),
(0, 10),
(1, 4),
(1, 10),
(2, 7),
(3, 0),
(3, 1),
(3, 6),
(4, 5),
(4, 9),
(5, 3),
(5, 11),
(6, 0),
(6, 8),
(6, 14),
]
black_positions_center = [(7, 2), (7, 7), (7, 12)]
for r, c in black_positions_top:
grid[r, c] = 1
grid[GRID_SIZE - 1 - r, GRID_SIZE - 1 - c] = 1
for r, c in black_positions_center:
grid[r, c] = 1
# Clue numbering — cells that start an across or down word
numbers = {}
clue_num = 1
for row in range(GRID_SIZE):
for col in range(GRID_SIZE):
if grid[row, col] == 0:
starts_across = (col == 0 or grid[row, col - 1] == 1) and (col < GRID_SIZE - 1 and grid[row, col + 1] == 0)
starts_down = (row == 0 or grid[row - 1, col] == 1) and (row < GRID_SIZE - 1 and grid[row + 1, col] == 0)
if starts_across or starts_down:
numbers[(row, col)] = clue_num
clue_num += 1
class CrosswordGrid(Graph):
"""Custom pygal chart type that renders a crossword puzzle grid.
Subclasses Graph to use pygal's SVG infrastructure (style, background,
title, render pipeline) while drawing grid cells via pygal's SVG node API.
"""
def _compute(self):
pass
def _compute_x_labels(self):
pass
def _compute_y_labels(self):
pass
def _draw(self):
"""Draw chart elements; always calls _plot since no series data is needed."""
self._compute()
self._compute_x_labels()
self._compute_x_labels_major()
self._compute_y_labels()
self._compute_y_labels_major()
self._compute_secondary()
self._post_compute()
self._compute_margin()
self._decorate()
self._plot()
def _plot(self):
"""Render crossword cells using pygal's SVG node API.
Coordinates are relative to the plot group (margin already applied),
so (0, 0) maps to the top-left corner of the grid area on the canvas.
"""
plot = self.nodes["plot"]
for row in range(GRID_SIZE):
for col in range(GRID_SIZE):
x = col * CELL
y = row * CELL
fill = INK if grid[row, col] == 1 else ELEVATED_BG
rect = self.svg.node(plot, "rect", x=x, y=y, width=CELL, height=CELL, fill=fill)
rect.set("stroke", INK_SOFT)
rect.set("stroke-width", "2")
if (row, col) in numbers:
txt = self.svg.node(plot, "text", x=x + 6, y=y + NUM_SZ + 3, fill=INK)
txt.set("font-family", "Arial, sans-serif")
txt.set("font-size", str(NUM_SZ))
txt.text = str(numbers[(row, col)])
# margin=150 → equal 150 px margins on all sides; plot area = 2100×2100 = grid size
chart = CrosswordGrid(style=custom_style, width=CANVAS, height=CANVAS, title=TITLE, show_legend=False, margin=150)
# Render via pygal's pipeline: render() produces the SVG, cairosvg converts to PNG
svg_bytes = chart.render()
cairosvg.svg2png(bytestring=svg_bytes, write_to=f"plot-{THEME}.png", output_width=CANVAS, output_height=CANVAS)
# HTML: pygal's interactive SVG output (embedded in a minimal page)
with open(f"plot-{THEME}.html", "w", encoding="utf-8") as f:
f.write(chart.render(is_unicode=True))
Part of Crossword Puzzle Grid on anyplot.ai.
