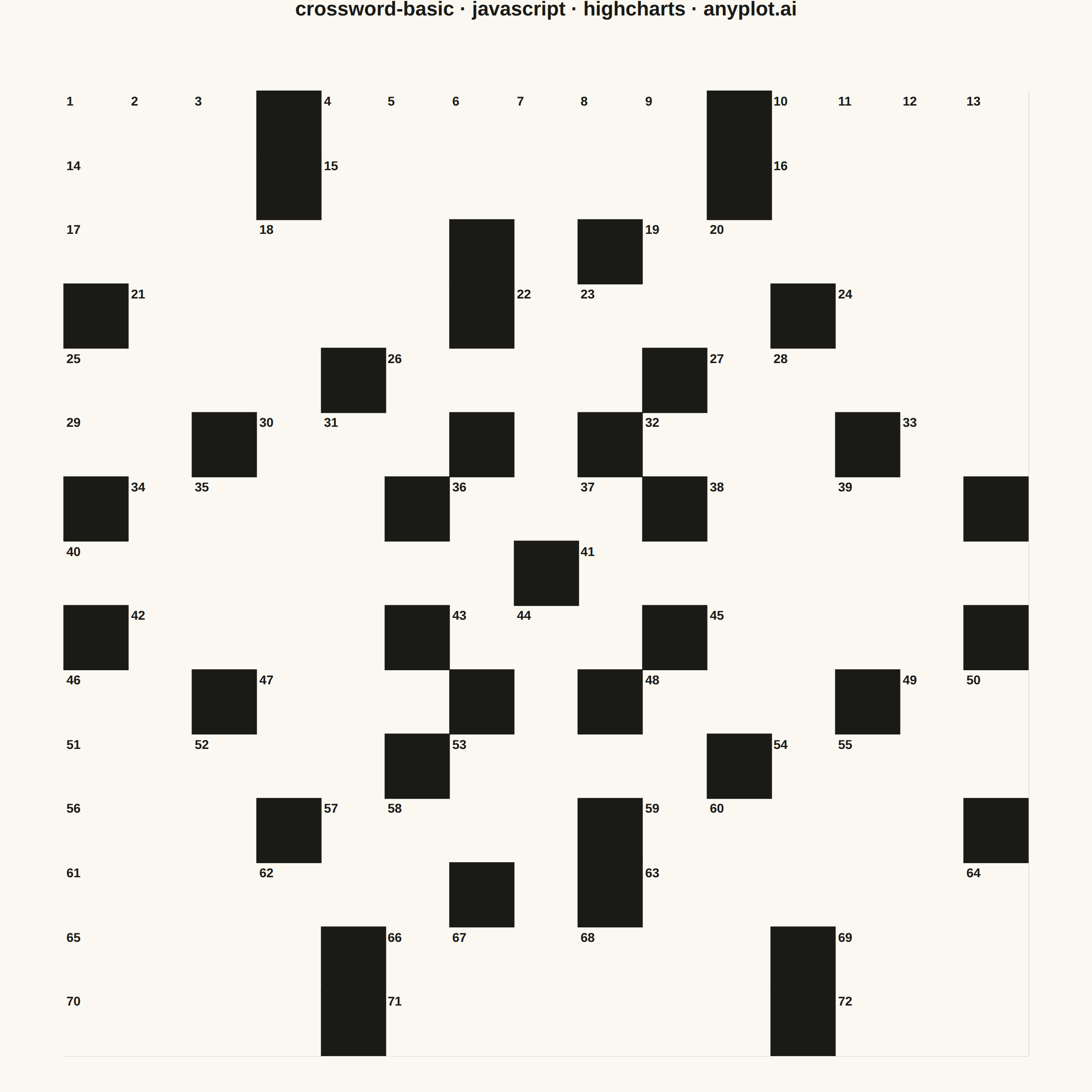

A crossword puzzle grid visualization with white entry cells for letters, black blocking cells, and numbered starting positions for across and down words. The symmetric black cell pattern follows traditional newspaper-style crossword conventions, creating a clean and recognizable puzzle layout suitable for printing or digital display.
// anyplot.ai
// crossword-basic: Crossword Puzzle Grid
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 84/100 | Created: 2026-09-02
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
const size = window.ANYPLOT_SIZE;
// Crossword cell colors — fixed regardless of theme (contrast IS the data):
// blocked squares stay near-black and entry squares stay near-white in both
// light and dark renders, matching the traditional newspaper-crossword
// convention instead of flipping with the page chrome.
const CELL_BLOCK = "#1A1A17";
const CELL_ENTRY = "#FAF8F1";
// --- Data: symmetric 15x15 crossword grid (180-degree rotational symmetry) -
const N = 15;
// Only the "first half" of blocked cells is listed; the mirrored partner
// (N-1-row, N-1-col) is added below, which is how newspaper crosswords keep
// their traditional 180-degree rotational symmetry.
const blockedHalf = [
[0, 3], [0, 10],
[1, 3], [1, 10],
[2, 6], [2, 8],
[3, 0], [3, 6], [3, 11],
[4, 4], [4, 9],
[5, 2], [5, 6], [5, 8], [5, 12],
[6, 0], [6, 5], [6, 9], [6, 14],
[7, 7],
];
const blocked = new Set();
blockedHalf.forEach(([row, col]) => {
blocked.add(`${row},${col}`);
blocked.add(`${N - 1 - row},${N - 1 - col}`);
});
const isBlocked = (row, col) => blocked.has(`${row},${col}`);
// Standard crossword numbering: a cell is numbered when it starts an across
// and/or a down entry (no open cell to its left/above, and an open cell
// follows to its right/below).
let nextNumber = 1;
const numberedCells = [];
for (let row = 0; row < N; row += 1) {
for (let col = 0; col < N; col += 1) {
if (isBlocked(row, col)) continue;
const startsAcross = (col === 0 || isBlocked(row, col - 1)) &&
col + 1 < N && !isBlocked(row, col + 1);
const startsDown = (row === 0 || isBlocked(row - 1, col)) &&
row + 1 < N && !isBlocked(row + 1, col);
if (startsAcross || startsDown) {
numberedCells.push({ row, col, number: nextNumber });
nextNumber += 1;
}
}
}
// --- Layout: fixed margins keep the plot area an exact square so grid cells
// stay 1:1, independent of Highcharts' auto layout for title/axes -----------
const MARGIN_TOP = 100;
const MARGIN_BOTTOM = 40;
const MARGIN_SIDE = 70;
const cellPx = (size.width - MARGIN_SIDE * 2) / N;
const blockedCells = [...blocked].map((key) => {
const [row, col] = key.split(",").map(Number);
return { x: col + 0.5, y: row + 0.5 };
});
const entryCells = [];
for (let row = 0; row < N; row += 1) {
for (let col = 0; col < N; col += 1) {
if (!isBlocked(row, col)) entryCells.push({ x: col + 0.5, y: row + 0.5 });
}
}
const numberPoints = numberedCells.map(({ row, col, number }) => ({
x: col,
y: row,
name: String(number),
}));
// --- Chart -------------------------------------------------------------
Highcharts.chart("container", {
chart: {
type: "scatter",
backgroundColor: "transparent",
animation: false,
spacing: [0, 0, 0, 0],
marginTop: MARGIN_TOP,
marginBottom: MARGIN_BOTTOM,
marginLeft: MARGIN_SIDE,
marginRight: MARGIN_SIDE,
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
colors: t.palette,
title: {
text: "crossword-basic · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
tooltip: { enabled: false },
legend: { enabled: false },
xAxis: {
min: 0,
max: N,
tickInterval: 1,
gridLineWidth: 1,
gridLineColor: t.grid,
lineWidth: 0,
tickLength: 0,
labels: { enabled: false },
title: { text: null },
},
yAxis: {
min: 0,
max: N,
reversed: true,
tickInterval: 1,
gridLineWidth: 1,
gridLineColor: t.grid,
lineWidth: 0,
tickLength: 0,
labels: { enabled: false },
title: { text: null },
},
plotOptions: {
series: { animation: false, enableMouseTracking: false },
},
series: [
{
name: "Entry cells",
type: "scatter",
data: entryCells,
marker: {
symbol: "square",
radius: cellPx / 2 + 0.5,
fillColor: CELL_ENTRY,
lineWidth: 0,
},
dataLabels: { enabled: false },
},
{
name: "Blocked cells",
type: "scatter",
data: blockedCells,
marker: {
symbol: "square",
radius: cellPx / 2 + 0.5,
fillColor: CELL_BLOCK,
lineWidth: 0,
},
dataLabels: { enabled: false },
},
{
name: "Clue numbers",
type: "scatter",
data: numberPoints,
marker: { enabled: false },
dataLabels: {
enabled: true,
format: "{point.name}",
align: "left",
verticalAlign: "top",
x: 3,
y: 2,
padding: 0,
crop: false,
overflow: "allow",
allowOverlap: true,
style: {
color: CELL_BLOCK,
fontSize: "14px",
fontWeight: "600",
textOutline: "none",
},
},
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/crossword-basic/highcharts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "crossword-basic",
"language": "javascript",
"library": "highcharts",
"page": "https://anyplot.ai/crossword-basic/javascript/highcharts",
"hub": "https://anyplot.ai/crossword-basic",
"code_json": "https://api.anyplot.ai/specs/crossword-basic/highcharts/code",
"spec_json": "https://api.anyplot.ai/specs/crossword-basic",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/crossword-basic/javascript/highcharts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/crossword-basic/javascript/highcharts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/crossword-basic/javascript/highcharts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/crossword-basic/javascript/highcharts/plot-dark.html",
"quality_score": 84.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Crossword Puzzle Grid on anyplot.ai.
