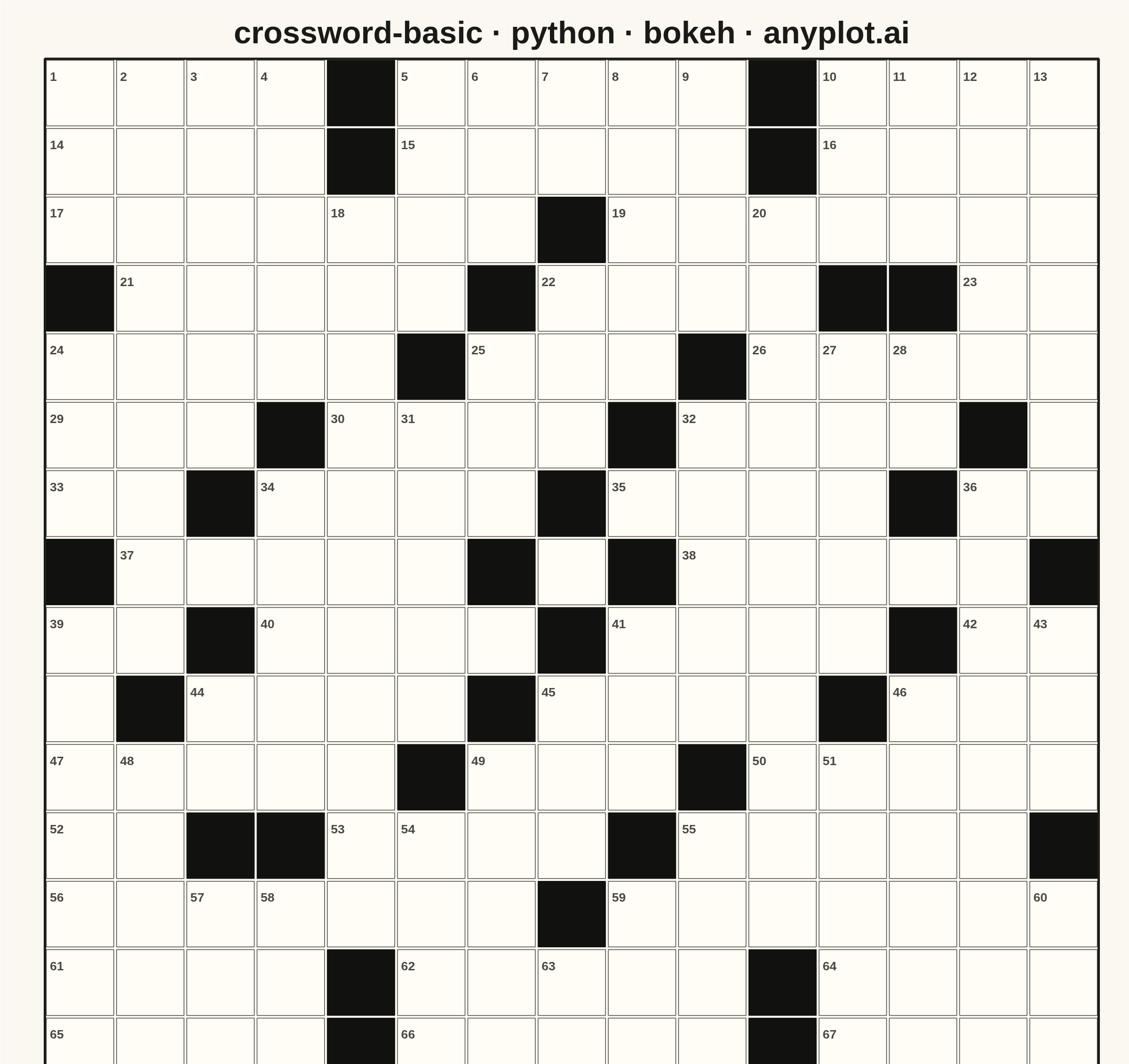

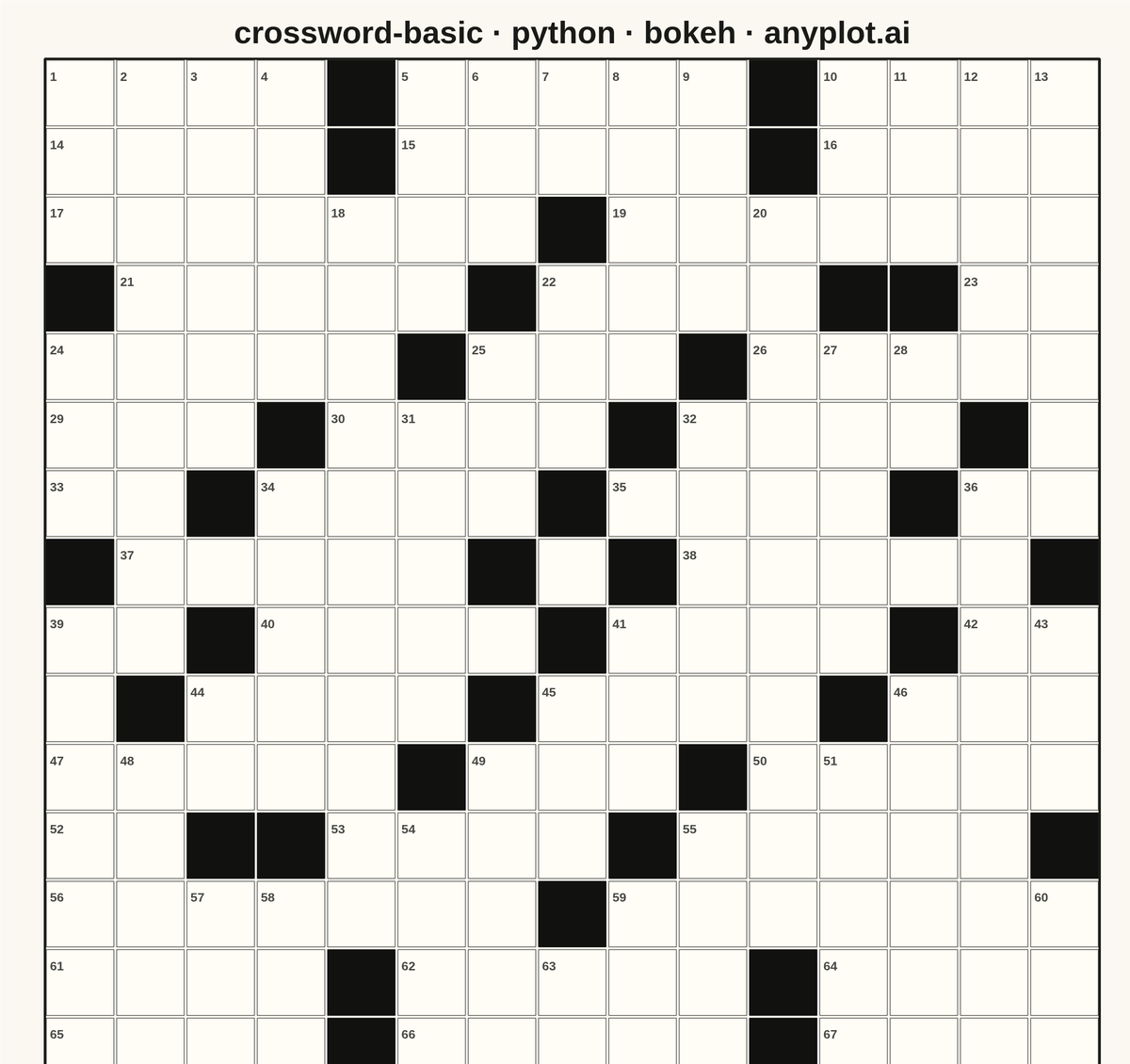

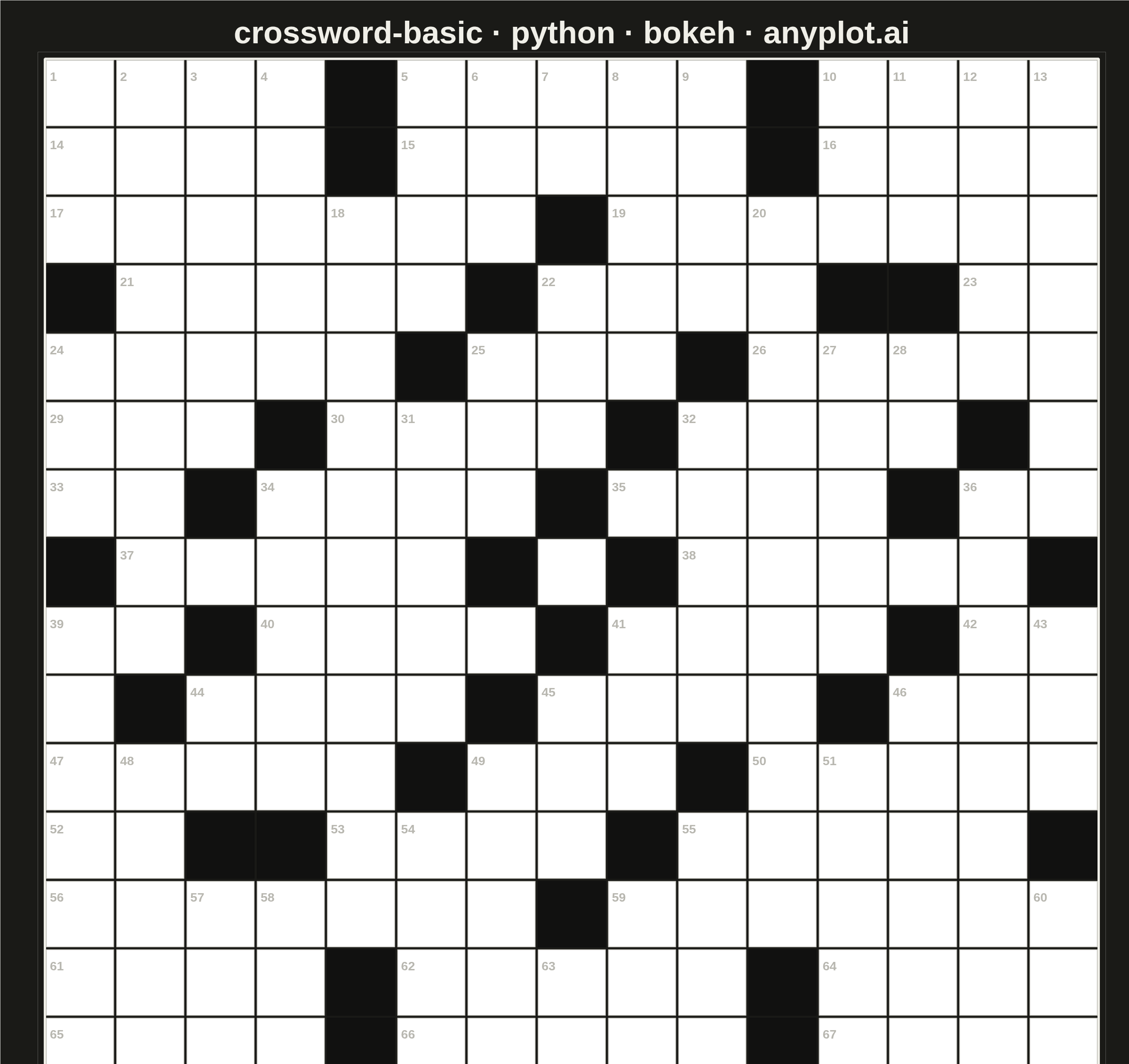

A crossword puzzle grid visualization with white entry cells for letters, black blocking cells, and numbered starting positions for across and down words. The symmetric black cell pattern follows traditional newspaper-style crossword conventions, creating a clean and recognizable puzzle layout suitable for printing or digital display.
""" anyplot.ai
crossword-basic: Crossword Puzzle Grid
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 84/100 | Updated: 2026-05-20
"""
import sys
from pathlib import Path
_script_dir = str(Path(__file__).parent.absolute())
sys.path = [p for p in sys.path if p != _script_dir and p != ""]
import os
import time
import numpy as np
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, HoverTool, LabelSet
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Warmer off-white for entry cells — avoids harsh pure-white against the warm page background
CELL_BG = "#FFFDF6" if THEME == "light" else "#FFFFFF"
# Data — 15x15 crossword grid with 180-degree rotational symmetry
np.random.seed(42)
grid_size = 15
grid = np.zeros((grid_size, grid_size), dtype=int)
black_positions = [
(0, 4),
(0, 10),
(1, 4),
(1, 10),
(2, 7),
(3, 0),
(3, 6),
(3, 11),
(3, 12),
(4, 5),
(4, 9),
(5, 3),
(5, 8),
(5, 13),
(6, 2),
(6, 7),
(6, 12),
(7, 0),
(7, 6),
(7, 8),
(7, 14),
]
for r, c in black_positions:
grid[r, c] = 1
grid[grid_size - 1 - r, grid_size - 1 - c] = 1
# Clue numbering: cells that start an across or down word
numbers = {}
clue_num = 1
for r in range(grid_size):
for c in range(grid_size):
if grid[r, c] == 1:
continue
starts_across = (c == 0 or grid[r, c - 1] == 1) and (c < grid_size - 1 and grid[r, c + 1] == 0)
starts_down = (r == 0 or grid[r - 1, c] == 1) and (r < grid_size - 1 and grid[r + 1, c] == 0)
if starts_across or starts_down:
numbers[(r, c)] = clue_num
clue_num += 1
# Separate cell data for rendering, hover, and clue number labels
white_x, white_y = [], []
black_x, black_y = [], []
numbered_x, numbered_y, numbered_label = [], [], []
label_x, label_y, label_text = [], [], []
for r in range(grid_size):
for c in range(grid_size):
y = grid_size - 1 - r # flip so row 0 is at top
if grid[r, c] == 0:
white_x.append(c)
white_y.append(y)
if (r, c) in numbers:
numbered_x.append(c)
numbered_y.append(y)
numbered_label.append(f"Clue {numbers[(r, c)]}")
label_x.append(c - 0.43)
label_y.append(y + 0.18)
label_text.append(str(numbers[(r, c)]))
else:
black_x.append(c)
black_y.append(y)
# Plot — square canvas for 1:1 cell aspect ratio
p = figure(
width=2400,
height=2400,
title="crossword-basic · python · bokeh · anyplot.ai",
x_range=(-0.6, grid_size - 0.4),
y_range=(-0.6, grid_size - 0.4),
toolbar_location=None,
min_border_bottom=80,
min_border_left=80,
min_border_top=110,
min_border_right=50,
)
p.xaxis.visible = False
p.yaxis.visible = False
p.xgrid.visible = False
p.ygrid.visible = False
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = None
p.title.text_font_size = "50pt"
p.title.align = "center"
p.title.text_color = INK
# White entry cells — warm off-white fill to complement the page surface
white_source = ColumnDataSource(data={"x": white_x, "y": white_y})
p.rect(
x="x", y="y", source=white_source, width=0.96, height=0.96, fill_color=CELL_BG, line_color=INK_SOFT, line_width=1.5
)
# Transparent overlay on numbered cells — hover targets without visual double-drawing
numbered_source = ColumnDataSource(data={"x": numbered_x, "y": numbered_y, "label": numbered_label})
numbered_renderer = p.rect(x="x", y="y", source=numbered_source, width=0.96, height=0.96, fill_alpha=0, line_alpha=0)
hover = HoverTool(renderers=[numbered_renderer], tooltips=[("", "@label")])
p.add_tools(hover)
# Black blocking cells
black_source = ColumnDataSource(data={"x": black_x, "y": black_y})
p.rect(
x="x",
y="y",
source=black_source,
width=0.96,
height=0.96,
fill_color="#111110",
line_color="#111110",
line_width=1.5,
)
# Outer perimeter border — thicker frame gives the puzzle a polished, bounded appearance
p.rect(x=7, y=7, width=15.0, height=15.0, fill_alpha=0, line_color=INK, line_width=5)
# Clue numbers via LabelSet — idiomatic Bokeh, batched from ColumnDataSource
label_source = ColumnDataSource(data={"lx": label_x, "ly": label_y, "lt": label_text})
labels = LabelSet(
x="lx", y="ly", text="lt", source=label_source, text_font_size="20pt", text_font_style="bold", text_color=INK_SOFT
)
p.add_layout(labels)
# Save HTML (interactive artifact)
output_file(f"plot-{THEME}.html")
save(p)
# Screenshot via headless Chrome (export_png not used — snap driver conflict)
W, H = 2400, 2400
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
Part of Crossword Puzzle Grid on anyplot.ai.
